SLIM C SM
SLIM C SM blends minimalist form with architectural warmth, delivering precise downward illumination from a refined 49mm-wide profile. Its signature shadow-line detail accommodates both genuine laminated timber veneers and DARKON's sublimation timber finish, allowing designers to achieve the look of natural timber while benefiting from the durability, consistency and longevity of a powder-coated architectural luminaire.
Models
- Lens
- DEGLARING
- Direction
- Direct
- Output Type
- High Efficiency
- Milliamp
- 250 mA
- Watts
- 14.3 W
- Delivered Lumens
- 1042.1 lm
- Efficacy
- 72.9 lm/W
- Colour Temperature (CCT)
- 3500K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options
Lap join milling - No Light Bleed
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints

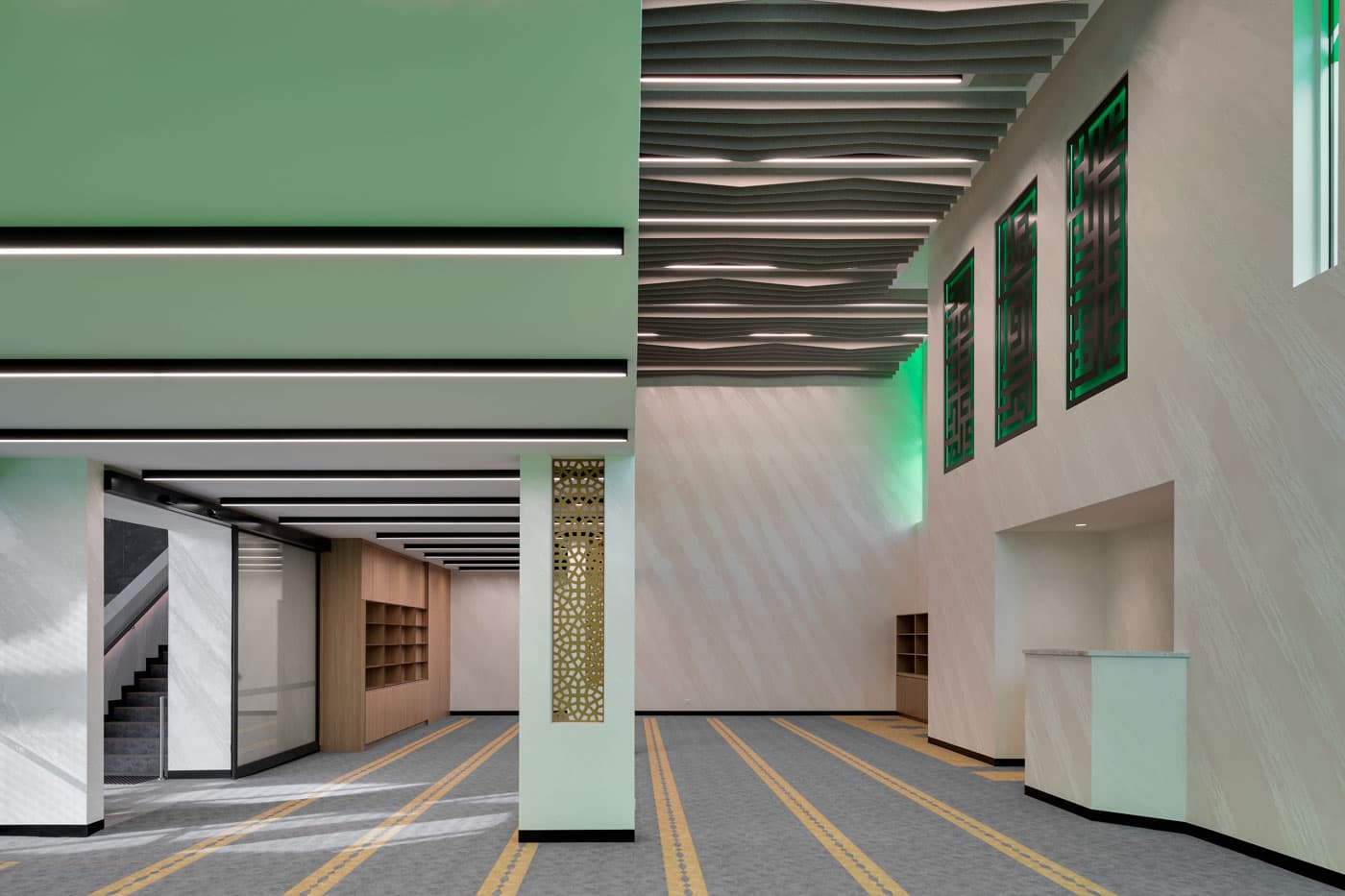

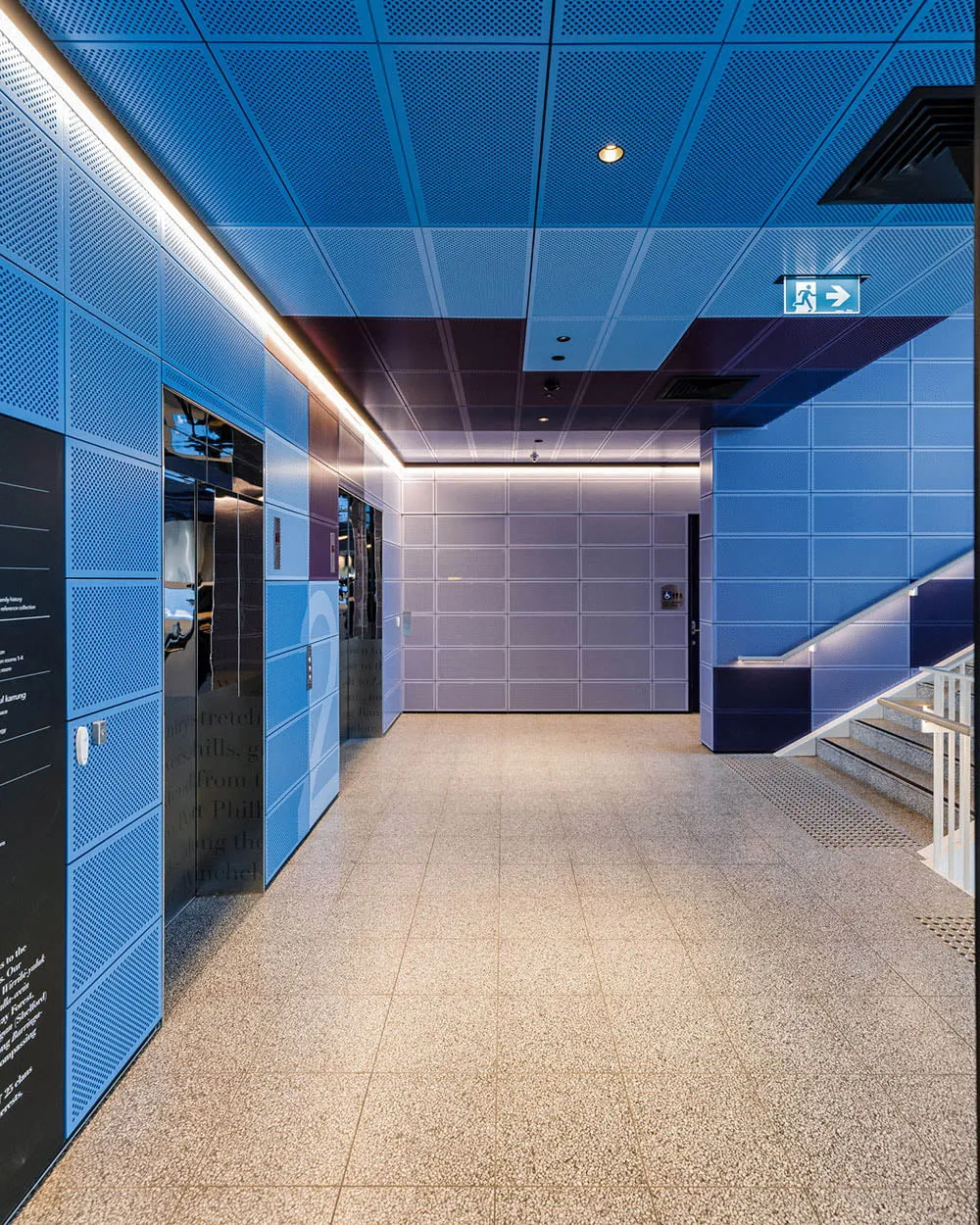

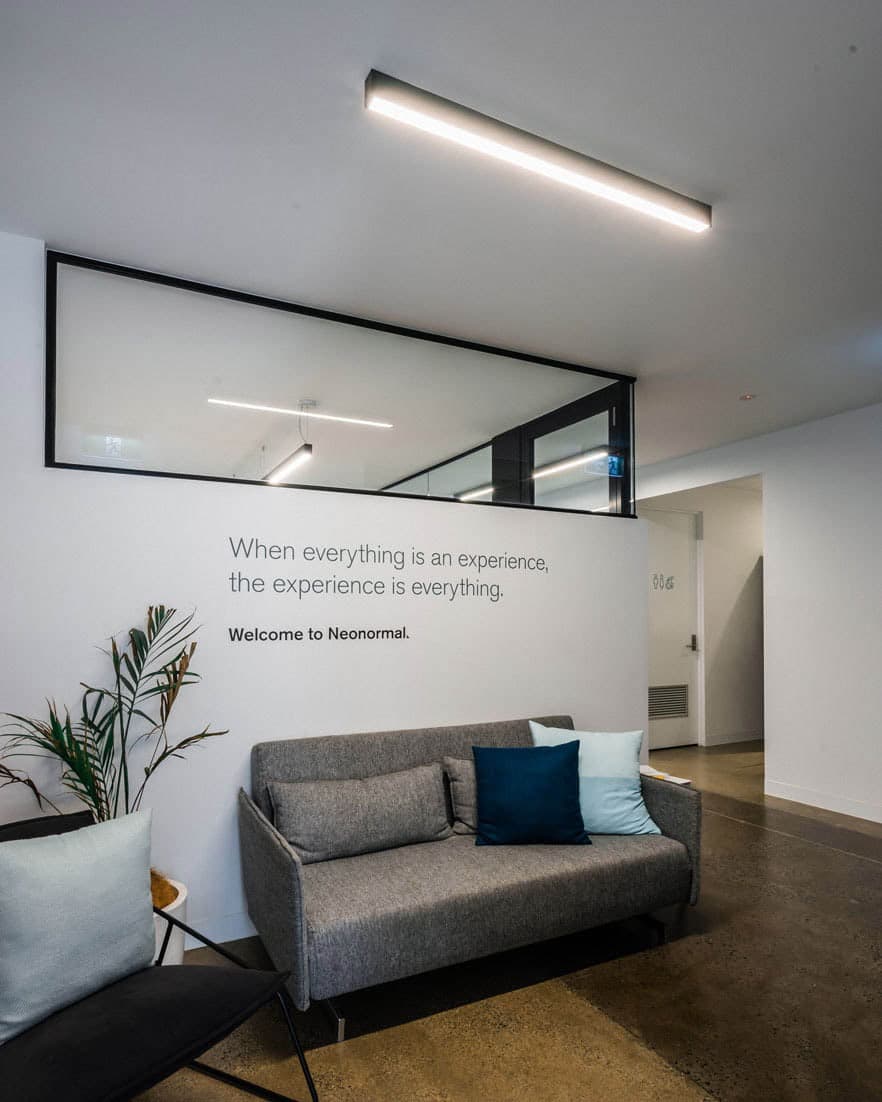

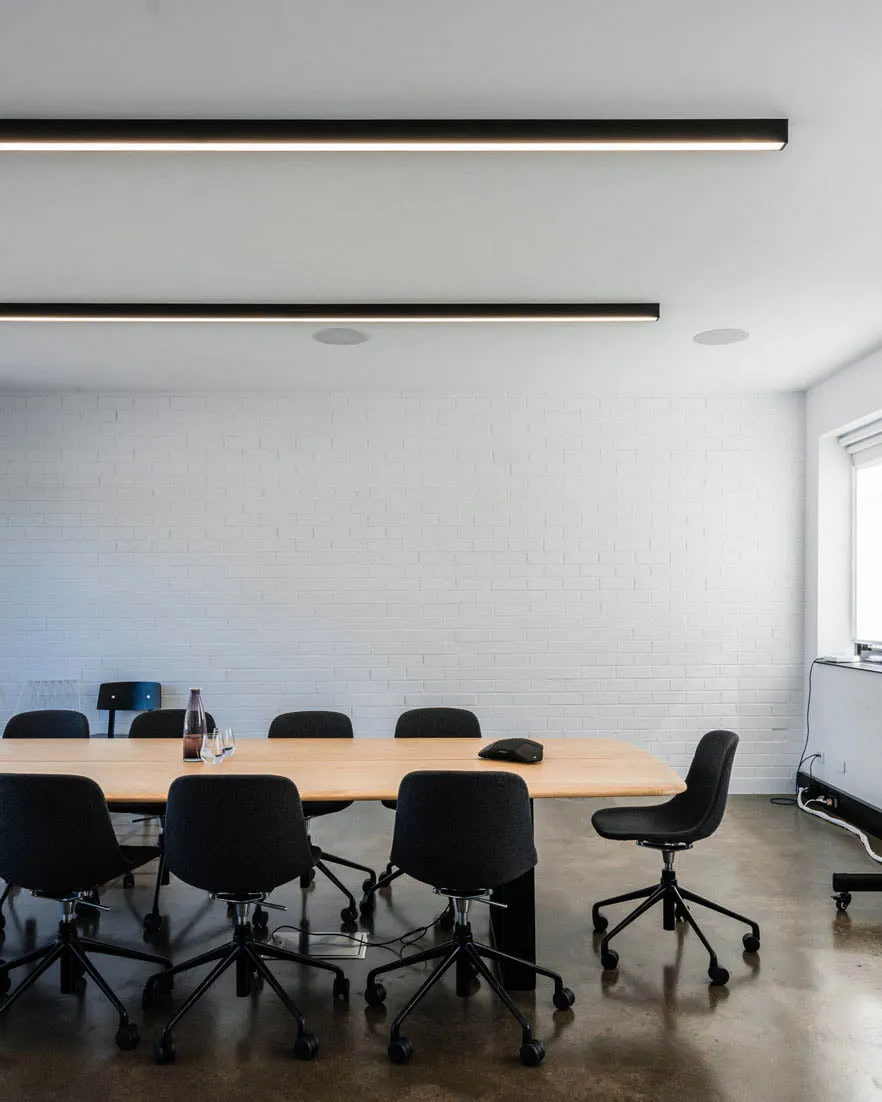

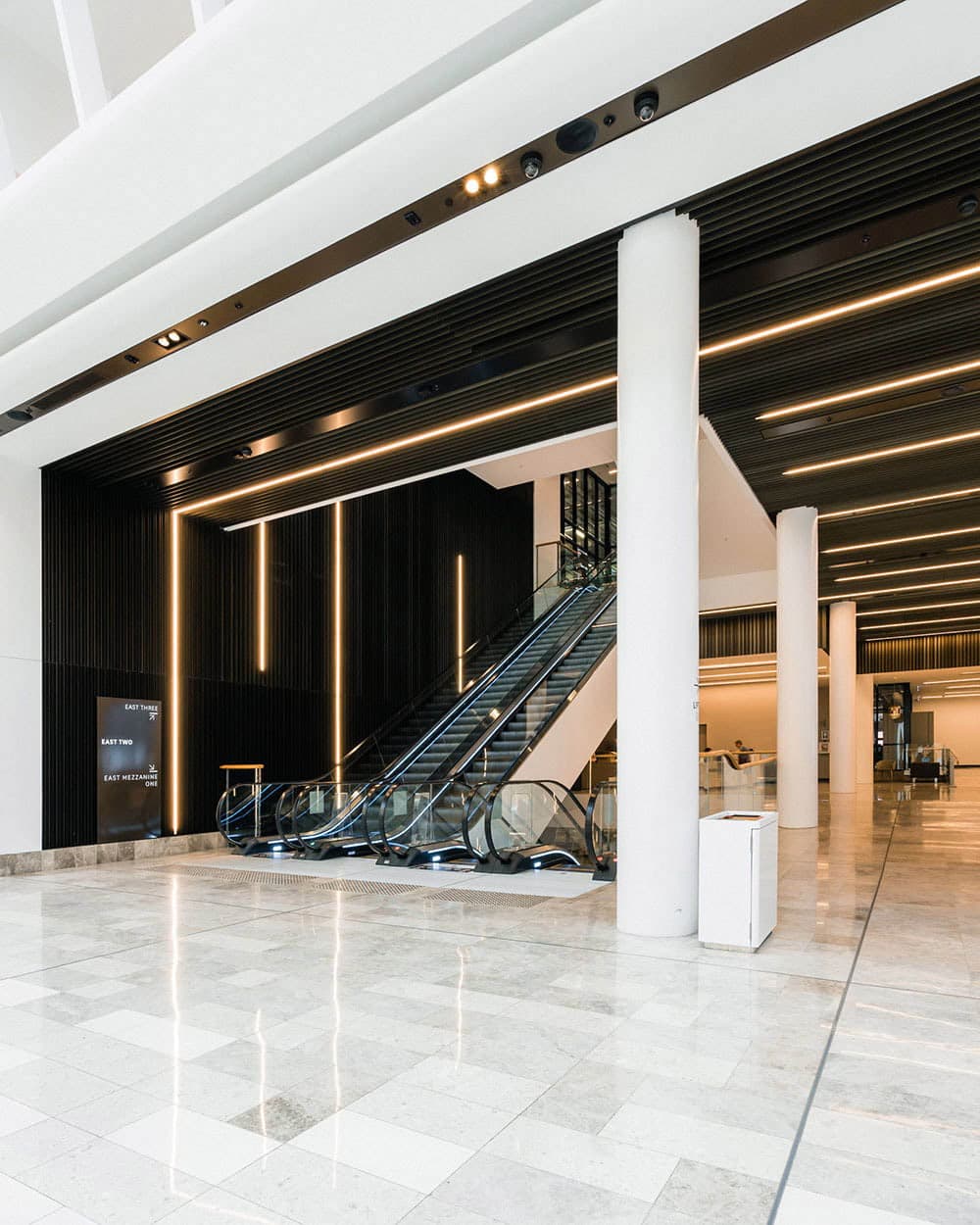

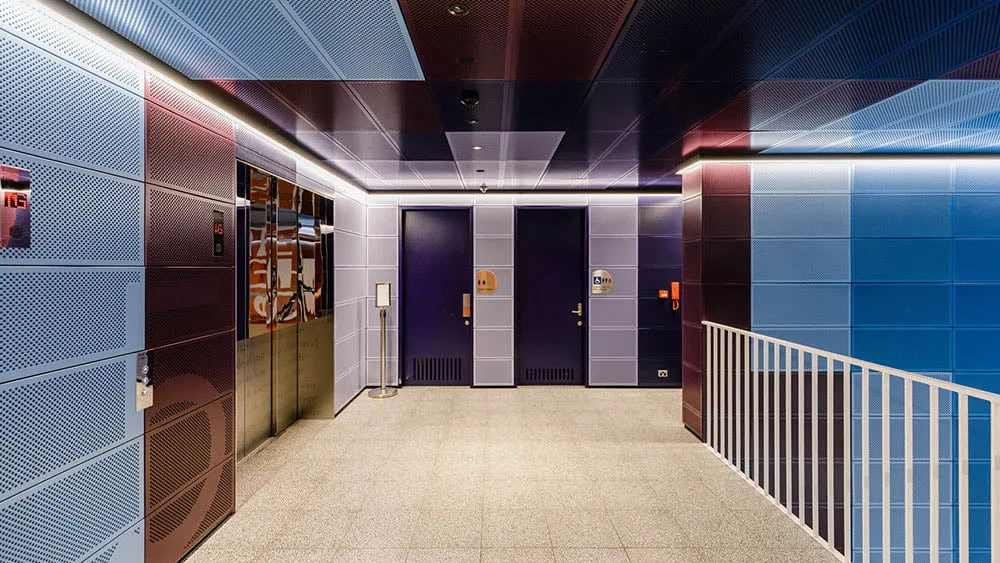

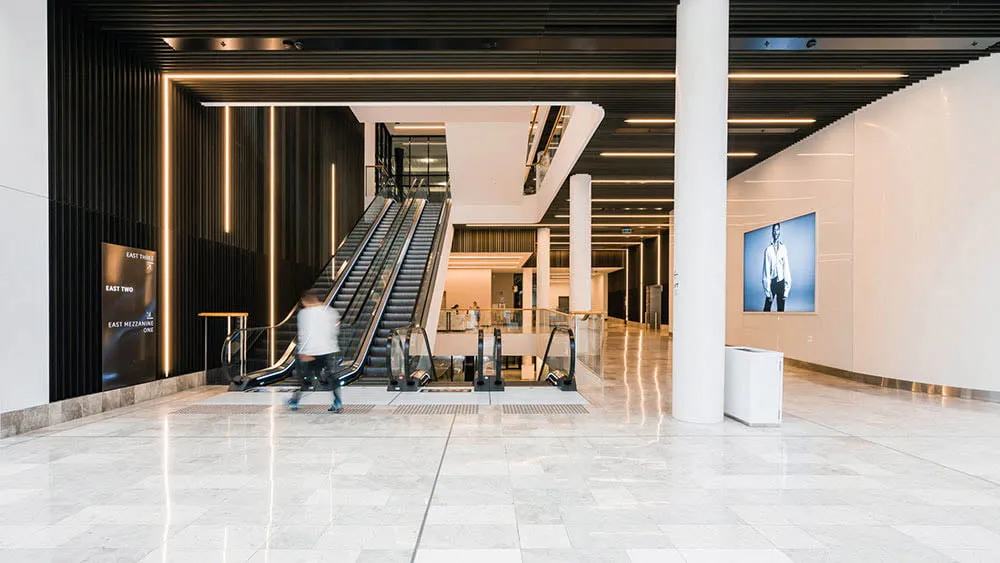

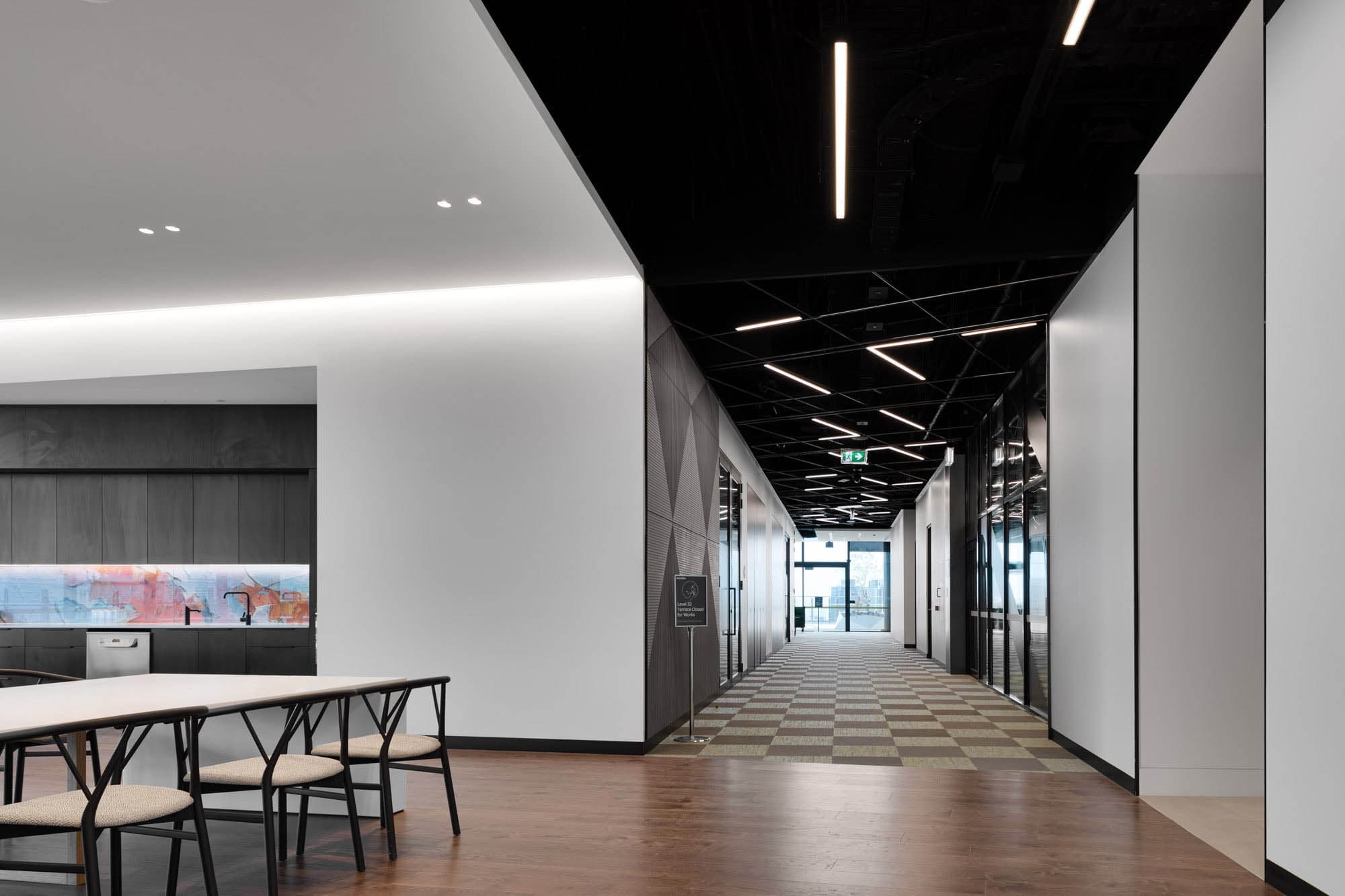

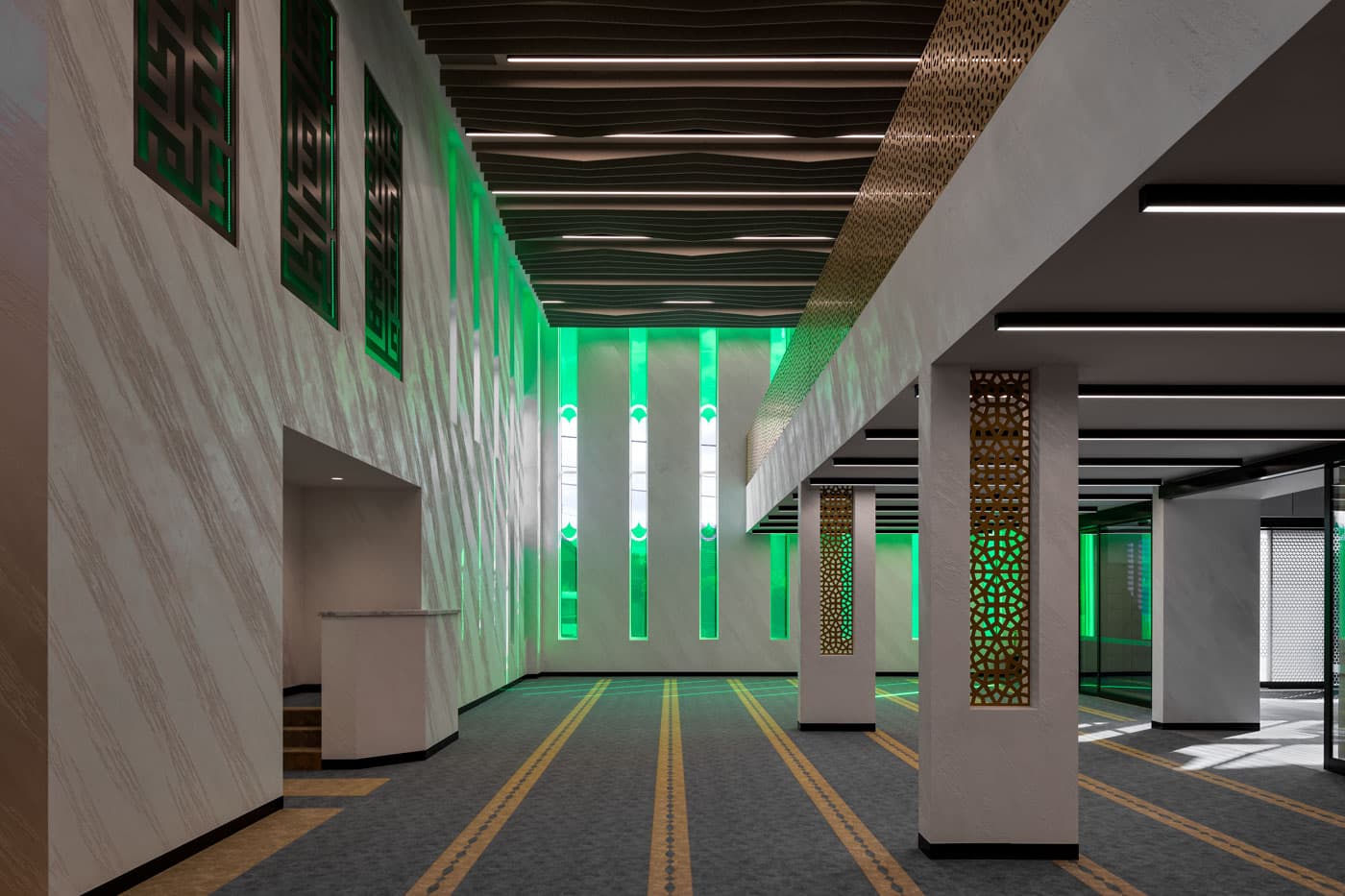

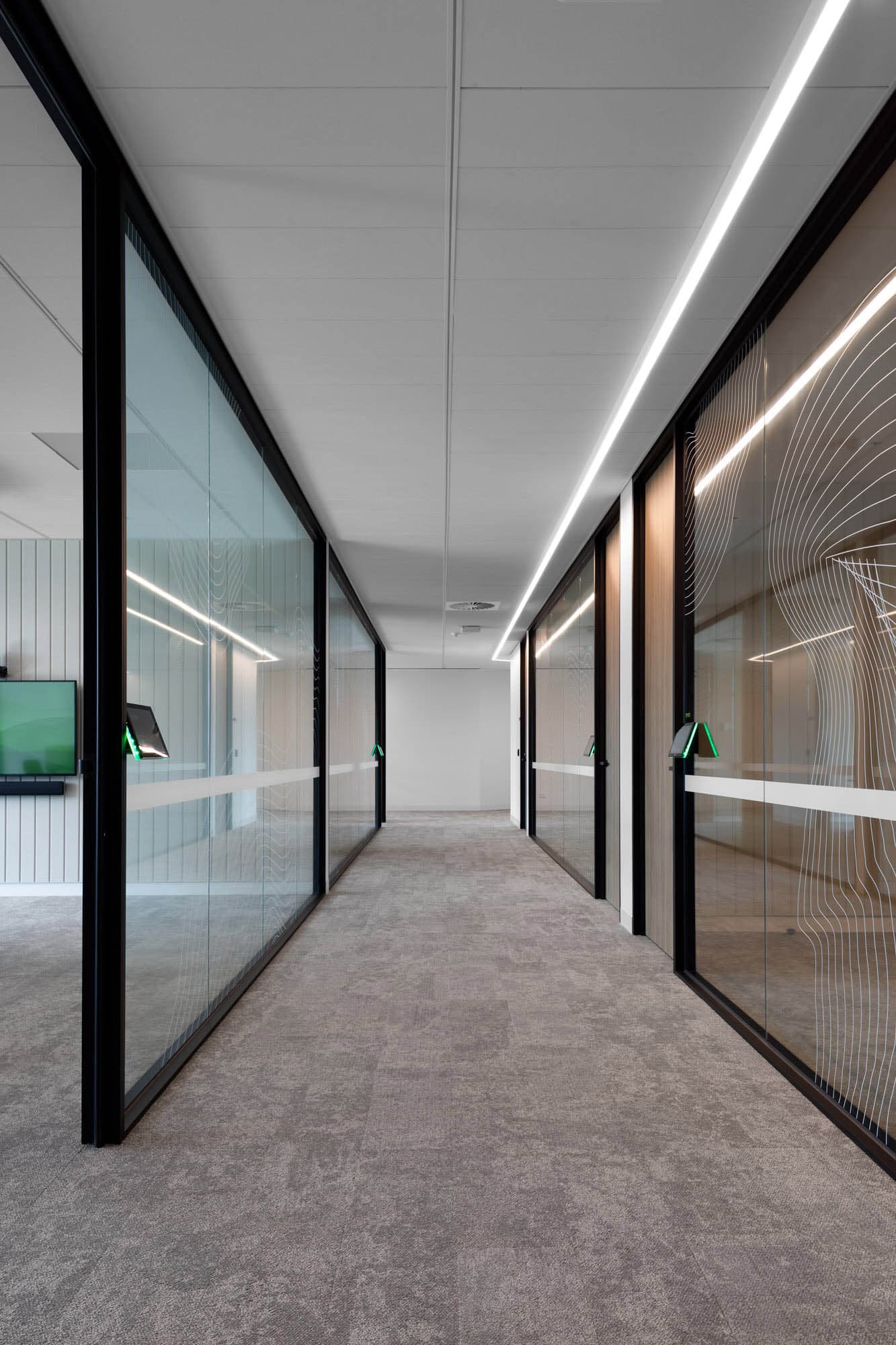

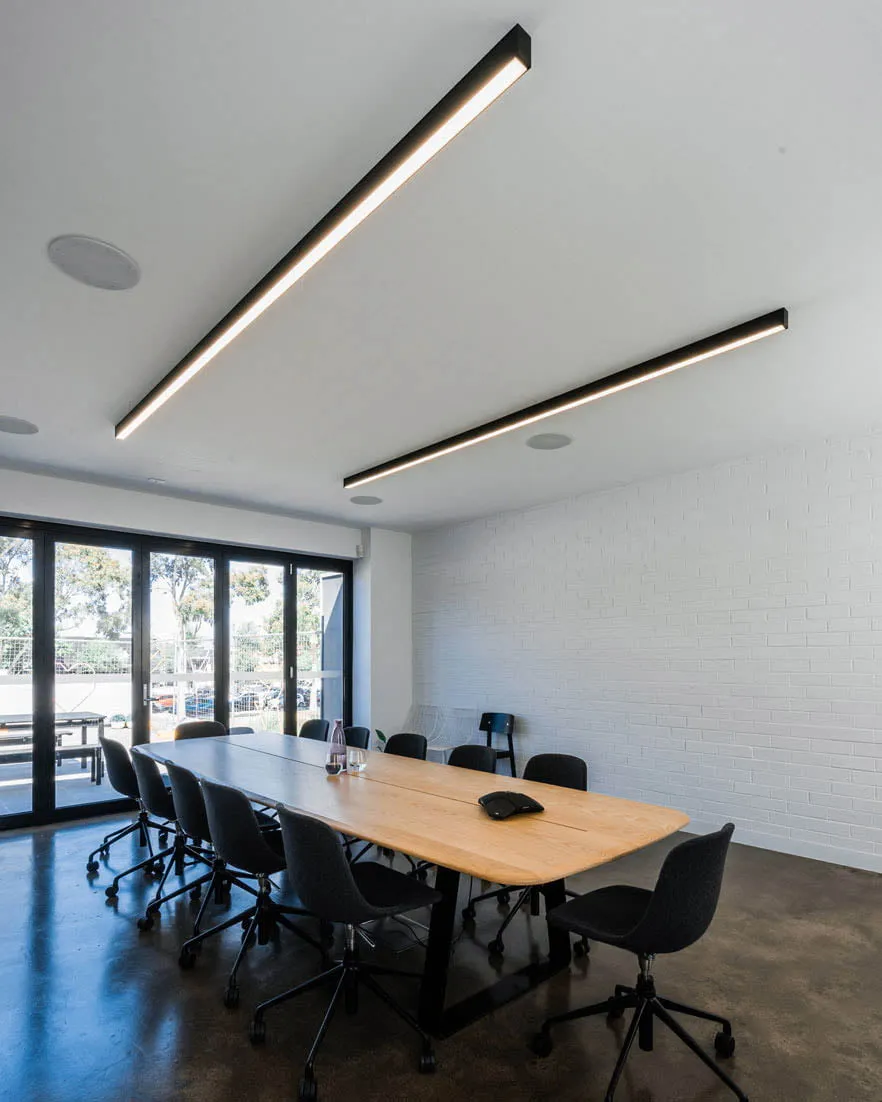

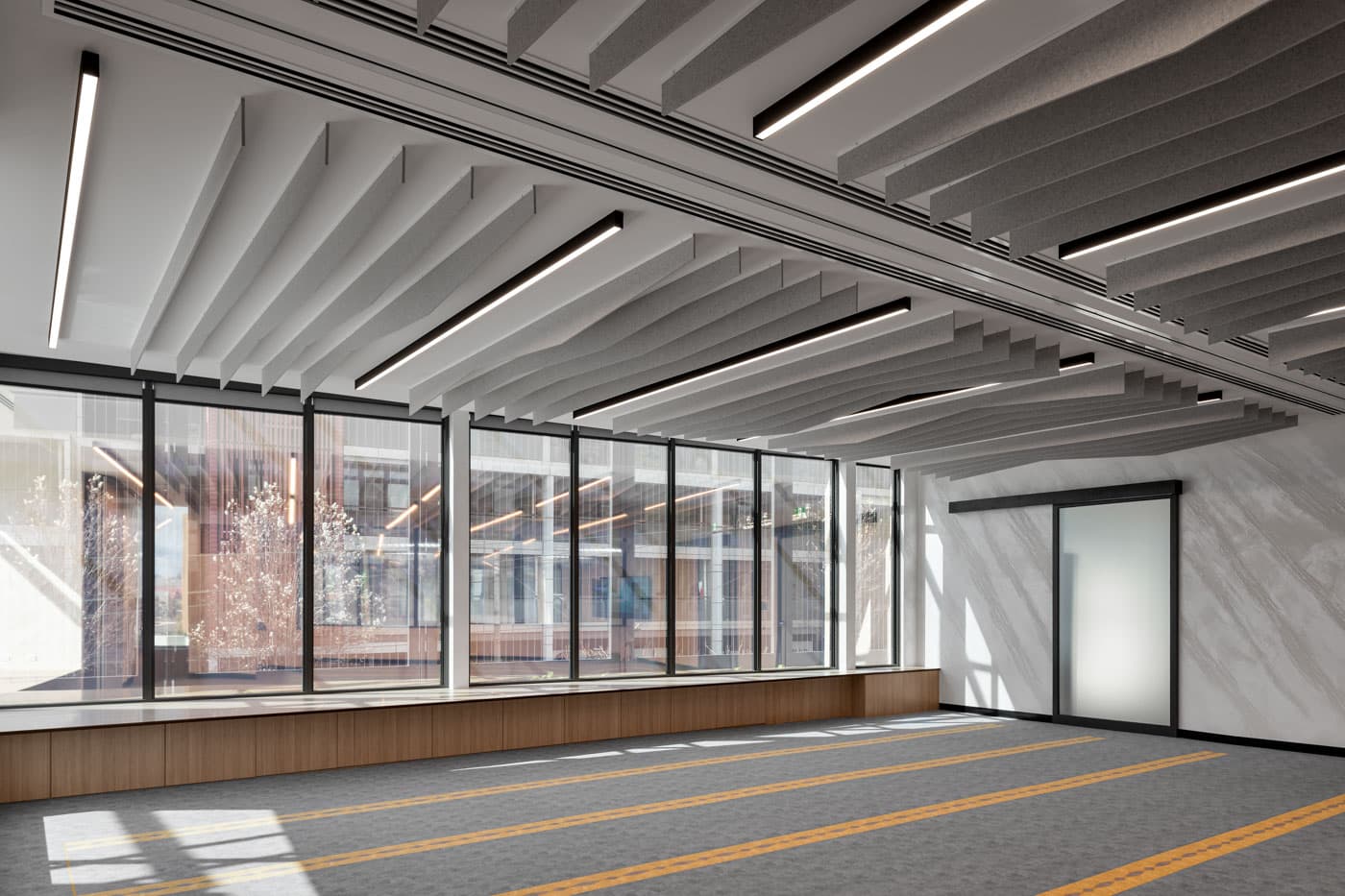

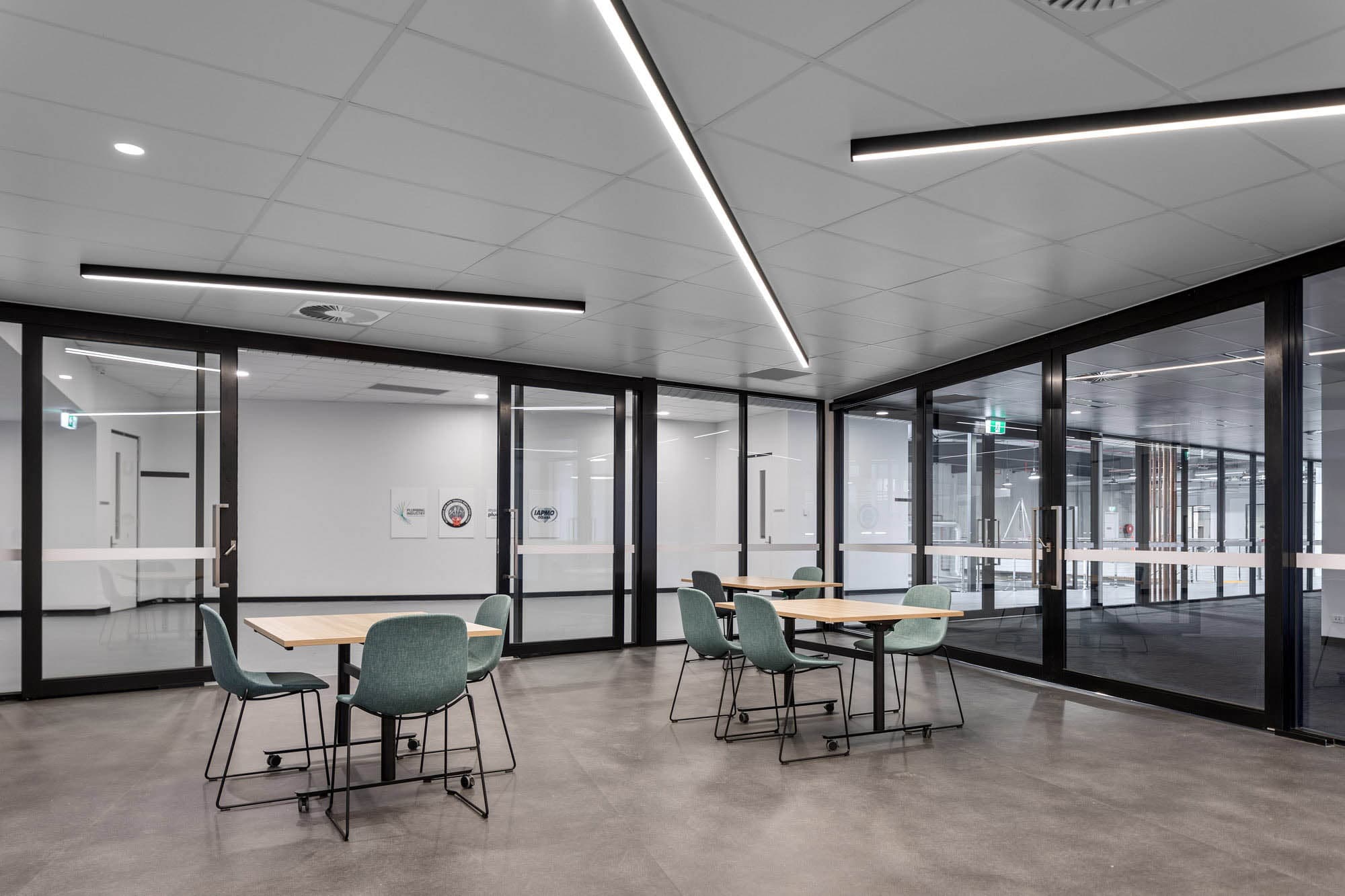

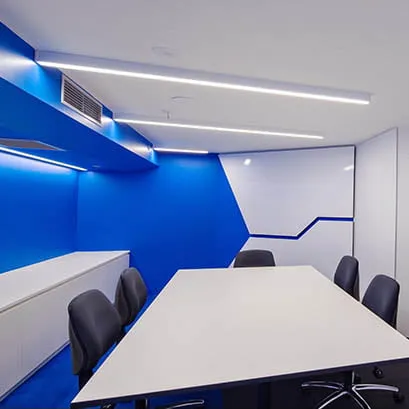

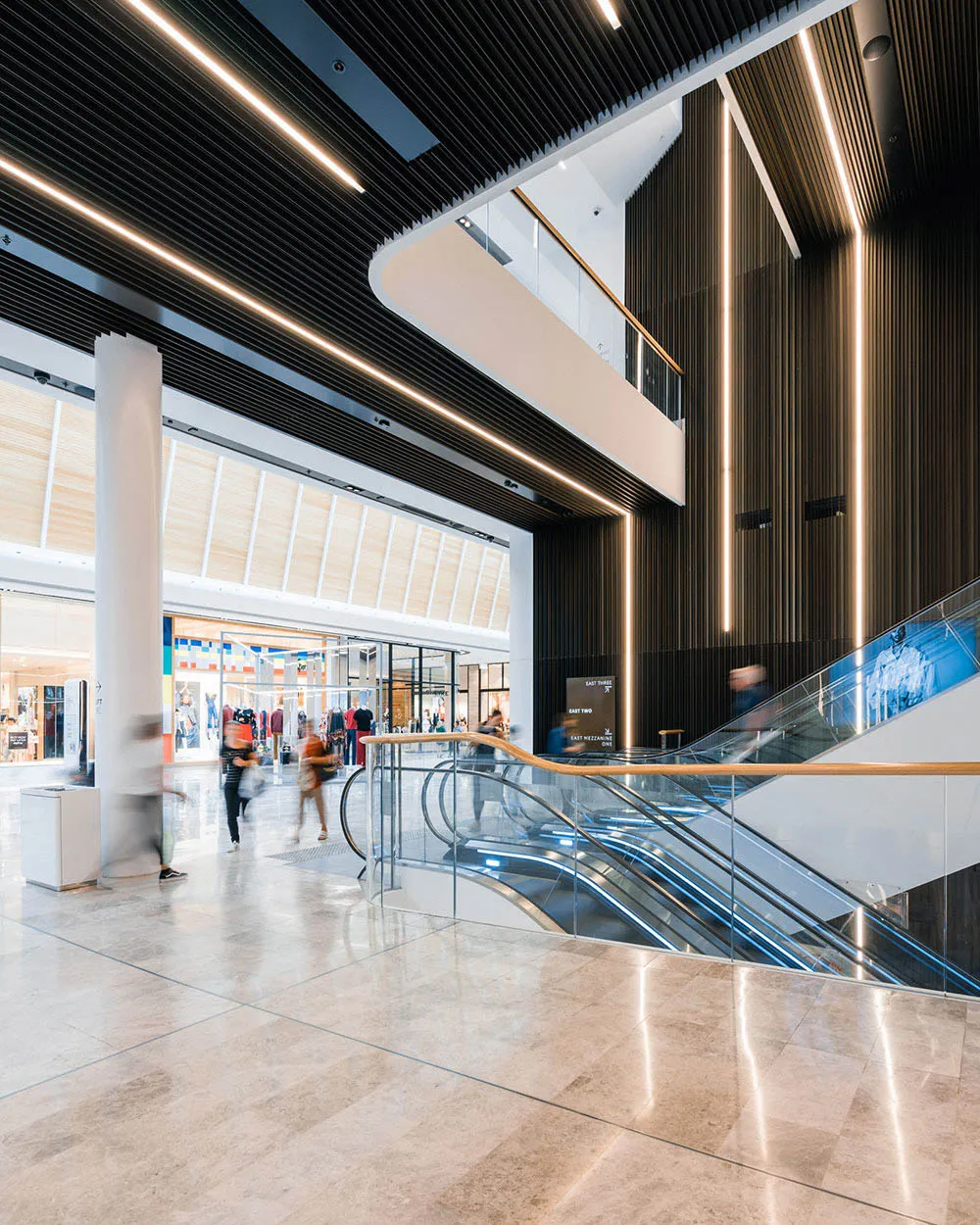

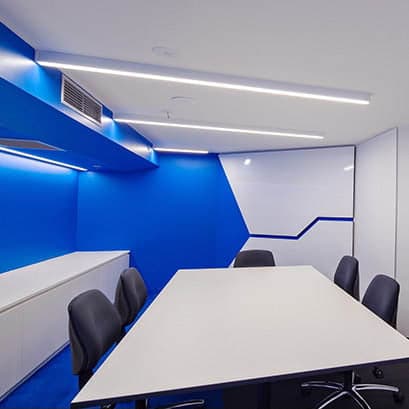

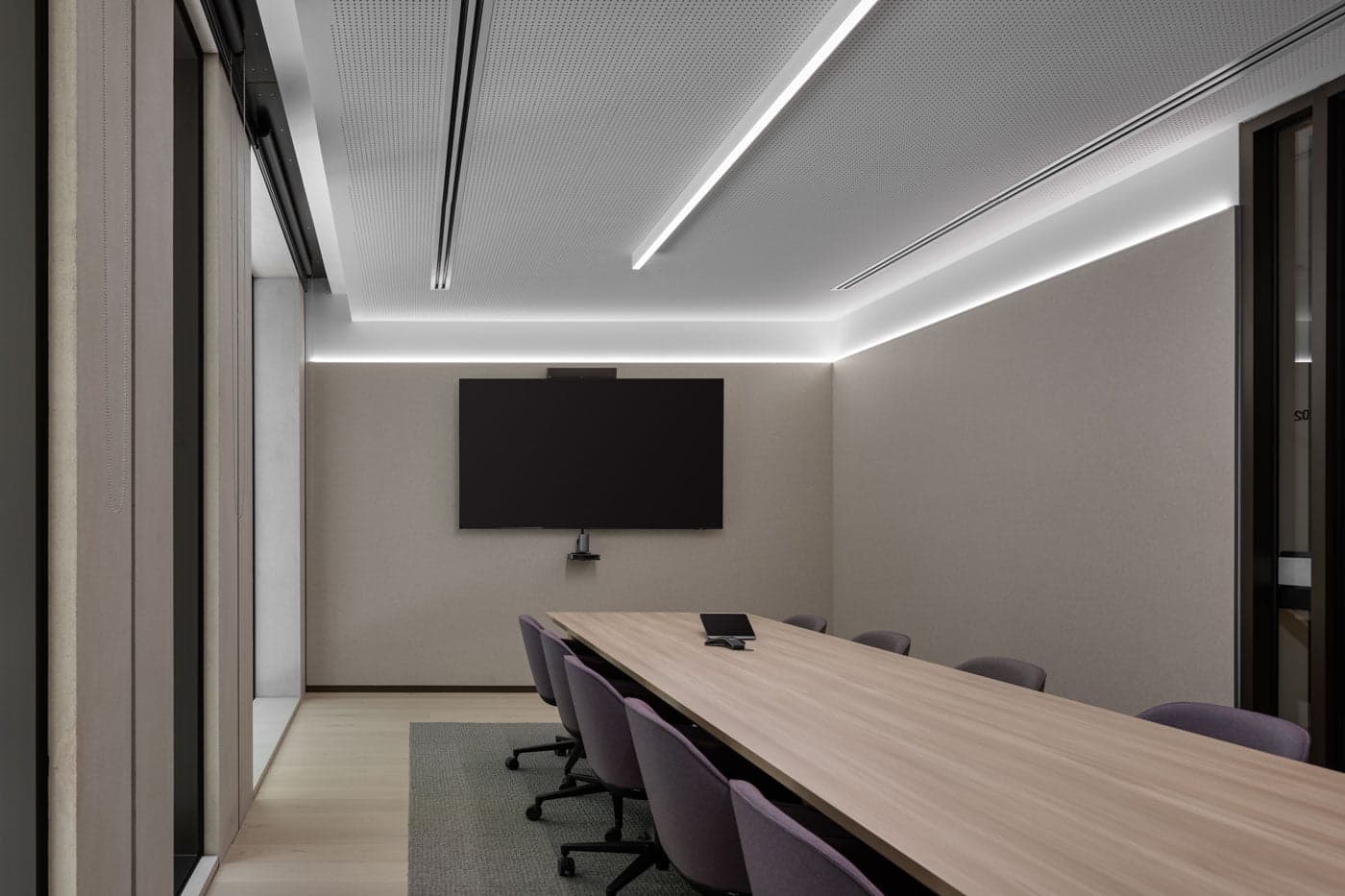

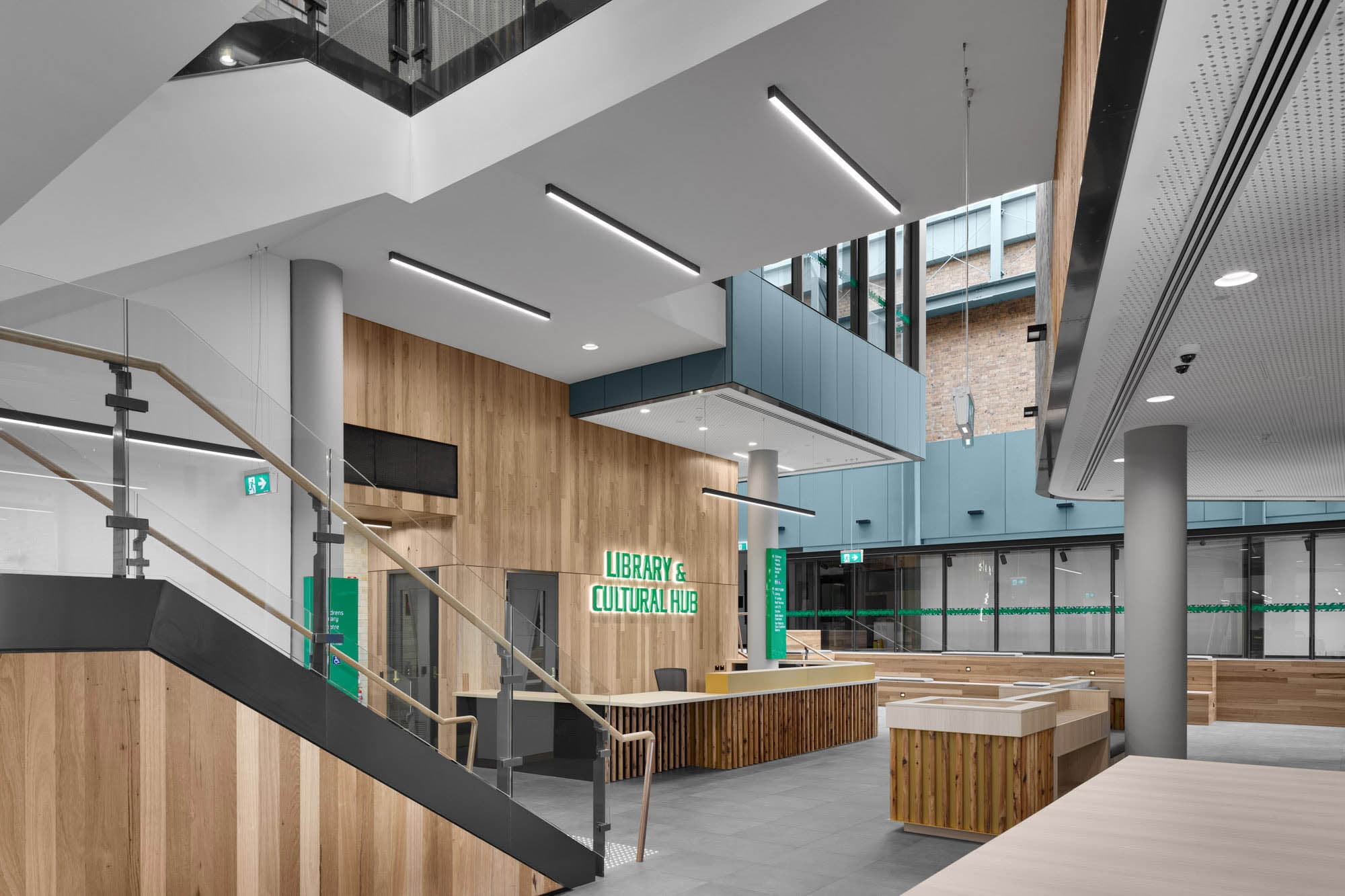

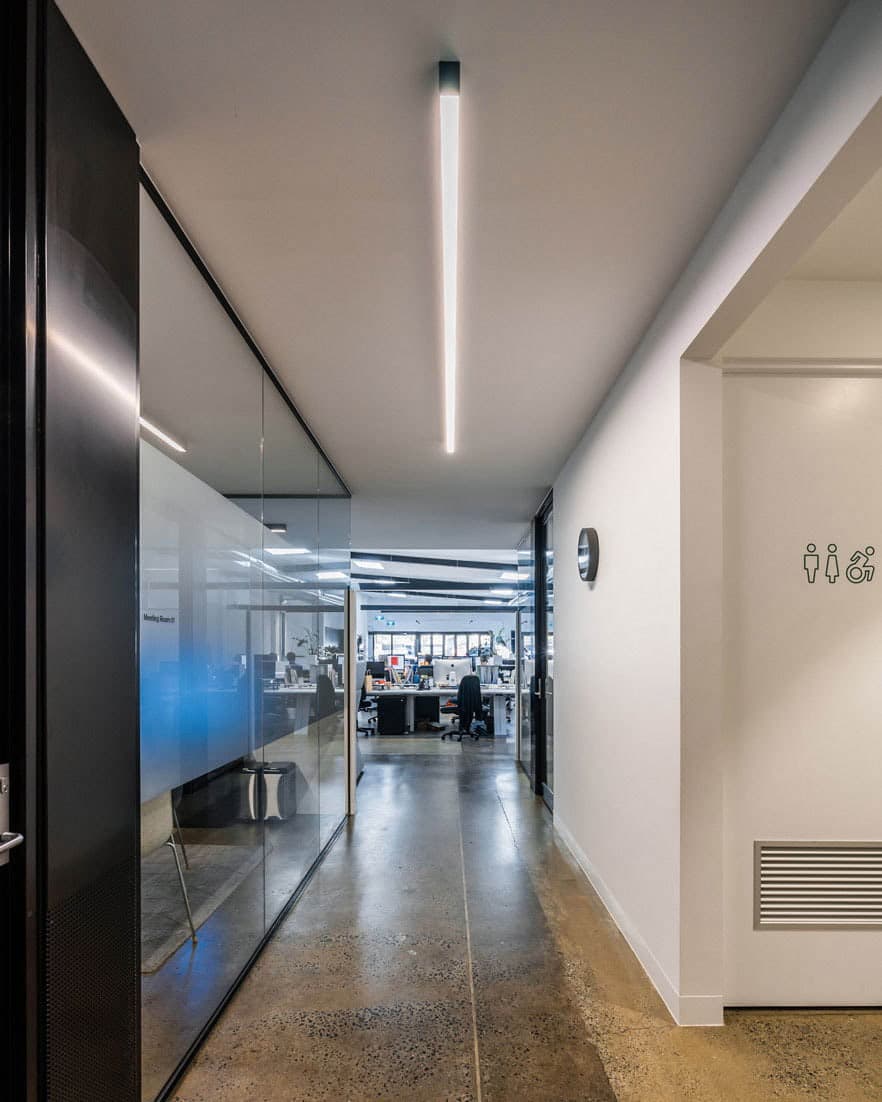

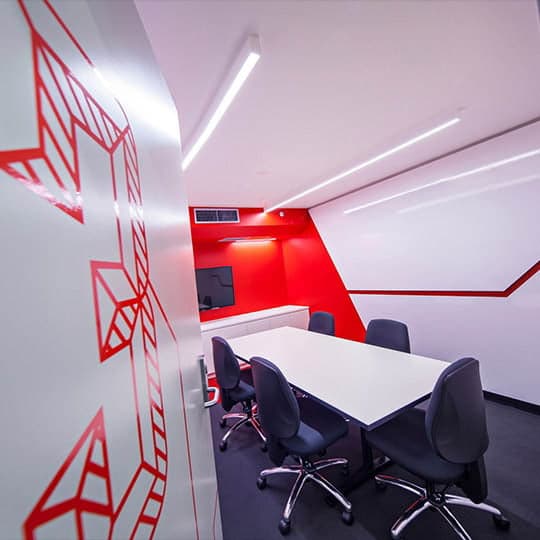

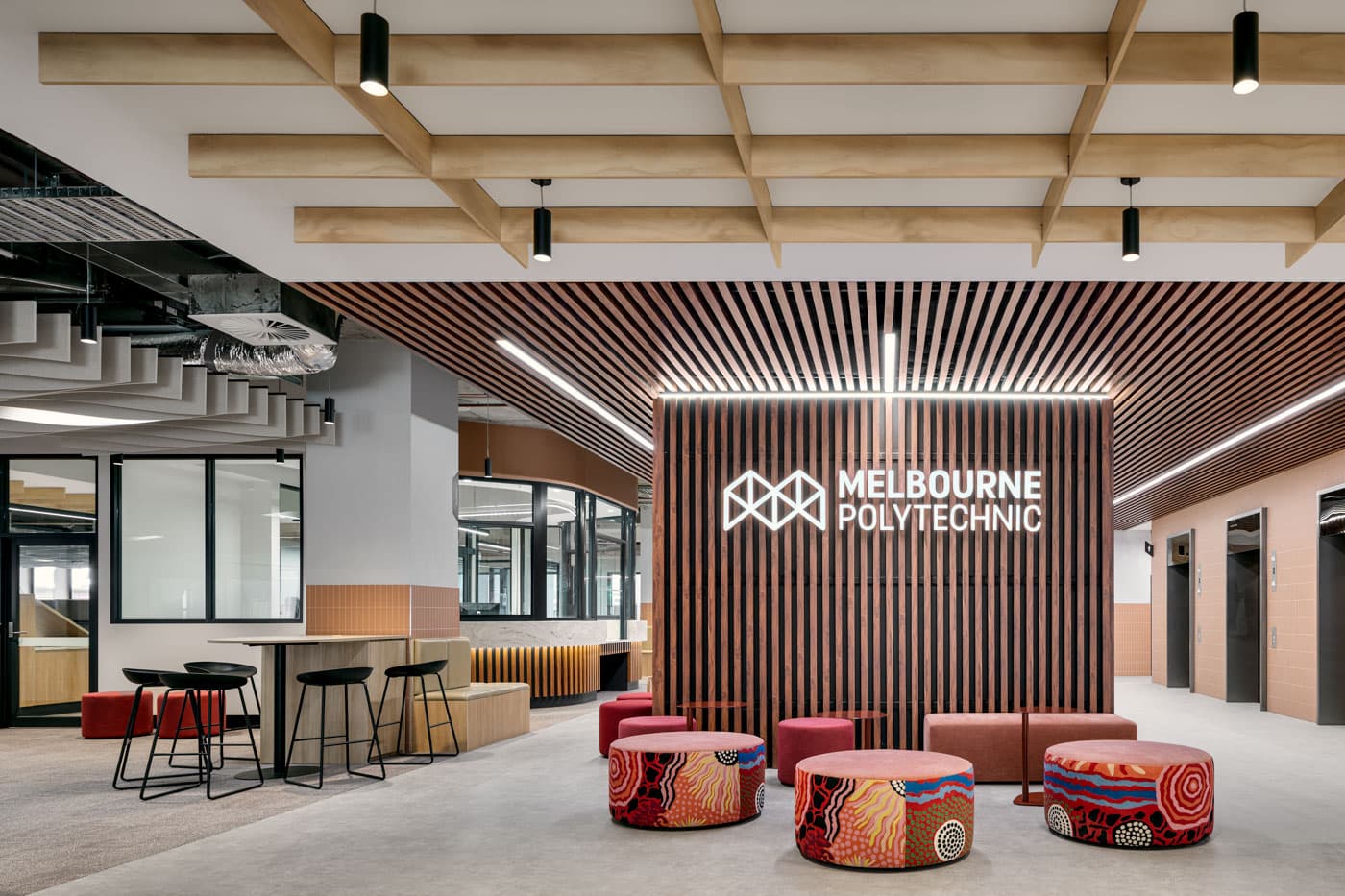

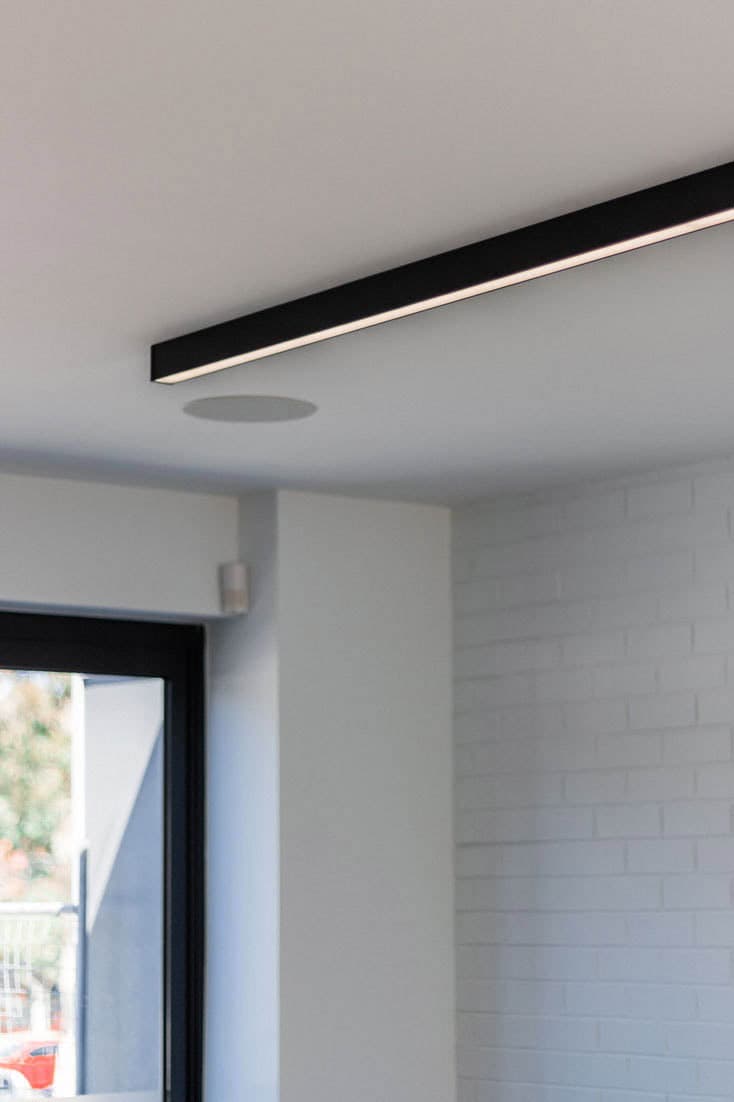

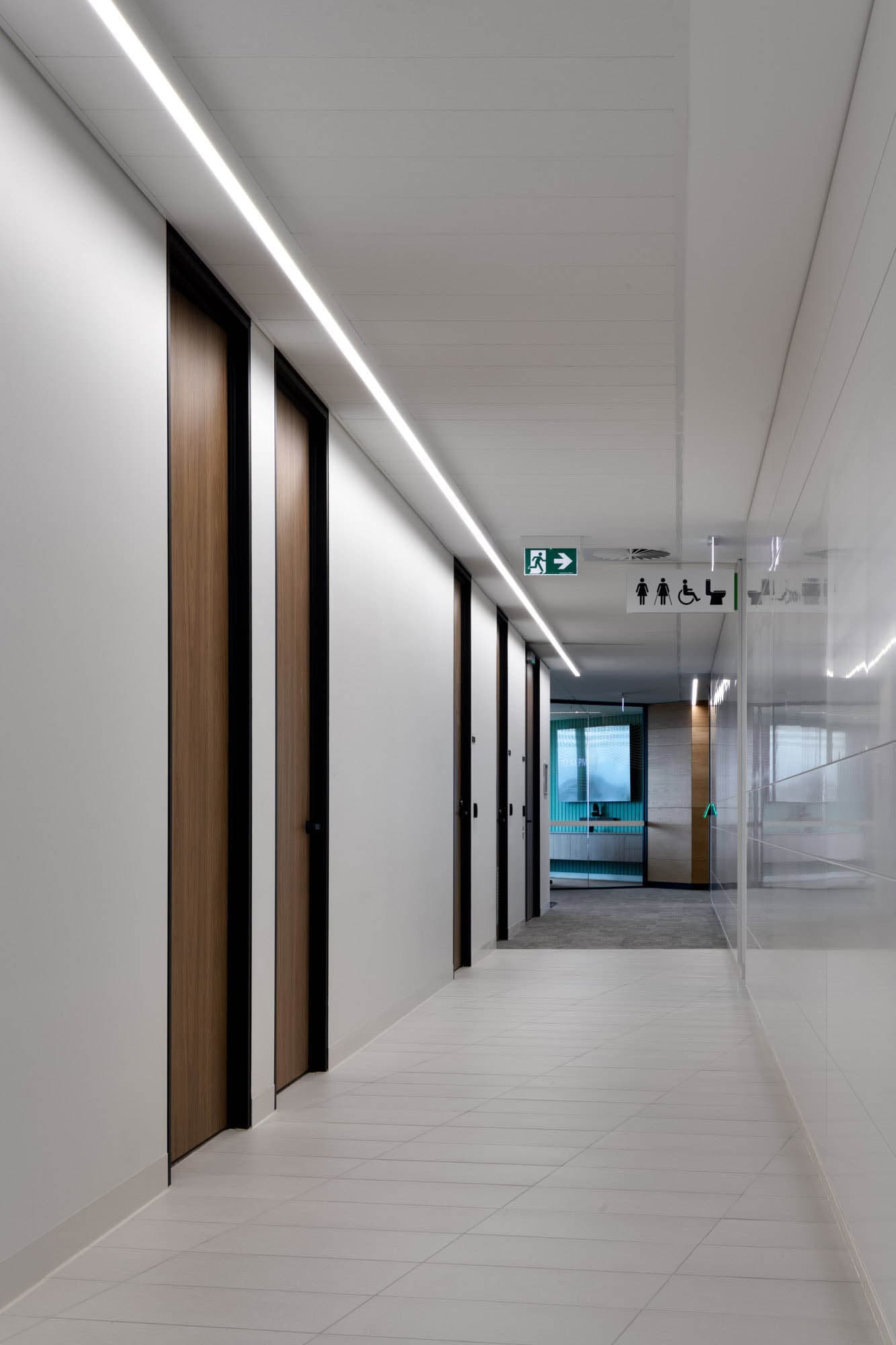

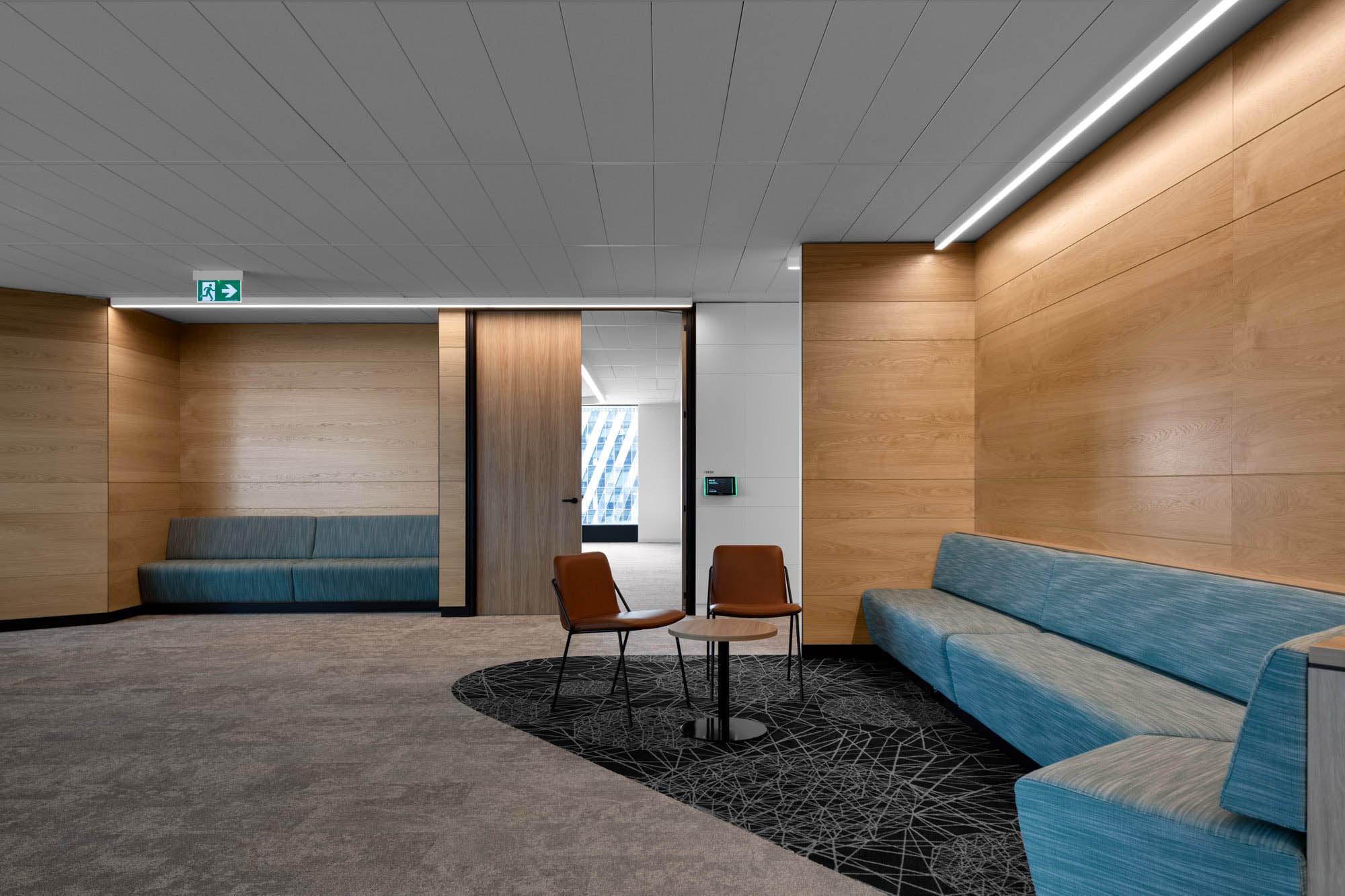

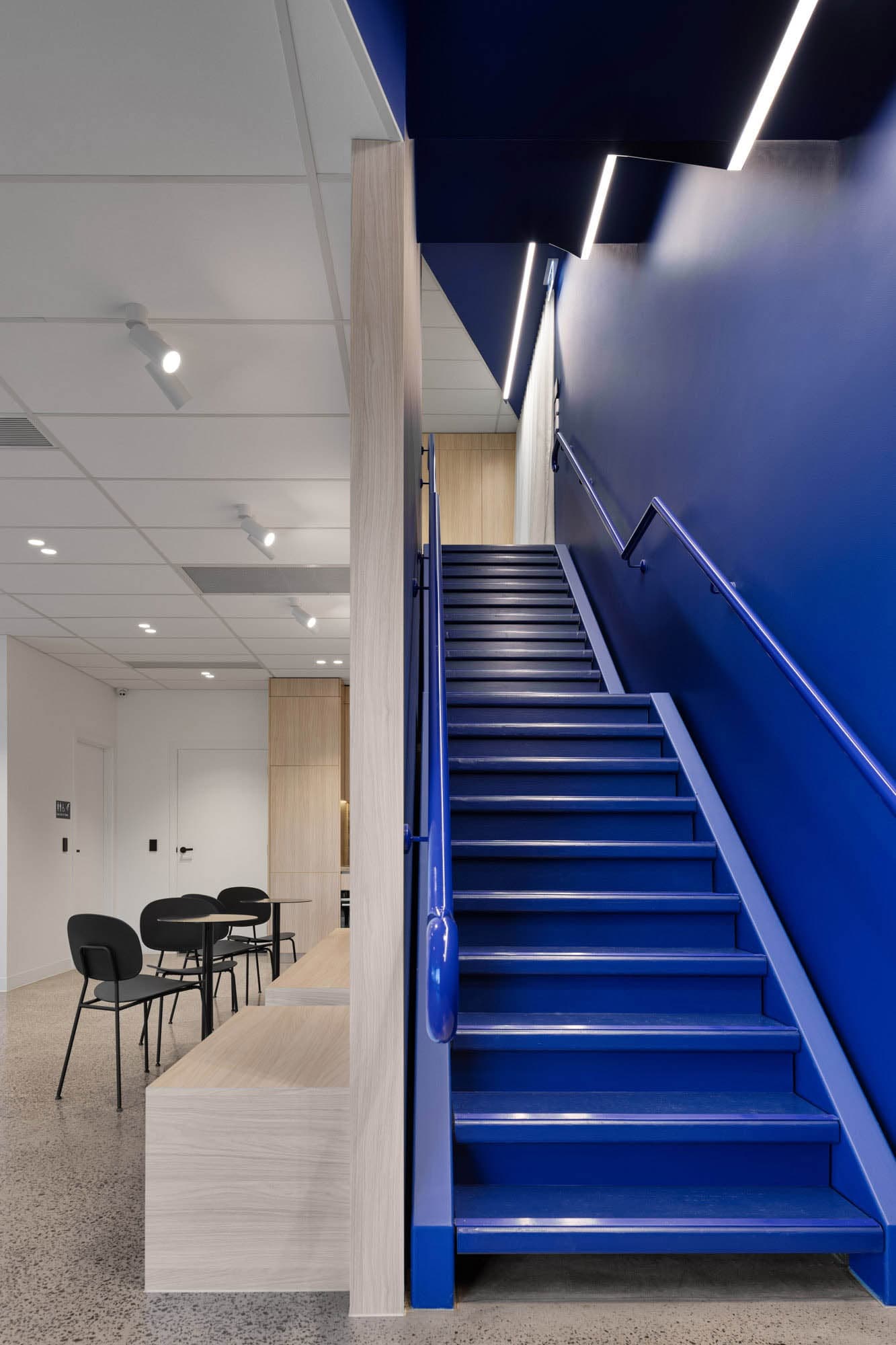

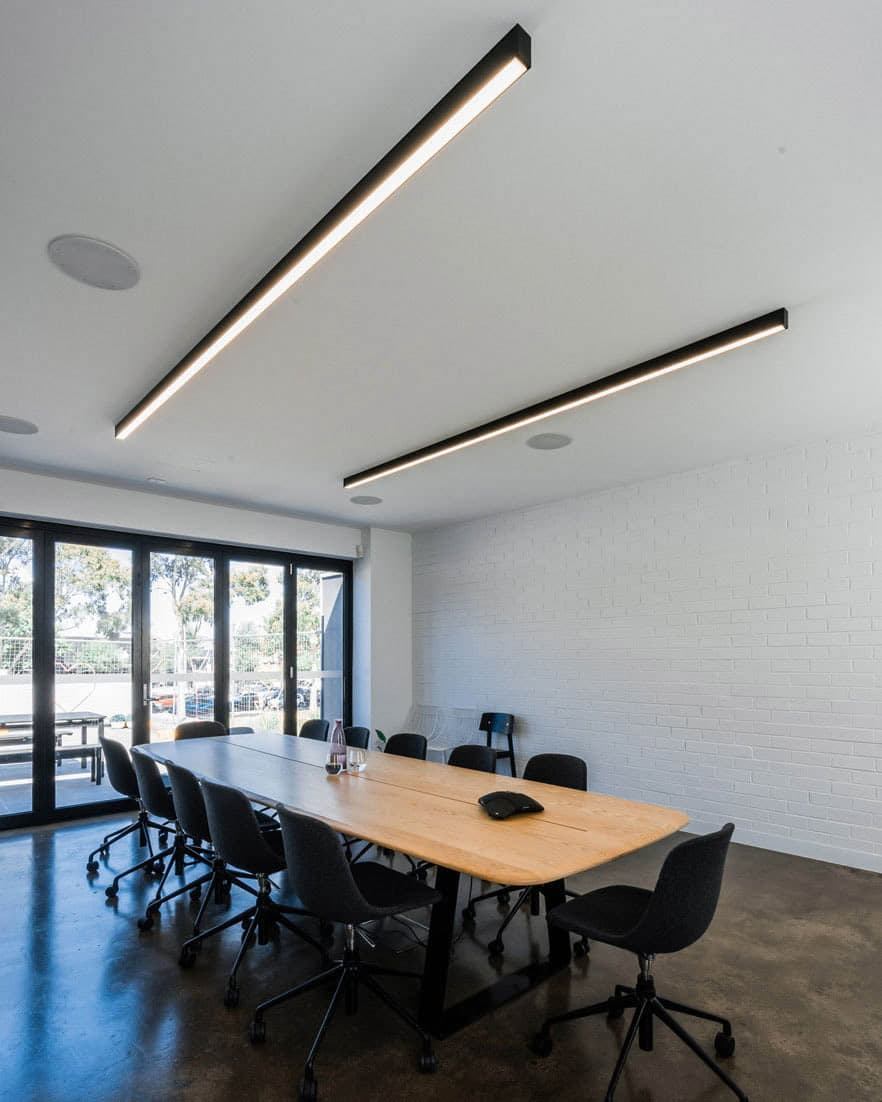

Gallery
Related Products
Related Projects
Recommended Applications
Technical Details
Physical Dimensions
- Width
- 49mm
- Height
- 76mm
- Weight
- 3.2kg/m
Construction & Mounting
- Shape
- Linear
- Mounting
- Surface Mounted
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- T Intersection - Welded
- Illuminated Joins
Optics
- Optics
- Diffuser, Combination Lens
- Light Distribution
- Deglaring, Narrow, Asymmetric, Direct, Opal
LED
- CCT
- 3500K, 3000K, 2700K, 4000K, Tunable White
- CRI
- 90
- LED Output
- 397.2–3528.6lm
- LED Power
- 6–33.3W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
- Output Type
- High Efficiency, High Output
- LED Type
- SMD
- LED Model
- LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF lp PRE3, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE, LC 35/150-700/54 o4a NF h16 EXC4
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
SLIM C SM is a surface-mounted architectural profile engineered to provide direct, downward illumination in a slim, low-profile format. Measuring 49mm W × 76mm H, it is ideally suited to corridors, retail environments, workplaces and commercial interiors where a discreet surface-mounted luminaire is required. Part of DARKON's broader Slim range, Slim C SM combines the Slim 40mm lens with the Light Tray 40 LED platform, powered by Tridonic Linear Light Engine HE or HO boards. This allows specifiers to select either high-efficiency or high-output performance while maintaining visual consistency across the Slim family. The profile incorporates DARKON's signature shadow-line detail, enabling the integration of laminated timber veneers for a warm architectural finish. For projects seeking the appearance of natural timber with enhanced durability and consistency, Slim C SM is also available with DARKON's new sublimation timber finish, a fully powder-coated solution that faithfully replicates natural wood grain.
