Models

Configure model416 of 416 variants

Length

Optic

CCT

Output

Current

416 matching variants — select one

Polar light distribution curve for SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x — SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x

Lens: DEGLARING
Direction: Direct
Output Type: High Efficiency
Milliamp: 250 mA
Watts: 14.3 W

Delivered Lumens: 1042.1 lm
Efficacy: 72.9 lm/W
Colour Temperature (CCT): 3500K
CRI: 90
Lifetime: 72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Downloads

Design Features

Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options

Install Features

Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints

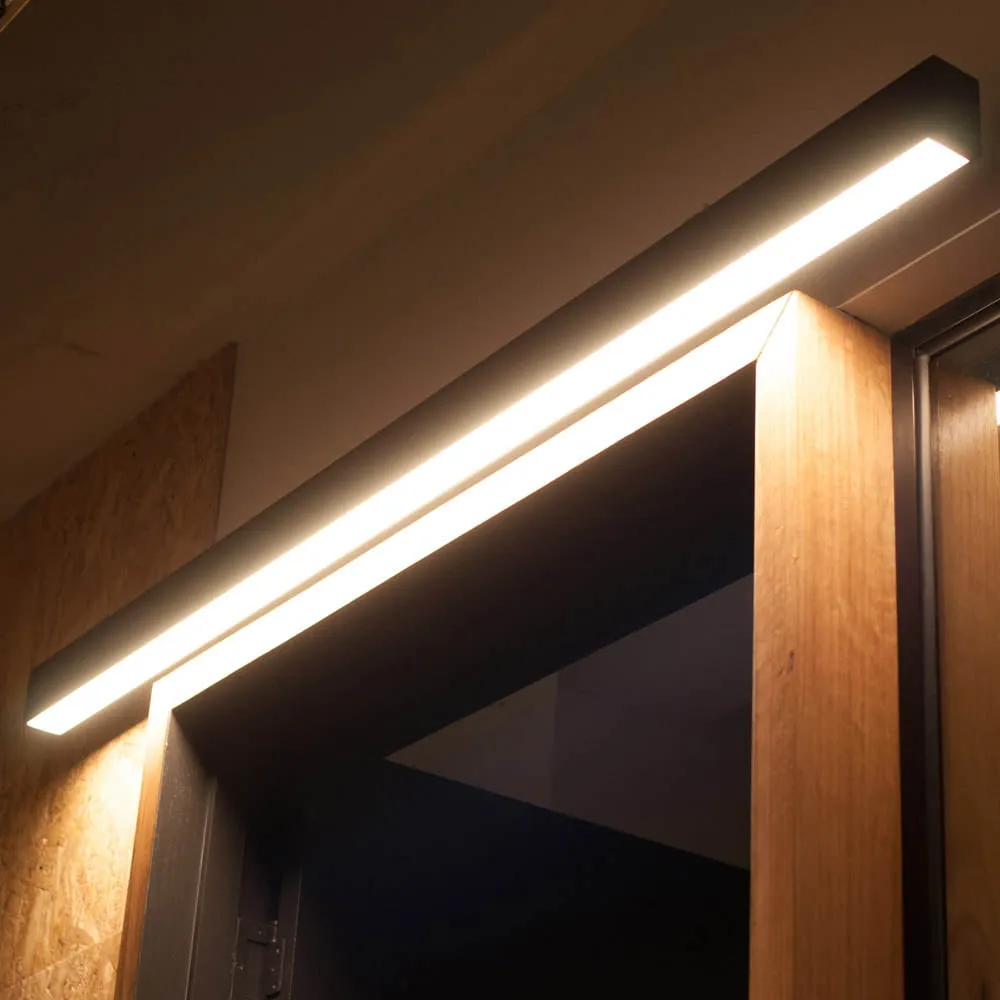

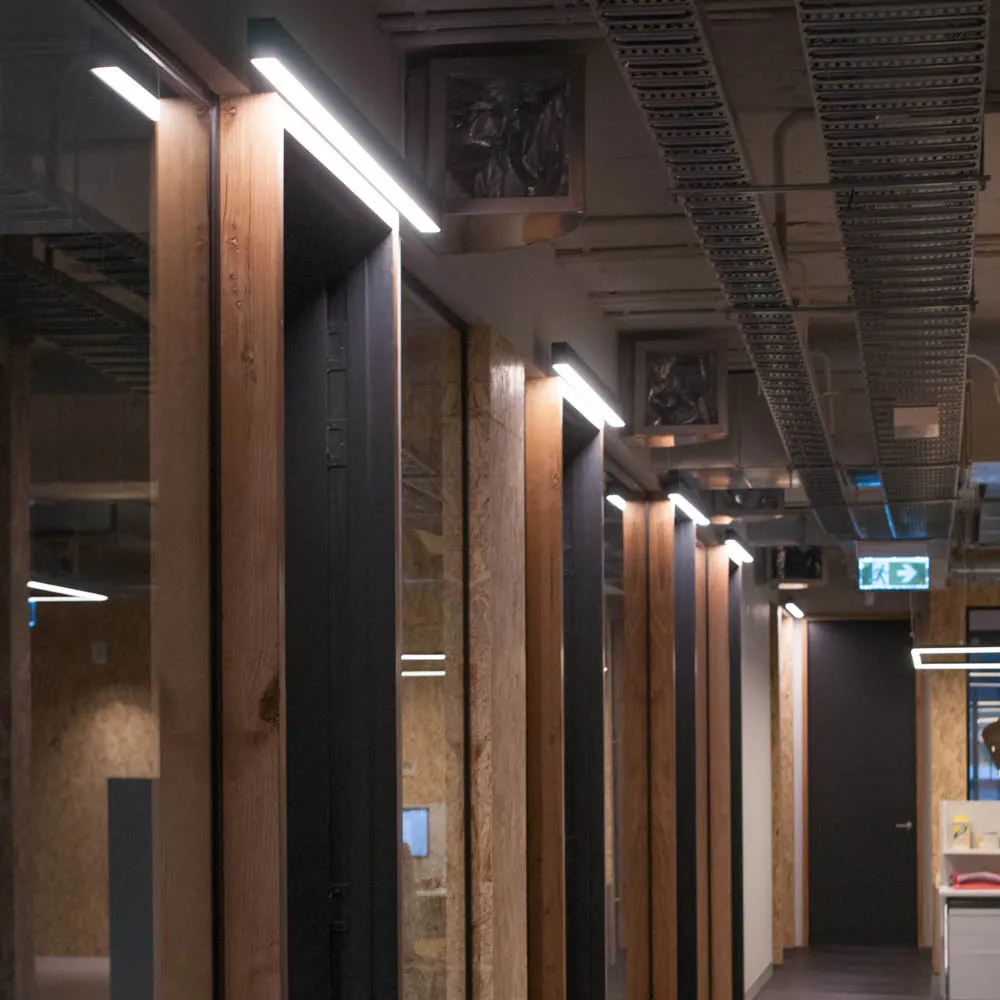

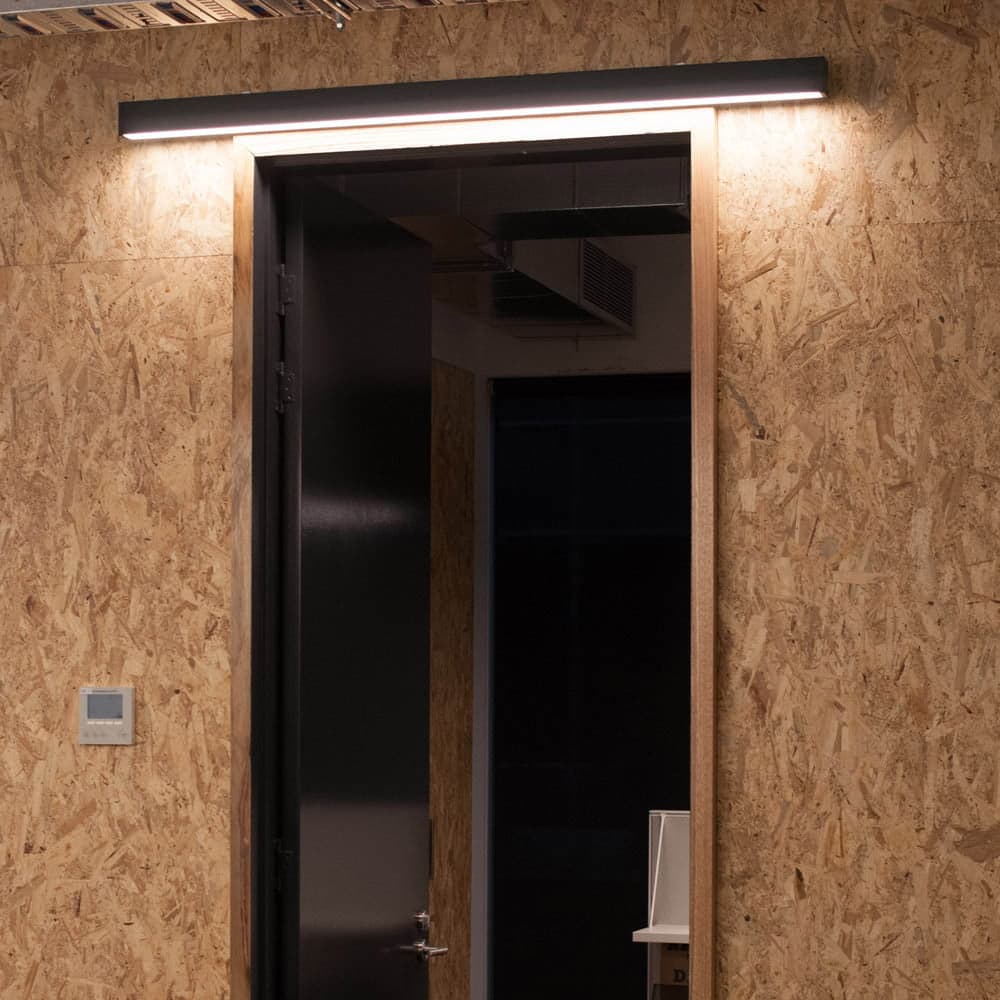

Gallery

Related Products

SLIM C TRIMLESS REC

Slim C LED TRIMLESS is designed to be completely trimless once installed into a plaster celling. Please note, stopping up over cut out gap and painting is required. A specially designed sprung end cap allows for linear expansion cause by heat.

SLIM C SM

SLIM C SM blends minimalist form with architectural warmth, delivering precise downward illumination from a refined 49mm-wide profile. Its signature shadow-line detail accommodates both genuine laminated timber veneers and DARKON's sublimation timber finish, allowing designers to achieve the look of natural timber while benefiting from the durability, consistency and longevity of a powder-coated architectural luminaire.

SLIM C SUS

Slim C LED SUS is a suspended linear profile engineered for clean, direct downward illumination. Measuring 49mm W × 76mm H, it pairs the Slim series 40mm lens with the Light Tray 40 LED and Tridonic Linear Light Engine HE or HO boards for a refined architectural result.

SLIM C UP SUS

Slim C LED UP is a suspended profile with upward illumination only. It is part of the slim range utilising the slim 40mm lens and uses the light tray 40 LED with Tridonic Linear Light Engine HE or HO LED boards.

Related Projects

ZAGAMES HEAD OFFICE

Hawthorn, VIC

NIKE

Melbourne, VIC

HAVWOODS SHOWROOM

West Melbourne, VIC

Technical Details

Construction & Mounting

Mounting: Wall

LED

CCT: 3500K, 3000K, 2700K, 4000K, Tunable White
CRI: 90
LED Output: 397.2–3528.6lm
LED Power: 6–33.3W
LED Current: 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
Output Type: High Efficiency, High Output

LED Type: SMD
LED Model: LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6
Lifetime: 72,000h @ L80B10
Colour Consistency: SDCM 3
Zhaga: Yes

Electrical & Driver

Dimming: DALI
Driver: Tridonic

Driver Model: LC 35/150-700/54 o4a NF lp PRE3, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE, LC 35/150-700/54 o4a NF h16 EXC4
Flicker Free Driver: Yes

Ratings & Compliance

Compliance Reports: LM-79

Warranty: Product - 5 Years
Product - 10 Years (Extended)
