SLIM-C-LED-SUS
1 / 3

SLIM C SUS

AUSTRALIAN MADE
RCM
10 YEARS
SELF LOCK
ZHAGA
FLICKER FREE
SMD
IP2X
DEGLARING
NARROW
ASYMMETRIC
OPAL

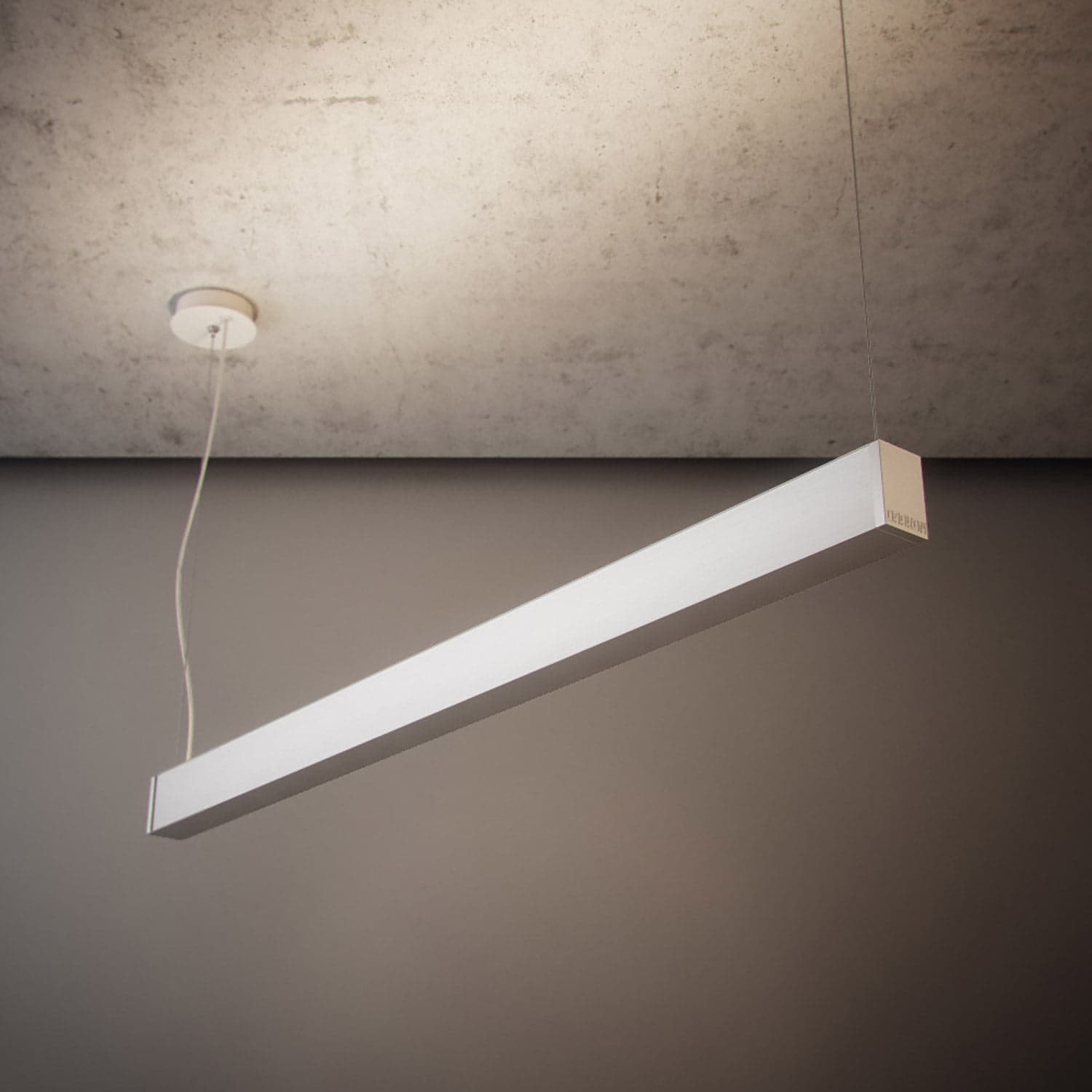

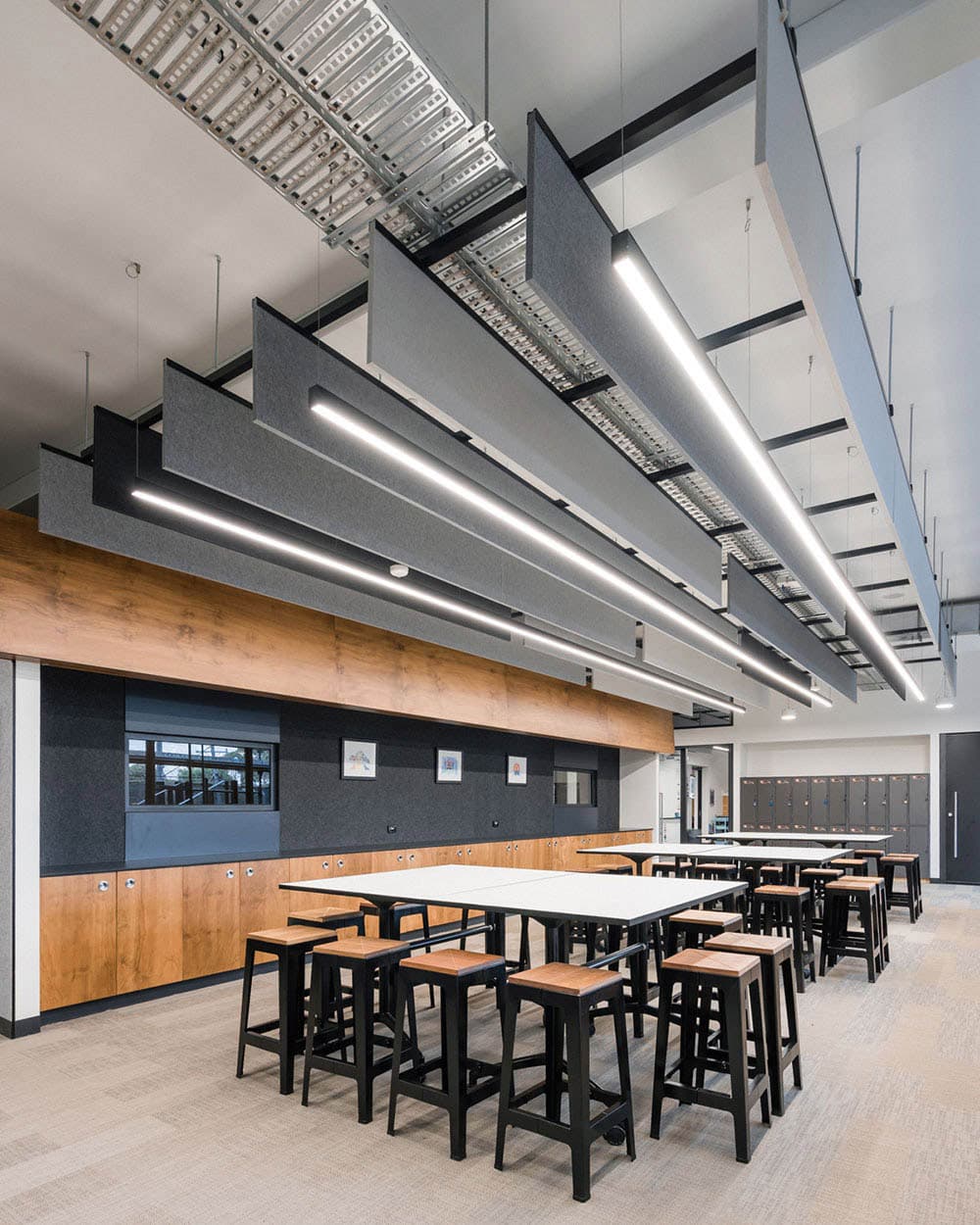

SLIM C SUS is one of DARKON's original foundation products and a long-standing best-selling suspended architectural lighting profile. Featuring the Slim 40mm lens platform and Light Tray 40 LED system with HE and HO options, it delivers clean, efficient illumination within a slender and elegantly proportioned architectural form. Featuring DARKON's signature shadow-line detail, SLIM C SUS supports decorative laminates, sublimation timber finishes, mirror effects and custom finishes, allowing it to function as both a lighting solution and an architectural feature.

Read more about SLIM C SUS

Models


Configure model416 of 416 variants
416 matching variants — select one
Polar light distribution curve for SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x
SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x
Lens
DEGLARING
Direction
Direct
Output Type
High Efficiency
Milliamp
250 mA
Watts
14.3 W
Delivered Lumens
1042.1 lm
Efficacy
72.9 lm/W
Colour Temperature (CCT)
3500K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Design Features


  • Dot free homogeneous illumination

  • Plug and Play Wire Looms

  • Screwless Endcaps

  • Multiple Snap Fit Lens Options

  • Multiple fixed output options

  • Detailed Shop Drawings

  • Modular Design

  • Custom Length Available

  • Lap join milling - No Light Bleed

Install Features


  • Project specific labelling referencing type numbers

  • Self Lock

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

  • Factory fitted "push to join" installation

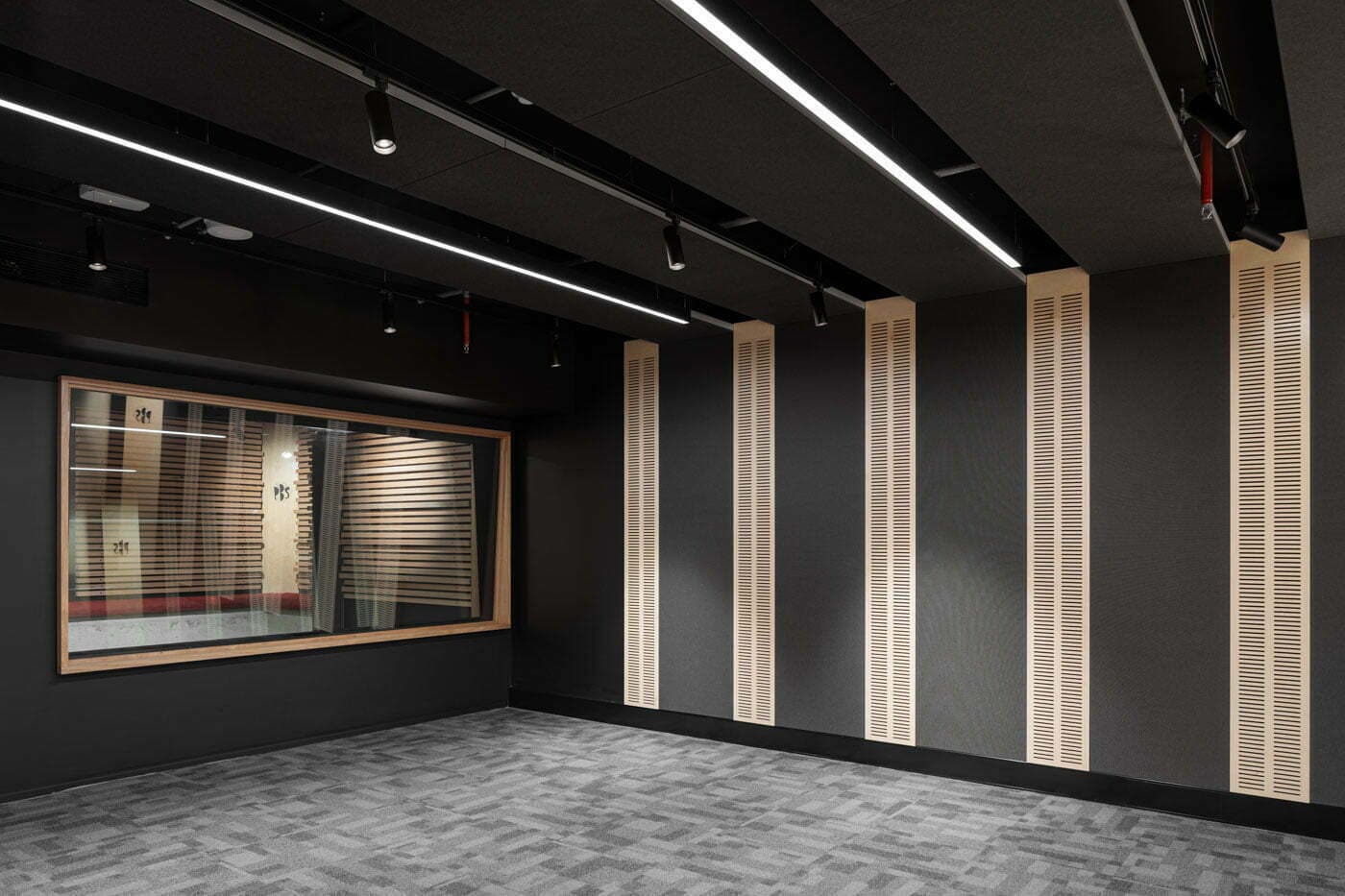

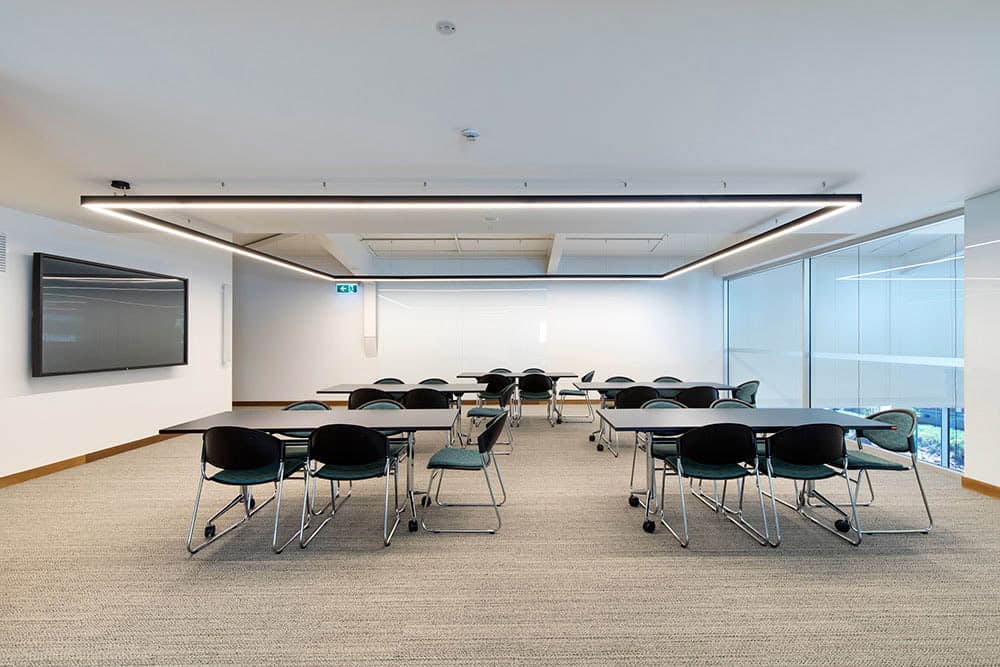

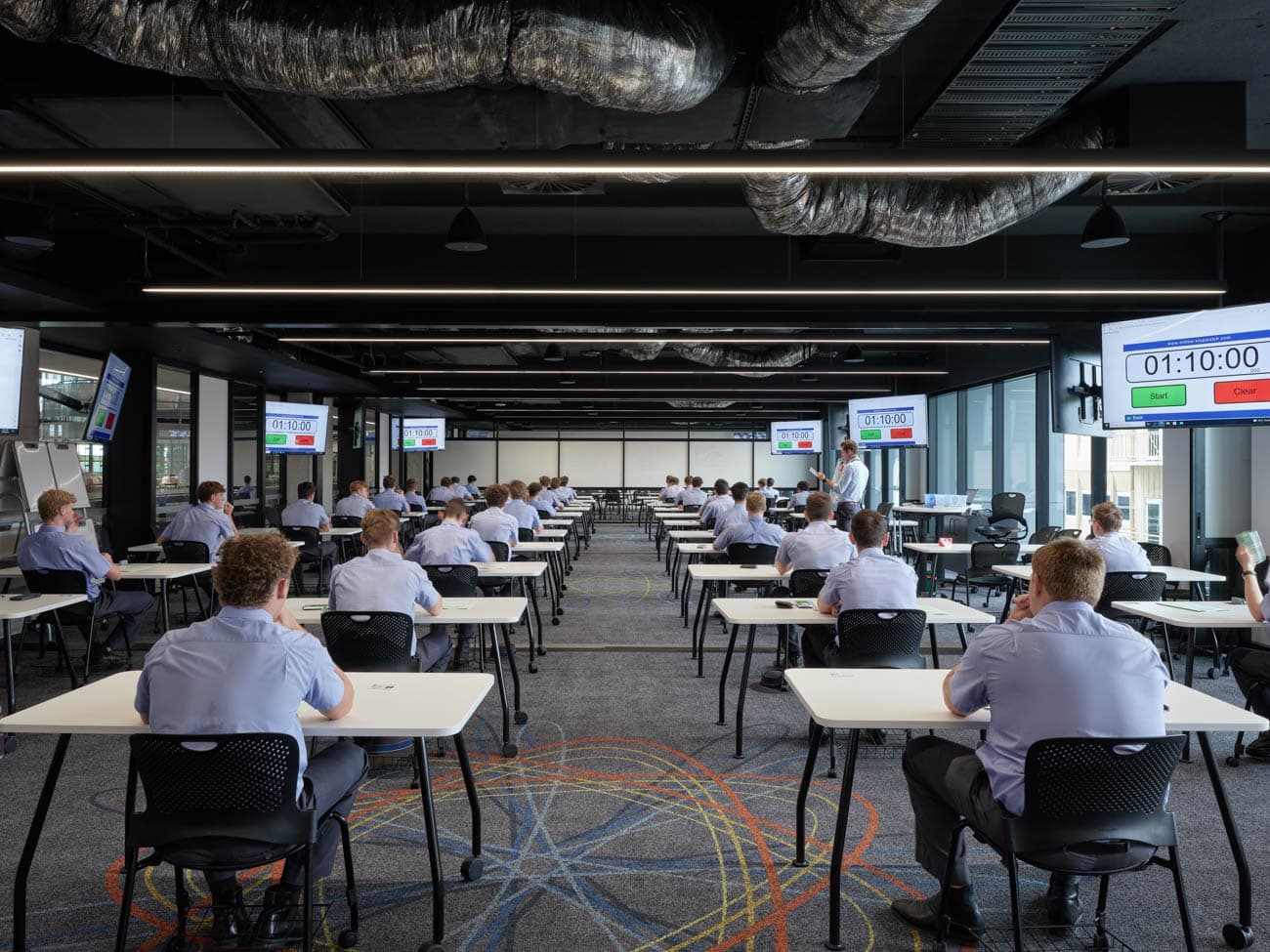

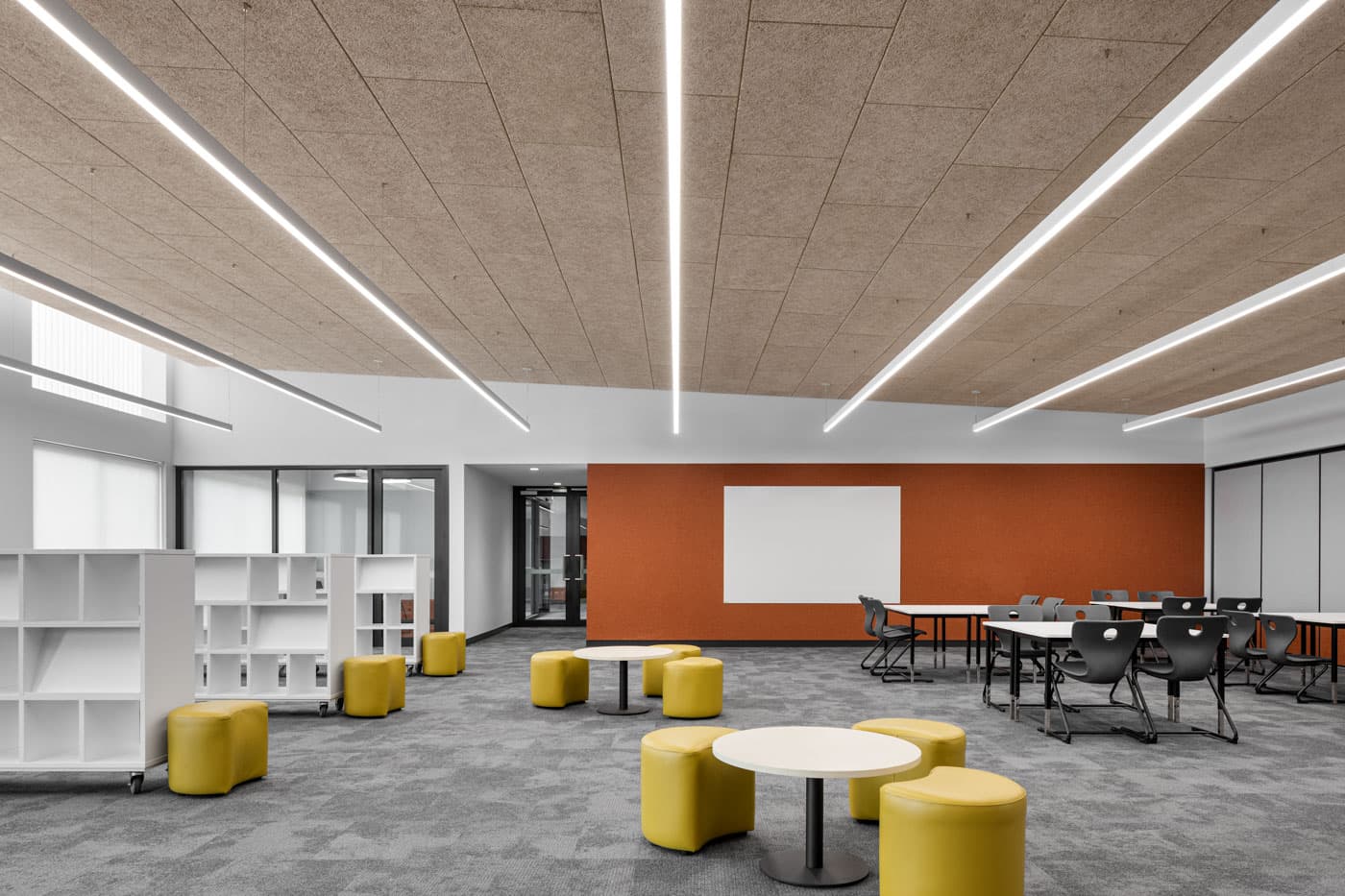

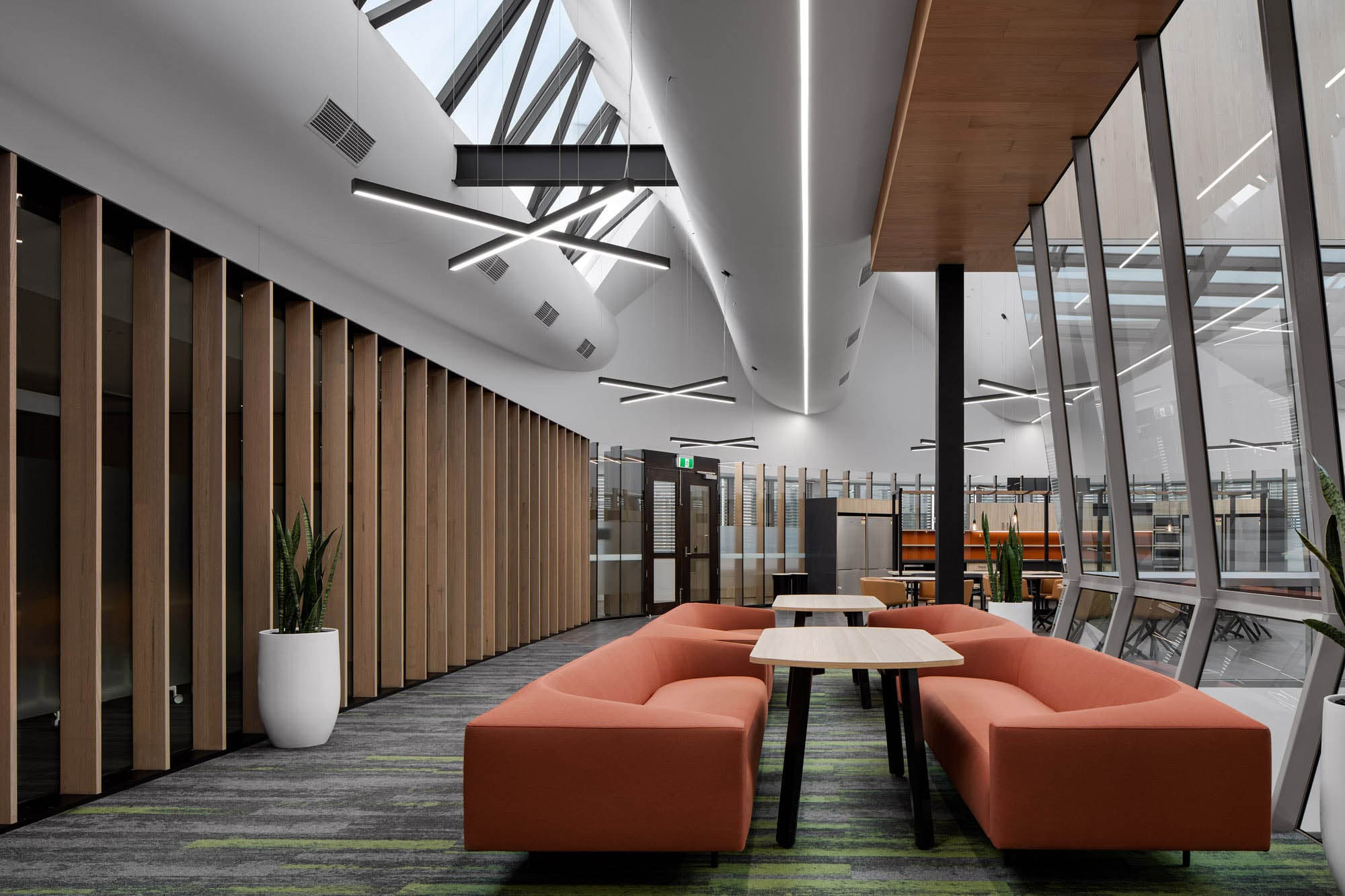

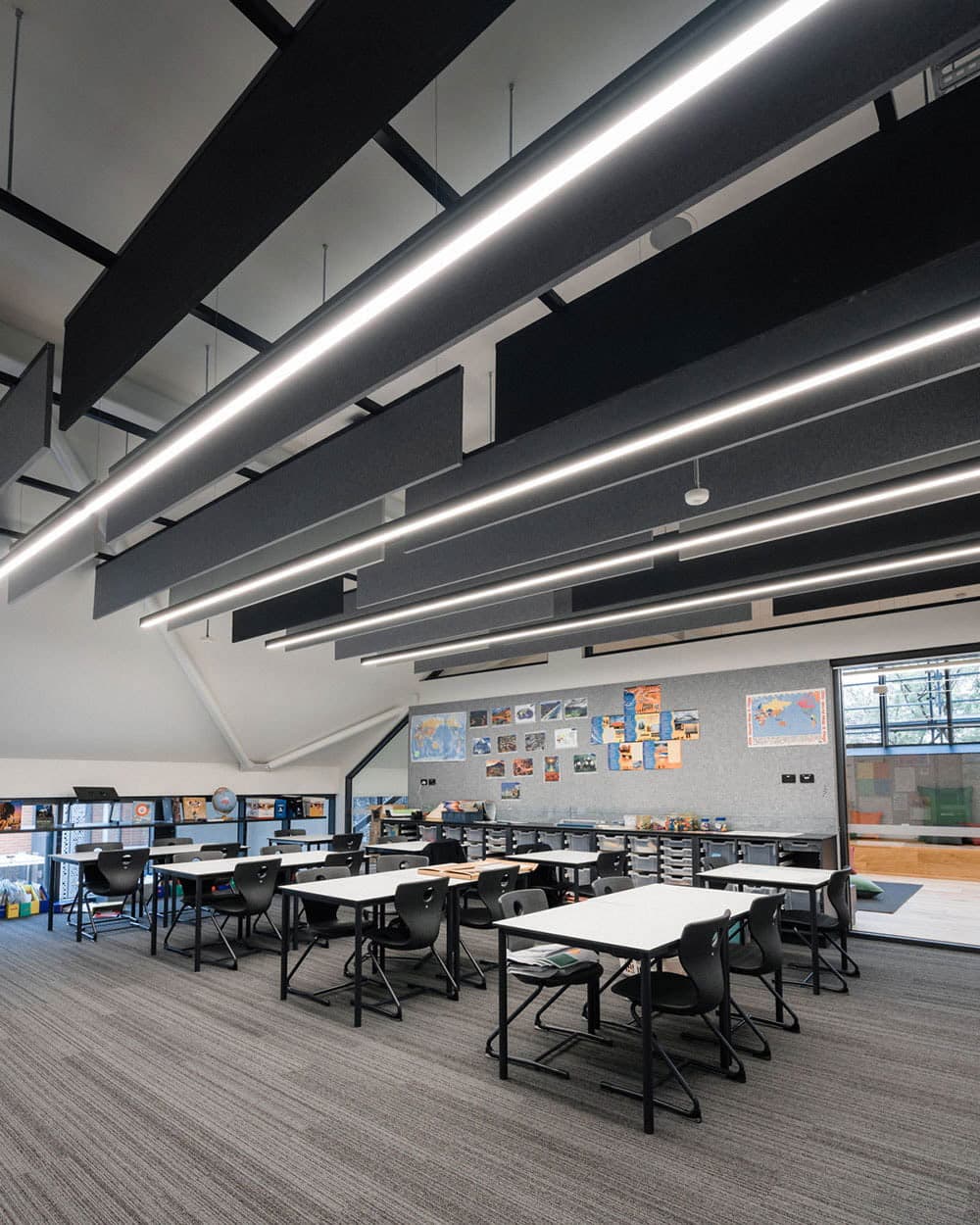

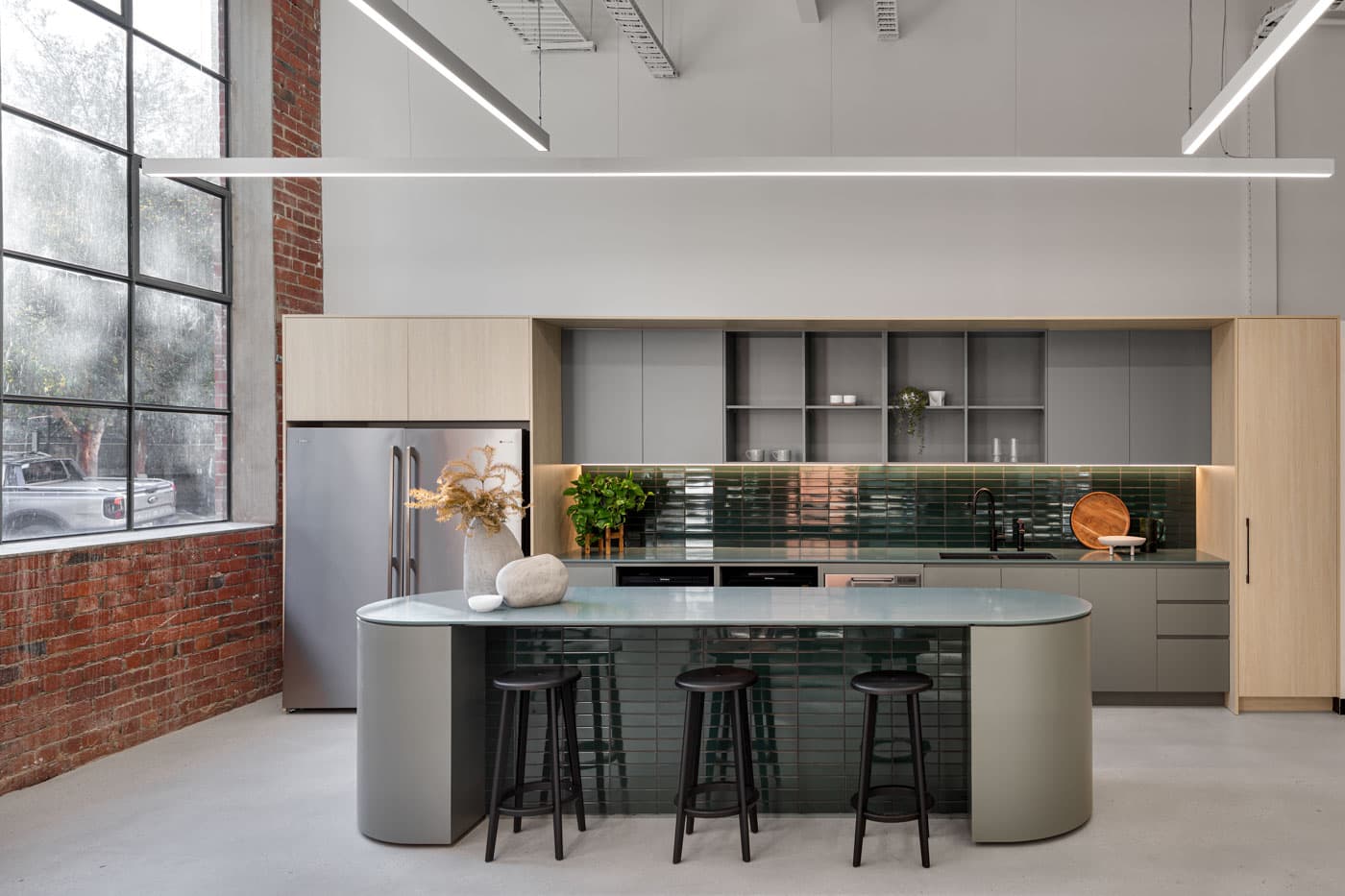

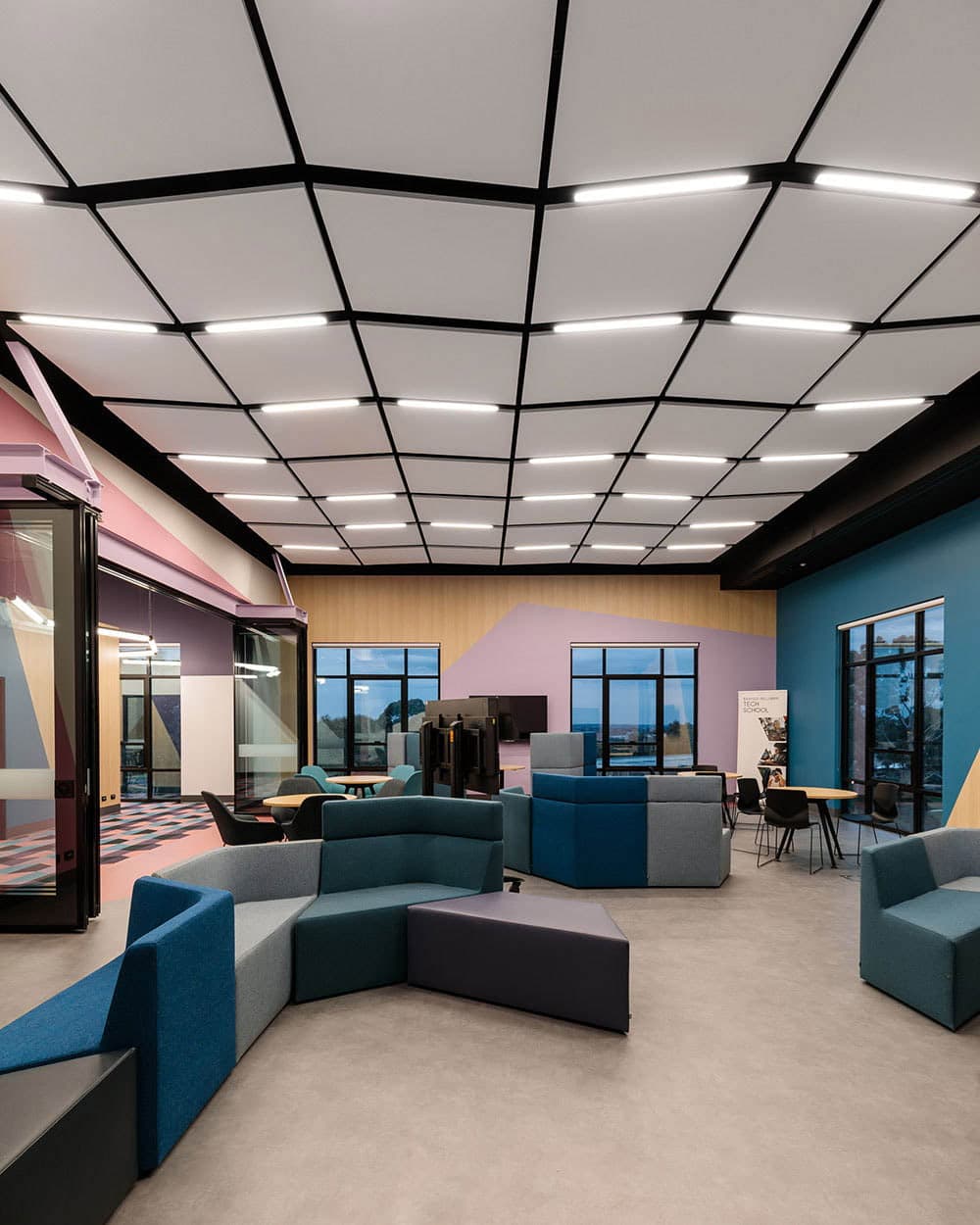

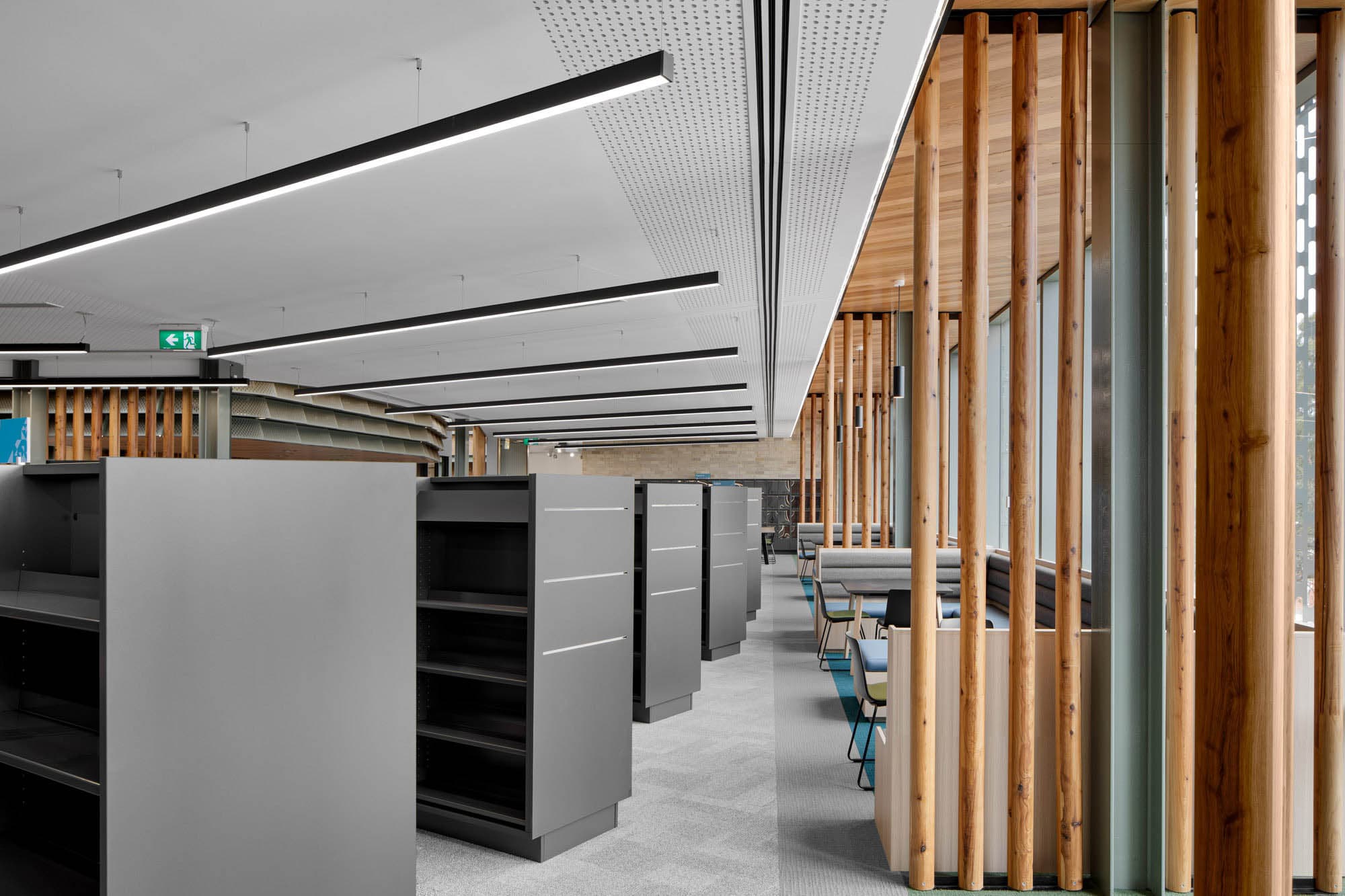

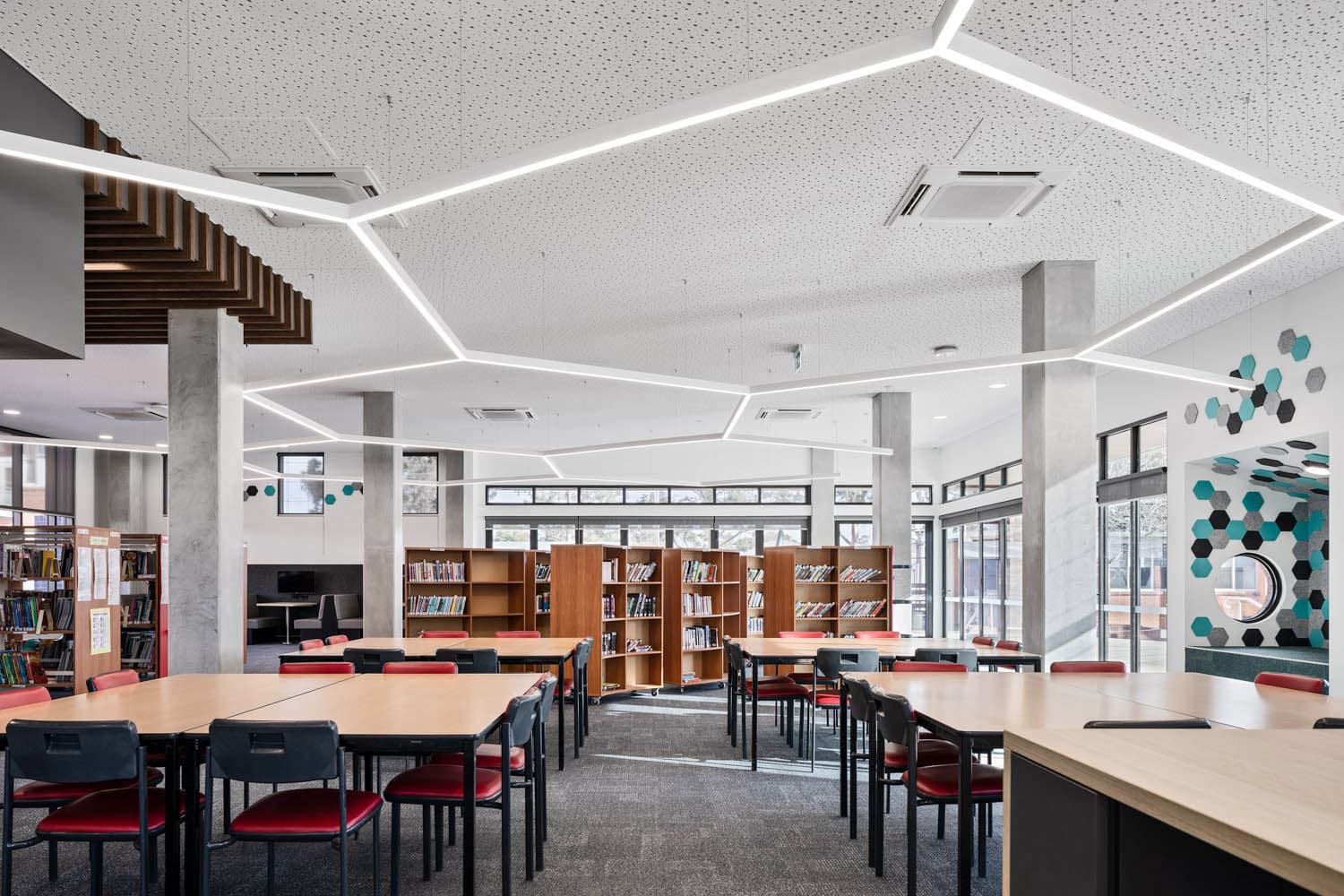

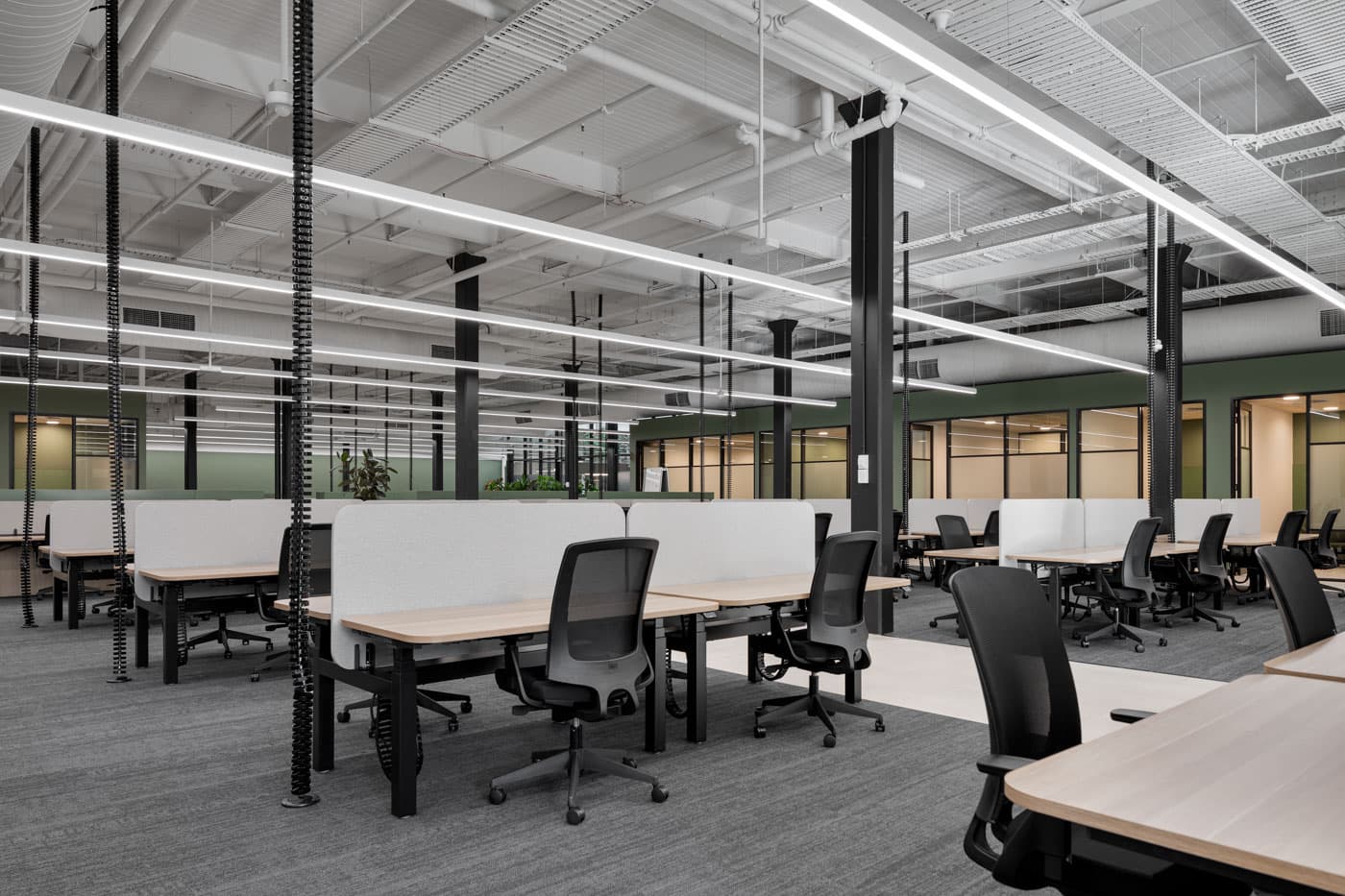

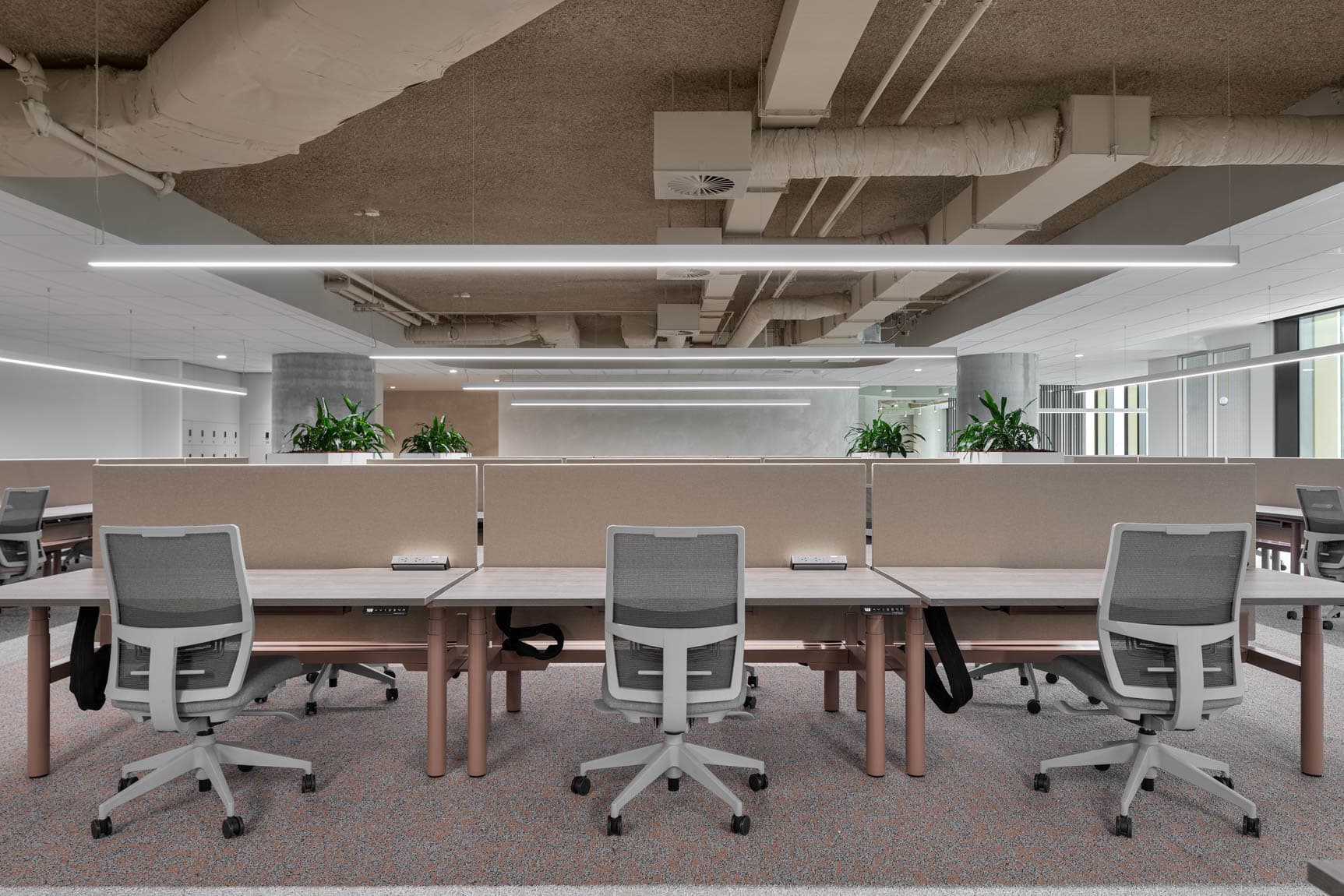

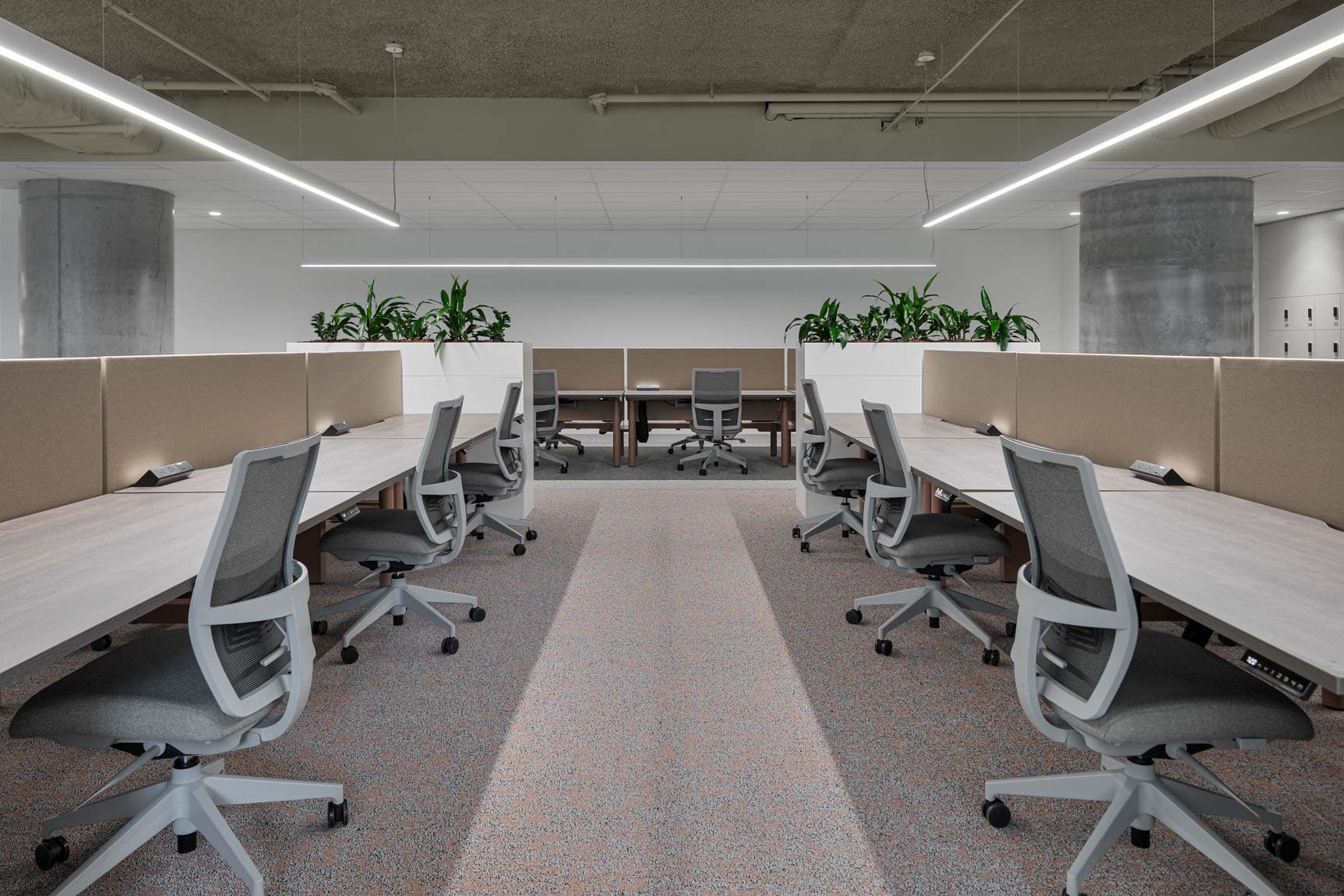

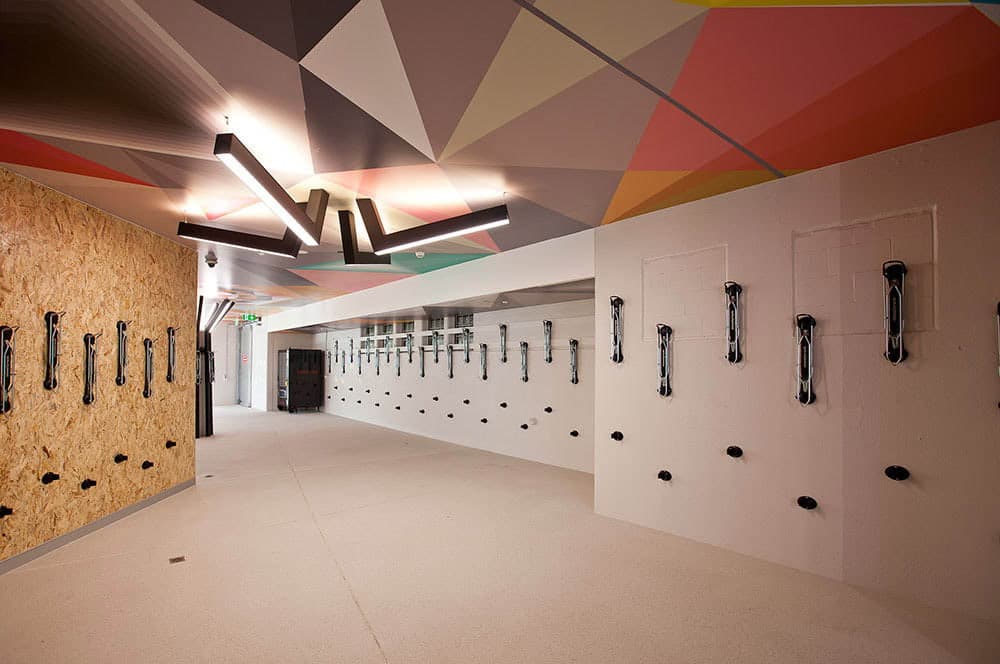

Related Projects


Available Finishes


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, Base Build, End of Trip, Lobby
Landscape
Public Realm, Pathways & Parks, Open Spaces
Infrastructure
Data Centre, Control Room
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion

Technical Details


Physical Dimensions

Width
49mm
Height
76mm
System Length
605mm – continuous
Weight
3.2kg/m

Construction & Mounting

Materials
Acrylic, Aluminium
Shape
Linear
Mounting
Suspended
Suspension
Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
Build Options
Angular Linear Shapes
Accessories
  • Mitre Join - Welded
  • T Intersection - Welded
  • T Intersection - Bolted

Optics

Optics
Lens, Diffuser
Light Distribution
Deglaring, Narrow, Asymmetric, Direct, Opal

LED

CCT
3500K, 3000K, 2700K, 4000K, Tunable White
CRI
90
LED Output
397.2–3528.6lm
LED Power
6–33.3W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
Output Type
High Efficiency, High Output
LED Type
SMD
LED Model
LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF lp PRE3, LCA 50W 350-1050mA DT8 lp PRE
Insulation Class
Class I (Earthing)
Power Factor
> 0.9
Through Wiring
Yes
Operating Temperature
35
Cable Type
5 Core Flex 24/.2 (0.75mm², 7.5A) Copper, 3 Core Flex 24/.2 (0.75mm², 7.5A) Copper
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP2X
Standards
  • AS/NZS 60598.1
  • AS/NZS 3000
Compliance Reports
LM-79
Warranty
  • Product - 5 Years
  • Product - 7 Years
  • Product - 10 Years (Extended)

Overview


SLIM C SUS is a suspended architectural lighting profile engineered to provide direct, downward illumination in a refined and elegantly proportioned form. As one of DARKON's original foundation products and long-standing best sellers, it has earned a reputation for delivering an ideal balance of performance, simplicity and value across a wide range of architectural lighting applications. Forming part of the broader Slim range, SLIM C SUS combines the Slim 40mm lens with the Light Tray 40 LED platform, powered by Tridonic Linear Light Engine HE or HO boards. This allows specifiers to select either high-efficiency or high-output performance while maintaining visual consistency across the entire Slim family. A key characteristic of SLIM C SUS is its slender profile and balanced proportions, giving the luminaire a timeless architectural appearance that remains as relevant today as when it was first introduced. The clean linear form integrates effortlessly into contemporary workplaces, education facilities, commercial interiors and public spaces. The profile incorporates DARKON's signature shadow-line detail, enabling the integration of decorative laminate finishes for enhanced architectural expression. Options include timber grain laminates, mirror finishes and stainless-steel effects, allowing the luminaire to complement surrounding materials and interior design elements. For projects seeking the appearance of natural timber with enhanced durability and consistency, SLIM C SUS is also available with DARKON's sublimation timber finish, a fully powder-coated solution that faithfully replicates natural wood grain. Available with multiple LED engine options, integrated emergency lighting modules and a range of performance packages, SLIM C SUS provides architects and lighting designers with a versatile suspended lighting solution that balances optical performance, material expression and architectural simplicity. The result is a highly refined suspended luminaire that combines minimalist aesthetics, exceptional flexibility and architectural warmth within one of DARKON's most proven and widely specified lighting platforms.
