Models

Configure model432 of 432 variants

Length

Optic

CCT

Output

Current

432 matching variants — select one

Polar light distribution curve for HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x — HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x

Lens: ASYMMETRIC
Direction: Direct
Output Type: High Output
Milliamp: 200 mA
Watts: 9.7 W

Delivered Lumens: 986.2 lm
Efficacy: 101.7 lm/W
Colour Temperature (CCT): 3000K
CRI: 90
Lifetime: 72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Downloads

Design Features

Screwless Endcaps
Dot free homogeneous illumination
Multiple fixed output options
Lap join milling - No Light Bleed
Custom sizes available with tooling fee

Install Features

Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms

Related Products

HIP SM

HIP SM is a surface mounted linear profile engineered for efficient, consistent downward illumination. Combining reflector and lens technology, it offers a range of light outputs and distributions to suit diverse architectural applications.

HIP SUS

HIP SUS is a suspended linear profile engineered for efficient, consistent downward illumination. Combining reflector and lens technology, it offers a range of light outputs and distributions to suit diverse architectural applications.

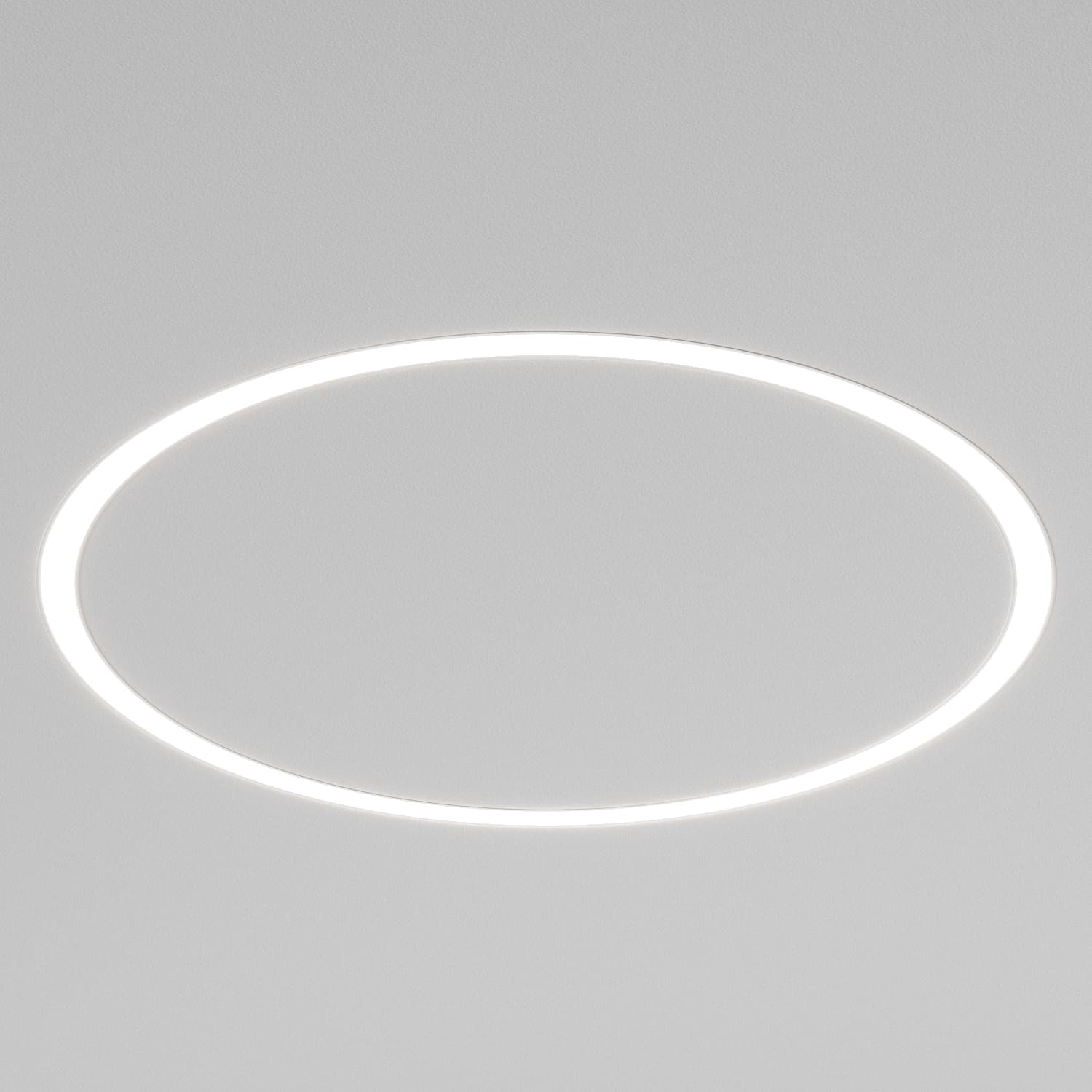

HIP TRIM RADII RING REC

HIP TRIM RADII RING REC is a single complete ring made from welded sub sections for a seamless finish, while also streamlining the install process. Available in four different sizes to suit your project requirements.

HIP TRIM REC

HIP TRIM REC combines a refined recessed profile with advanced lens technology to deliver comfortable, high-performance architectural lighting. When fitted with our deglaring lens, it achieves UGR ratings below 19, making it ideal for visually demanding environments.

Technical Details

Construction & Mounting

Shape: Round

Mounting: Recessed

LED

CCT: 3000K, 3500K, 2700K, 4000K, Tunable White
CRI: 90
LED Output: 454.8–3762.9lm
LED Power: 6–34.5W
LED Current: 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
Output Type: High Output, High Efficiency

LED Type: SMD
LED Model: LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
Lifetime: 72,000h @ L80B10
Colour Consistency: SDCM 3
Zhaga: Yes

Electrical & Driver

Dimming: DALI
Driver: Tridonic

Driver Model: LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Flicker Free Driver: Yes

Ratings & Compliance

IP Rating: IP22
Standards: AS/NZS 60598.2.1

Warranty: Product - 5 Years
Product - 10 Years (Extended)

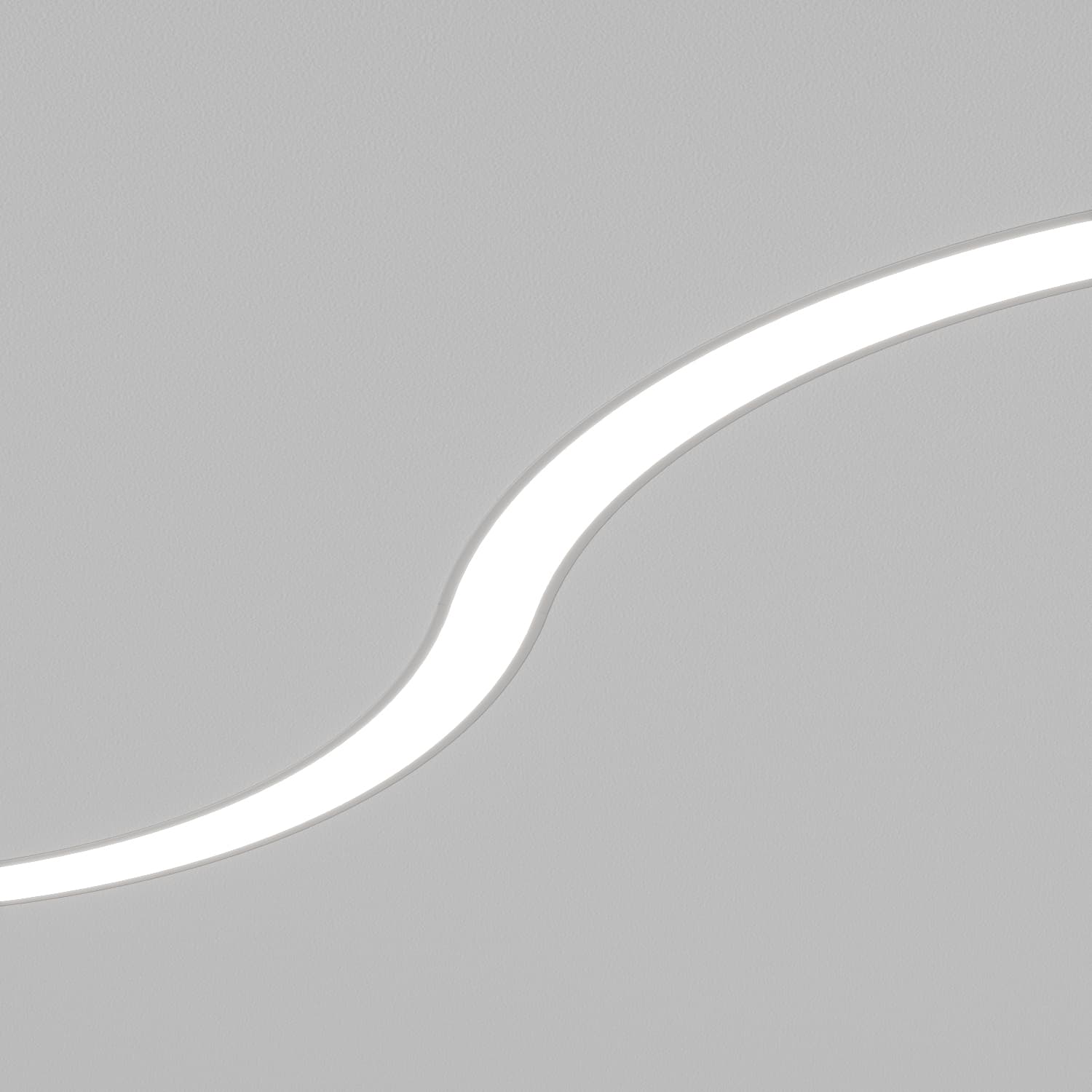

HIP TRIM RADII REC
