HIP-SM
1 / 3

HIP SM

AUSTRALIAN MADE
RCM
10 YEARS
ZHAGA
FLICKER FREE
SMD
IP22
DEGLARING
NARROW
ASYMMETRIC
OPAL

HIP SM is a surface-mounted architectural lighting profile featuring DARKON's distinctive 60mm optical aperture and advanced combination lens technology. Available with four optical distributions and an optional combination deglaring lens achieving UGR <19, HIP SM delivers exceptional visual comfort for office, education and commercial environments. With multiple LED options, integrated emergency lighting and outstanding optical performance, HIP SM provides a versatile architectural lighting solution that balances efficiency, comfort and design.

Read more about HIP SM

Models


Configure model432 of 432 variants
432 matching variants — select one

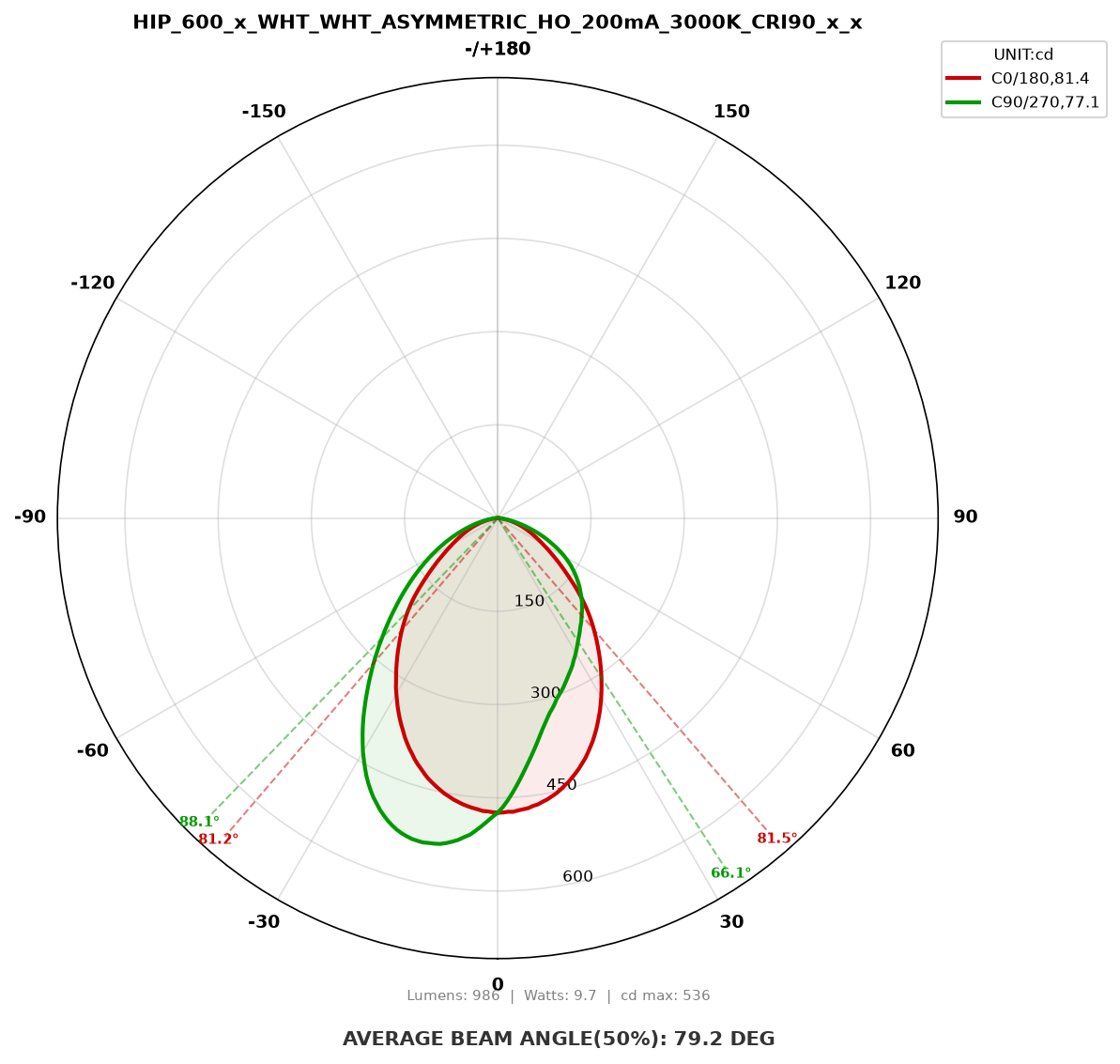

Polar light distribution curve for HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x
HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x
Lens
ASYMMETRIC
Direction
Direct
Output Type
High Output
Milliamp
200 mA
Watts
9.7 W
Delivered Lumens
986.2 lm
Efficacy
101.7 lm/W
Colour Temperature (CCT)
3000K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Design Features


  • Screwless Endcaps

  • Dot free homogeneous illumination

  • Multiple Snap Fit Lens Options

  • Multiple fixed output options

  • Lap join - No Light Bleed

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

Related Projects


Available Finishes


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Hospitality
Hotel, Bar
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Infrastructure
Data Centre, Control Room
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion

Technical Details


Physical Dimensions

Width
69mm
Height
80mm

Construction & Mounting

Materials
Acrylic, Aluminium
Shape
Linear
Mounting
Surface Mounted
Build Options
  • Angular Linear Shapes
  • Curved Fixed Radii Shapes
Accessories
  • Mitre Join - Welded
  • T Intersection - Welded
  • Illuminated Joins

Optics

Light Distribution
Deglaring, Narrow, Asymmetric, Opal

LED

CCT
3000K, 3500K, 2700K, 4000K, Tunable White
CRI
90
LED Output
454.8–3762.9lm
LED Power
6–34.5W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
Output Type
High Output, High Efficiency
LED Type
SMD
LED Model
LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Compliance Reports
LM-79
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


HIP SM is a surface-mounted architectural lighting profile engineered to deliver clean, controlled illumination with exceptional visual comfort. Built around DARKON's advanced optical platform, HIP SM combines high-performance lighting with a refined minimalist form, making it ideally suited to workplaces, educational facilities and contemporary architectural interiors. At the core of the luminaire is DARKON's distinctive 60mm optical aperture, carefully developed to balance lighting performance, efficiency and visual comfort. The profile utilises DARKON's proven combination lens technology, allowing specifiers to select from four optical distributions to suit the requirements of each project while maintaining excellent uniformity and architectural consistency. For projects where glare control is critical, HIP SM can be paired with DARKON's advanced combination deglaring lens, achieving glare ratings below UGR 19. This makes the system particularly effective in office and education environments where occupant comfort, concentration and visual wellbeing are essential. The combination of the 60mm aperture and advanced lens technology creates a highly comfortable lighting environment without sacrificing performance or efficiency. Available with multiple LED engine options, optical distributions, integrated emergency lighting modules and a range of output packages, HIP SM provides architects and lighting designers with a versatile lighting platform that balances optical control, visual comfort and architectural simplicity. The result is a highly refined surface-mounted luminaire that combines advanced optics, low-glare performance and exceptional flexibility within a clean architectural profile.
