HIP-SUS
1 / 3

HIP SUS

AUSTRALIAN MADE
RCM
10 YEARS
ZHAGA
FLICKER FREE
SMD
IP22
DEGLARING
NARROW
ASYMMETRIC
OPAL

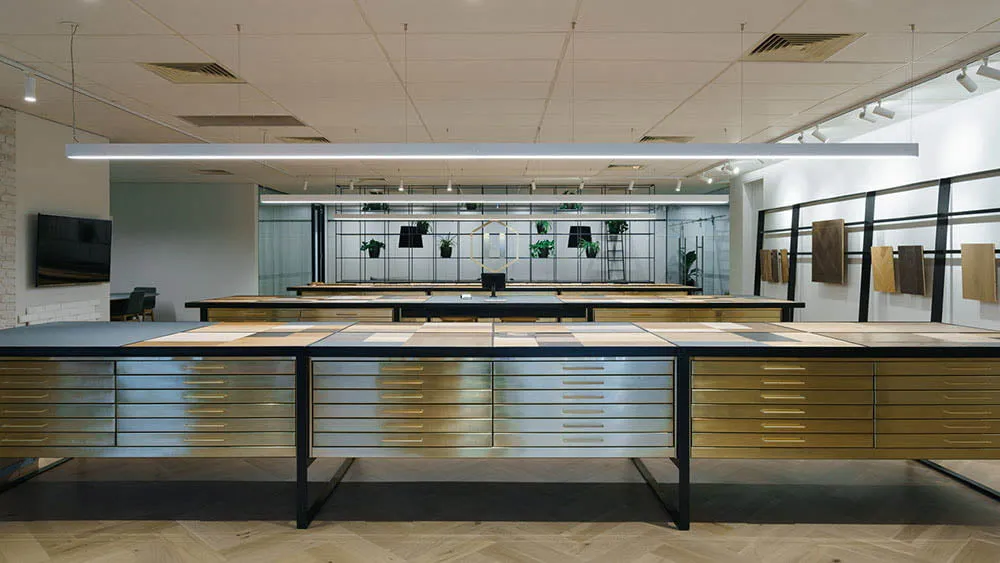

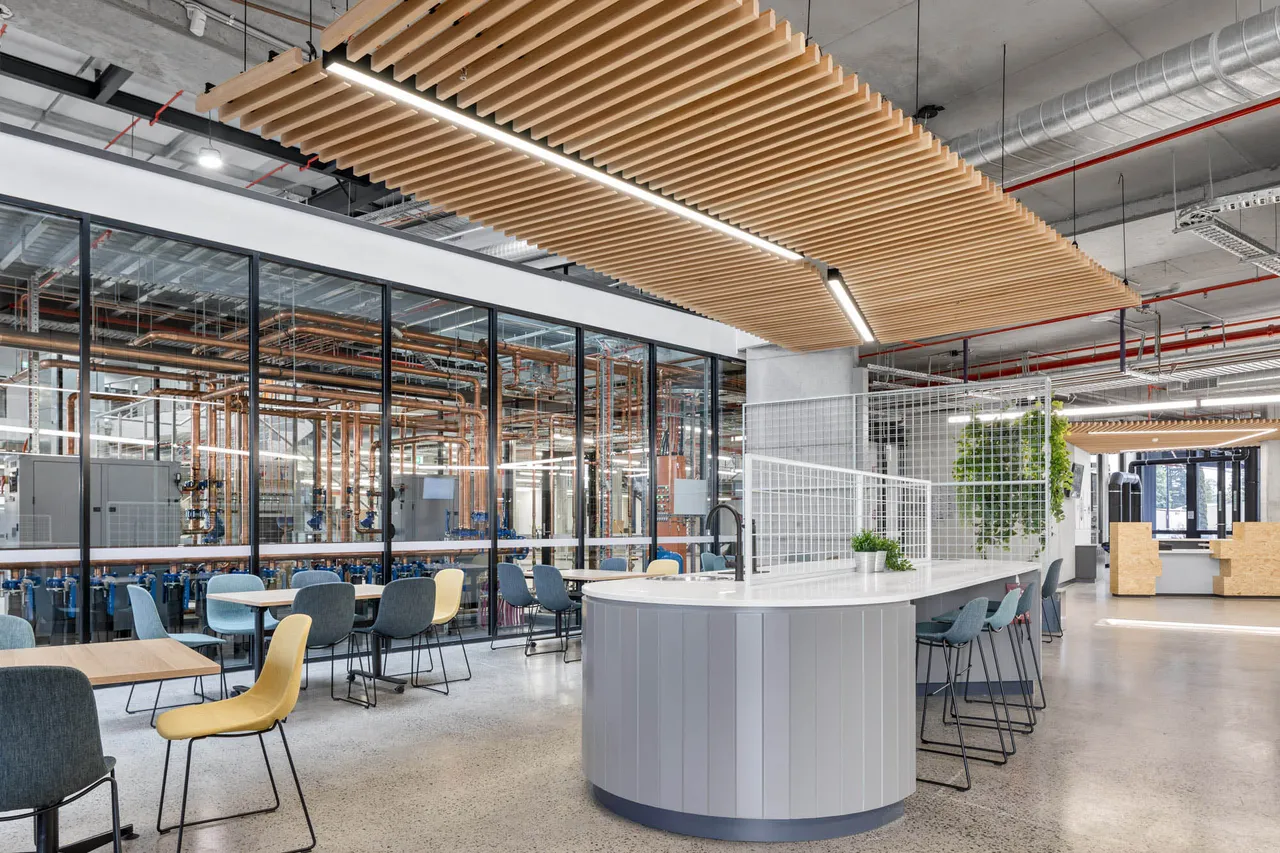

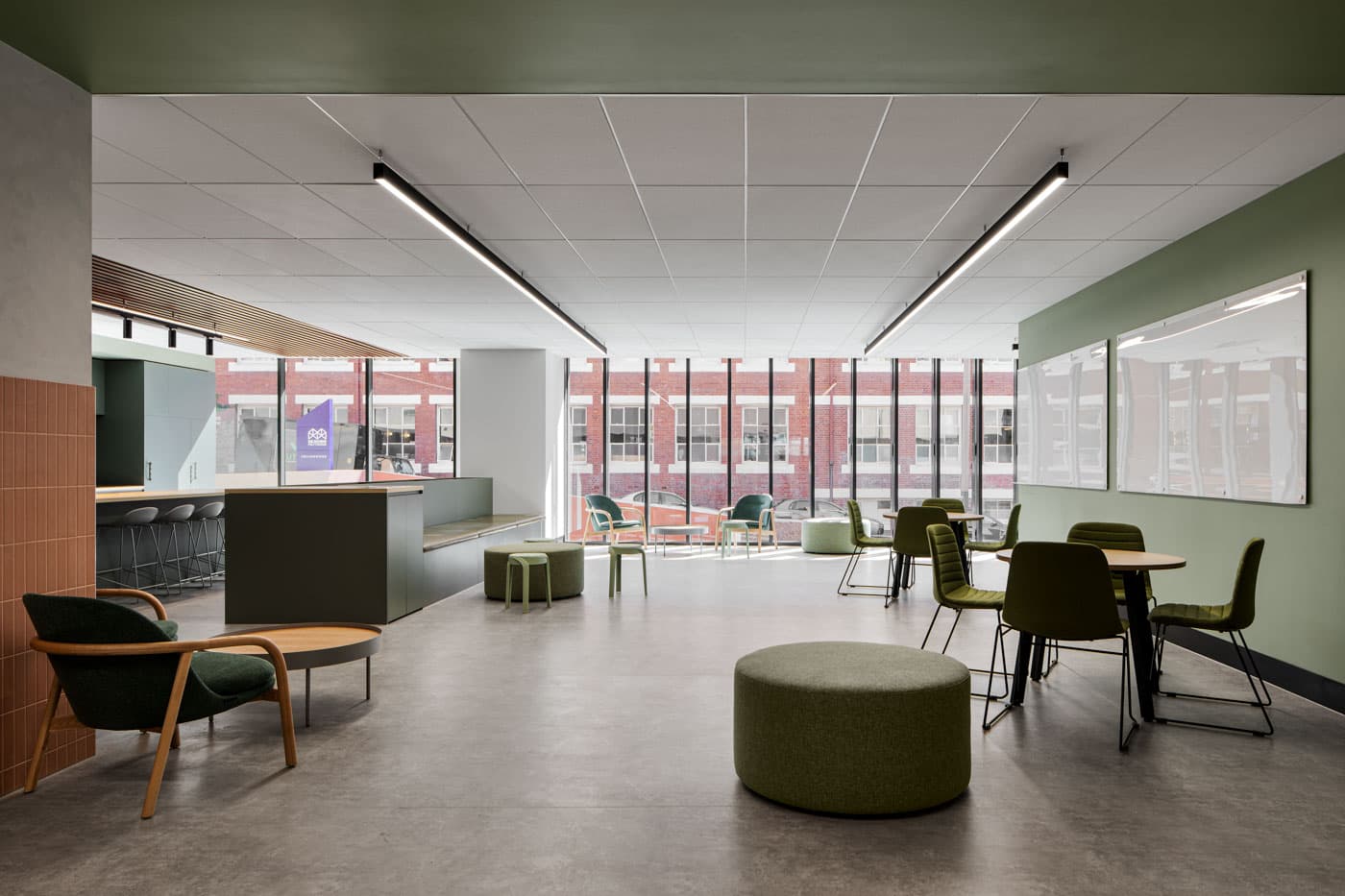

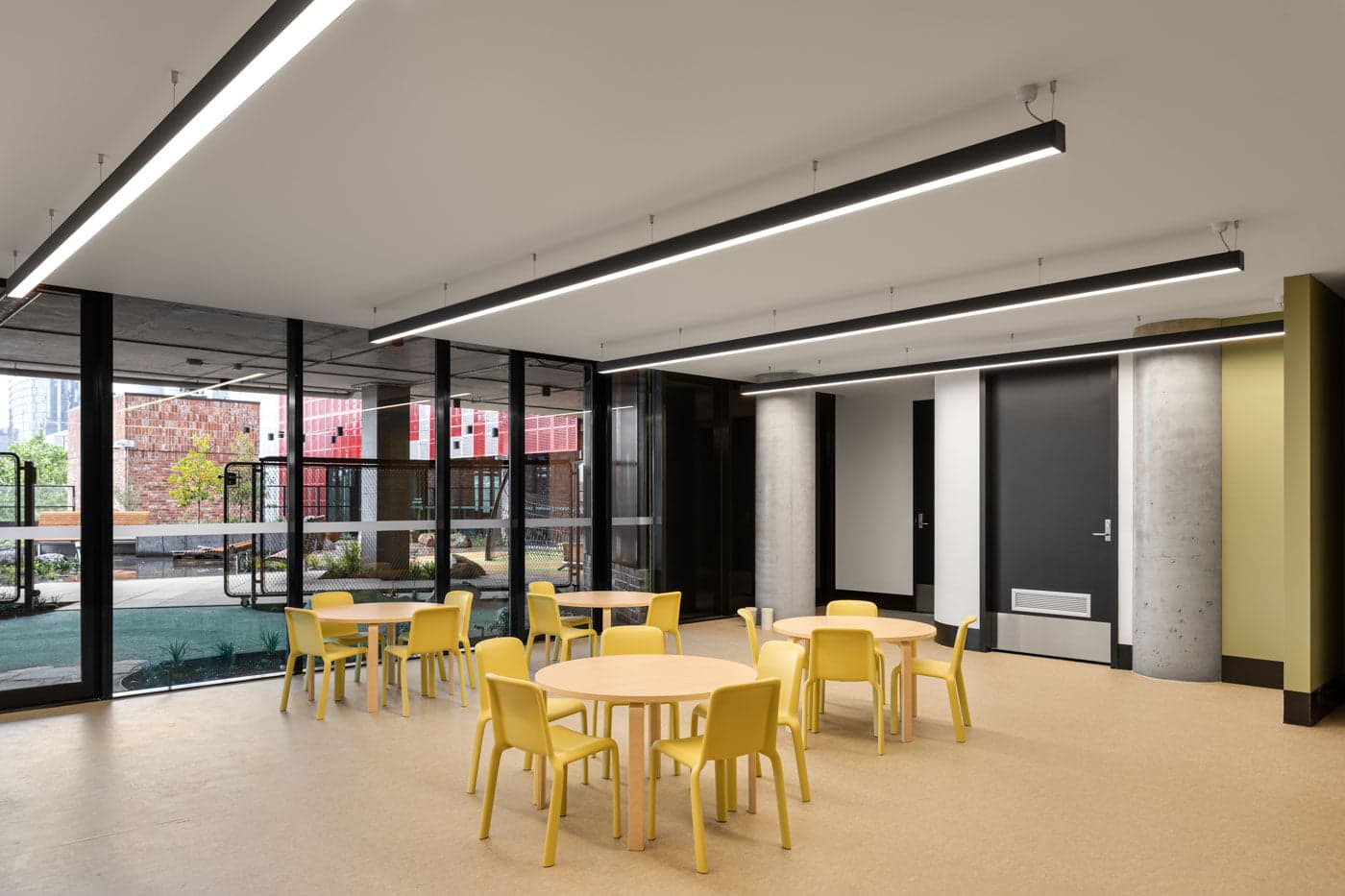

HHIP SUS is a suspended architectural lighting profile featuring DARKON's distinctive 60mm optical aperture and advanced combination lens technology. Available with four optical distributions and an optional combination deglaring lens achieving UGR <19, HIP SUS delivers exceptional visual comfort for office, education and commercial environments. Designed to be both a lighting solution and an architectural feature, HIP SUS can be customised with timber laminates, sublimation finishes, metallic effects and custom powder coats, providing exceptional design flexibility alongside outstanding optical performance.

Read more about HIP SUS

Models


Configure model432 of 432 variants
432 matching variants — select one
Polar light distribution curve for HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x
HIP_600_x_WHT_WHT_ASYMMETRIC_HO_200mA_3000K_CRI90_x_x
Lens
ASYMMETRIC
Direction
Direct
Output Type
High Output
Milliamp
200 mA
Watts
9.7 W
Delivered Lumens
986.2 lm
Efficacy
101.7 lm/W
Colour Temperature (CCT)
3000K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Design Features


  • Screwless Endcaps

  • Dot free homogeneous illumination

  • Multiple Snap Fit Lens Options

  • Multiple fixed output options

  • Detailed Shop Drawings

  • Adjustable suspension height

  • Available in a wide range of finishes

  • Approximate fitting weight of 4 Kg per/m

  • Can accomodate emergency lighting

  • Factory fitted "push to join" installation

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

Related Projects


Recommended Applications


Primary Industry
Spaces
Health
—
Education
—
Hospitality
—
Office / Work Space
—
Residential
—
Retail
—

Technical Details


Physical Dimensions

Width
69mm
Height
80mm

Construction & Mounting

Shape
Linear
Mounting
Suspended
Suspension
Wire Custom Length, Rod Custom Length, Seismic, Wire 2m, Wire 4m
Build Options
Angular Linear Shapes
Accessories
  • Mitre Join - Welded
  • T Intersection - Welded
  • Illuminated Joins

Optics

Light Distribution
Deglaring, Narrow, Asymmetric, Opal

LED

CCT
3000K, 3500K, 2700K, 4000K, Tunable White
CRI
90
LED Output
454.8–3762.9lm
LED Power
6–34.5W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
Output Type
High Output, High Efficiency
LED Type
SMD
LED Model
LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Compliance Reports
LM-79
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


HIP SUS is a suspended architectural lighting profile engineered to deliver clean, controlled illumination with exceptional visual comfort. Combining DARKON's advanced optical platform with a refined architectural form, HIP SUS is equally suited to workplaces, educational facilities, hospitality projects and contemporary commercial interiors where both lighting performance and aesthetics are critical. At the core of the luminaire is DARKON's distinctive 60mm optical aperture, carefully developed to balance lighting performance, efficiency and visual comfort. The profile utilises DARKON's proven combination lens technology, allowing specifiers to select from four optical distributions to suit the requirements of each project while maintaining excellent uniformity and architectural consistency. For projects where glare control is critical, HIP SUS can be paired with DARKON's advanced combination deglaring lens, achieving glare ratings below UGR 19. This makes the system particularly effective in office and education environments where occupant comfort, concentration and visual wellbeing are essential. The combination of the 60mm aperture and advanced lens technology creates a highly comfortable lighting environment without sacrificing performance or efficiency. As a suspended profile, HIP SUS is also ideally suited to DARKON's extensive range of decorative finishes. The profile can be customised with timber laminates, sublimation timber finishes, metallic effects and custom powder-coated colours, allowing the luminaire to become an architectural feature that complements surrounding materials, joinery and interior design elements. This flexibility enables designers to create unique lighting solutions ranging from subtle and understated to bold statement pieces. Available with multiple LED engine options, integrated emergency lighting modules and a range of performance packages, HIP SUS provides architects and lighting designers with a versatile lighting platform that balances optical control, visual comfort and material expression within a clean suspended form.
