HIP TRIM REC
HIP TRIM REC combines a refined recessed profile with advanced lens technology to deliver comfortable, high-performance architectural lighting. When fitted with our deglaring lens, it achieves UGR ratings below 19, making it ideal for visually demanding environments.
Models
- Lens
- ASYMMETRIC
- Direction
- Direct
- Output Type
- High Output
- Milliamp
- 200 mA
- Watts
- 9.7 W
- Delivered Lumens
- 986.2 lm
- Efficacy
- 101.7 lm/W
- Colour Temperature (CCT)
- 3000K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints
Gallery
Related Products
Related Projects
Recommended Applications
Designer Recommendations
Technical Details

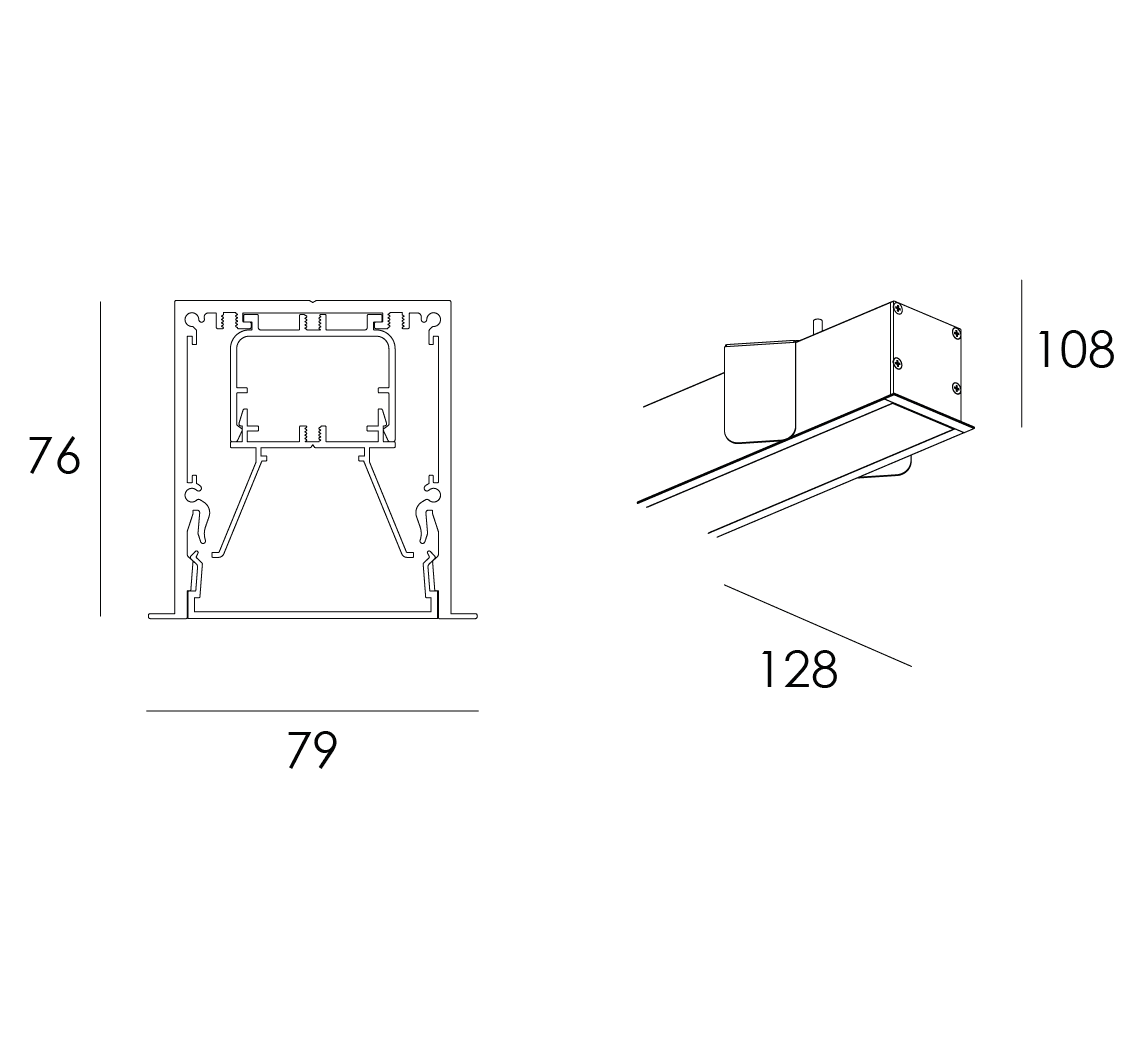

Physical Dimensions
- Width
- 79mm
- Height
- 76mm
Construction & Mounting
- Shape
- Linear
- Mounting
- Recessed
- Build Options
- Angular Linear Shapes
- Accessories
- Illuminated Joins
Optics
- Light Distribution
- Asymmetric, Narrow, Deglaring, Opal
LED
- CCT
- 3000K, 3500K, 2700K, 4000K, Tunable White
- CRI
- 90
- LED Output
- 454.8–3762.9lm
- LED Power
- 6–34.5W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
- Output Type
- High Output, High Efficiency
- LED Type
- SMD
- LED Model
- LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
HIP TRIM REC is a recessed lighting profile designed to deliver clean, comfortable downward illumination for architectural applications. Measuring 79mm wide by 76mm high, it integrates seamlessly into ceiling constructions, creating a discreet and refined visual appearance. The profile is paired with DARKON's advanced lens technology, which provides excellent optical control and visual comfort. When combined with our deglaring lens option, HIP TRIM REC can achieve glare ratings below UGR 19, making it ideal for commercial, education, workplace, and other visually demanding environments. Available in a range of outputs, HIP TRIM REC offers architects and lighting designers the flexibility to tailor performance to suit everything from general ambient lighting to more focused illumination requirements.
