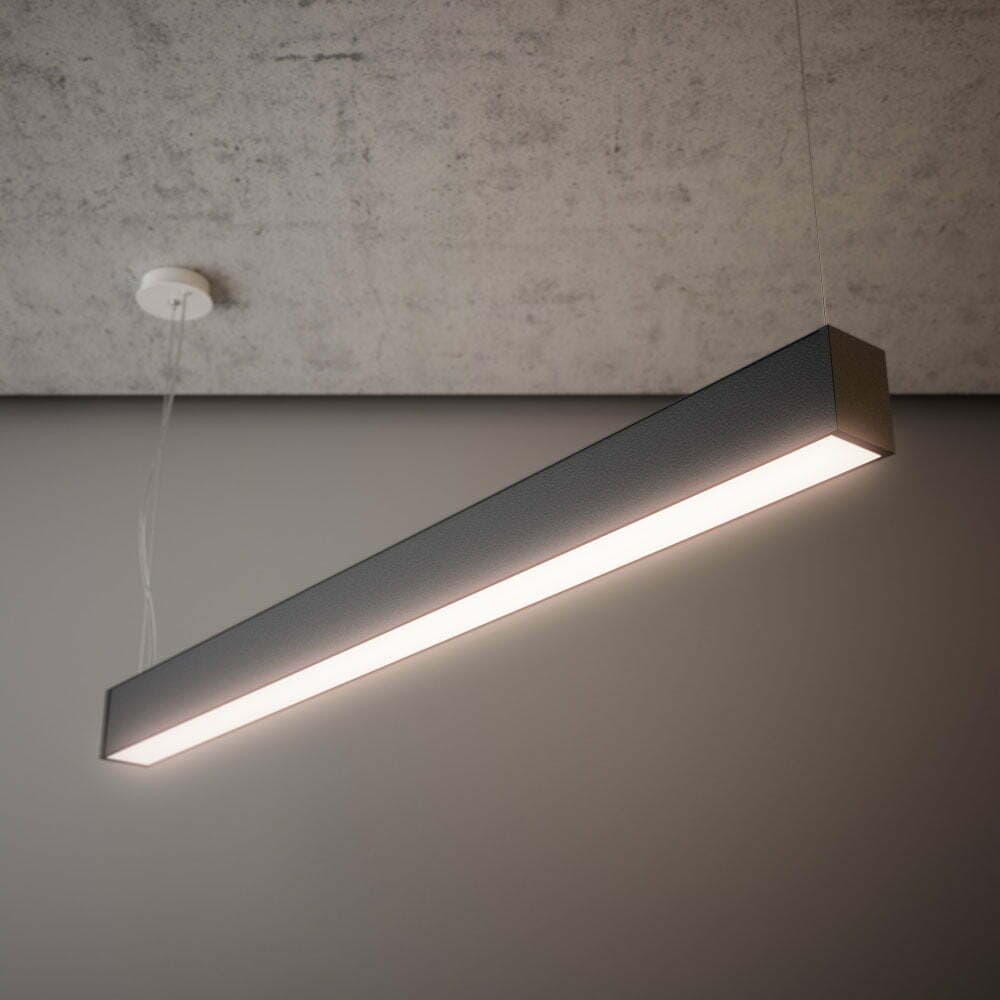

HIP IP67 SUS

HIP IP67 SUS is a heavy-duty suspended architectural lighting system engineered for demanding environments where water protection, impact resistance and long-term reliability are critical. Built around the same proportions as the standard HIP family, it allows designers to maintain a consistent architectural language as a project transitions between interior, exterior and high-demand areas. At the heart of HIP IP67 SUS is a complex co-moulded tubular lens incorporating external screw flutes, allowing the end caps to be mechanically secured without the fixing screws penetrating the sealed optical chamber. Heavy-duty injection-moulded end caps incorporate co-moulded gaskets and are designed to glow with the tubular lens, maintaining visual continuity across individual fittings and continuous suspended runs. The underside of the tubular lens remains optically clear, allowing specifiers to select DARKON's familiar opal, deglaring, asymmetric or proprietary narrow lens options. This provides exceptional optical flexibility within an IP67 suspended luminaire. A one-way vent valve allows internal moisture to escape during significant temperature changes while resisting moisture entry. A dedicated cavity within the profile accommodates DARKON's plug-and-play through-wiring system, fed via a proprietary IP-rated junction box. This allows continuous suspended runs to remain factory sealed regardless of overall system length, minimising site work that could compromise the IP67 integrity of the luminaire. DARKON's patented Self Lok Lap Join further improves continuous installations by minimising light bleed between adjoining modules. The substantial tubular lens and robust external construction combine to achieve IK10 impact resistance, making HIP IP67 SUS particularly suited to rail infrastructure, airports, pedestrian walkways, tunnels, transport environments and covered external areas where a suspended architectural solution is required. The result is a highly engineered IP67 and IK10 suspended architectural lighting system combining exceptional durability, selectable optics, continuous linear illumination and installation flexibility with the refined proportions of the broader HIP family.
