GRAZER SUS

LED FLEXIBLE
AUSTRALIAN MADE
RCM
10 YEARS
FLICKER FREE
LED LINEAR
IP22
OPAL

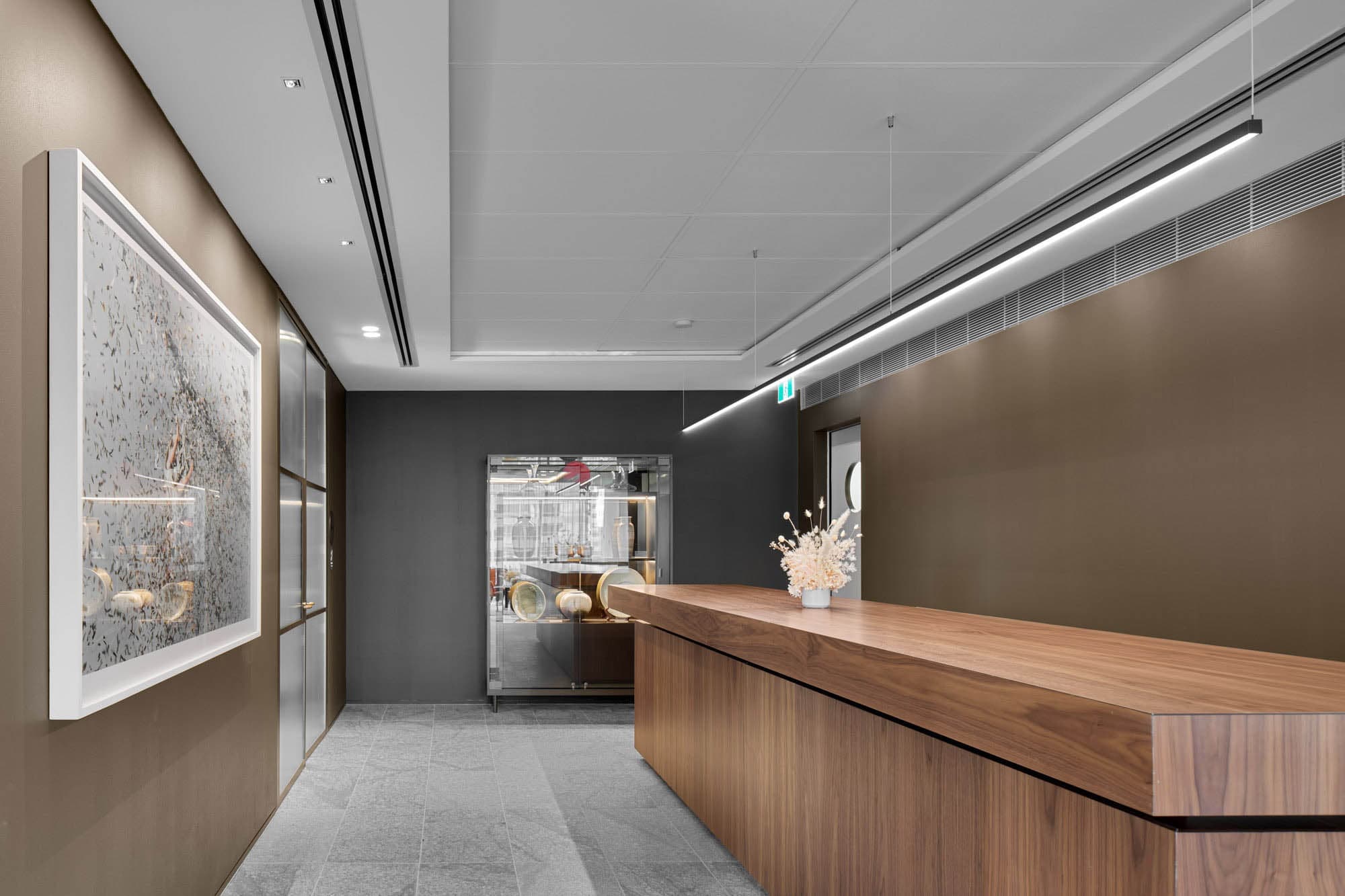

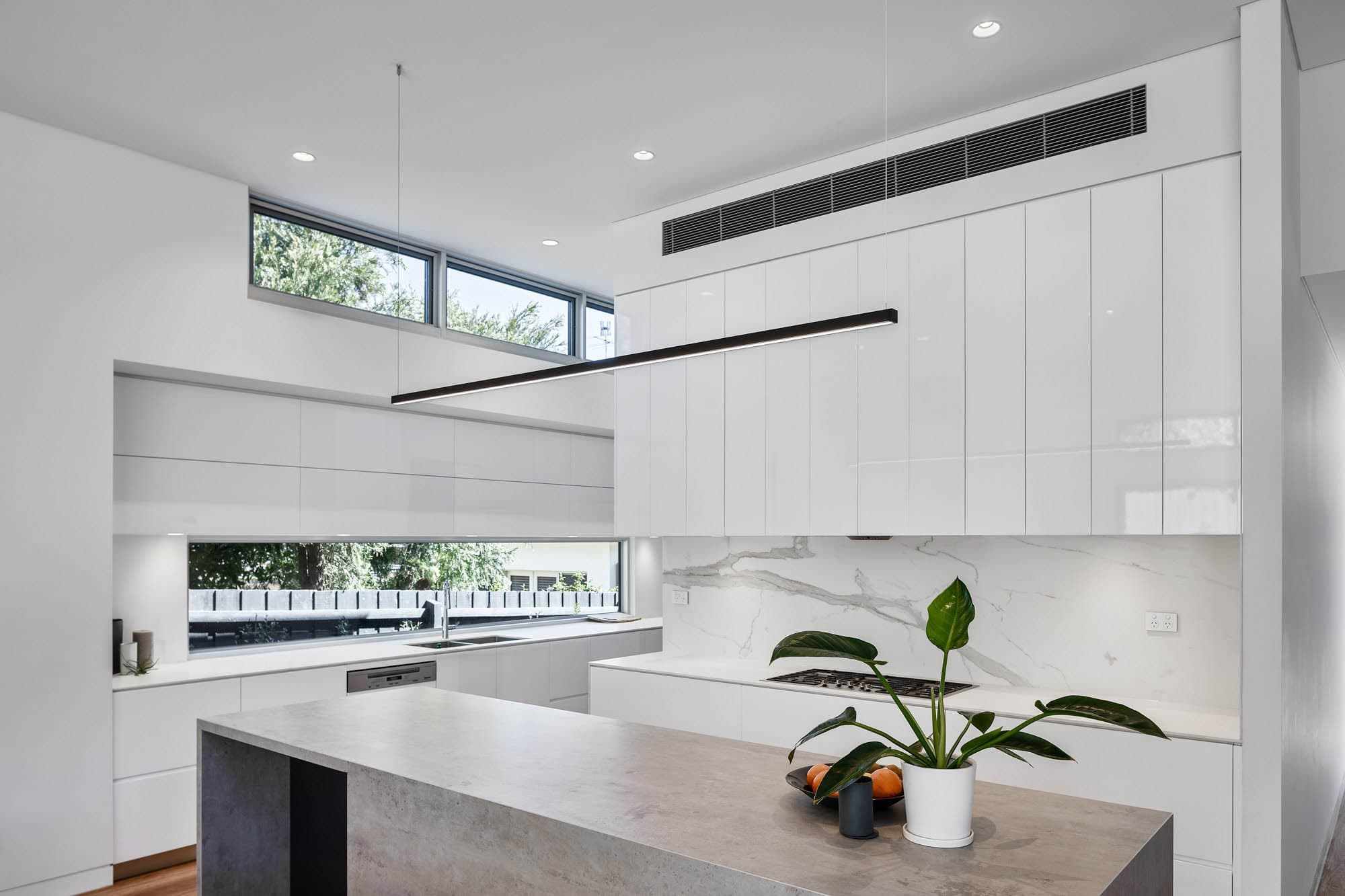

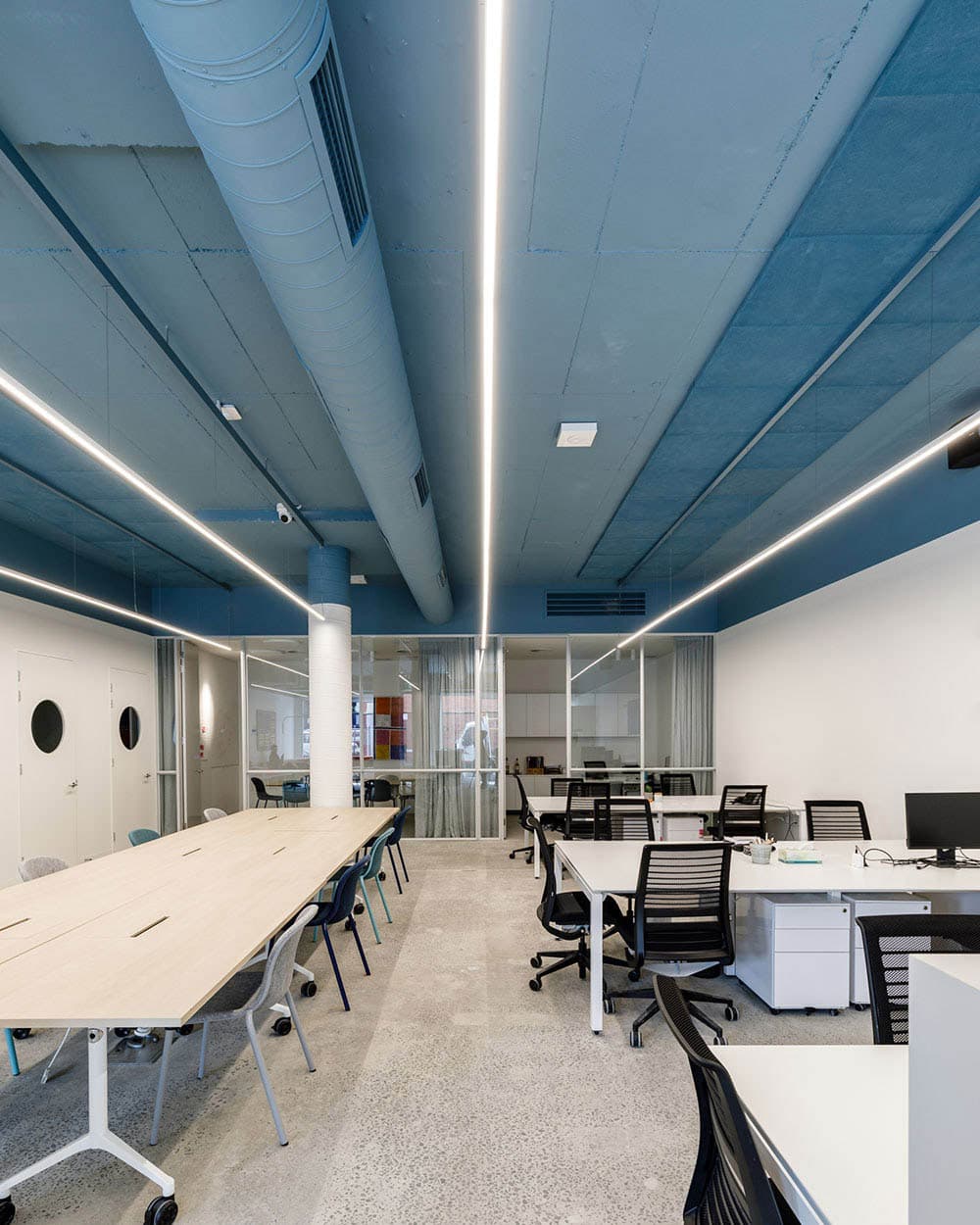

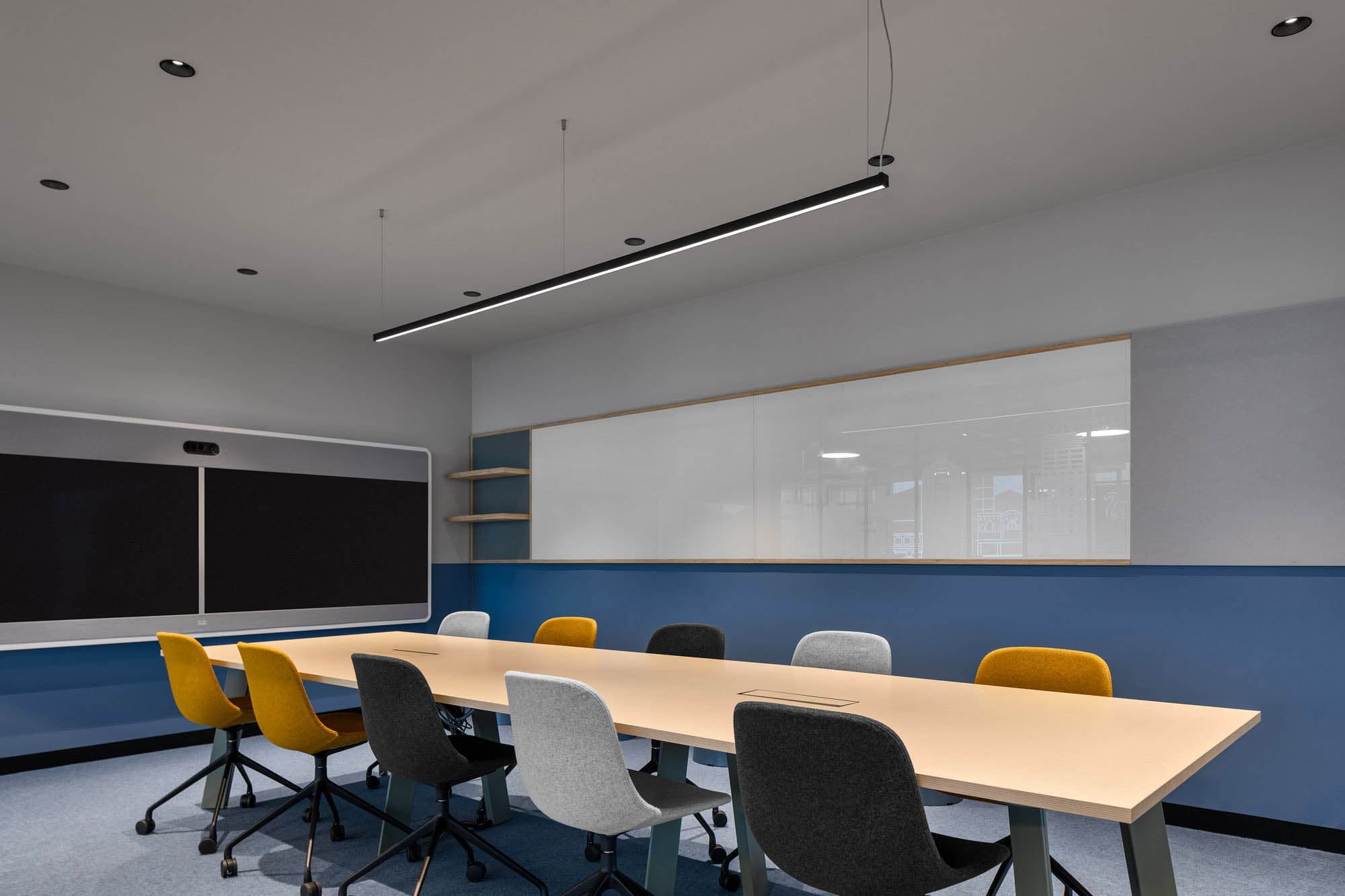

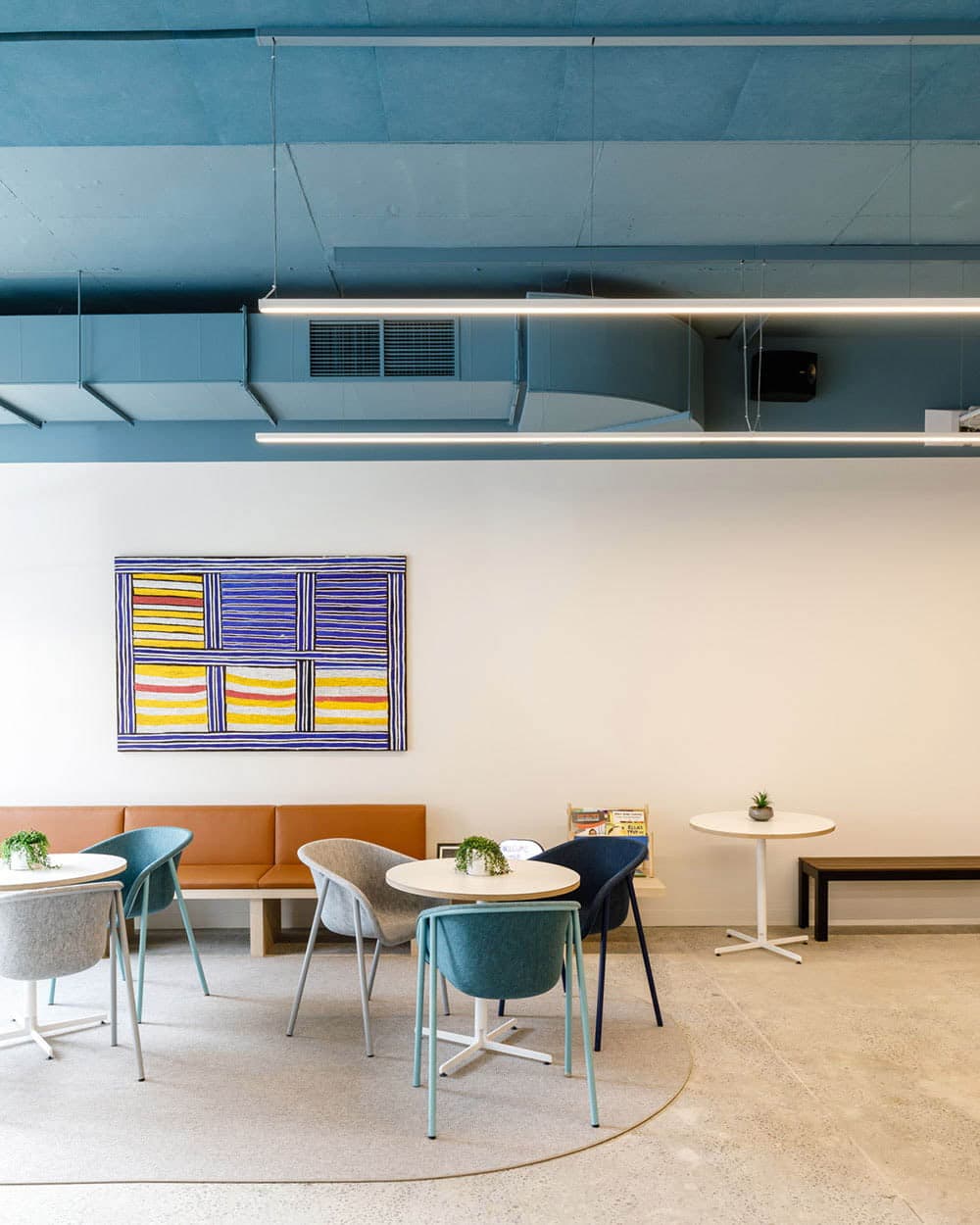

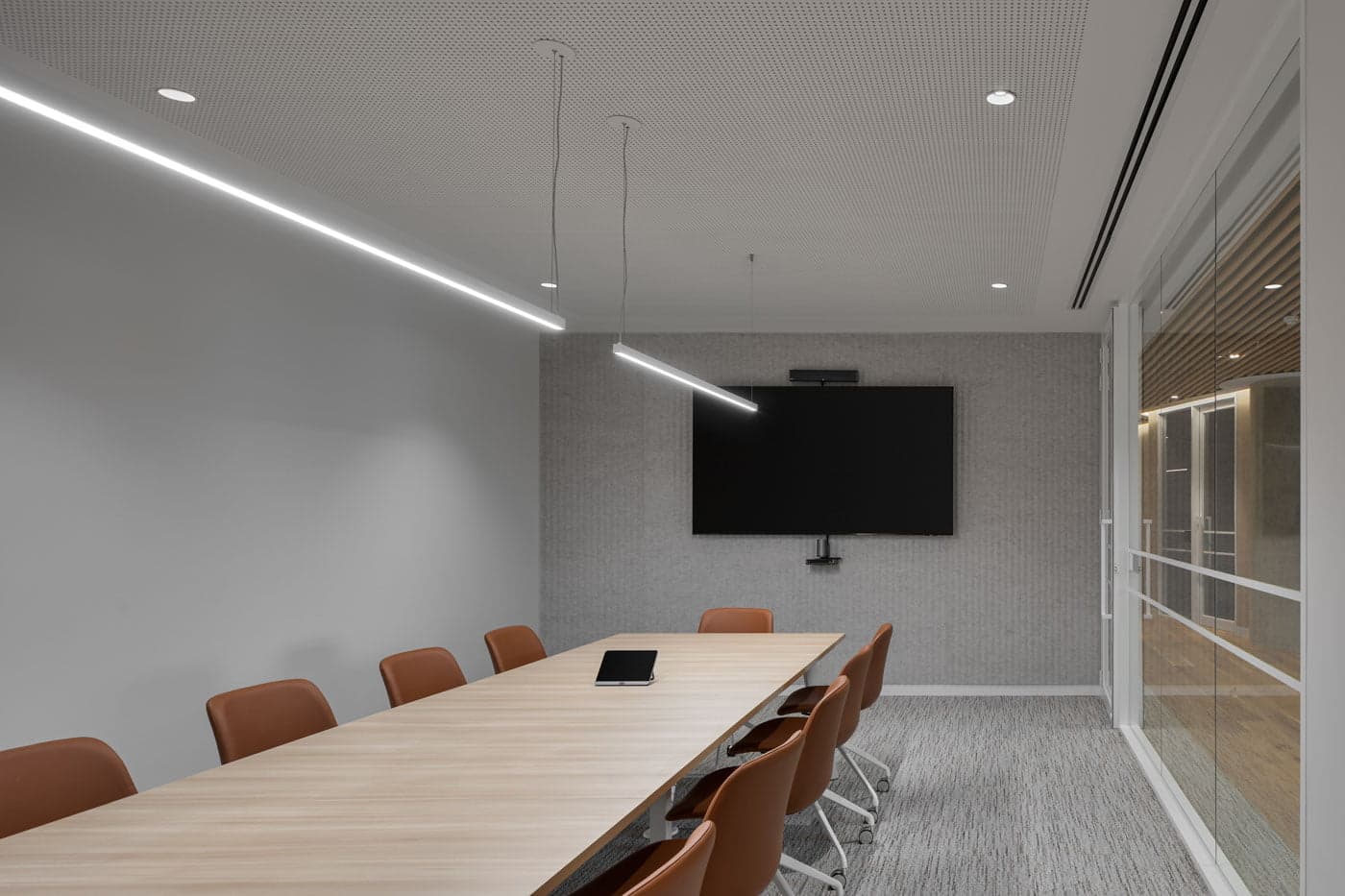

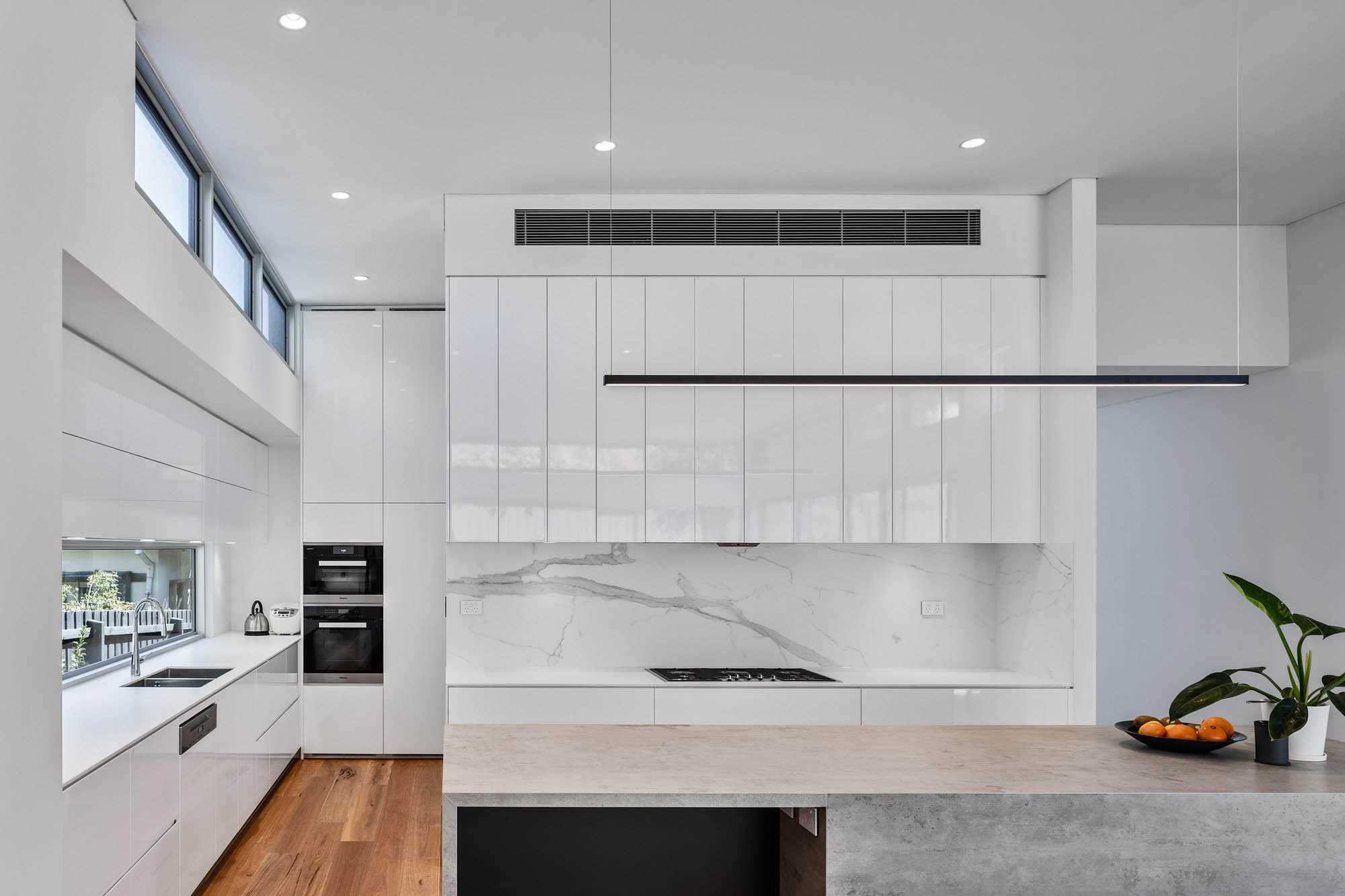

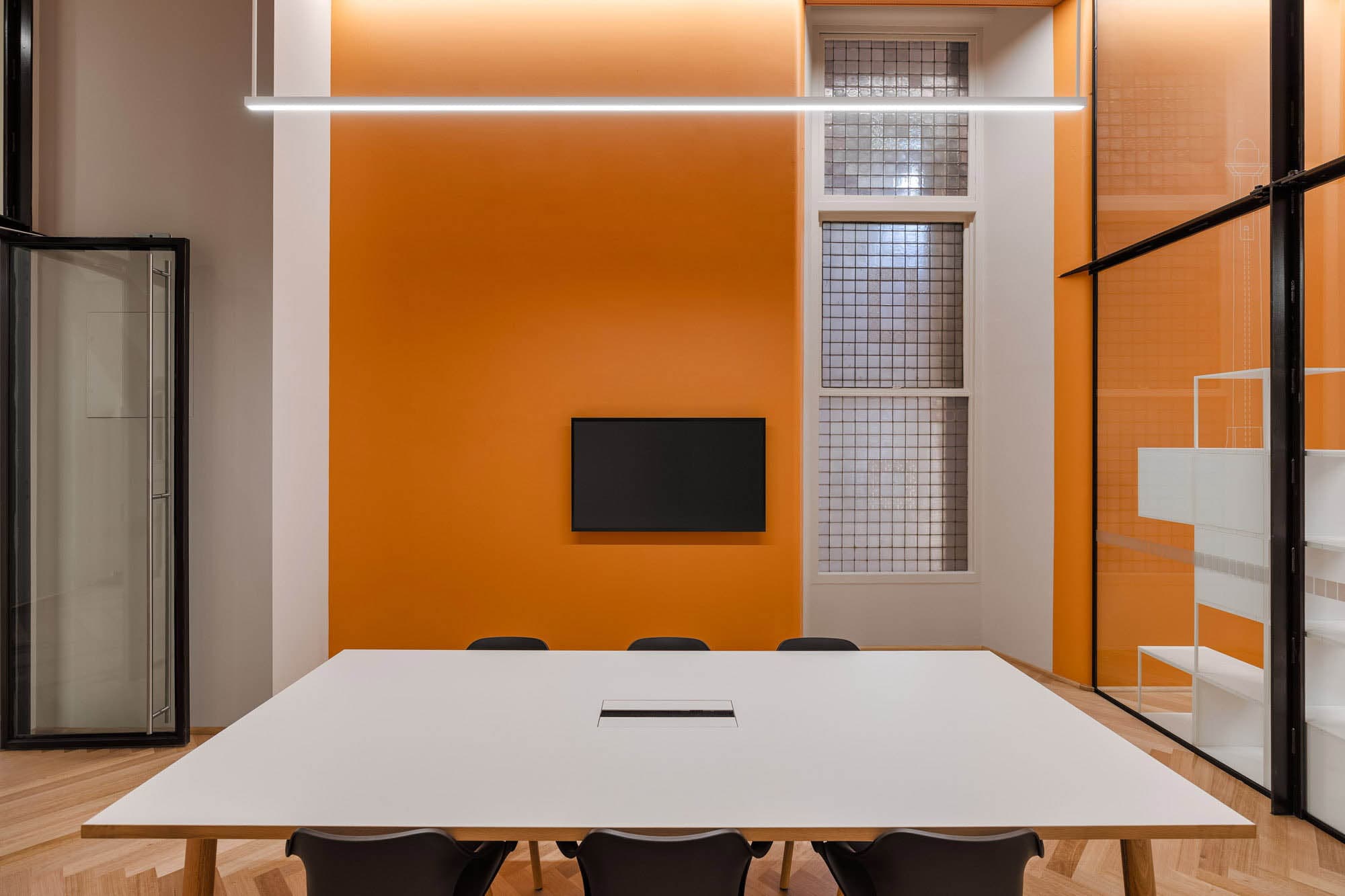

GRAZER SUS is a suspended architectural lighting profile featuring a slim 20mm optical lens and five LED output options, delivering precise illumination in a sleek minimalist form. Popular with architects and interior designers, its refined proportions and remote-driver design create an elegant lighting solution for contemporary interiors. Built around DARKON's innovative universal body platform, the same light engine can be used across recessed, surface-mounted and suspended configurations, simplifying project changes and enabling dual-finish architectural lighting solutions without redesigning the luminaire.

Read more about GRAZER SUS

Design Features


  • 88 exit lumens per watt

  • Dot free homogeneous illumination

  • Screwless Endcaps

  • 80+ colour rendering

  • Small colour tolerance Macadam 3

  • L90 / B10 @ 50,000 hours @ 350mA /40°C TA

  • L70 / B10 @ 100,000 hours @ 350mA/ 40°C TA

  • Multiple fixed output options

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Welded mitre joins eliminate light bleed

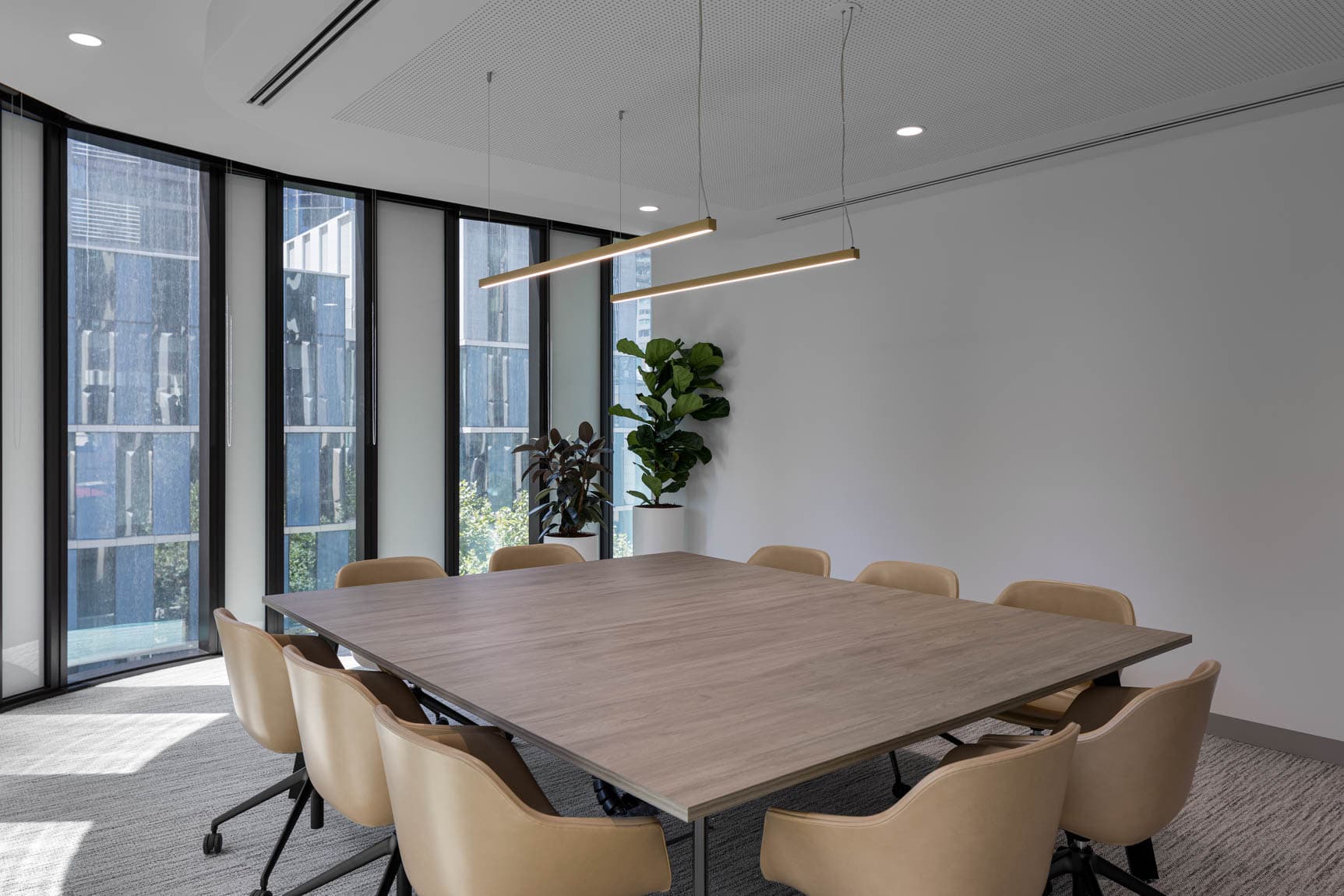

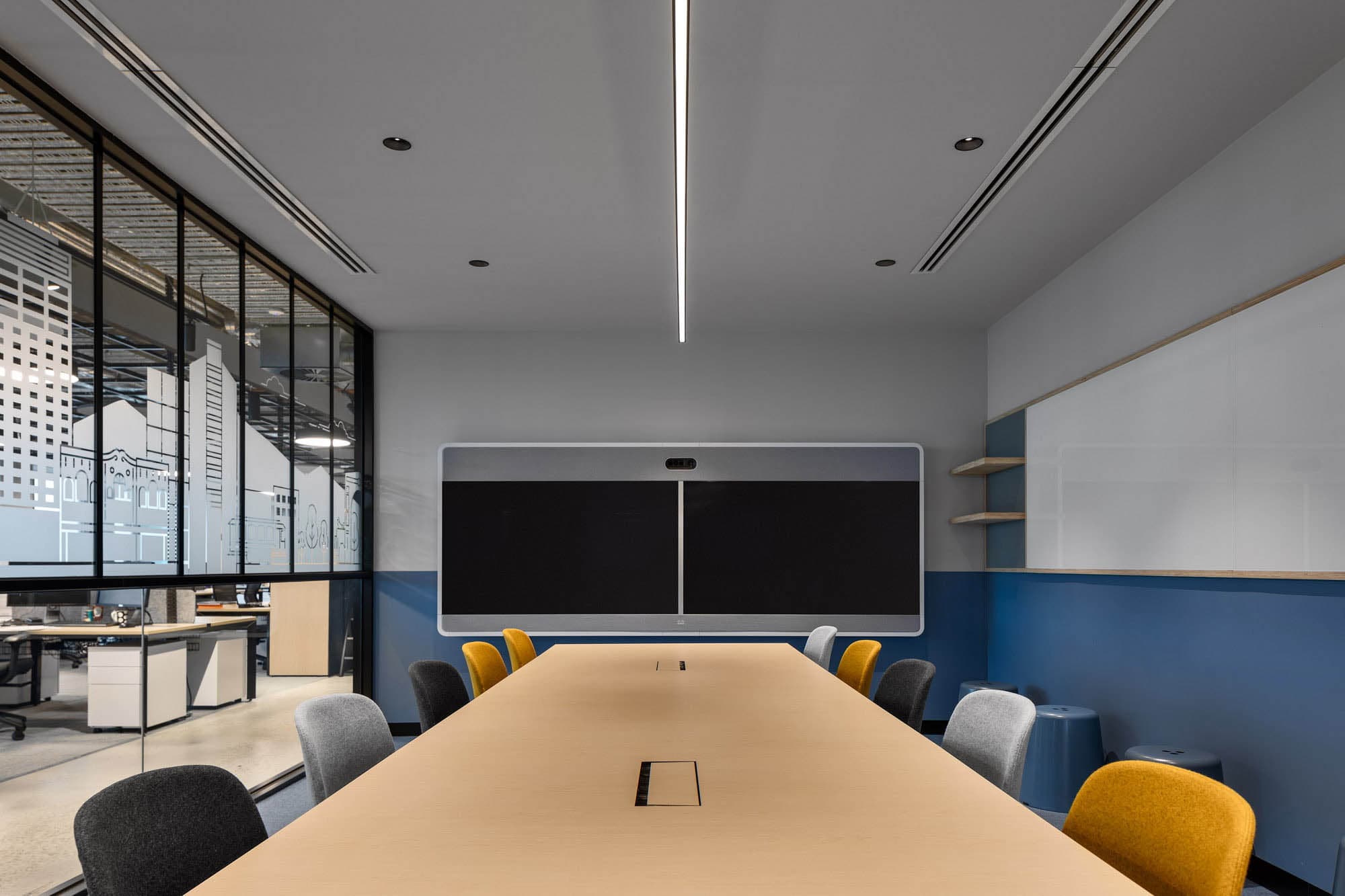

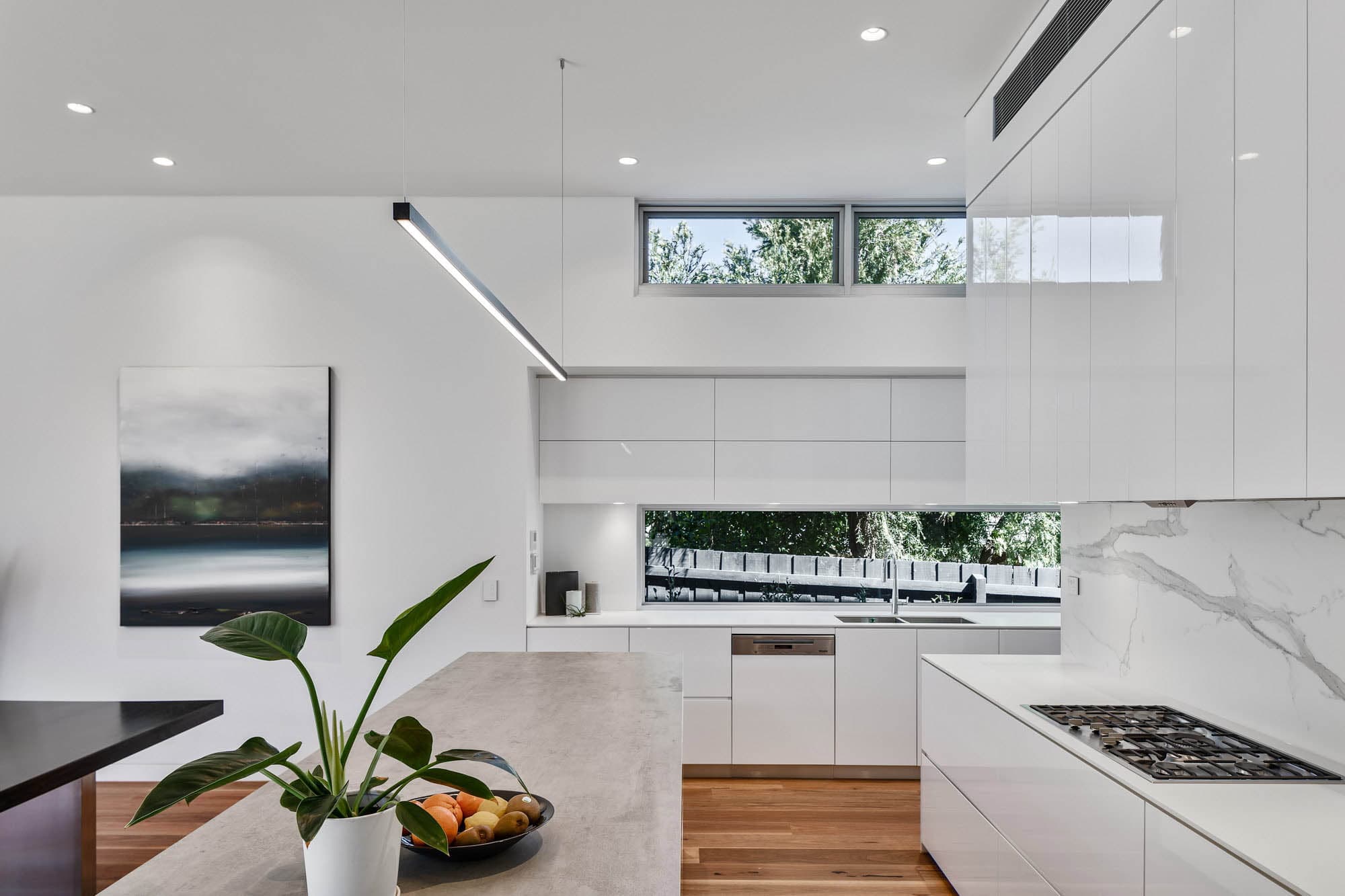

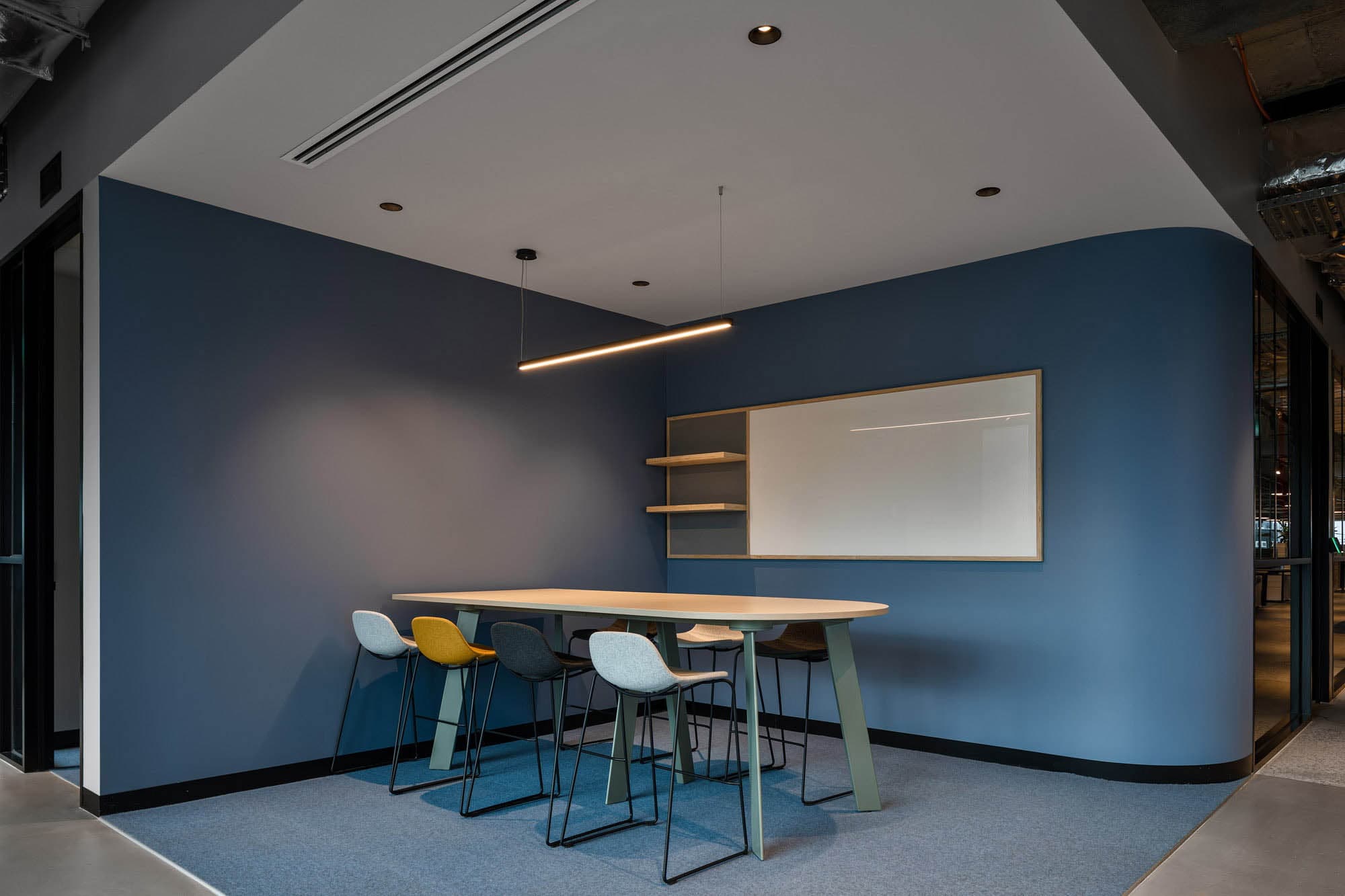

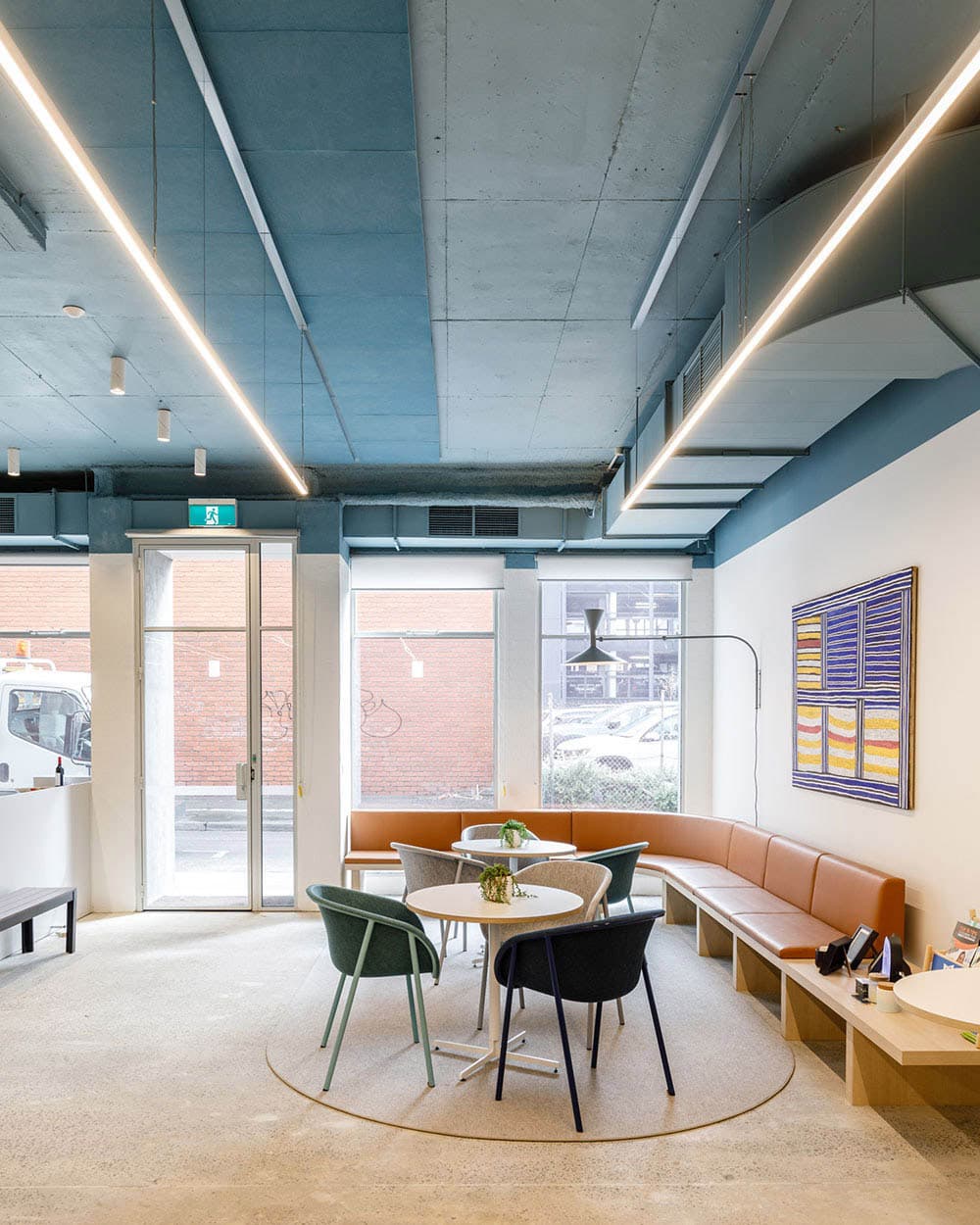

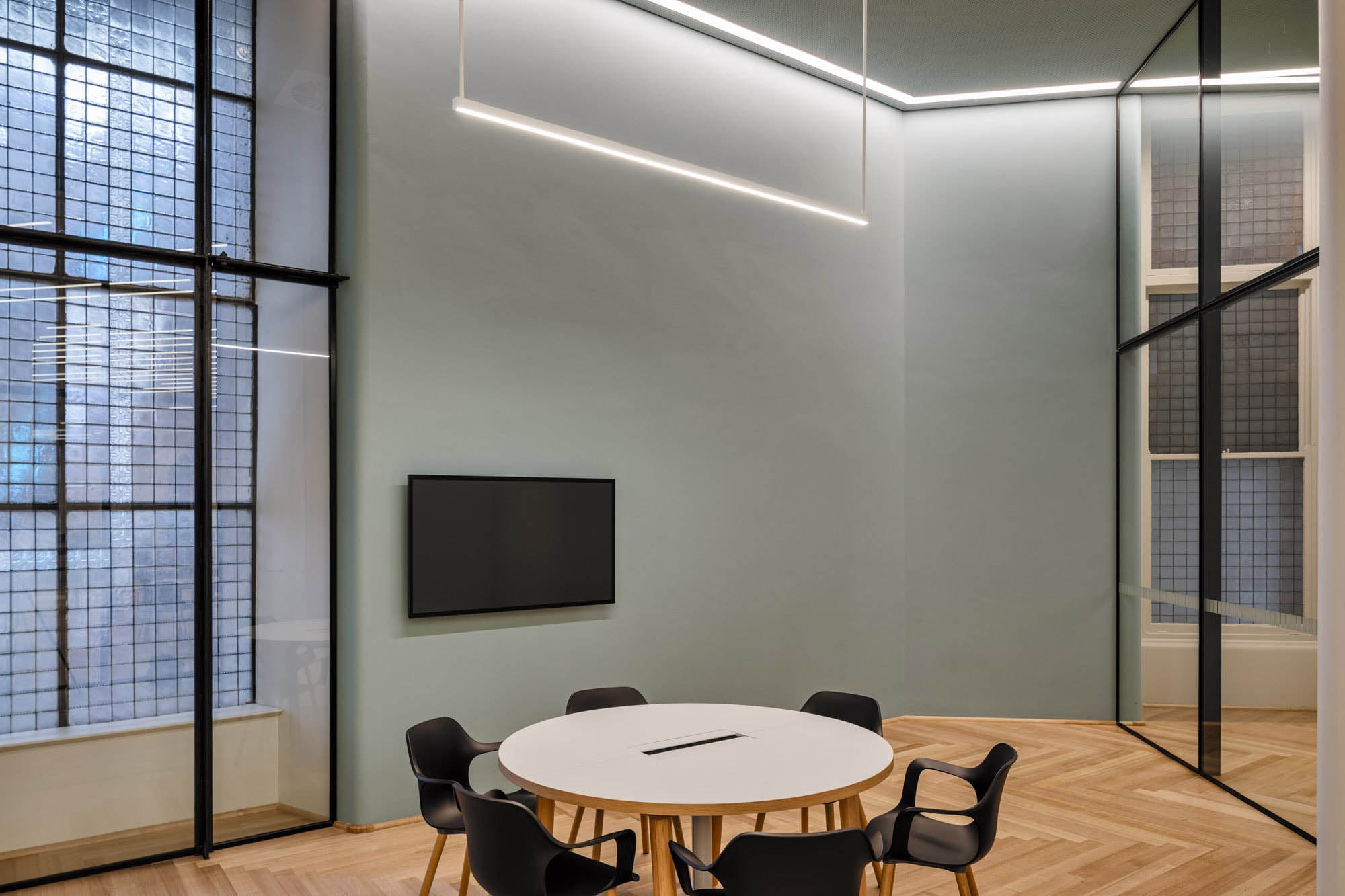

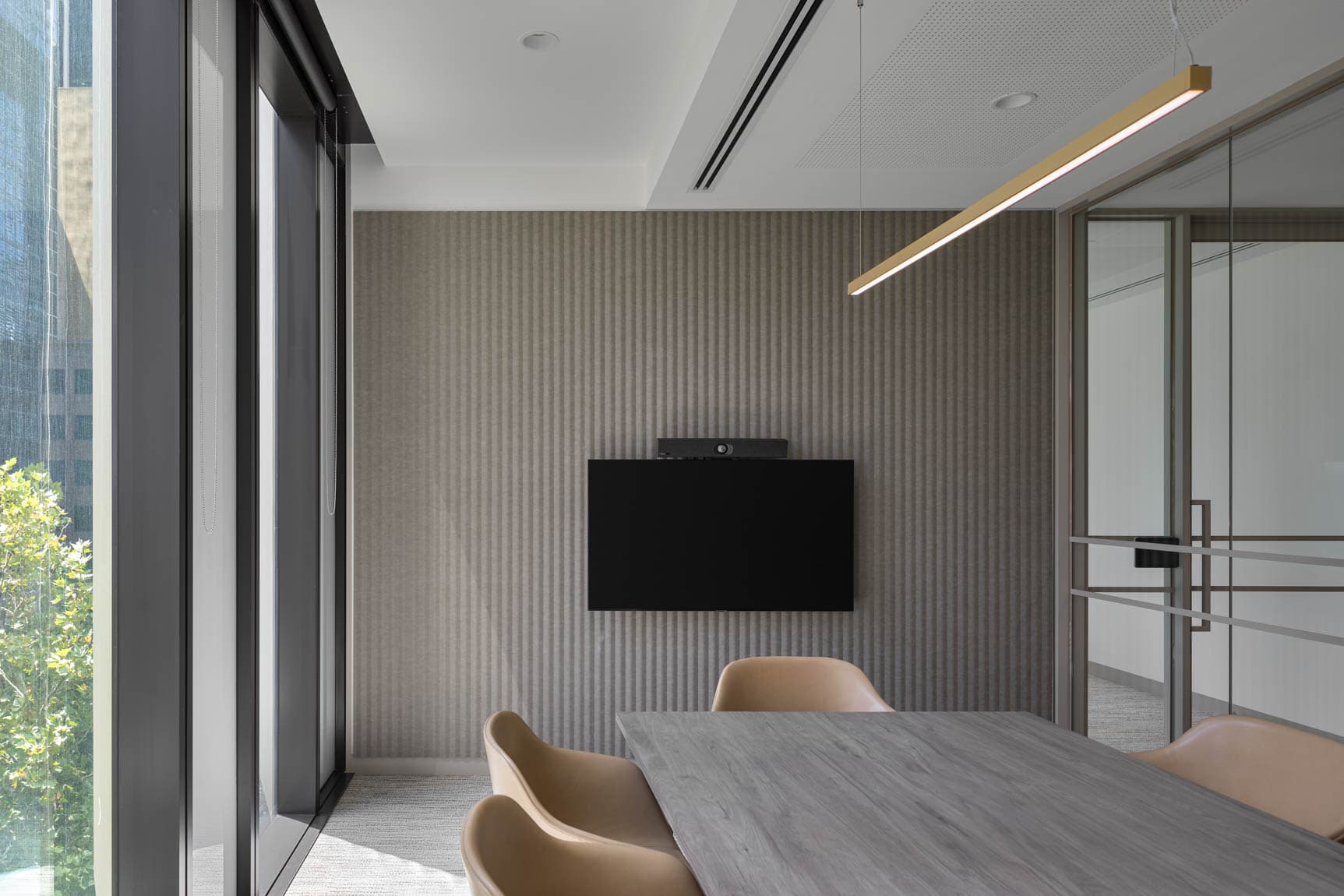

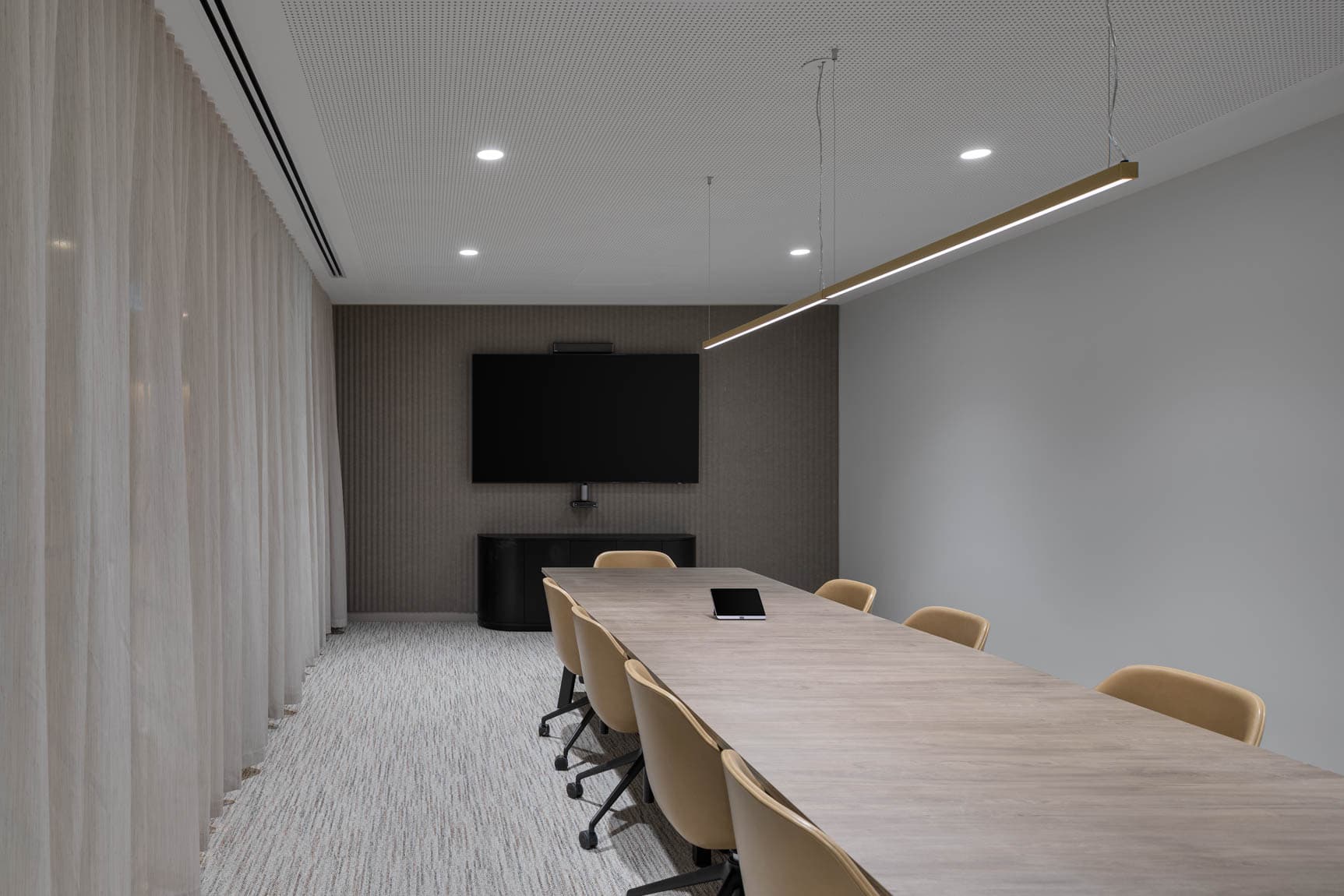

Related Projects


Recommended Applications


Primary Industry
Spaces
Health
—
Education
—
Hospitality
—
Office / Work Space
—
Residential
—
Retail
—

Designer Recommendations

KitchenMeeting RoomBreakout SpaceRestaurantBarCafeRetail Display

Technical Details


Physical Dimensions

Width
30mm
Height
30mm
Weight
1.6kg/m

Construction & Mounting

Shape
Micro Linear
Mounting
Suspended
Suspension
Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
Build Options
Angular Linear Shapes
Accessories
  • Mitre Join - Welded
  • T Intersection - Welded
  • Illuminated Joins

Optics

Light Distribution
Opal

Electrical & Driver

Dimming
DALI
Driver Model
LC 60/150-550/230 o4a NF h16 EXC4
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Compliance Reports
LM-79
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


GRAZER SUS is a suspended architectural lighting profile designed to deliver clean, direct illumination with a minimalist visual footprint. Featuring a slim 20mm optical lens, it creates a refined line of light that integrates seamlessly into contemporary interiors. Its sleek proportions and understated form have made it particularly popular with architects and interior designers seeking a lighting solution that complements rather than dominates a space. Engineered for flexibility, GRAZER SUS is available with five LED output options to suit a broad range of applications, from feature lighting through to general illumination. The remote driver configuration allows for an exceptionally slender profile, resulting in a clean architectural appearance that feels light and elegant within the built environment. A defining feature of the Grazer platform is DARKON's universal body design, one of the first systems in the DARKON range to utilise a common internal light engine across multiple mounting formats. The same illuminated Grazer core can be used within recessed installations or snap-fitted into surface-mounted and suspended bodies, allowing mounting methods to change without redesigning or remanufacturing the light engine itself. This modular approach simplifies project variations, streamlines manufacturing and provides greater flexibility throughout the design and construction process. The universal body concept also enables the easy creation of dual-finish luminaires, allowing contrasting finishes between the light engine and outer body. This gives designers additional freedom to coordinate lighting with surrounding materials, colours and architectural details while maintaining a consistent optical platform across the project. The result is a highly refined architectural lighting system that combines minimalist aesthetics, installation flexibility and precise optical performance within one of DARKON's most versatile lighting platforms.
