GRAZER SM
GRAZER SM is a surface-mounted architectural lighting profile featuring a slim 20mm optical lens and five LED output options, delivering precise illumination in a sleek minimalist form. Popular with architects and interior designers, its refined proportions and integrated control gear create an elegant lighting solution that is both visually appealing and easy to install. Built around DARKON's innovative universal body platform, the same light engine can be used across recessed, surface-mounted and suspended configurations, simplifying project changes and enabling dual-finish architectural lighting solutions without redesigning the luminaire.
Design Features
88 exit lumens per watt
Screwless Endcaps
Dot free homogeneous illumination
Small colour tolerance Macadam 3
L90 / B10 @ 50,000 hours @ 350mA /40°C TA
L70 / B10 @ 100,000 hours @ 350mA/ 40°C TA
80+ colour rendering
Multiple fixed output options
Detailed Shop Drawings
Colour changing RGB and RGB+W options available
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings

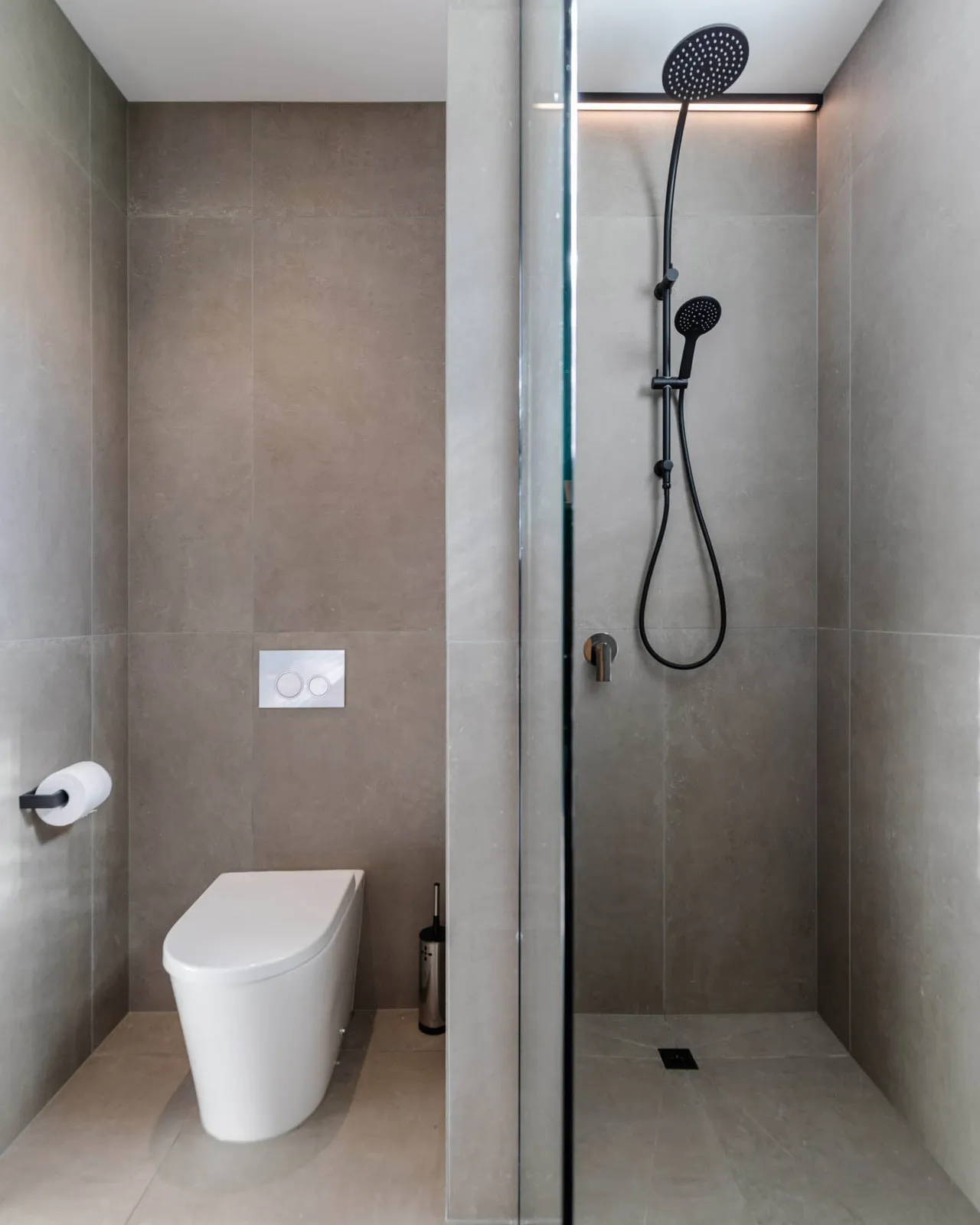

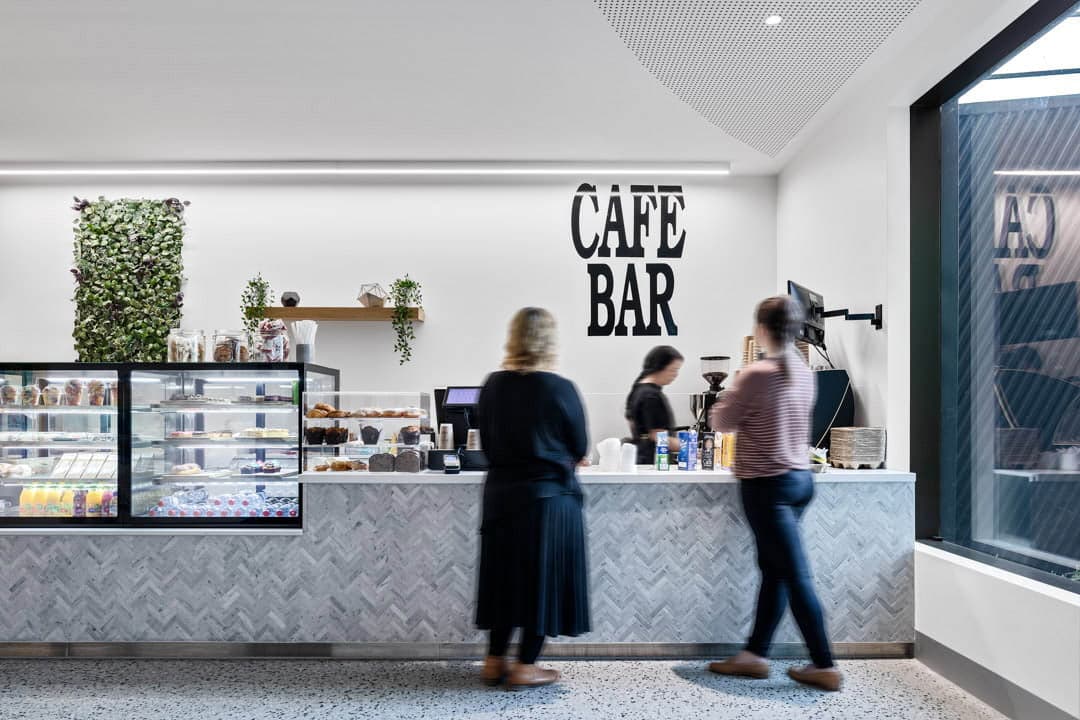

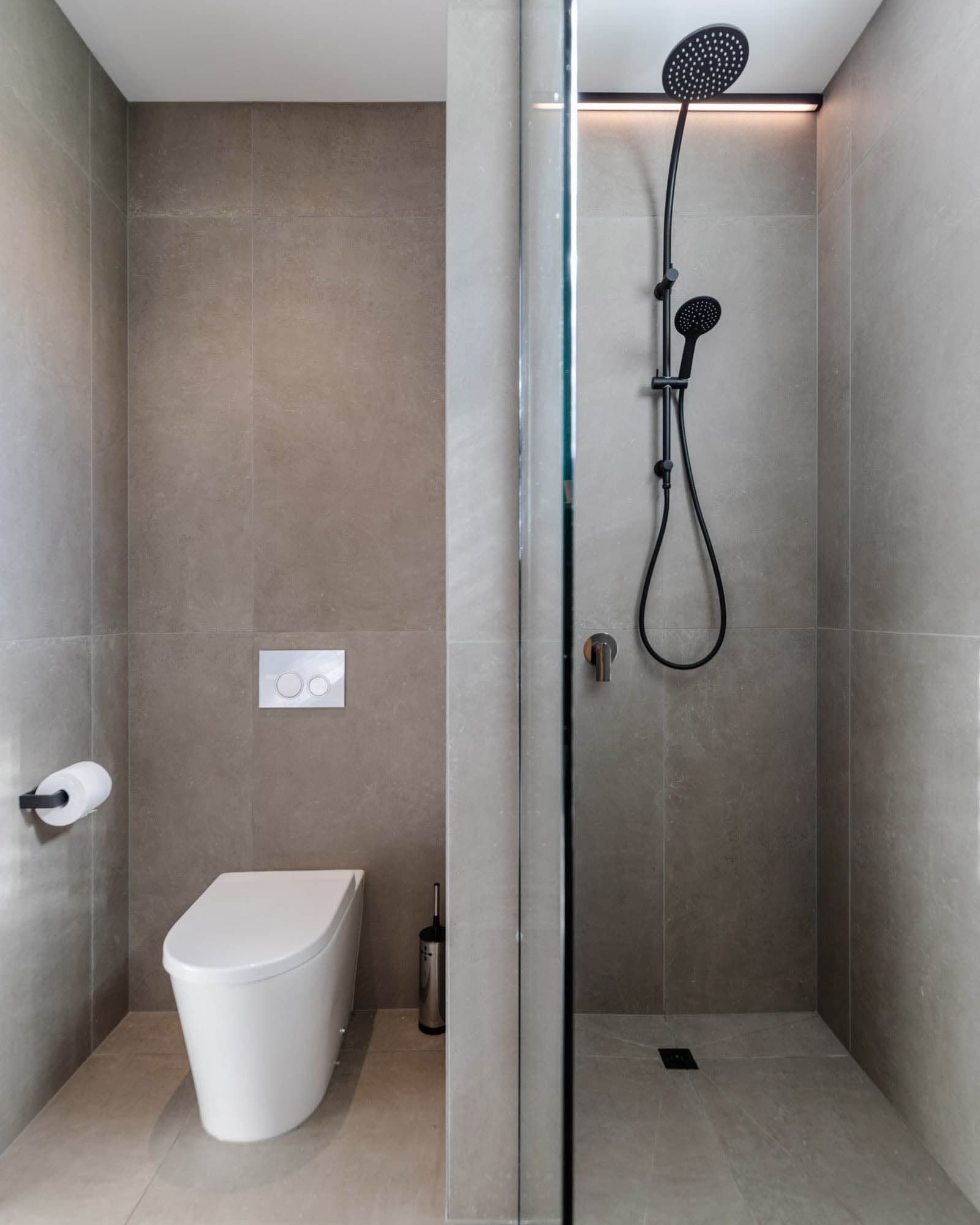

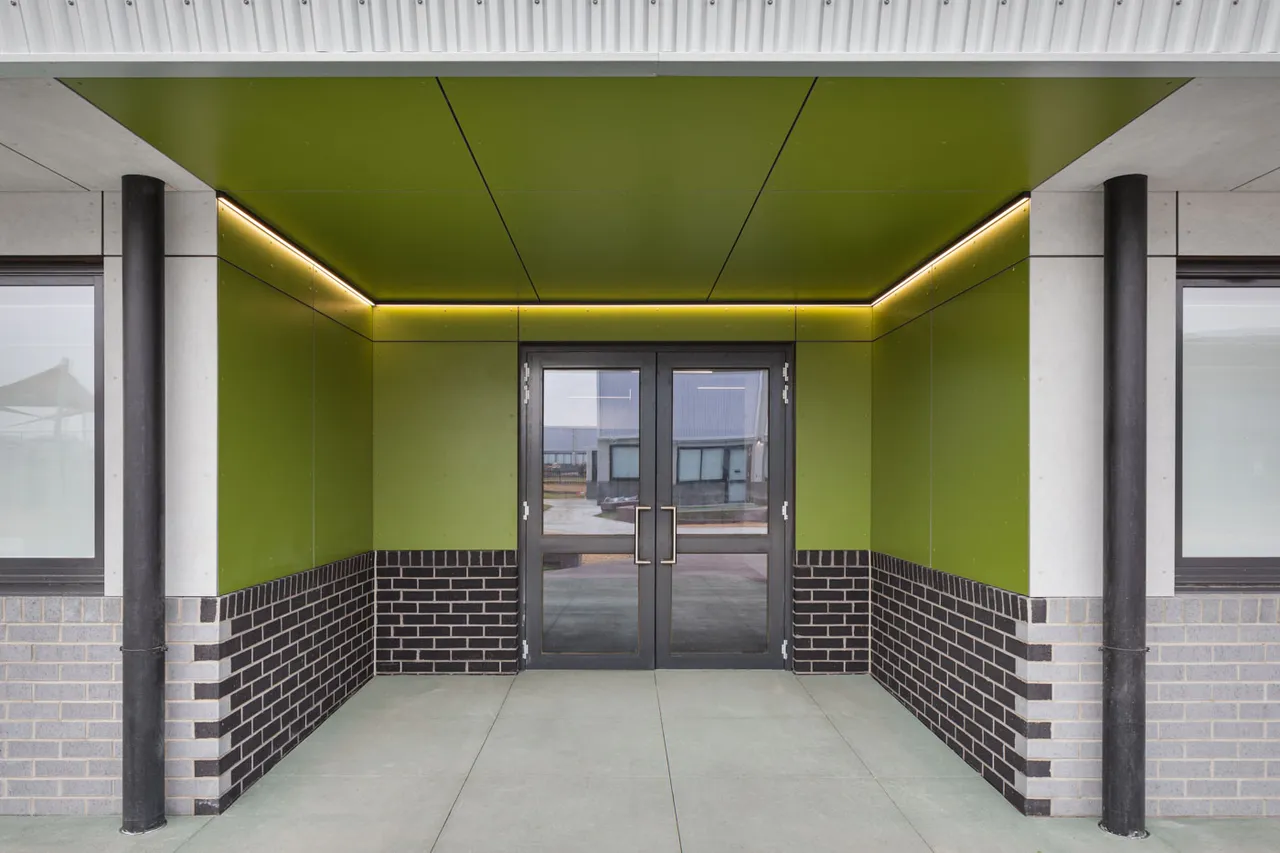

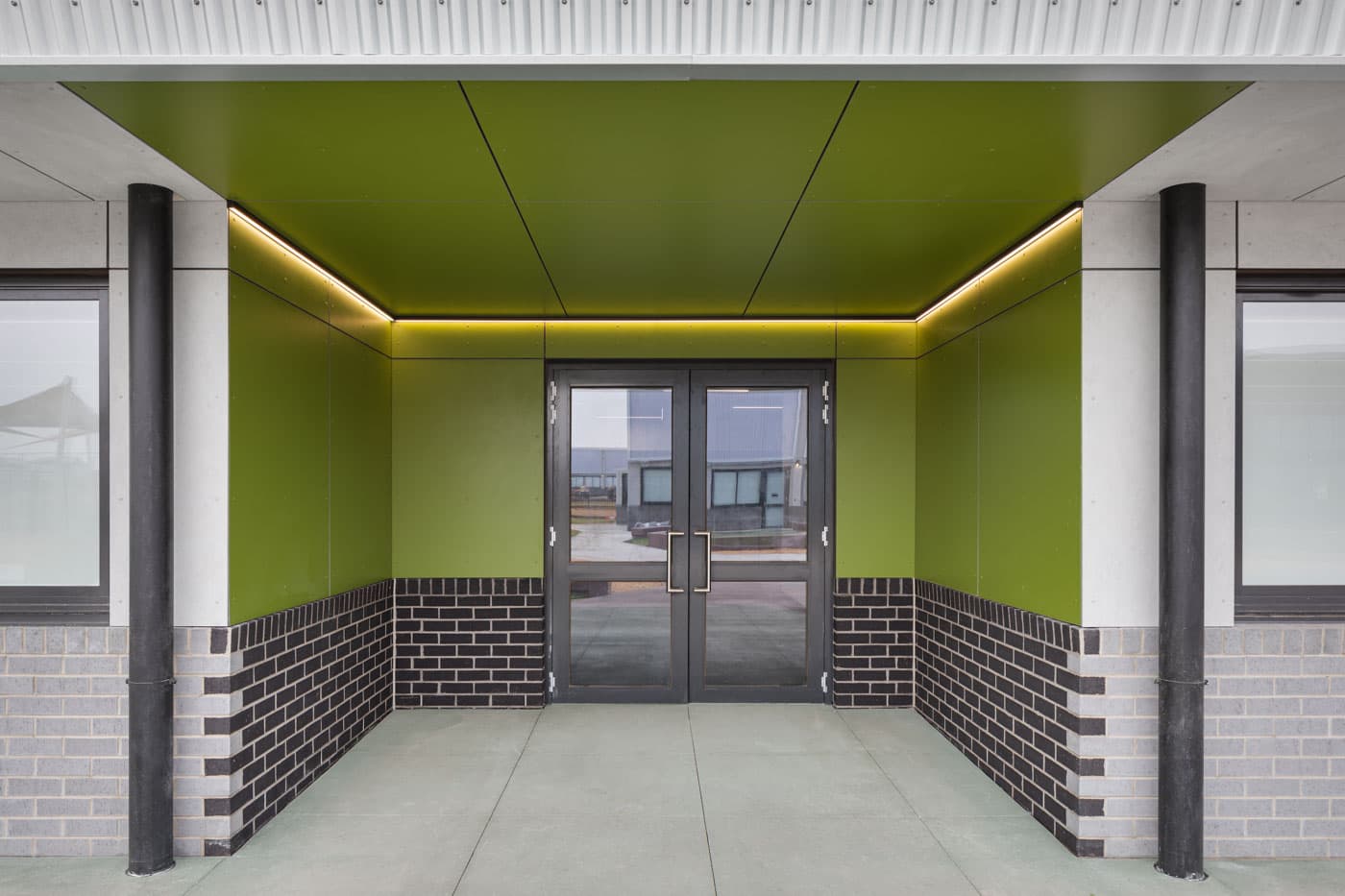

Gallery
Related Projects
Recommended Applications
Designer Recommendations
Technical Details
Physical Dimensions
- Width
- 30mm
- Height
- 30mm
Construction & Mounting
- Shape
- Micro Linear
- Mounting
- Surface Mounted
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- Illuminated Joins
Optics
- Light Distribution
- Opal
Electrical & Driver
- Dimming
- DALI
- Driver Model
- LC 60/150-550/230 o4a NF h16 EXC4
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
GRAZER SM is a surface-mounted architectural lighting profile designed to deliver clean, direct illumination with a minimalist visual footprint. Featuring a slim 20mm optical lens, it creates a refined line of light that integrates seamlessly into contemporary interiors. Its sleek proportions and understated form have made it particularly popular with architects and interior designers seeking a lighting solution that complements rather than dominates a space. Engineered for flexibility, GRAZER SM is available with five LED output options to suit a broad range of applications, from feature lighting through to general illumination. Unlike the suspended version, GRAZER SM incorporates integral control gear within the surface-mounted body, simplifying installation while maintaining its elegant architectural appearance. The result is a clean, self-contained luminaire that can be installed quickly and efficiently without the need for remote driver locations. A defining feature of the Grazer platform is DARKON's universal body design, one of the first systems in the DARKON range to utilise a common internal light engine across multiple mounting formats. The same illuminated Grazer core can be used within recessed installations or snap-fitted into surface-mounted and suspended bodies, allowing mounting methods to change without redesigning or remanufacturing the light engine itself. This modular approach simplifies project variations, streamlines manufacturing and provides greater flexibility throughout the design and construction process. The universal body concept also enables the easy creation of dual-finish luminaires, allowing contrasting finishes between the light engine and outer body. This gives designers additional freedom to coordinate lighting with surrounding materials, colours and architectural details while maintaining a consistent optical platform across the project. The result is a highly refined architectural lighting system that combines minimalist aesthetics, installation flexibility, straightforward installation and precise optical performance within one of DARKON's most versatile lighting platforms.
