GRAZER REC
Grazer REC is a recessed architectural profile featuring a slim 20mm lens that delivers clean, precise illumination with a discreet integrated appearance. Available in three output options, it provides a flexible and elegant solution for architectural lighting applications.
Design Features
88 exit lumens per watt
Dot free homogeneous illumination
Screwless Endcaps
80+ colour rendering
Small colour tolerance Macadam 3
L90 / B10 @ 50,000 hours @ 350mA /40°C TA
L70 / B10 @ 100,000 hours @ 350mA/ 40°C TA
Multiple fixed output options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Welded mitre joins eliminate light bleed
Gallery
Related Products
Related Projects
Recommended Applications
Designer Recommendations
Technical Details

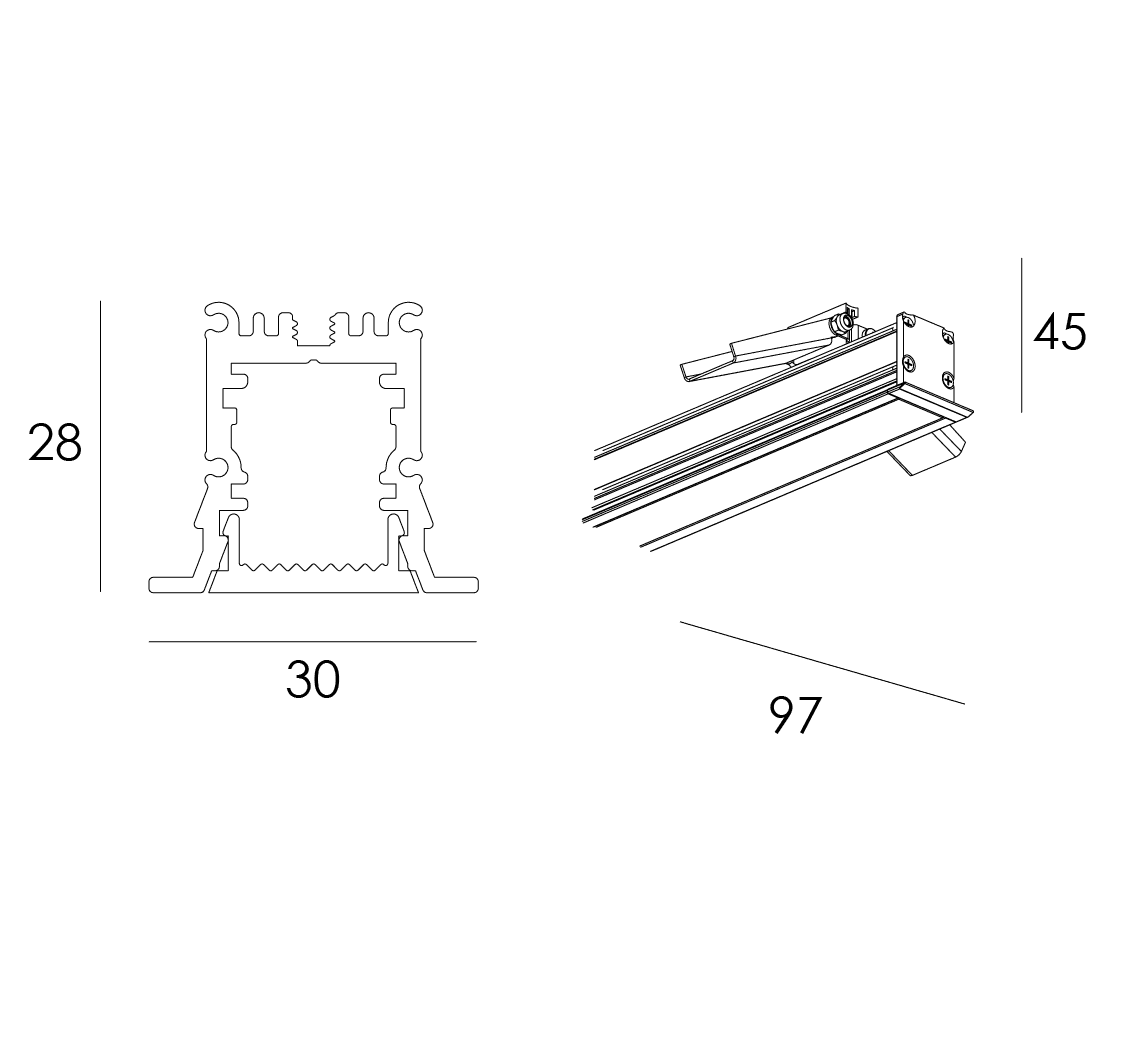

Physical Dimensions
- Width
- 30mm
- Height
- 30mm
- Cutout
- 23mm
- Weight
- 1.6kg/m
Construction & Mounting
- Shape
- Micro Linear
- Mounting
- Recessed
- Build Options
- Angular Linear Shapes
- Accessories
- Illuminated Joins
Optics
- Light Distribution
- Opal
Electrical & Driver
- Dimming
- DALI
- Driver Model
- LC 60/150-550/230 o4a NF h16 EXC4
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
Grazer REC is a recessed architectural lighting profile designed to deliver clean, precise illumination with a minimalist visual presence. Featuring a slim 20mm optical lens, it creates a refined line of light that integrates seamlessly into ceilings and architectural details while maintaining excellent visual comfort. Engineered for versatility, Grazer REC is available with three LED output options to suit a wide range of applications, from feature lighting and wall grazing to general illumination. The recessed design allows the luminaire to blend discreetly into the built environment, providing architects and lighting designers with an elegant solution that balances performance, precision and visual simplicity.
