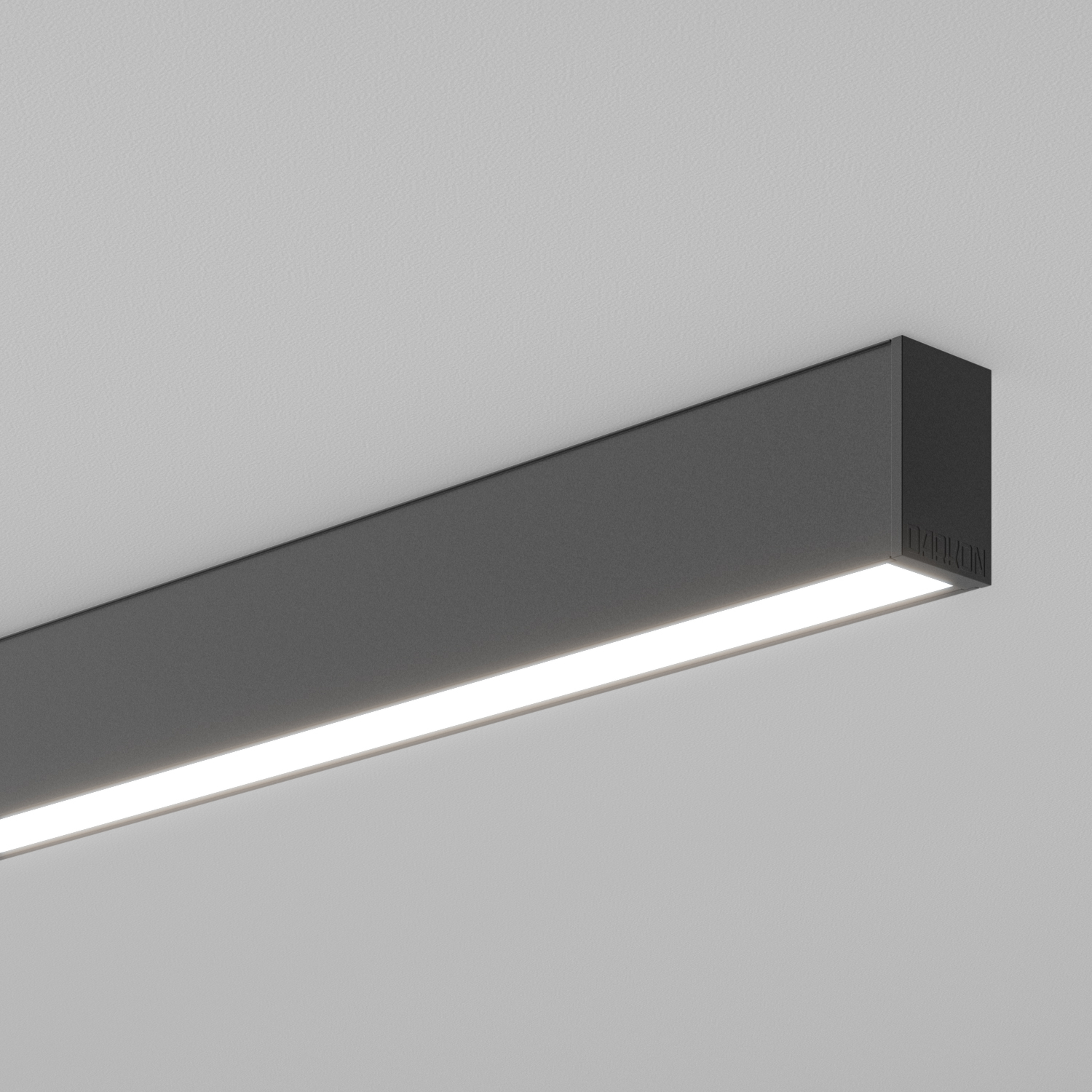

SLIM C SM is a surface-mounted profile with downward illumination, featuring a slim 40mm lens and a 40 LED light tray with Tridonic Linear Light Engine HE or HO boards.
Lap join milling – No Light Bleed
Dot free homogeneous illumination
Screwless end caps
Multiple fixed output options
Multiple snap fit lens options
Zhaga compliant
Up to 100 exit lumens per system watt
90+ colour rendering, 80+ available upon request
Small colour tolerance Macadam 3
L90 / B10 @ 42,000 hours @ 250mA /25°C TA
L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA
Detailed shop drawings
Australian made
Supplied 100% pre-built
Snap fit gear tray with integrated driver
Plug and Play wire looms
Sprung loaded control joints
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
Welded mitre joins eliminate light bleed
