Darkon Architectural Lighting

Darkon | Architectural Lighting

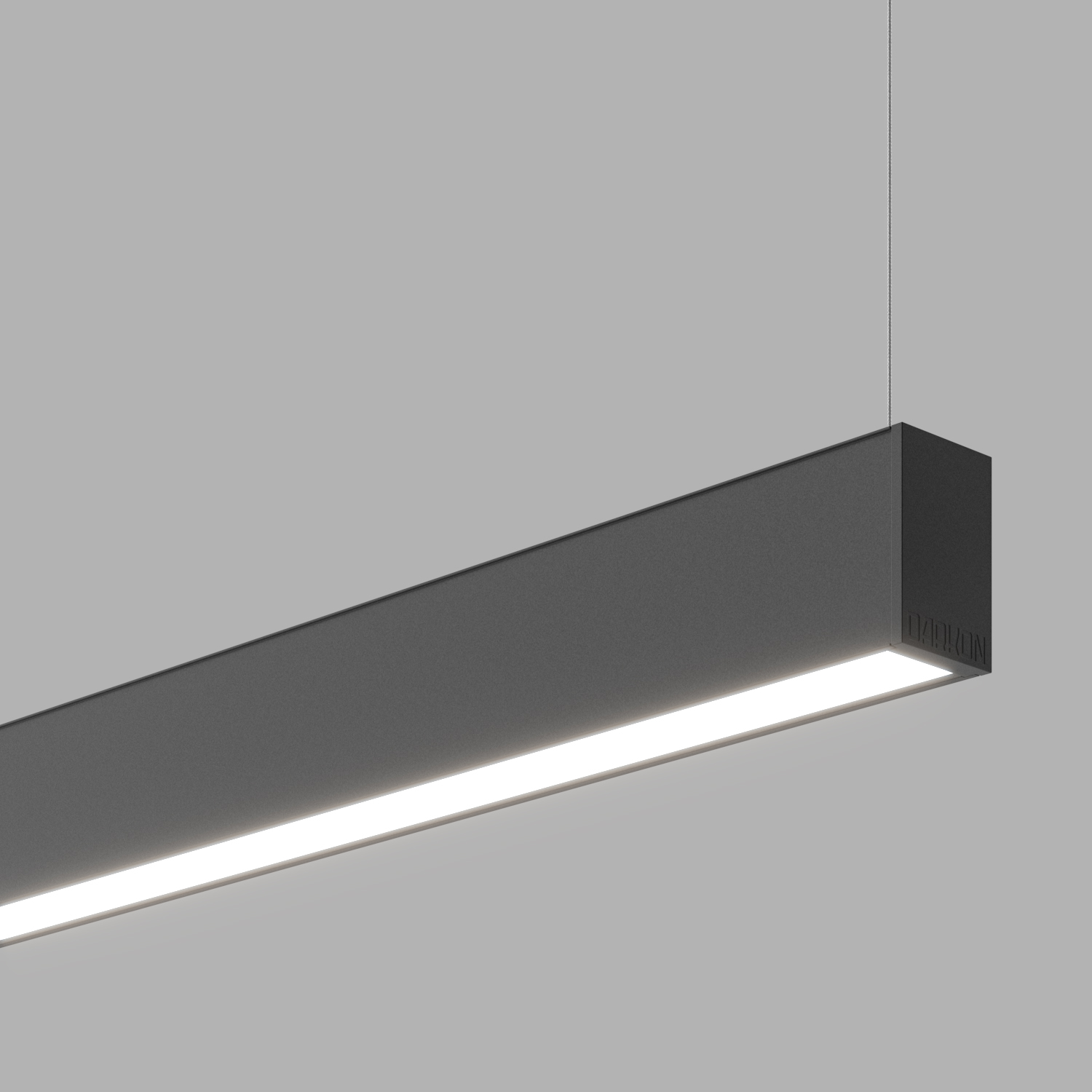

SLIM C SUS

Slim C SUS is a suspended profile with downward illumination. It is part of the slim range utilising the slim 40mm lens and uses the light tray 40 LED with Tridonic Linear Light Engine HE or HO LED boards.

Materials
Extruded aluminium body, machined aluminium end caps, extruded acrylic lens
Finish
White powdercoat / Black powdercoat / Silver anodize / Custom finish
Light Source
Tridonic STARK LED
Downloads
Design Features

Lap join milling – No Light Bleed
Dot free homogeneous illumination
Screwless end caps
Multiple fixed output options
Multiple snap fit lens options
Zhaga compliant
High exit lumens per watt
80 or 90 colour rendering
Small colour tolerance Macadam 3
L90 / B10 @ 42,000 hours @ 250mA /25°C TA
L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA

Installation Features

Factory fitted “push to join” installation
Detailed shop drawings
Australian made
Supplied 100% pre-built
Snap fit gear tray with integrated driver
Plug and Play wire looms
Sprung loaded control joints
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
Welded mitre joins eliminate light bleed



Related Products

SLIM C UP SUS

SLIM C SUS

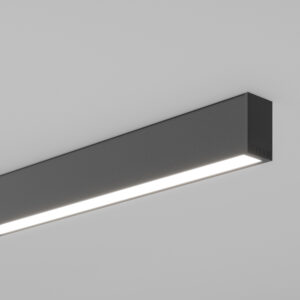

SLIM C SM
