HIP SM
HIP SM is a surface-mounted architectural lighting profile featuring DARKON's distinctive 60mm optical aperture and advanced combination lens technology. Available with four optical distributions and an optional combination deglaring lens achieving UGR <19, HIP SM delivers exceptional visual comfort for office, education and commercial environments. With multiple LED options, integrated emergency lighting and outstanding optical performance, HIP SM provides a versatile architectural lighting solution that balances efficiency, comfort and design.
Models

- Lens
- ASYMMETRIC
- Direction
- Direct
- Output Type
- High Output
- Milliamp
- 200 mA
- Watts
- 9.7 W
- Delivered Lumens
- 986.2 lm
- Efficacy
- 101.7 lm/W
- Colour Temperature (CCT)
- 3000K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options
Lap join - No Light Bleed
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver

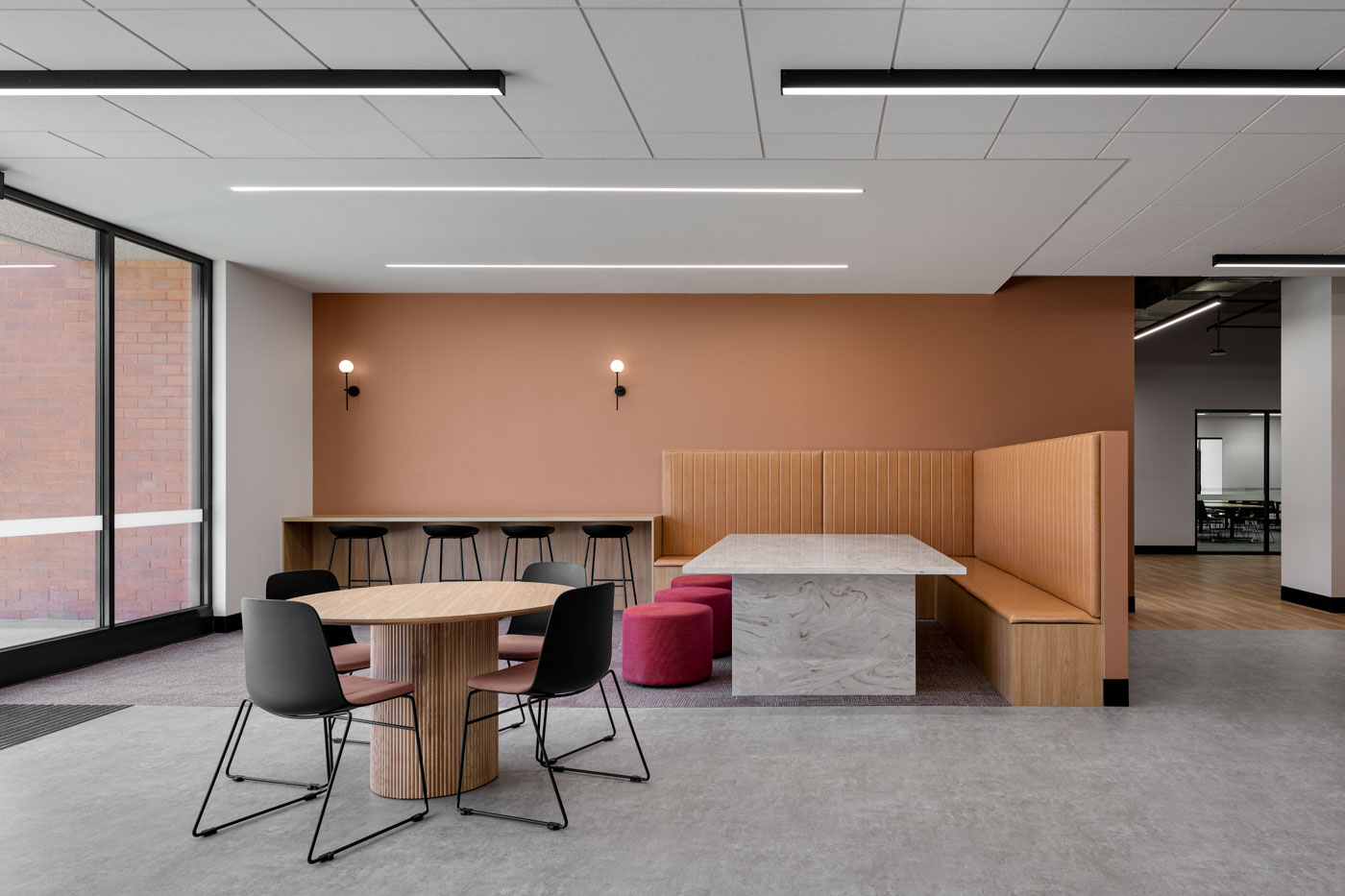

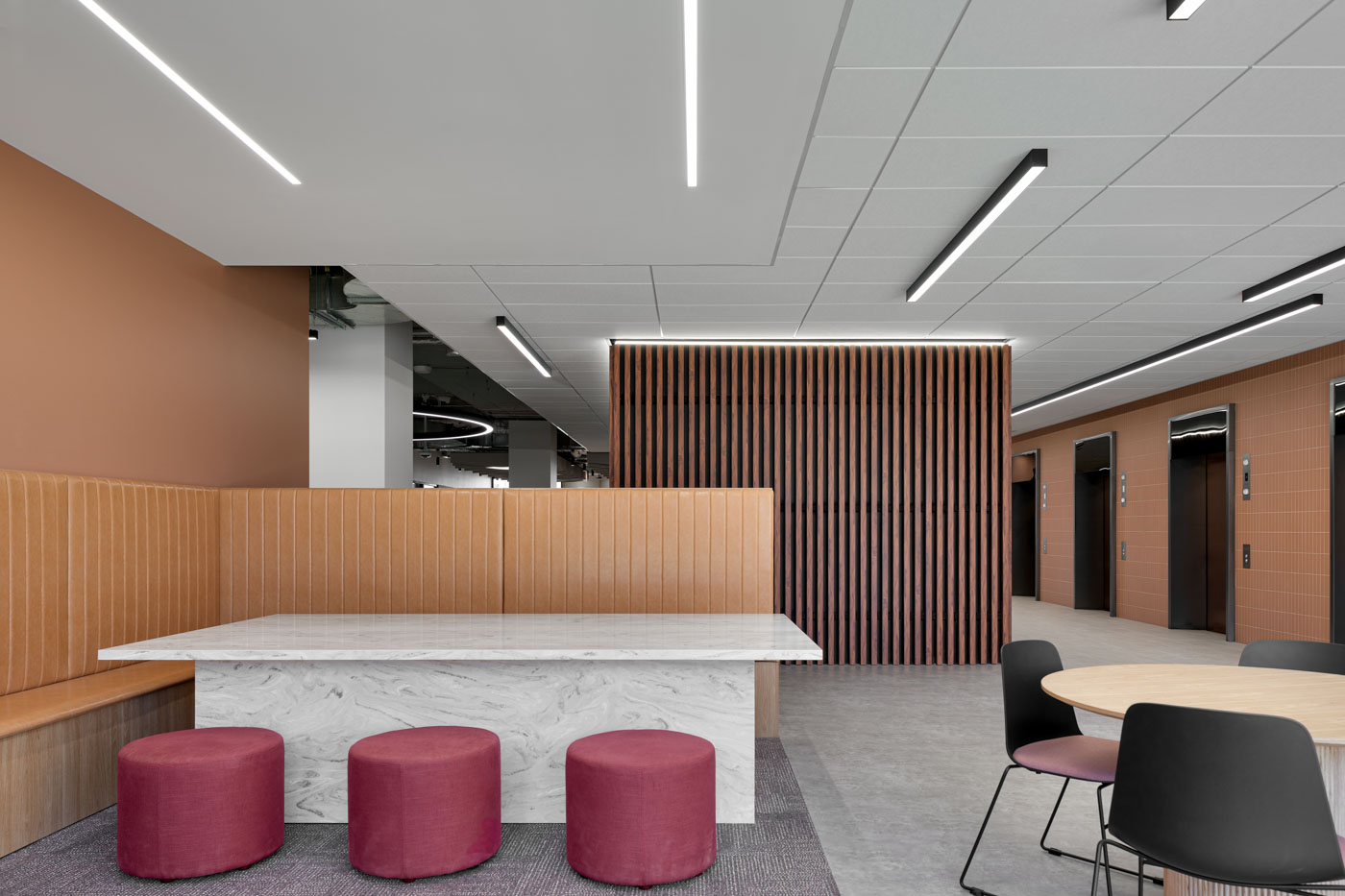

Gallery
Related Projects
Available Finishes
Recommended Applications
Technical Details
Physical Dimensions
- Width
- 69mm
- Height
- 80mm
Construction & Mounting
- Materials
- Acrylic, Aluminium
- Shape
- Linear
- Mounting
- Surface Mounted
- Build Options
- Angular Linear Shapes
- Curved Fixed Radii Shapes
- Accessories
- Mitre Join - Welded
- T Intersection - Welded
- Illuminated Joins
Optics
- Light Distribution
- Deglaring, Narrow, Asymmetric, Opal
LED
- CCT
- 3000K, 3500K, 2700K, 4000K, Tunable White
- CRI
- 90
- LED Output
- 454.8–3762.9lm
- LED Power
- 6–34.5W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
- Output Type
- High Output, High Efficiency
- LED Type
- SMD
- LED Model
- LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 90/200-800/230 o4a NF h16 EXC4, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
HIP SM is a surface-mounted architectural lighting profile engineered to deliver clean, controlled illumination with exceptional visual comfort. Built around DARKON's advanced optical platform, HIP SM combines high-performance lighting with a refined minimalist form, making it ideally suited to workplaces, educational facilities and contemporary architectural interiors. At the core of the luminaire is DARKON's distinctive 60mm optical aperture, carefully developed to balance lighting performance, efficiency and visual comfort. The profile utilises DARKON's proven combination lens technology, allowing specifiers to select from four optical distributions to suit the requirements of each project while maintaining excellent uniformity and architectural consistency. For projects where glare control is critical, HIP SM can be paired with DARKON's advanced combination deglaring lens, achieving glare ratings below UGR 19. This makes the system particularly effective in office and education environments where occupant comfort, concentration and visual wellbeing are essential. The combination of the 60mm aperture and advanced lens technology creates a highly comfortable lighting environment without sacrificing performance or efficiency. Available with multiple LED engine options, optical distributions, integrated emergency lighting modules and a range of output packages, HIP SM provides architects and lighting designers with a versatile lighting platform that balances optical control, visual comfort and architectural simplicity. The result is a highly refined surface-mounted luminaire that combines advanced optics, low-glare performance and exceptional flexibility within a clean architectural profile.
