HIP H LP SUS
Hip H LED is a suspended profile delivering both upward and downward illumination. Part of the Hip range, it features the 60mm combo lens and light tray 40 LED, powered by Tridonic Linear Light Engine HE or HO LED boards.
Design Features
L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA
Screwless Endcaps
Dot free homogeneous illumination
High exit lumens per watt
Small colour tolerance Macadam 3
L90 / B10 @ 42,000 hours @ 250mA /25°C TA
Zhaga compliant
80+ or 90+ colour rendering
Multiple fixed output options
Multiple Snap Fit Lens Options
Lap join milling - No Light Bleed
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints

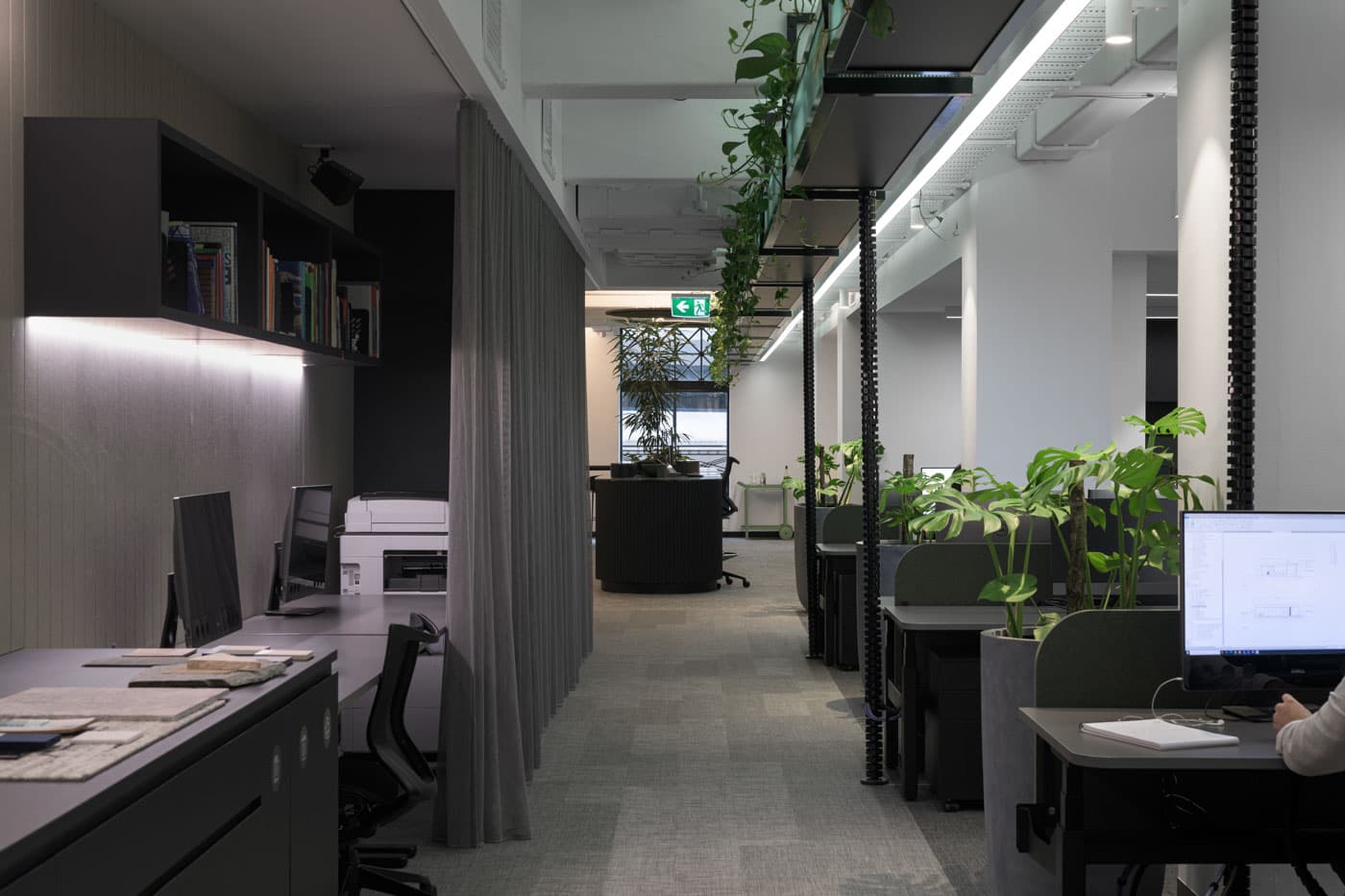

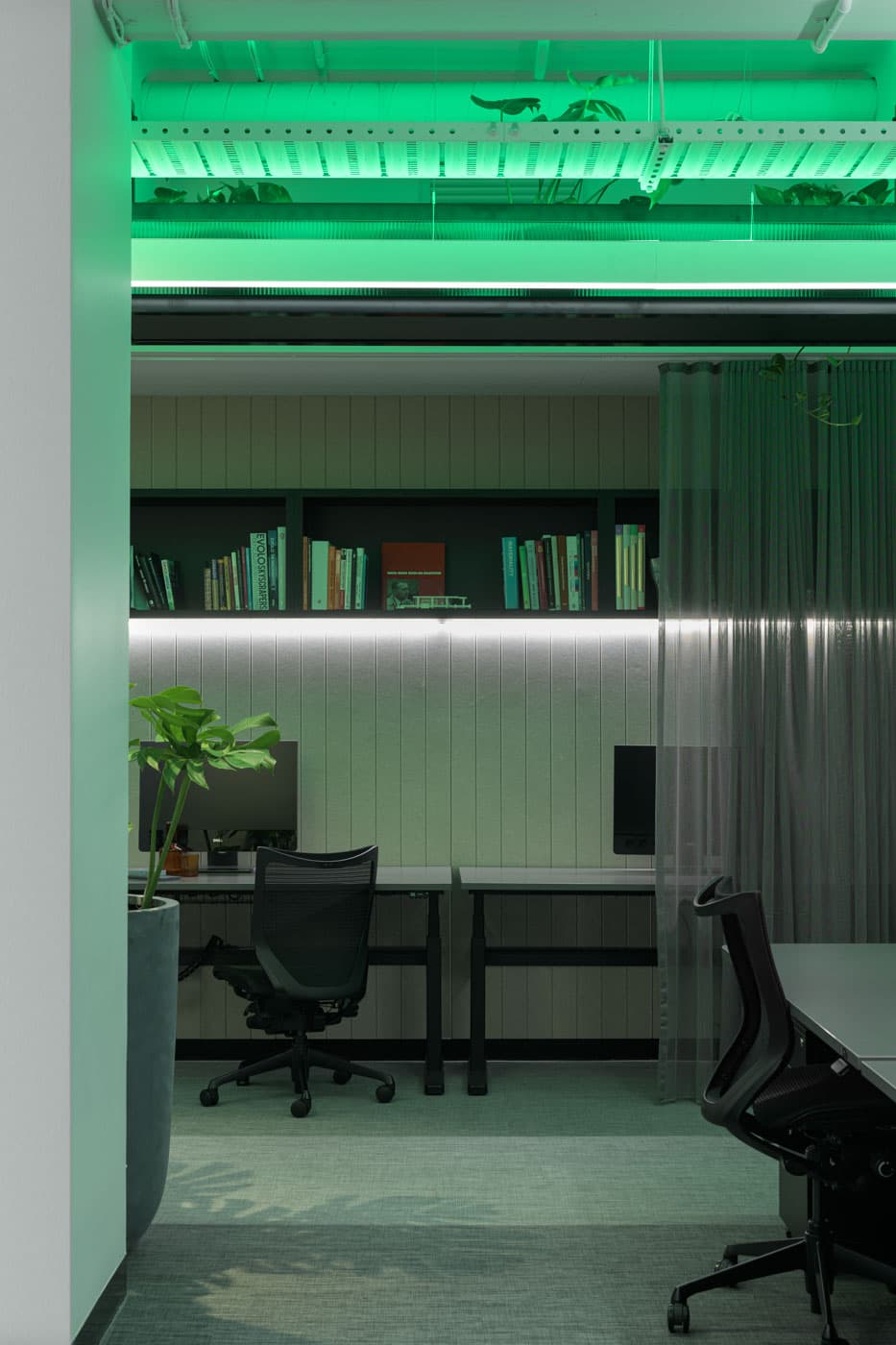

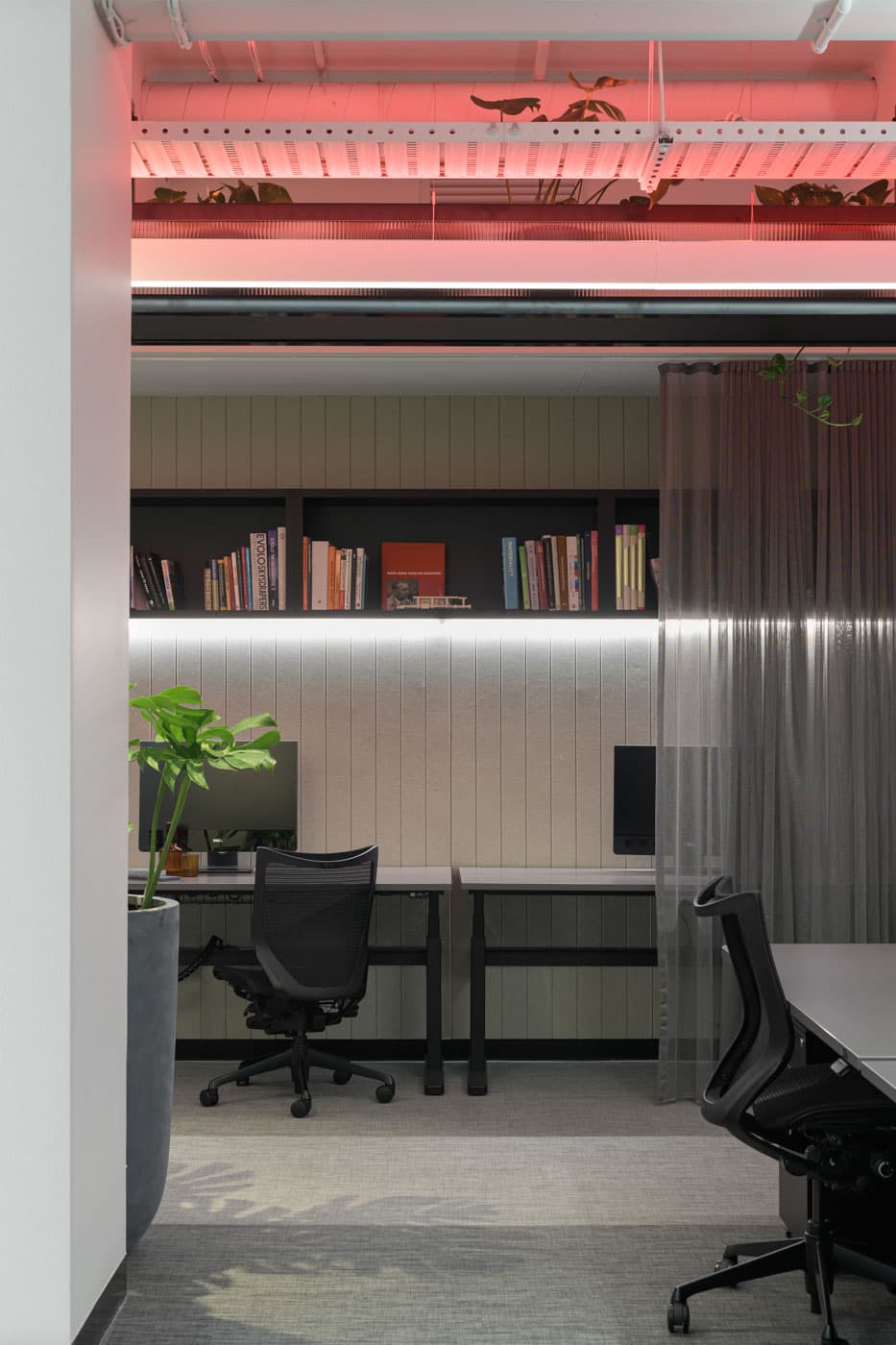

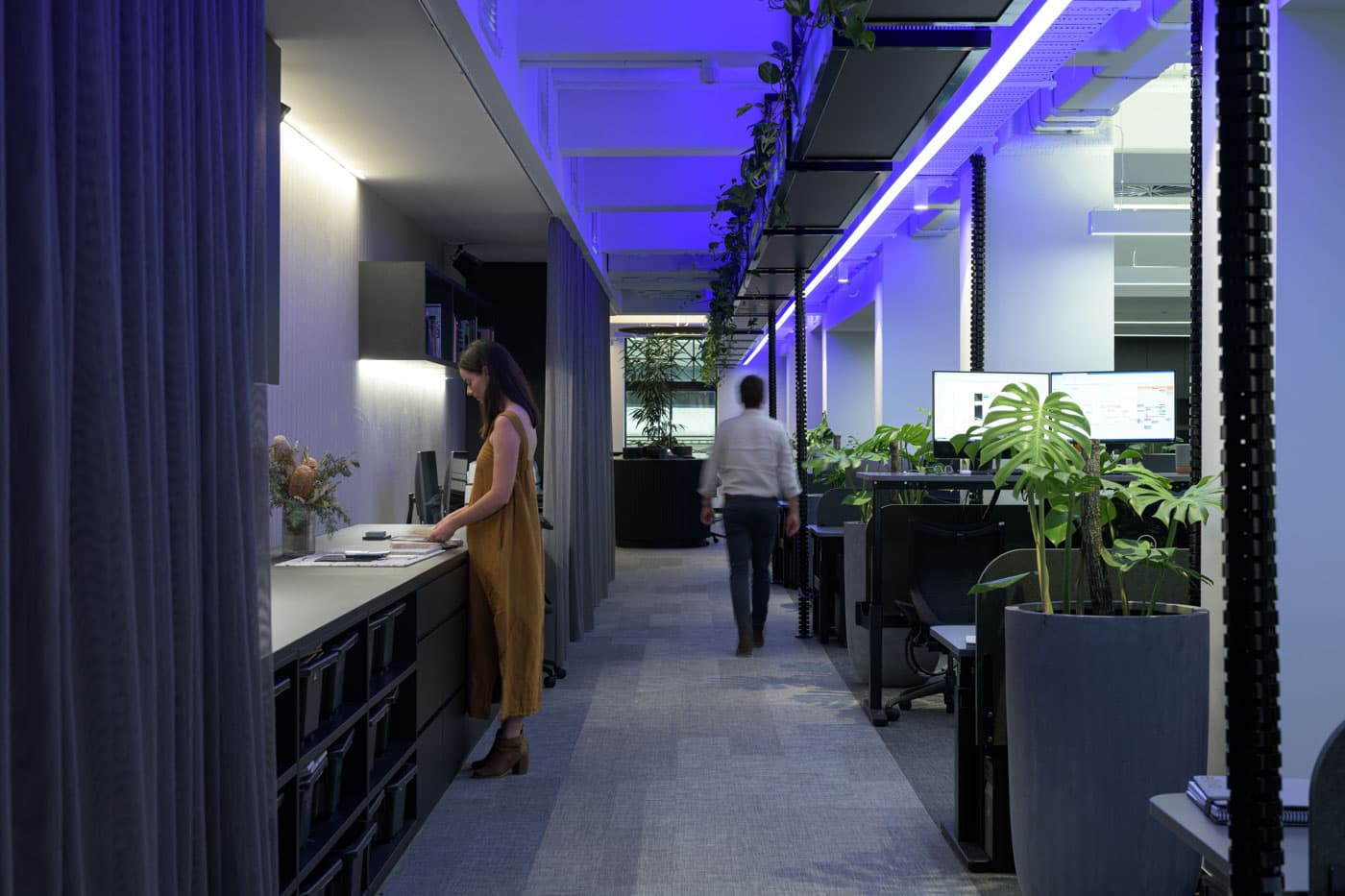

Gallery
Related Products
Recommended Applications
Designer Recommendations
Technical Details
Physical Dimensions
- Width
- 69mm
- Height
- 106mm
Construction & Mounting
- Shape
- Linear
- Mounting
- Suspended
- Suspension
- Wire Custom Length, Rod Custom Length, Seismic, Wire 2m, Wire 4m
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- T Intersection - Bolted
- Illuminated Joins
Optics
- Light Distribution
- Deglaring, Narrow, Asymmetric, Opal
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
Hip H LED is a suspended architectural profile engineered to provide balanced up and downward illumination, making it suited to a wide range of interior applications where both ambient and task lighting are required. As part of the broader Hip range, this profile incorporates the distinctive 60mm combo lens, delivering a refined visual appearance while ensuring even light distribution across both light planes. The luminaire is built around the light tray 40 LED platform and is available with Tridonic Linear Light Engine HE or HO LED boards, allowing specifiers to select the configuration that best matches the efficacy and output requirements of a project. Suspended from the ceiling, Hip H LED offers a clean, linear aesthetic ideal for open-plan offices, retail environments, and other commercial spaces seeking a sophisticated architectural lighting solution.
