DEEP C 150 REC
AUSTRALIAN MADE
RCM
10 YEARS
FLICKER FREE
SMD
IP22
OPAL
Deep C 150 is a recessed luminaire with integrated driver and recessed matte opal lens for diffused light distribution and reduced glare. It utilises Tridonic Circular Light Engine LED technology for efficient high output illumination.
Models
Configure model4 of 4 variants
4 matching variants — select one
- Lens
- OPAL
- Direction
- Direct
- Output Type
- High Efficiency
- Milliamp
- 250 mA
- Watts
- 10.4 W
- Delivered Lumens
- 836.66 lm
- Efficacy
- 80.4 lm/W
- Colour Temperature (CCT)
- 3000K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10

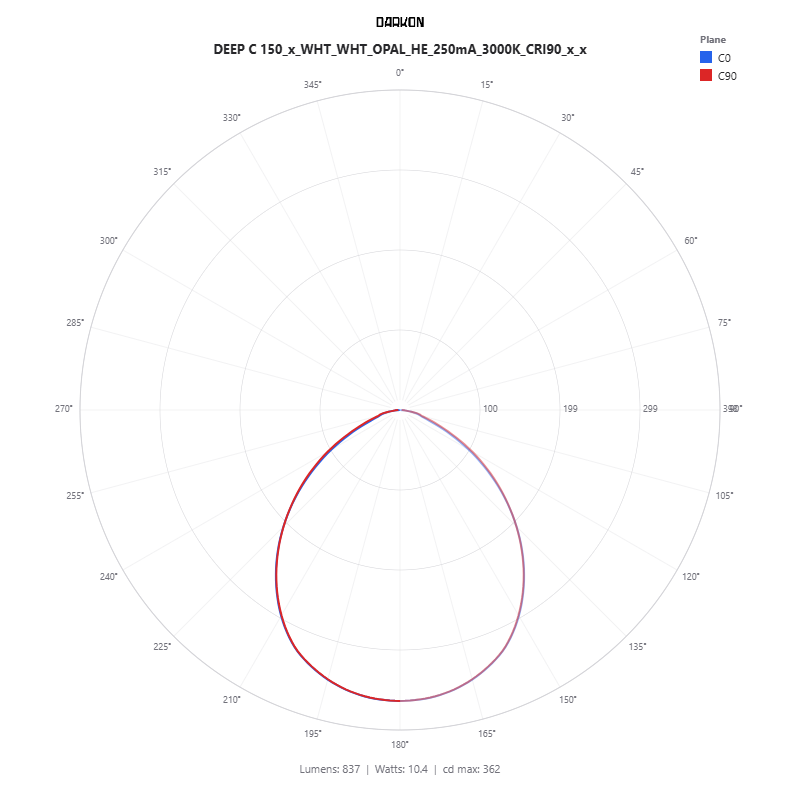

Photometric Files
Design Features
Complies with AS/NZS 60598.2.1
Opal diffuser for low glare applications
Minimal trim for a ‘trim-less’ appearance
Install Features
Project specific labelling referencing type numbers
Spring Clip
Supplied 100% pre-built
Easy to follow install guide
Removable internal assembly for ease of maintenance
Internally tensioned clamp mounting
Related Products
Related Projects
Available Finishes
Recommended Applications
Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre, Laboratory
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Office / Work Space
Fit Out, Base Build, End of Trip, Lobby, Amenities
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion, Facades, Carparks
Technical Details

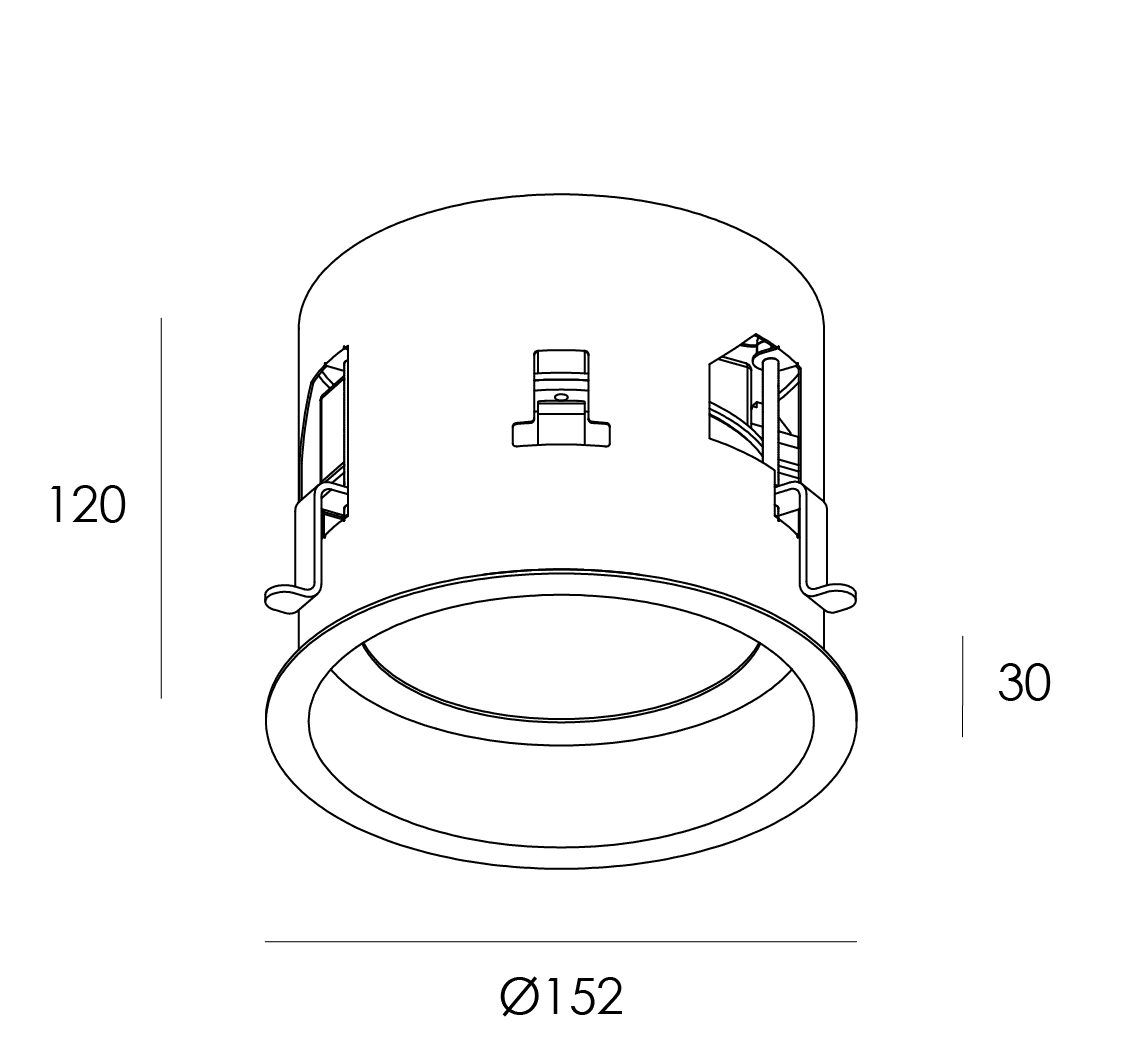

Physical Dimensions
- Height
- 120mm
- Diameter
- 152mm
- Cutout
- 141
Construction & Mounting
- Materials
- Acrylic, Steel, Aluminium
- Shape
- Round
- Mounting
- Recessed
Optics
- Optics
- Diffuser
- Light Distribution
- Direct, Opal
- Optical Accessories
- Honeycomb
LED
- CCT
- 3000K, 4000K
- CRI
- 90
- LED Output
- 836.66–1162.1lm
- LED Power
- 10.4–14.2W
- LED Current
- 250mA, 350mA
- Output Type
- High Efficiency, High Output
- LED Type
- SMD
- LED Chip
- Tridonic
- LED Model
- CLE 80mm 2000lm 930 ADV5, CLE 80mm 2000lm 940 ADV5
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Flicker Free
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF lp PRE3, 28004041
- Insulation Class
- Class I (Earthing)
- Power Factor
- > 0.9
- Operating Temperature
- 35
- Cable Type
- 5 Core Flex 24/.2 (0.75mm², 7.5A) Copper, 3 Core Flex 24/.2 (0.75mm², 7.5A) Copper
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
