DEEP C 150 SM
AUSTRALIAN MADE
RCM
FLICKER FREE
SMD
IP22
OPAL

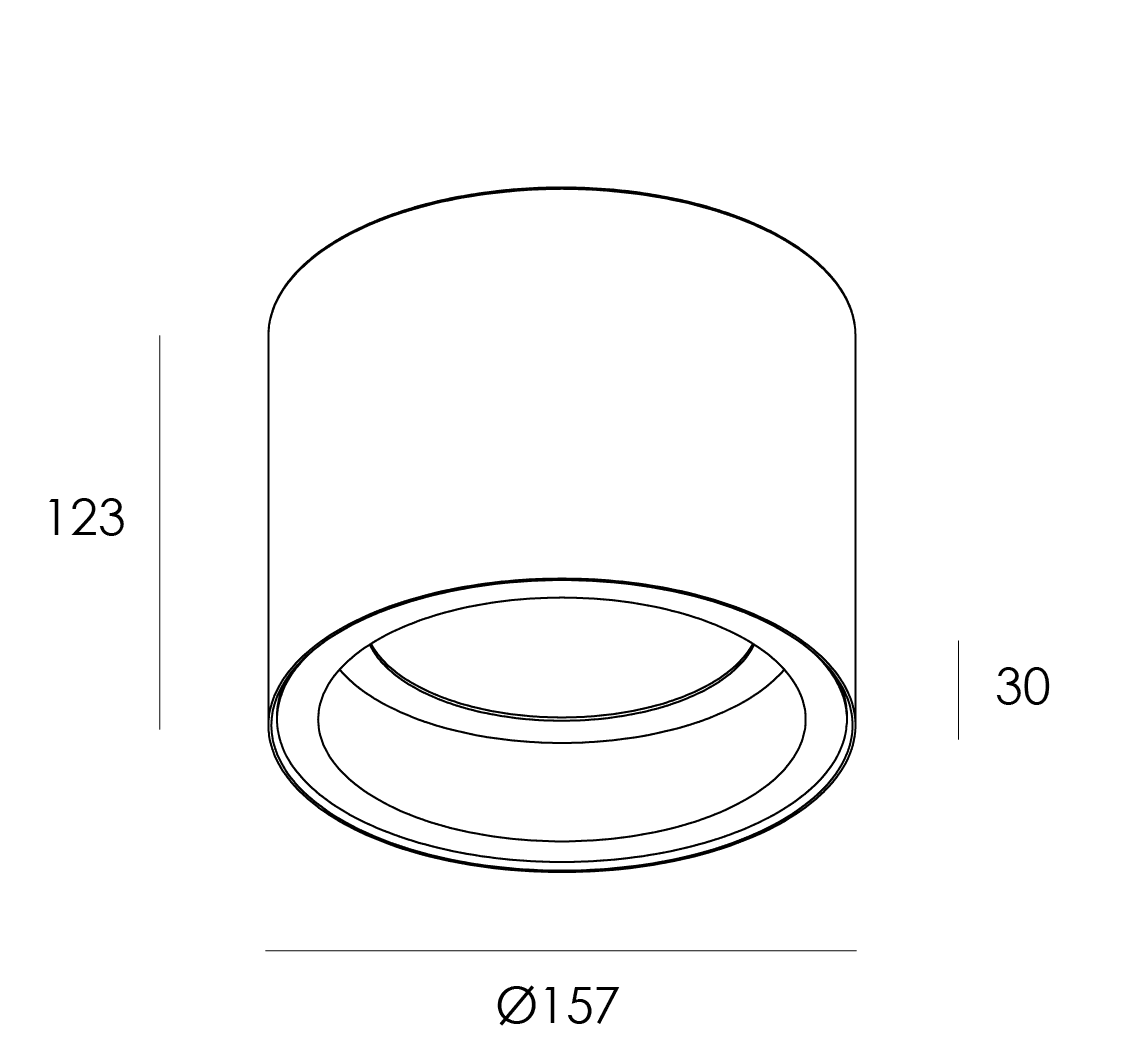

Deep C 150 SM is a surface mounted luminaire with integrated driver and recessed matte opal lens for diffused light distribution and reduced glare. It utilises Tridonic Circular Light Engine LED technology for efficient high output illumination. The surface body allows for 2-tone finish.
Models
Configure model4 of 4 variants
4 matching variants — select one
- Lens
- OPAL
- Direction
- Direct
- Output Type
- High Efficiency
- Milliamp
- 250 mA
- Watts
- 10.4 W
- Delivered Lumens
- 836.66 lm
- Efficacy
- 80.4 lm/W
- Colour Temperature (CCT)
- 3000K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Complies with AS/NZS 60598.2.1
Opal diffuser for low glare applications
Minimal trim for a ‘trim-less’ appearance
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Easy to follow install guide
Removable internal assembly for ease of maintenance
Related Products
Related Projects
Technical Details
Construction & Mounting
- Mounting
- Surface Mounted
Optics
- Light Distribution
- Opal
LED
- CCT
- 3000K, 4000K
- CRI
- 90
- LED Output
- 836.66–1162.1lm
- LED Power
- 10.4–14.2W
- LED Current
- 250mA, 350mA
- Output Type
- High Efficiency, High Output
- LED Type
- SMD
- LED Chip
- Tridonic
- LED Model
- CLE 80mm 2000lm 930 ADV5, CLE 80mm 2000lm 940 ADV5
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Flicker Free
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF lp PRE3, 28004041
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
