HIP SUS

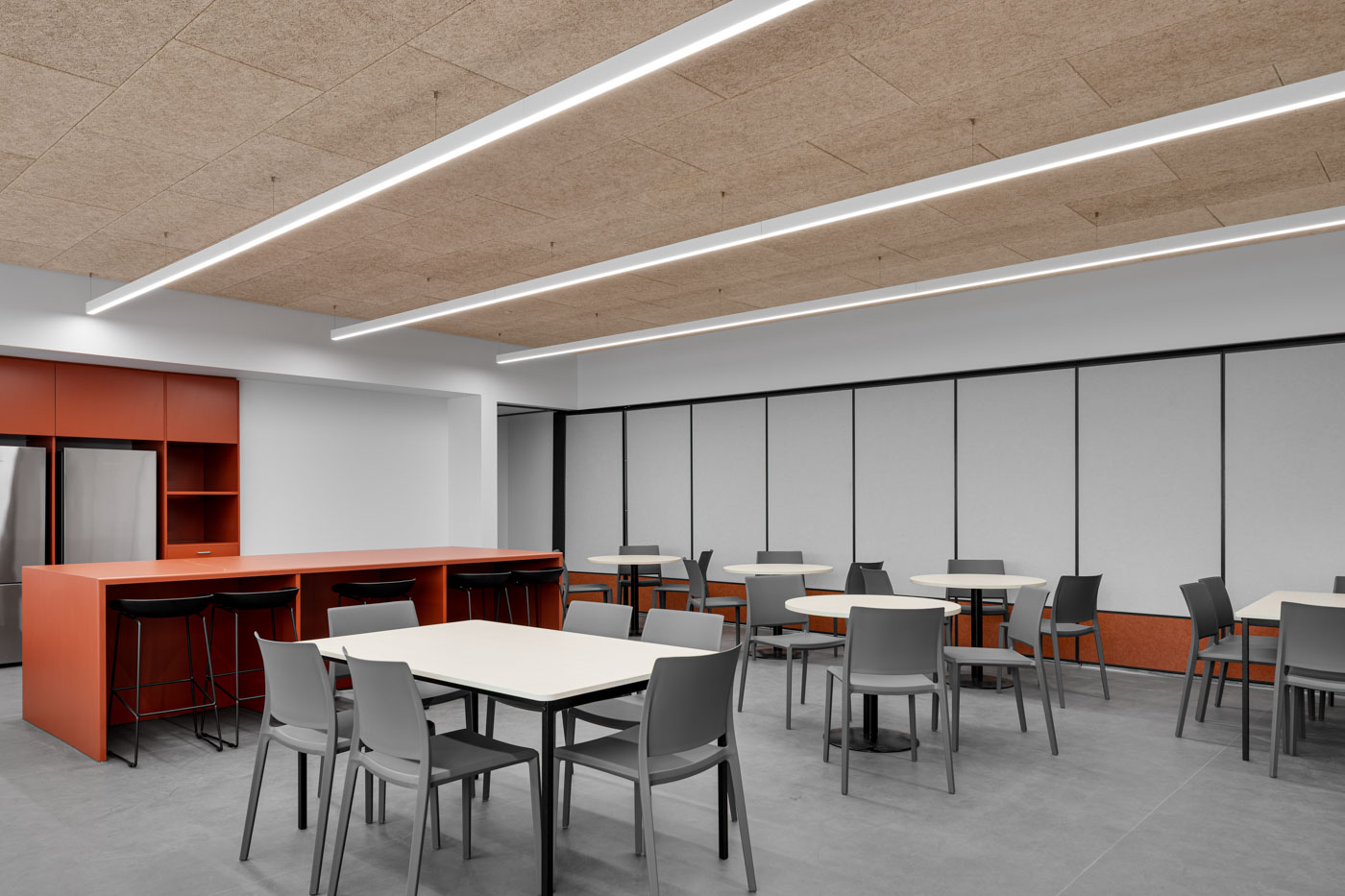

HIP SUS is a suspended LED profile designed for architectural lighting, featuring downward illumination. Equipped with a built-in reflector, it ensures efficient light output, making it ideal for projects requiring precise and effective lighting. Available in various output options, HIP SUS provides the flexibility needed to meet diverse architectural requirements while maintaining a sleek and modern design.

Materials
Extruded aluminium body, machined aluminium end caps, extruded acrylic lens
Finish
White powdercoat / Black powdercoat / Silver anodize / Custom finish
Light Source
Tridonic STARK LED
Downloads
Design Features

Dot free homogeneous illumination
Screwless end caps
Multiple fixed output options
Multiple snap fit lens options
Zhaga compliant
Up to 105 exit lumens per system watt
90 colour rendering, 80+ available upon request
Small colour tolerance Macadam 3
L90 / B10 @ 42,000 hours @ 250mA /25°C TA
L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA

Installation Features

Detailed shop drawings
Australian made
Supplied 100% pre-built
Snap fit gear tray with integrated driver
Plug and Play wire looms
Sprung loaded control joints
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
Welded mitre joins eliminate light bleed

Related Products

HIP SUS

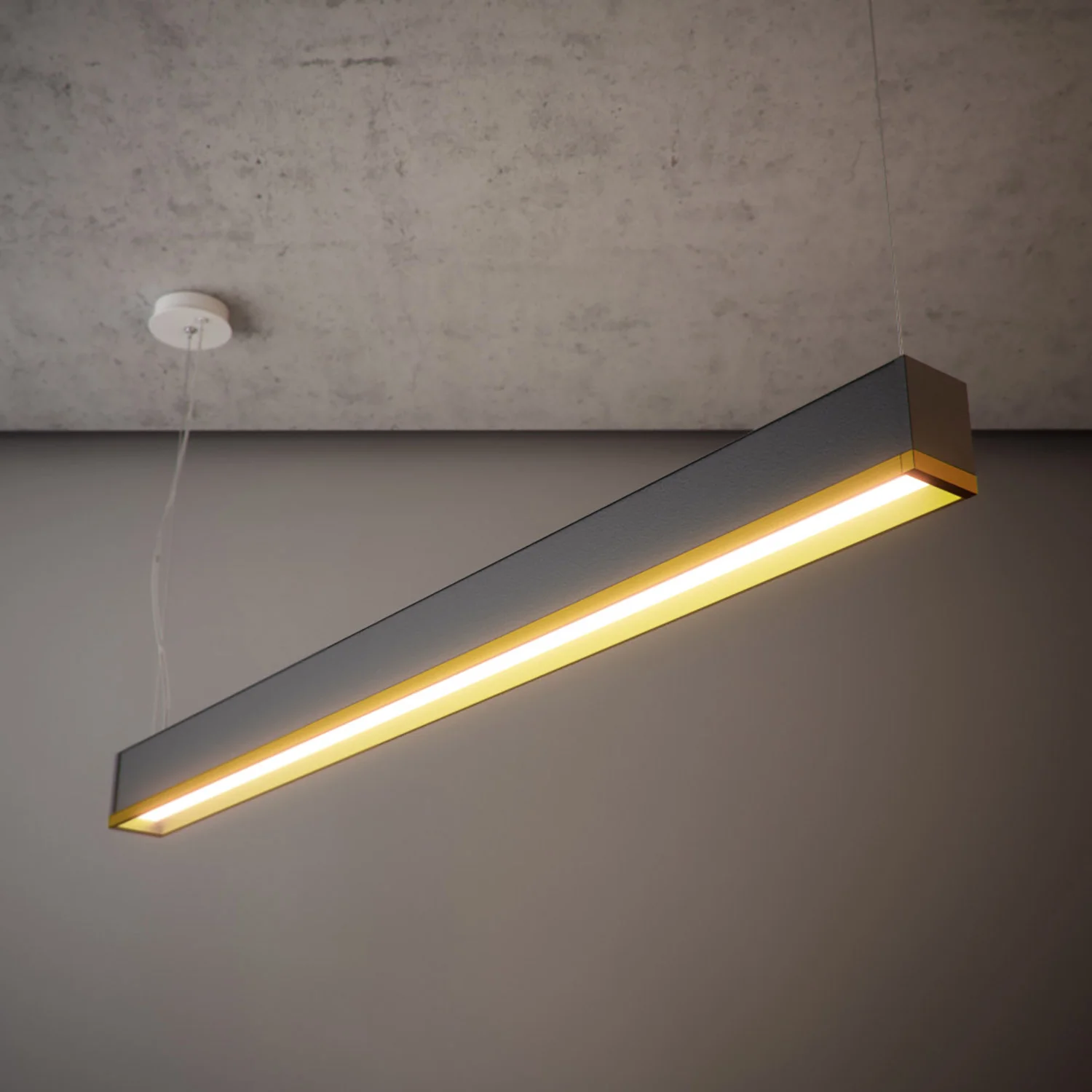

HIP SKIRT SUS

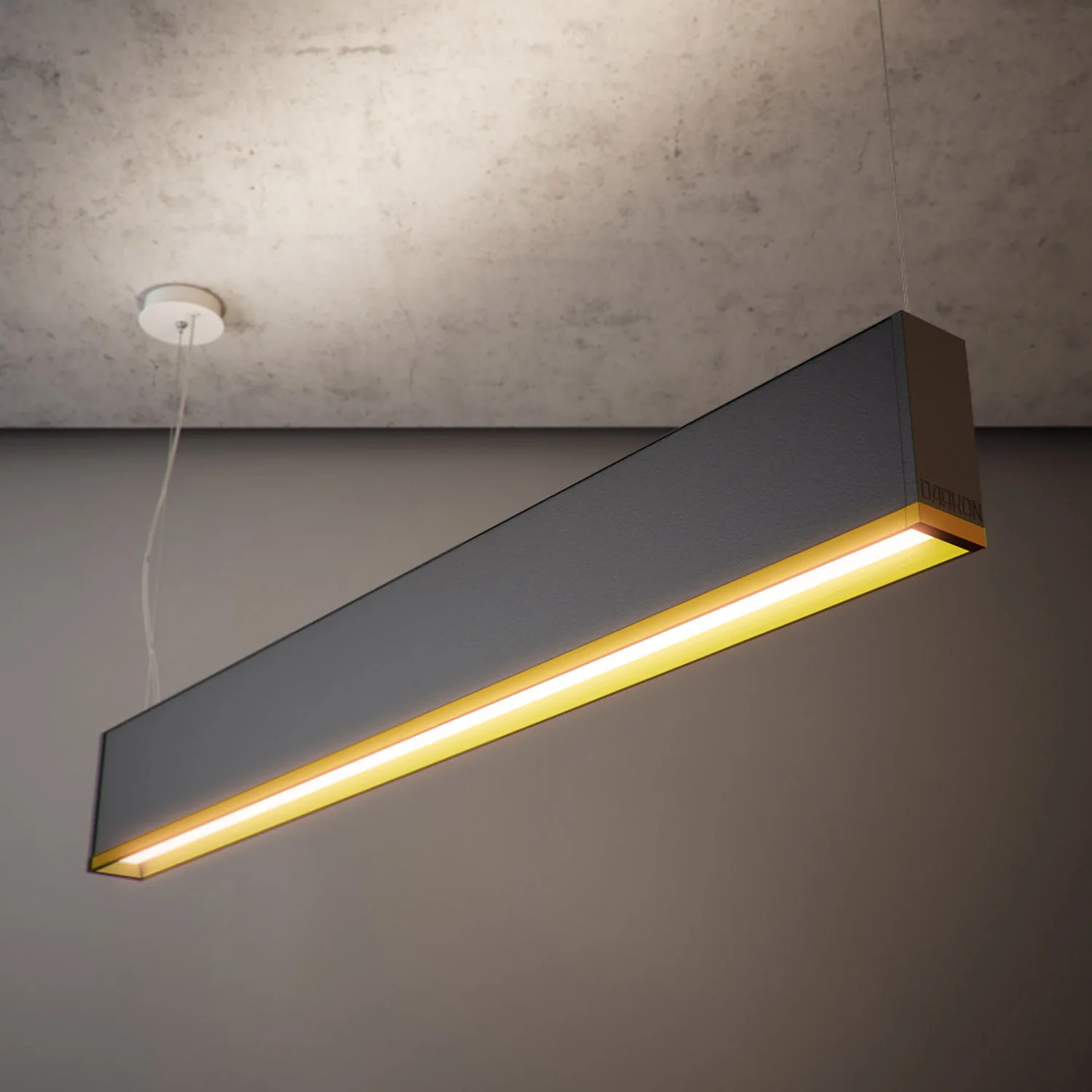

HIP H SKIRT SUS

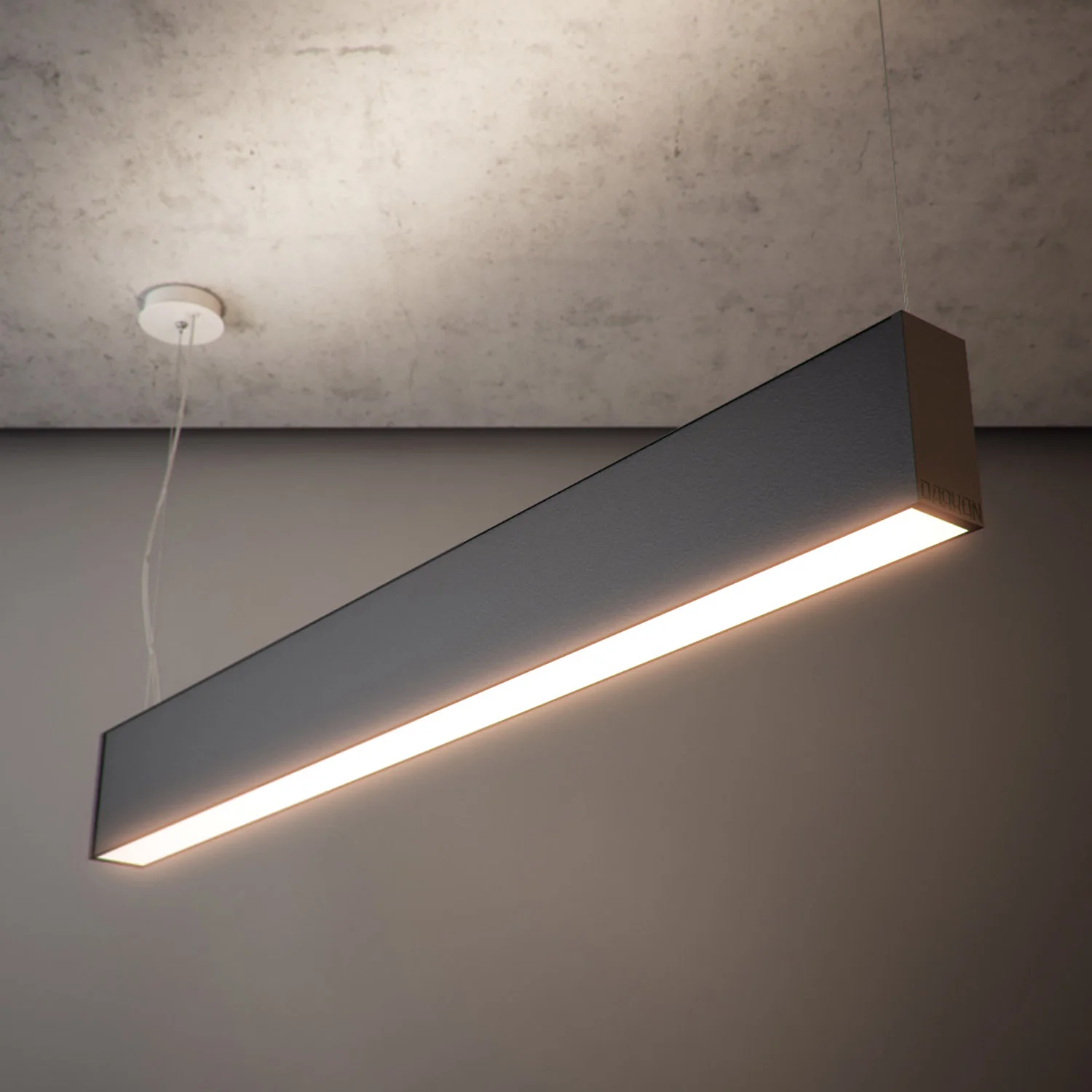

HIP H SUS

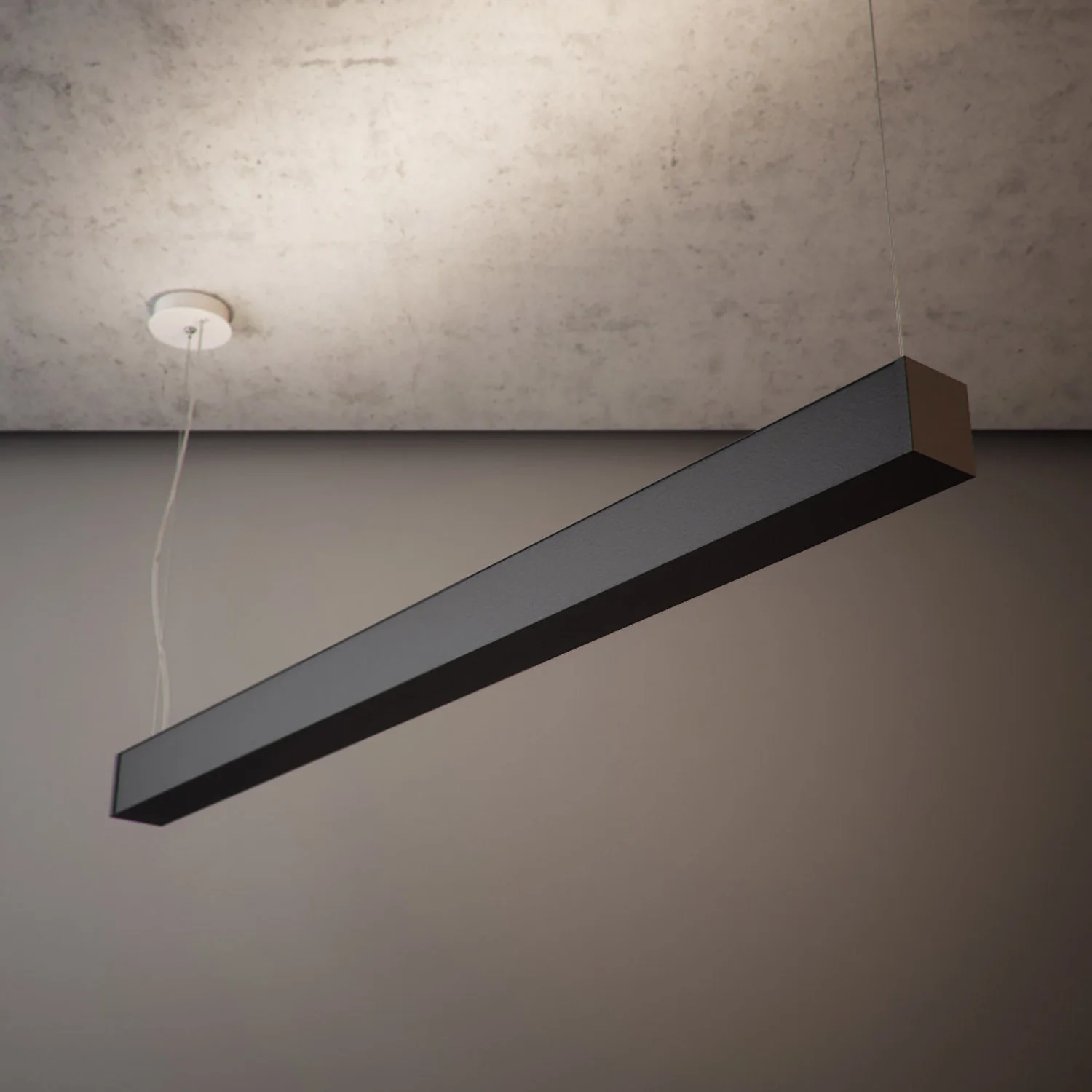

HIP UP SUS
