GRAZER-LED-SM
1 / 3

GRAZER SM

LED FLEXIBLE
AUSTRALIAN MADE
RCM
10 YEARS
FLICKER FREE
LED LINEAR
IP22
OPAL

GRAZER SM is a surface-mounted architectural lighting profile featuring a slim 20mm optical lens and five LED output options, delivering precise illumination in a sleek minimalist form. Popular with architects and interior designers, its refined proportions and integrated control gear create an elegant lighting solution that is both visually appealing and easy to install. Built around DARKON's innovative universal body platform, the same light engine can be used across recessed, surface-mounted and suspended configurations, simplifying project changes and enabling dual-finish architectural lighting solutions without redesigning the luminaire.

Read more about GRAZER SM

Design Features


  • 88 exit lumens per watt

  • Screwless Endcaps

  • Dot free homogeneous illumination

  • Small colour tolerance Macadam 3

  • L90 / B10 @ 50,000 hours @ 350mA /40°C TA

  • L70 / B10 @ 100,000 hours @ 350mA/ 40°C TA

  • 80+ colour rendering

  • Multiple fixed output options

  • Detailed Shop Drawings

  • Colour changing RGB and RGB+W options available

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

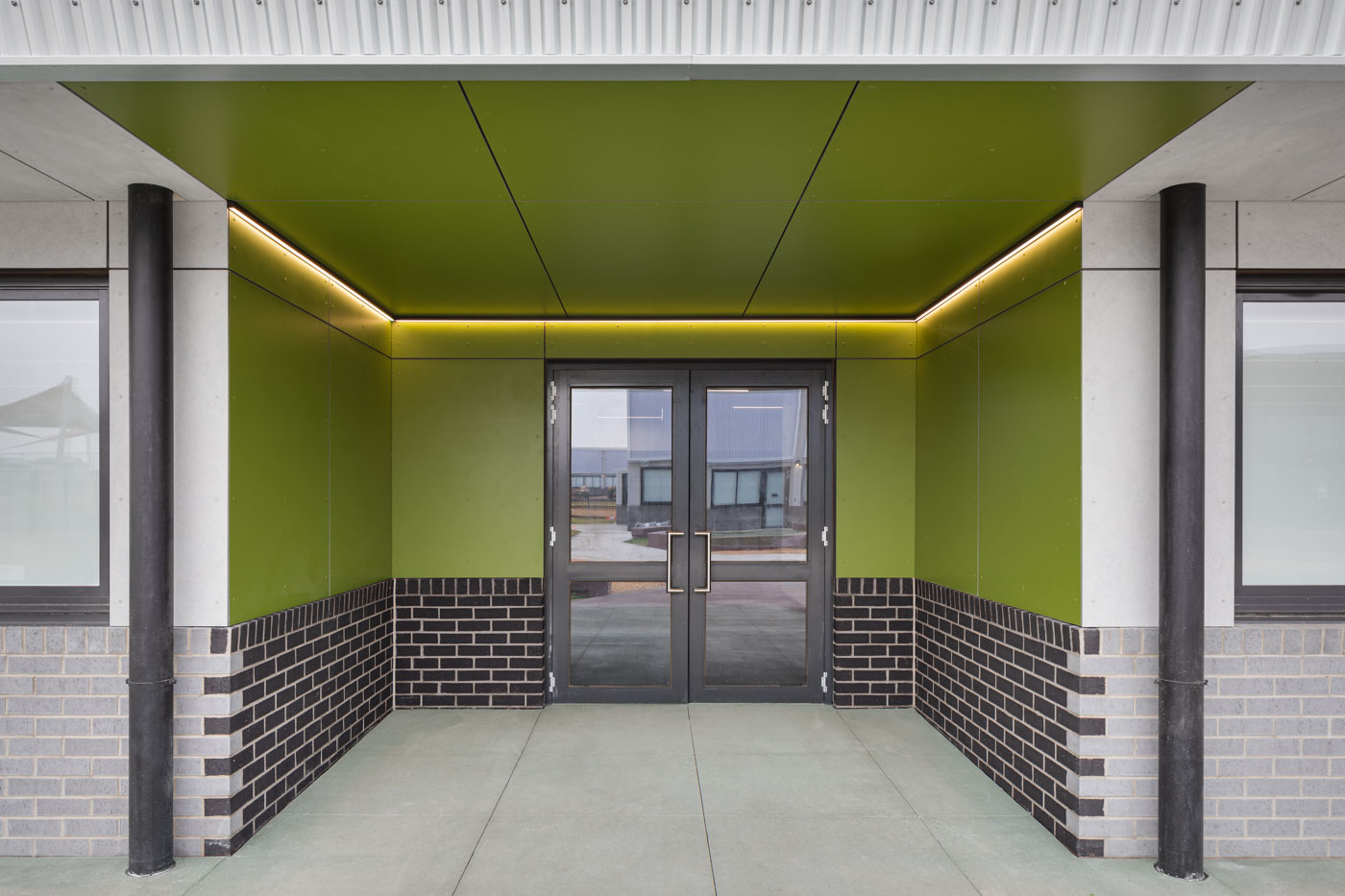

Related Projects


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre, Laboratory
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Infrastructure
Data Centre, Control Room, Car Park
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Facades, Carparks

Designer Recommendations

Retail DisplayBathroomKitchenDiningReceptionRestaurantCafeBarTask Lighting

Technical Details


Physical Dimensions

Width
30mm
Height
30mm

Construction & Mounting

Shape
Micro Linear
Mounting
Surface Mounted
Build Options
Angular Linear Shapes
Accessories
  • Mitre Join - Welded
  • Illuminated Joins

Optics

Light Distribution
Opal

Electrical & Driver

Dimming
DALI
Driver Model
LC 60/150-550/230 o4a NF h16 EXC4
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Compliance Reports
LM-79
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


GRAZER SM is a surface-mounted architectural lighting profile designed to deliver clean, direct illumination with a minimalist visual footprint. Featuring a slim 20mm optical lens, it creates a refined line of light that integrates seamlessly into contemporary interiors. Its sleek proportions and understated form have made it particularly popular with architects and interior designers seeking a lighting solution that complements rather than dominates a space. Engineered for flexibility, GRAZER SM is available with five LED output options to suit a broad range of applications, from feature lighting through to general illumination. Unlike the suspended version, GRAZER SM incorporates integral control gear within the surface-mounted body, simplifying installation while maintaining its elegant architectural appearance. The result is a clean, self-contained luminaire that can be installed quickly and efficiently without the need for remote driver locations. A defining feature of the Grazer platform is DARKON's universal body design, one of the first systems in the DARKON range to utilise a common internal light engine across multiple mounting formats. The same illuminated Grazer core can be used within recessed installations or snap-fitted into surface-mounted and suspended bodies, allowing mounting methods to change without redesigning or remanufacturing the light engine itself. This modular approach simplifies project variations, streamlines manufacturing and provides greater flexibility throughout the design and construction process. The universal body concept also enables the easy creation of dual-finish luminaires, allowing contrasting finishes between the light engine and outer body. This gives designers additional freedom to coordinate lighting with surrounding materials, colours and architectural details while maintaining a consistent optical platform across the project. The result is a highly refined architectural lighting system that combines minimalist aesthetics, installation flexibility, straightforward installation and precise optical performance within one of DARKON's most versatile lighting platforms.
