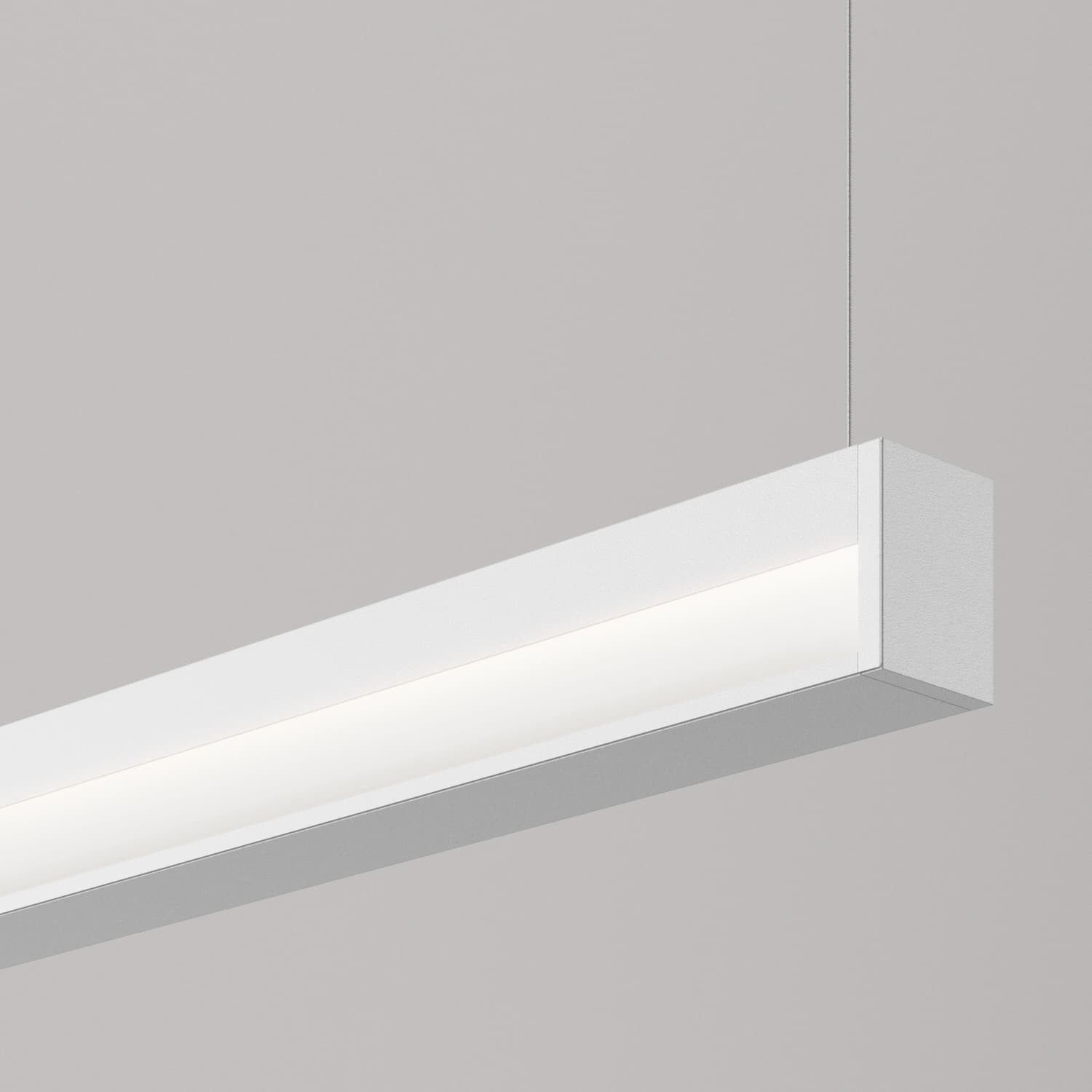

WYN SUS EDGE
WYN SUS EDGE is a suspended architectural uplight and wall-washing luminaire featuring DARKON's flagship Fibonacci Curve reflector and concealed rear-facing LED light source. Suspended on its edge, it hides the source from view while showcasing the distinctive illuminated reflector, creating a soft indirect lighting effect with exceptional visual comfort and no direct glare. With integral control gear for simple installation, exposed optical elegance and outstanding uniformity, WYN SUS EDGE delivers a refined suspended lighting solution for residential, hospitality, education and commercial environments where indirect architectural lighting is desired.
Design Features
L70 / B10 @ 100,000 hours @ 350mA/ 40°C TA
Dot free homogeneous illumination
Screwless Endcaps
80+ or 90+ colour rendering
High exit lumens per watt
Small colour tolerance Macadam 3
L90 / B10 @ 50,000 hours @ 350mA /40°C TA
Multiple fixed output options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Gallery
Recommended Applications
Designer Recommendations
Technical Details
Physical Dimensions
- Width
- 63mm
- Height
- 82mm
- Weight
- 4kg/m
Construction & Mounting
- Shape
- Linear
- Mounting
- Suspended
- Suspension
- Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- Illuminated Joins
Ratings & Compliance
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
WYN SUS EDGE brings DARKON's flagship WYN optical system into a suspended edge-mounted configuration, creating a highly refined indirect lighting solution that conceals the LED light source from normal viewing angles while delivering exceptional visual comfort. Based on the same Fibonacci Curve reflector technology that has made WYN one of DARKON's most successful luminaires, this innovative suspended orientation transforms the fitting into an elegant architectural uplight and wall-washing solution. Named after the Wynn Hotel in Las Vegas, where the concept was first conceived, WYN was developed around a proprietary reflector inspired by the Fibonacci Curve, often referred to as the Infinite Spiral. A concealed rear-facing LED light source projects light back into the reflector rather than directly into the space, allowing the curved geometry to precisely control and redistribute light. The result is one of DARKON's smoothest asymmetric light distributions, delivering exceptional uniformity, visual comfort and spatial brightness without harsh cut-off lines or distracting brightness gradients. Suspended on its edge, the luminaire hides the LED source from view while showcasing the distinctive illuminated Fibonacci reflector. This indirect approach creates soft, flattering illumination that enhances walls, ceilings and architectural surfaces through reflected light rather than direct exposure to the source itself. Positioned away from vertical surfaces, WYN SUS EDGE is particularly effective as a suspended wall-washing luminaire, delivering exceptional uniformity while maintaining a clean architectural aesthetic. The illuminated Fibonacci reflector remains fully visible, celebrating the distinctive optical design that has defined the WYN family since 2006. The luminaire also incorporates integral control gear within the main body, eliminating the need for remote drivers and making installation fast and straightforward. The result is a highly refined suspended architectural luminaire that combines exposed optical beauty, concealed source brightness, ease of installation and exceptional lighting performance. Ideal for residential, hospitality, education, commercial and public environments, WYN SUS EDGE provides a timeless indirect lighting solution where visual comfort and architectural aesthetics are equally important.
