TRIM RADII RING REC
AUSTRALIAN MADE
RCM
10 YEARS
ZHAGA
FLICKER FREE
SMD
LED LINEAR
IP22
MRS.T RADII RING REC is a single complete ring made from welded sub sections for a seamless finish, while also streamlining the install process. Available in four different sizes to suit your project requirements.
Models
Configure model342 of 342 variants
342 matching variants — select one
- Lens
- OPAL
- Direction
- Direct
- Output Type
- High Efficiency
- Milliamp
- 600 mA
- Watts
- 15.9 W
- Delivered Lumens
- 1360.8 lm
- Efficacy
- 85.6 lm/W
- Colour Temperature (CCT)
- 2700K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Dot free homogeneous illumination
Multiple fixed output options
Custom radius available
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms

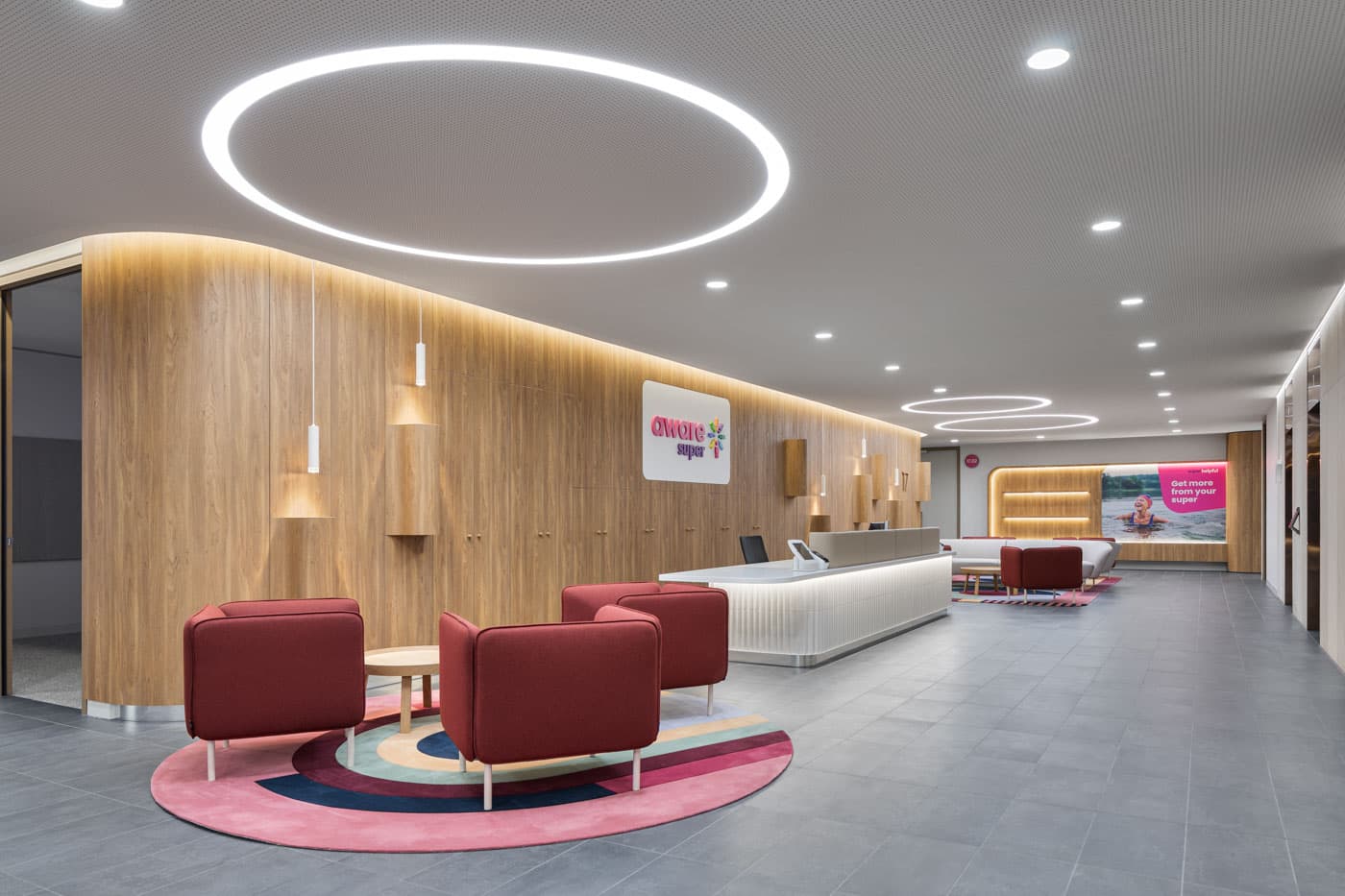

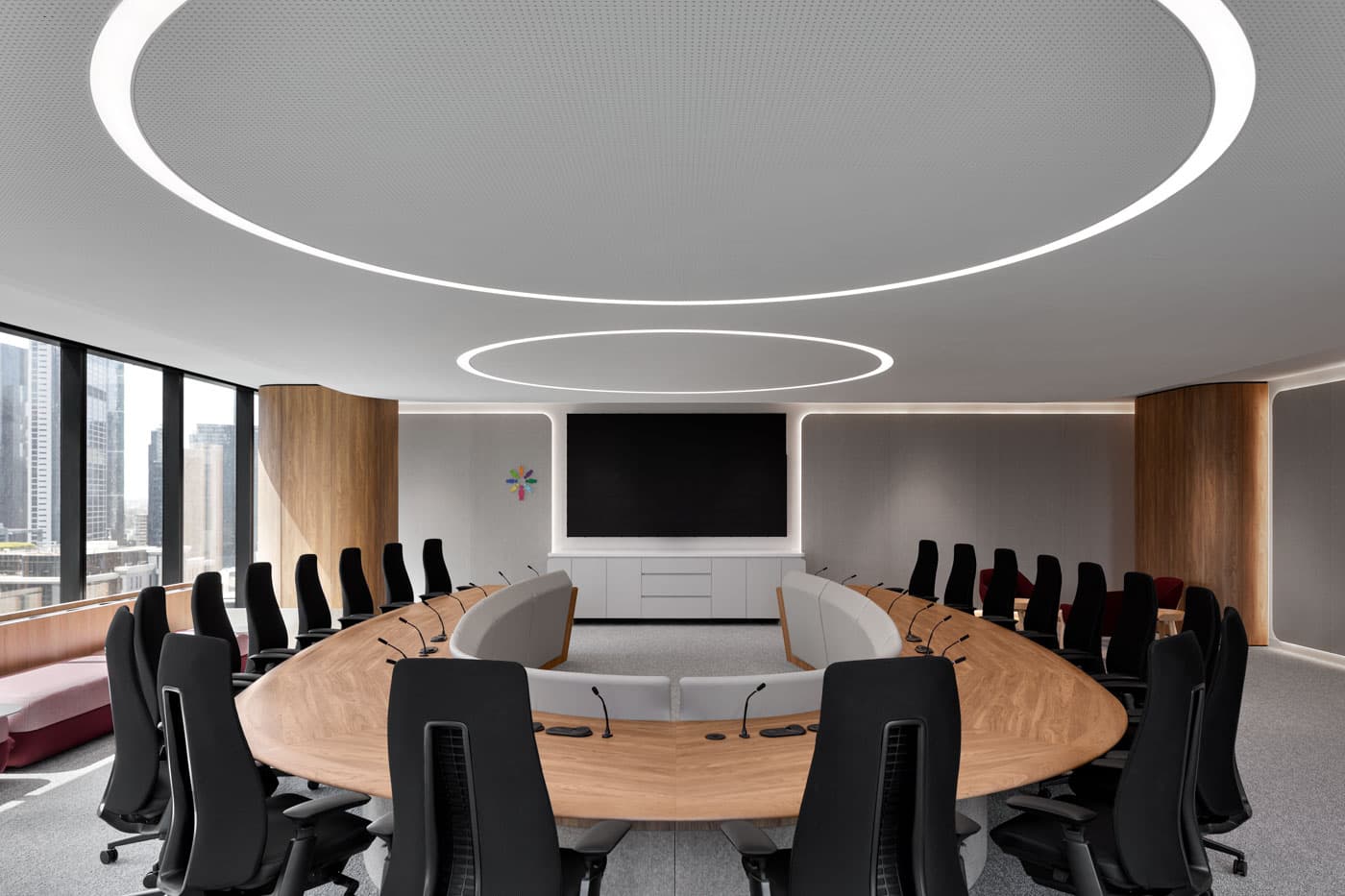

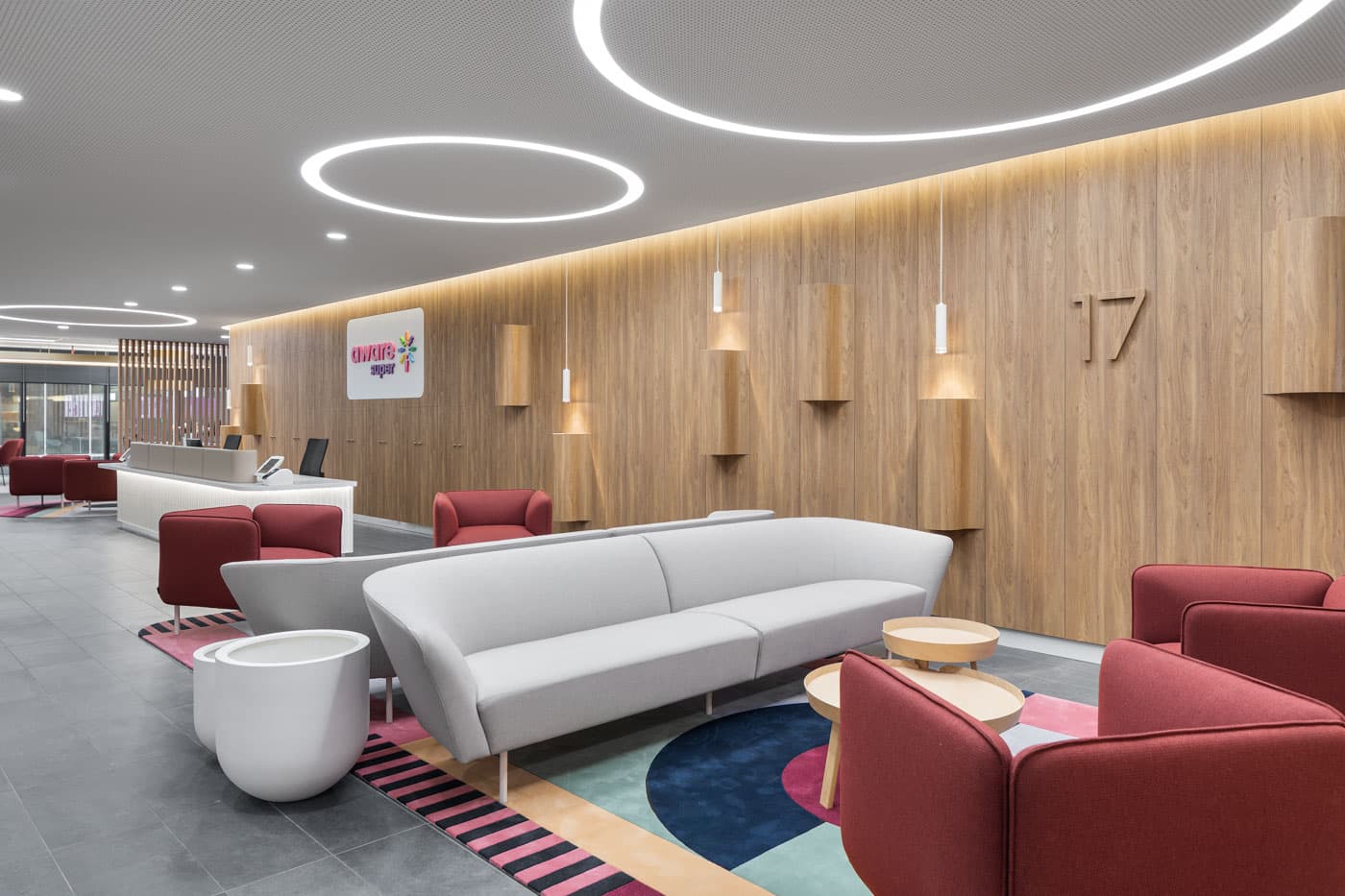

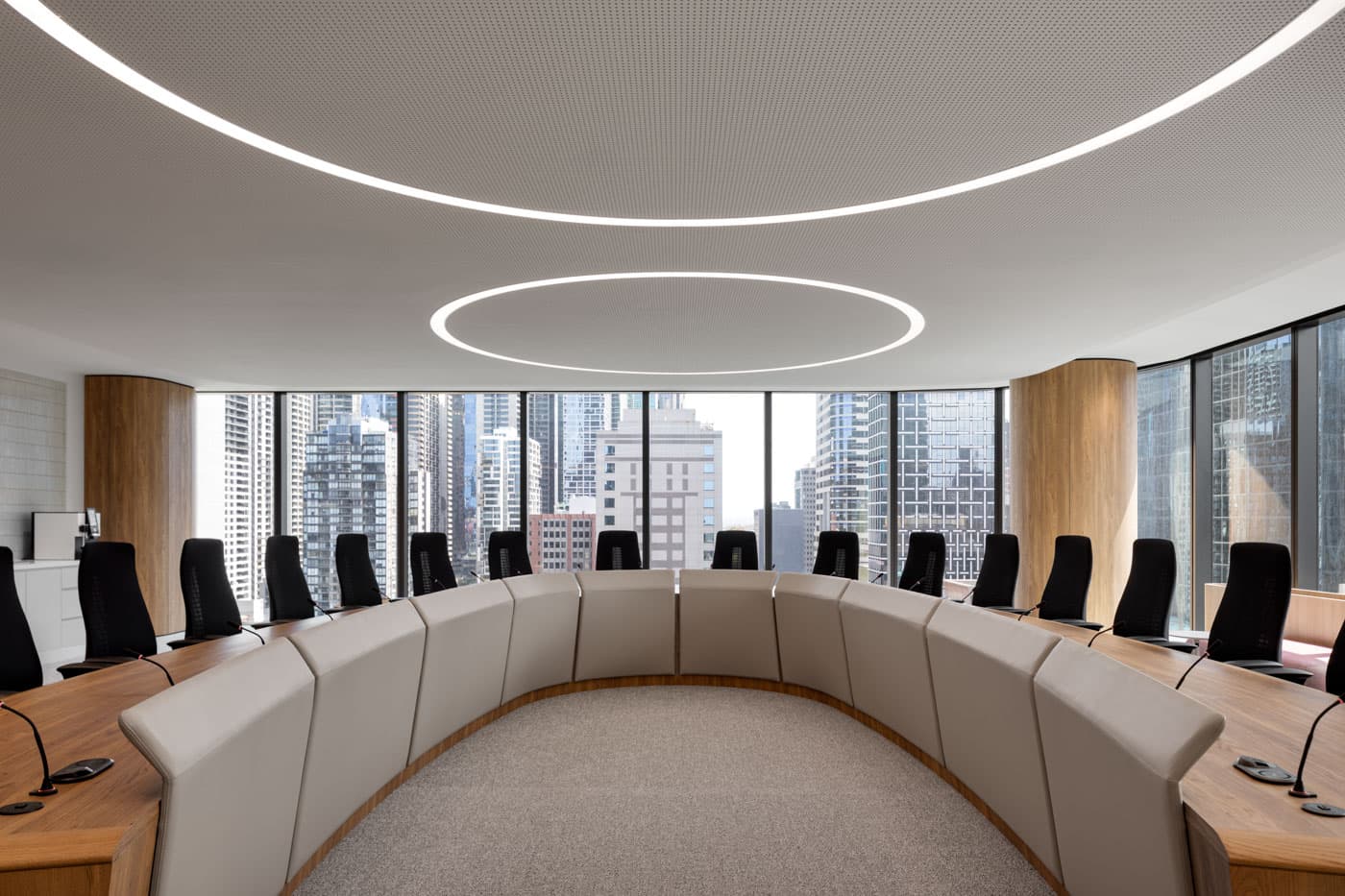

Gallery
Related Products
Technical Details
Construction & Mounting
- Mounting
- Recessed
LED
- CCT
- 2700K, 3000K, 3500K, 4000K, Tunable White
- CRI
- 90
- LED Output
- 422.5–3506.7lm
- LED Power
- 6–34.5W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
- Output Type
- High Efficiency, High Output
- LED Type
- SMD
- LED Model
- LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Standards
- AS/NZS 60598.2.1
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Enquire About TRIM RADII RING REC
Interested in this product? Send us your details and our team will get back to you with pricing, lead times, and specifications.
