SUPER MINI SKIRT NEON SUS by DARKON

SUPER MINI SKIRT NEON SUS

AUSTRALIAN MADE
RCM
5 YEARS
IP67
OPAL

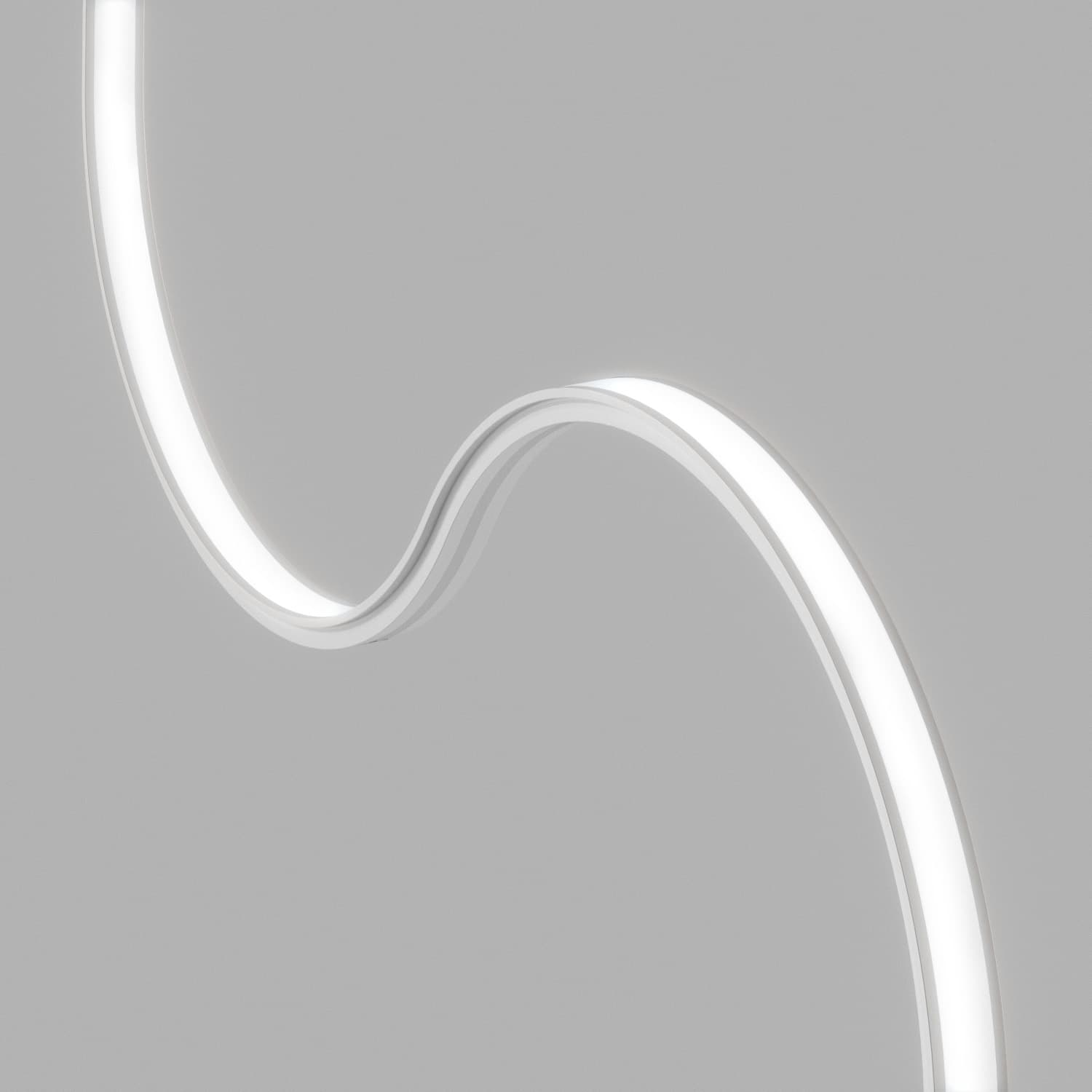

SUPER MINI SKIRT NEON SUS is the next evolution of the iconic MINI SKIRT range, combining elegant curved aesthetics with advanced neon technology. Featuring the new T1607 silicone neon light source, recessed optics, and a seamless laser-welded construction, it delivers exceptional visual comfort, design flexibility, and a beautifully refined illuminated appearance.

Read more about SUPER MINI SKIRT NEON SUS

Design Features


  • Dot free homogeneous illumination

  • Up to 95 exit lumens per system watt

  • 90+ colour rendering

  • Max single length doubles with dual power feed option

  • 5m max single length of LED with single power feed

  • Multiple fixed output options

  • UV Protected

  • In-house Neon LED length customisation

  • In-house Neon LED moulded end caps

  • Dust free matt finish silicone

  • Utilises silicone Neon LED

Install Features


  • L70B50 > 50,000 hrs

  • Project specific labelling referencing type numbers

  • Complies with AS/NZS 60598.2.1

  • 50,000 hrs lifetime

  • Detailed shop drawings

  • Miter joins are not available

  • Screwless end caps

Available Finishes


Recommended Applications


Primary Industry
Spaces
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Fashion, Facades, Carparks

Designer Recommendations

KitchenDiningOfficeReceptionRestaurantCafeBarWet Area

Technical Details


Physical Dimensions

Width
30mm
Height
30mm

Construction & Mounting

Materials
Silicon, Aluminium
Shape
Micro Linear
Mounting
Suspended
Suspension
Rod Custom Length, Coaxial Clear, Coaxial Black

Optics

Optics
Diffuser
Light Distribution
Opal

Electrical & Driver

Insulation Class
Class III (Low voltage)
Cable Type
2 Core Coaxial Aircraft

Ratings & Compliance

IP Rating
IP67
Standards
AS/NZS 3000
Warranty
Product - 5 Years

Overview


SUPER MINI SKIRT NEON SUS represents the next generation of the MINI SKIRT family, blending sophisticated architectural design with the latest advancements in neon lighting technology. Originally developed around the highly successful SUPER MINI GRAZER platform, it has now been re-engineered to utilise the innovative T1607 silicone neon light source, delivering improved efficiency, enhanced uniformity, and greater design flexibility. The advanced neon system features ultra-short cutting increments, allowing virtually any custom luminaire length to be produced up to 3.1 metres. This unique capability gives designers the freedom to create precisely tailored lighting solutions without compromising aesthetics or performance. Remaining true to the original MINI SKIRT design philosophy, the luminaire features elegant soft curves and a refined architectural form. A specially CNC-machined aluminium end cap is laser welded and hand-finished to create a seamless visual appearance, ensuring every detail contributes to the luminaire's premium aesthetic. To enhance visual comfort, the neon light source is recessed within the profile, reducing glare and creating a softer illuminated effect. The result is a suspended architectural luminaire that delivers a continuous line of light while maintaining the clean, sophisticated appearance expected in contemporary commercial and public environments. Combining custom length flexibility, advanced neon performance, and beautifully crafted detailing, SUPER MINI SKIRT NEON SUS offers a unique architectural lighting solution for projects where appearance, comfort, and precision are equally important.

Enquire About SUPER MINI SKIRT NEON SUS

Interested in this product? Send us your details and our team will get back to you with pricing, lead times, and specifications.
