SLIM TRIM NEON REC by DARKON

SLIM TRIM NEON REC

LED FLEXIBLE
AUSTRALIAN MADE
RCM
5 YEARS
ZHAGA
FLICKER FREE
SMD
IP67
IK11
DEGLARING

SLIM C NEON REC is a recessed architectural luminaire featuring DARKON's innovative high-output neon technology. Utilising an integrated nano de-glaring film, recessed neon design, and black baffle, it delivers exceptional visual comfort with a seamless illuminated appearance. Designed for premium architectural applications, SLIM C NEON REC combines IP67 ingress protection with IK11 impact resistance to provide a robust and visually refined lighting solution.

Read more about SLIM TRIM NEON REC

Models


Configure model424 of 424 variants
424 matching variants — select one

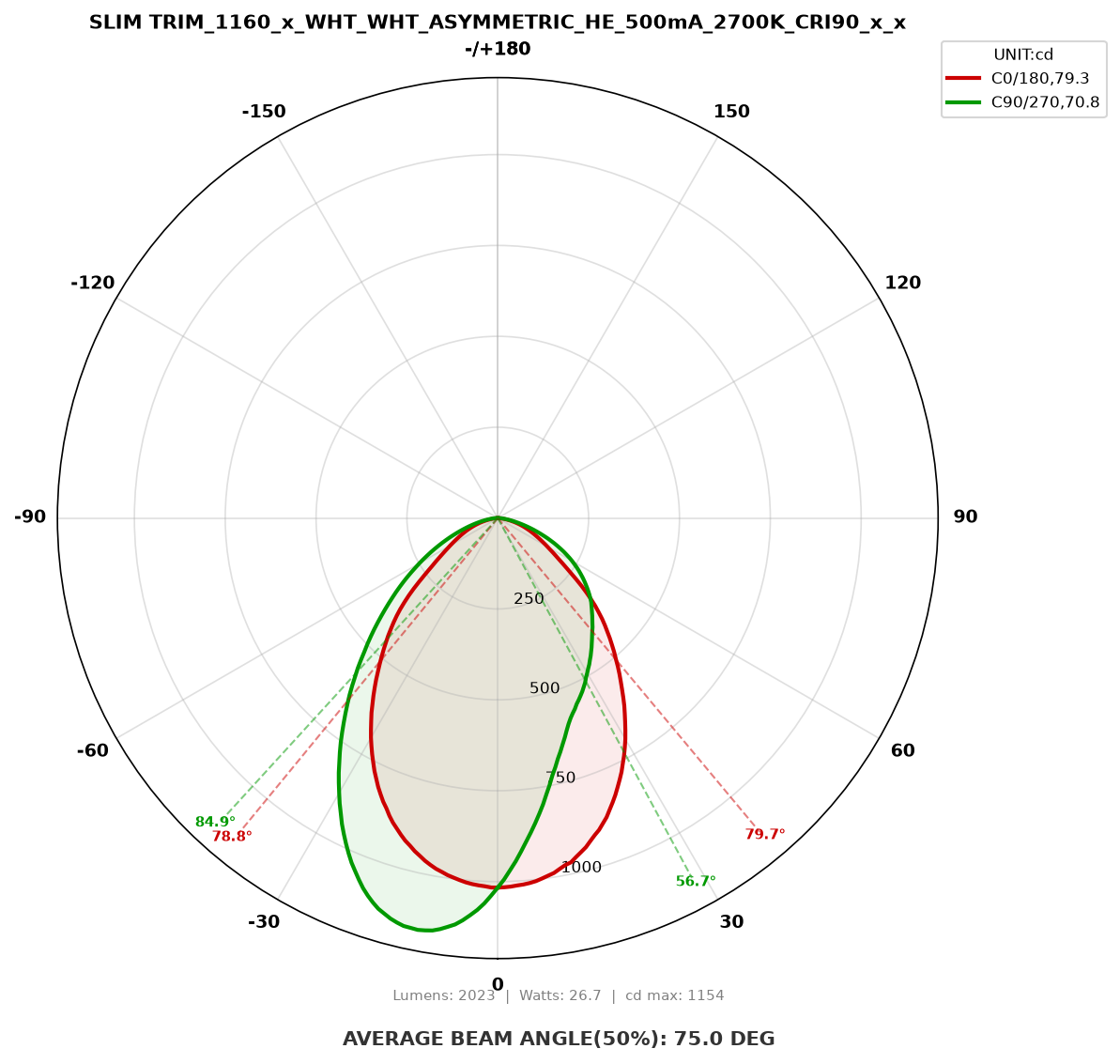

Polar light distribution curve for SLIM TRIM_1160_x_WHT_WHT_ASYMMETRIC_HE_500mA_2700K_CRI90_x_x
SLIM TRIM_1160_x_WHT_WHT_ASYMMETRIC_HE_500mA_2700K_CRI90_x_x
Lens
ASYMMETRIC
Direction
Direct
Output Type
High Efficiency
Milliamp
500 mA
Watts
26.7 W
Delivered Lumens
2022.6 lm
Efficacy
75.8 lm/W
Colour Temperature (CCT)
2700K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)

Design Features


  • Optional dual tone reflector insert with internal end cap

  • Dot free homogeneous illumination

  • Available with anti-glare silicone Neon LED

  • Recessed light source to further help reduce glare

  • In-house Neon LED length customisation

  • In-house Neon LED moulded end caps

  • Dust free matt finish silicone

Install Features


  • Australian made

  • Project specific labelling referencing type numbers

  • Complies with AS/NZS 60598.2.1

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Snap fit gear tray with integrated driver

Recommended Applications


Primary Industry
Spaces
Health
Education
Hospitality
Office / Work Space
Landscape
Infrastructure
Sport
Residential
Retail

Designer Recommendations

OutdoorWet AreaCar ParkDeckCorridorStairwellFoyerKitchenBathroom

Technical Details


Physical Dimensions

Width
59mm
Height
76mm
Cutout
50
Weight
4.5kg/m

Construction & Mounting

Shape
Linear
Mounting
Recessed

Optics

Optics
Combination Lens
Light Distribution
Deglaring

LED

CCT
2700K, 4000K, 3000K, 3500K, Tunable White
CRI
90
LED Output
397.2–3528.6lm
LED Power
6–33.3W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
Output Type
High Efficiency, High Output
LED Type
SMD
LED Model
LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Insulation Class
Class I (Earthing)
Cable Type
5 Core Flex 24/.2 (0.75mm², 7.5A) Copper
Flicker Free Driver
Yes

Ratings & Compliance

IK Rating
IK11
IP Rating
IP67
Standards
  • AS/NZS 60598.2.1
  • AS/NZS 3000
Compliance Reports
LM-79
Warranty
Product - 5 Years

Overview


SLIM C NEON REC combines advanced neon technology with a minimalist recessed architectural design to deliver a seamless and highly durable line of illumination. At its core is DARKON's proprietary high-output neon system, featuring a nano de-glaring film extruded directly within the silicone lens to significantly reduce glare while maintaining exceptional brightness and uniformity. The recessed neon element is positioned within a deep-set optical chamber and paired with an integrated black baffle to enhance visual comfort and minimise glare. This intelligent optical design creates a clean architectural appearance while delivering superior performance compared to conventional neon lighting systems. A unique over-moulded illuminated end-cap system enables multiple luminaires to be joined seamlessly, creating an uninterrupted line of light while maintaining a fully sealed IP67 construction. The glowing end caps eliminate dark joining points, allowing designers to create continuous illuminated features across long runs with a consistent visual appearance. The recessed lens design also contributes to the luminaire's IK11 impact rating, providing exceptional protection against vandalism and accidental damage. Engineered specifically for architectural neon applications, the high-brightness flexible LED platform delivers exceptional efficiency, colour consistency, and long-term reliability with a 50,000-hour design life backed by a 5-year warranty. Combining seamless illumination, outstanding durability, and exceptional visual comfort, SLIM C NEON REC offers a unique recessed lighting solution for projects where architectural integration, performance, and longevity are equally important.
