SLIM C NEON SUS by DARKON

SLIM C NEON SUS

AUSTRALIAN MADE
RCM
5 YEARS
SELF LOCK
ZHAGA
FLICKER FREE
SMD
UGR < 22
IP67
IK11
DEGLARING

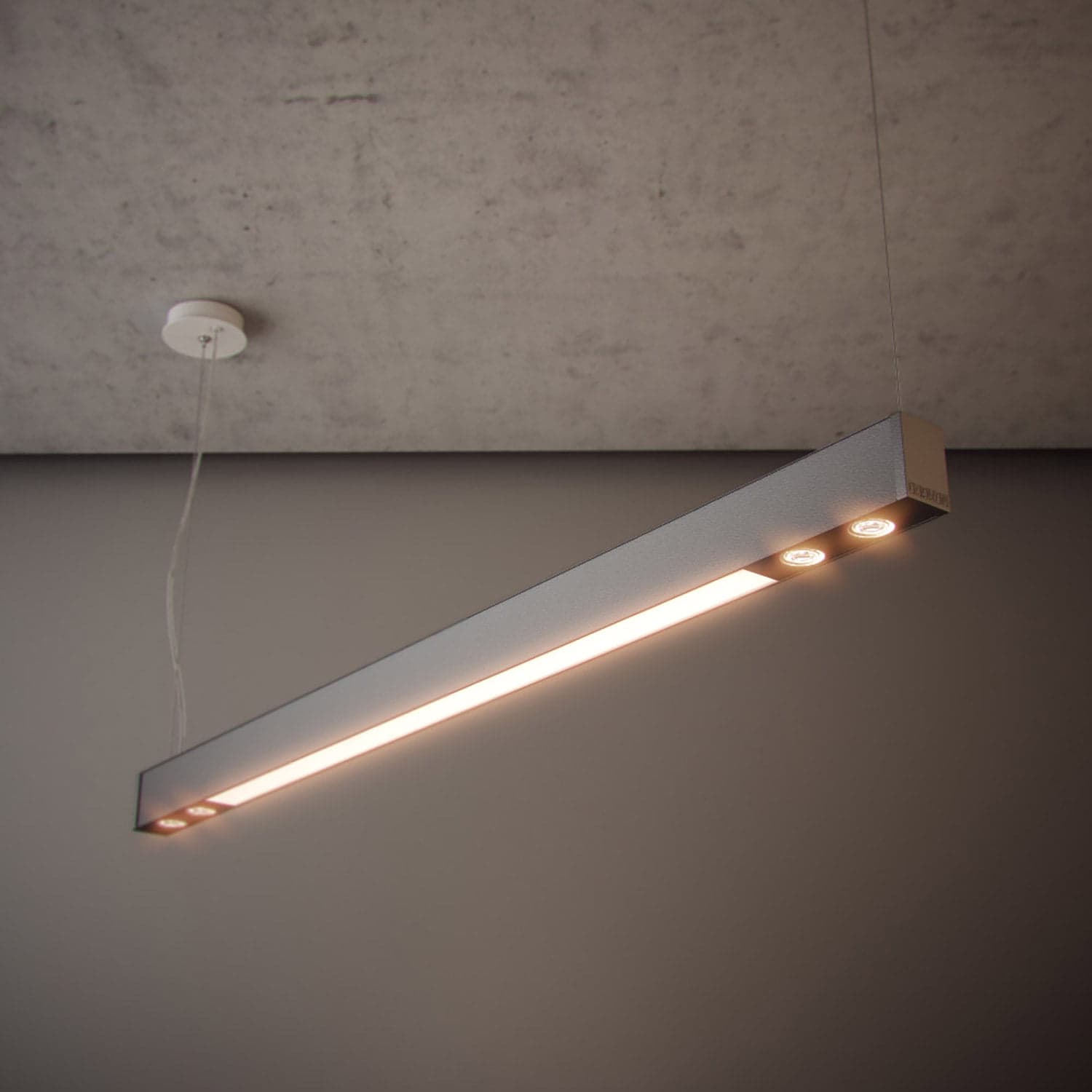

SLIM C NEON SUS is a suspended architectural luminaire featuring DARKON's innovative high-output neon technology, delivering a seamless line of illumination with exceptional visual comfort. Its recessed neon design, nano de-glaring film, and black baffle work together to achieve low-glare performance, while the IP67 and IK11 ratings make it ideal for demanding indoor and outdoor applications.

Read more about SLIM C NEON SUS

Models


Configure model416 of 416 variants
416 matching variants — select one

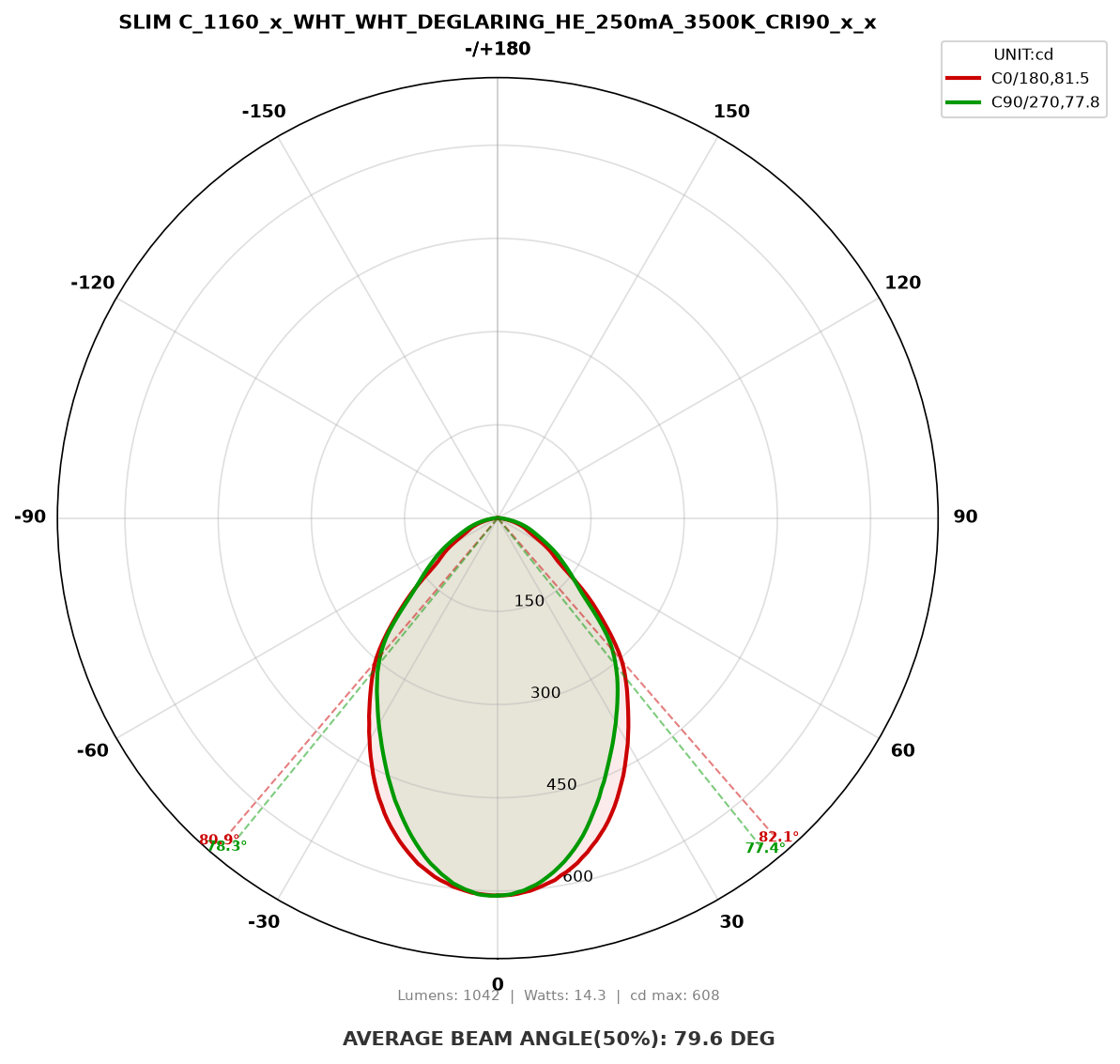

Polar light distribution curve for SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x
SLIM C_1160_x_WHT_WHT_DEGLARING_HE_250mA_3500K_CRI90_x_x
Lens
DEGLARING
Direction
Direct
Output Type
High Efficiency
Milliamp
250 mA
Watts
14.3 W
Delivered Lumens
1042.1 lm
Efficacy
72.9 lm/W
Colour Temperature (CCT)
3500K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)

Design Features


  • Optional dual tone reflector insert with internal end cap

  • Available with anti-glare silicone Neon LED

  • Recessed light source to further help reduce glare

  • Dot free homogeneous illumination

  • Complies with AS/NZS 60598.2.1

  • In-house Neon LED length customisation

  • In-house Neon LED moulded end caps

  • Dust free matt finish silicone

Install Features


  • Project specific labelling referencing type numbers

  • Australian made

  • Lap join milling for Light Bleed free joins

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

  • Factory fitted "push to join" installation

Available Finishes


Internal Finishes


Recommended Applications


Primary Industry
Spaces
Landscape
Public Realm, Pathways & Parks, Open Spaces
Infrastructure
Data Centre, Control Room, Road, Tunnel, Car Park
Sport
Sports Field, Stadium, Recreational

Technical Details


Physical Dimensions

Width
49mm
Height
76mm
Weight
4.5kg/m

Construction & Mounting

Materials
Acrylic, Silicon, Aluminium
Shape
Linear
Mounting
Suspended

Optics

UGR
< 22
Optics
Combination Lens
Light Distribution
Deglaring

LED

CCT
3500K, 3000K, 2700K, 4000K, Tunable White
CRI
90
LED Output
397.2–3528.6lm
LED Power
6–33.3W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
Output Type
High Efficiency, High Output
LED Type
SMD
LED Model
LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 35/150-700/54 o4a NF lp PRE3, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE, LC 35/150-700/54 o4a NF h16 EXC4
Insulation Class
Class I (Earthing)
Power Factor
> 0.9
Through Wiring
Yes
Cable Type
5 Core Flex 24/.2 (0.75mm², 7.5A) Copper
Flicker Free Driver
Yes

Ratings & Compliance

IK Rating
IK11
IP Rating
IP67
Standards
  • AS/NZS 60598.2.1
  • AS/NZS 3000
Warranty
Product - 5 Years

Overview


SLIM C NEON SUS redefines architectural neon lighting through a unique combination of performance, durability, and visual comfort. Suspended within a refined linear profile, DARKON's proprietary high-output neon features an integrated nano de-glaring film extruded directly into the silicone body, significantly reducing glare while maintaining a continuous and uniform illuminated appearance. The recessed neon design and integrated black baffle further enhance visual comfort, creating a luminaire capable of delivering high light output with minimal visual distraction. Over-moulded glowing end caps allow multiple luminaires to be joined seamlessly, producing an uninterrupted line of light while maintaining a fully sealed IP67 construction. Designed for challenging environments, the set-back neon configuration helps achieve a high-impact IK11 rating, providing exceptional resistance to vandalism and accidental damage. Utilising a purpose-designed high-brightness flexible LED platform engineered specifically for neon applications, SLIM C NEON SUS delivers consistent performance, a 50,000-hour design life, and the confidence of a 5-year warranty. Combining innovative neon technology with robust architectural detailing, SLIM C NEON SUS offers a distinctive lighting solution for projects requiring continuous illumination, superior durability, and exceptional visual comfort.

Enquire About SLIM C NEON SUS

Interested in this product? Send us your details and our team will get back to you with pricing, lead times, and specifications.
