SLIM TRIM REC

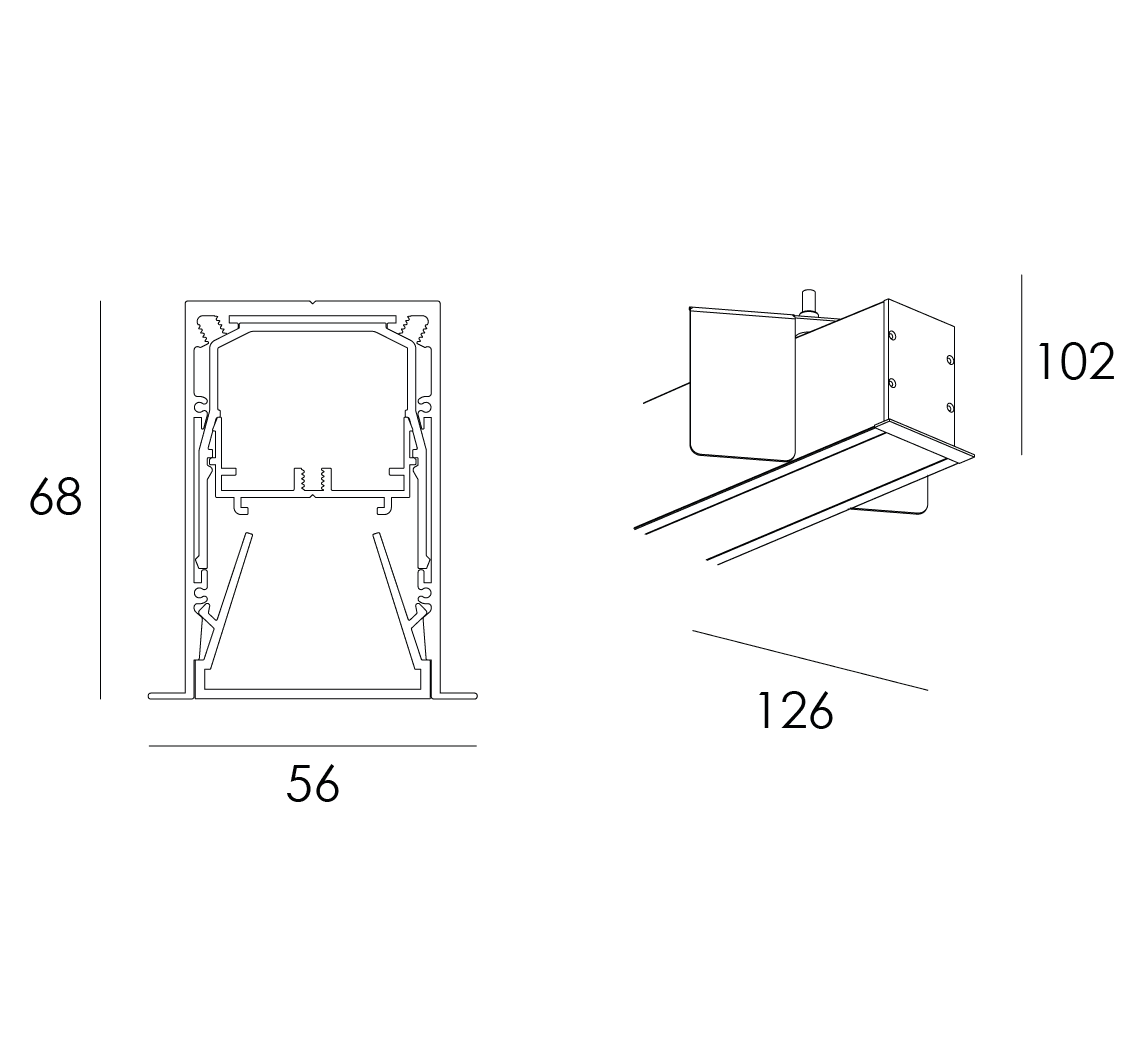

SLIM TRIM REC is a slim recessed profile designed for use with the light tray 40 LED, compatible with Tridonic's Linear Light Engine HE or HO LED boards. Its flush lens is available in four options to suit a range of applications.
Models
- Lens
- ASYMMETRIC
- Direction
- Direct
- Output Type
- High Efficiency
- Milliamp
- 500 mA
- Watts
- 26.7 W
- Delivered Lumens
- 2022.6 lm
- Efficacy
- 75.8 lm/W
- Colour Temperature (CCT)
- 2700K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10
Photometric Files
Design Features
Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints

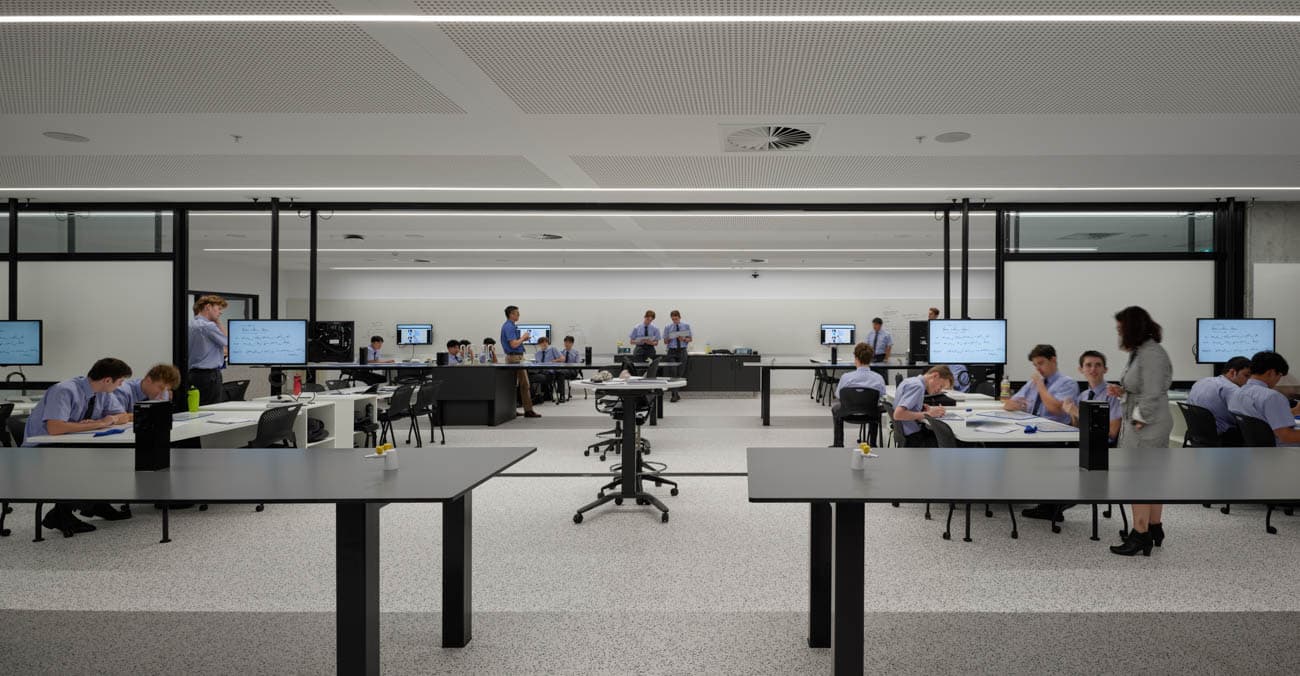

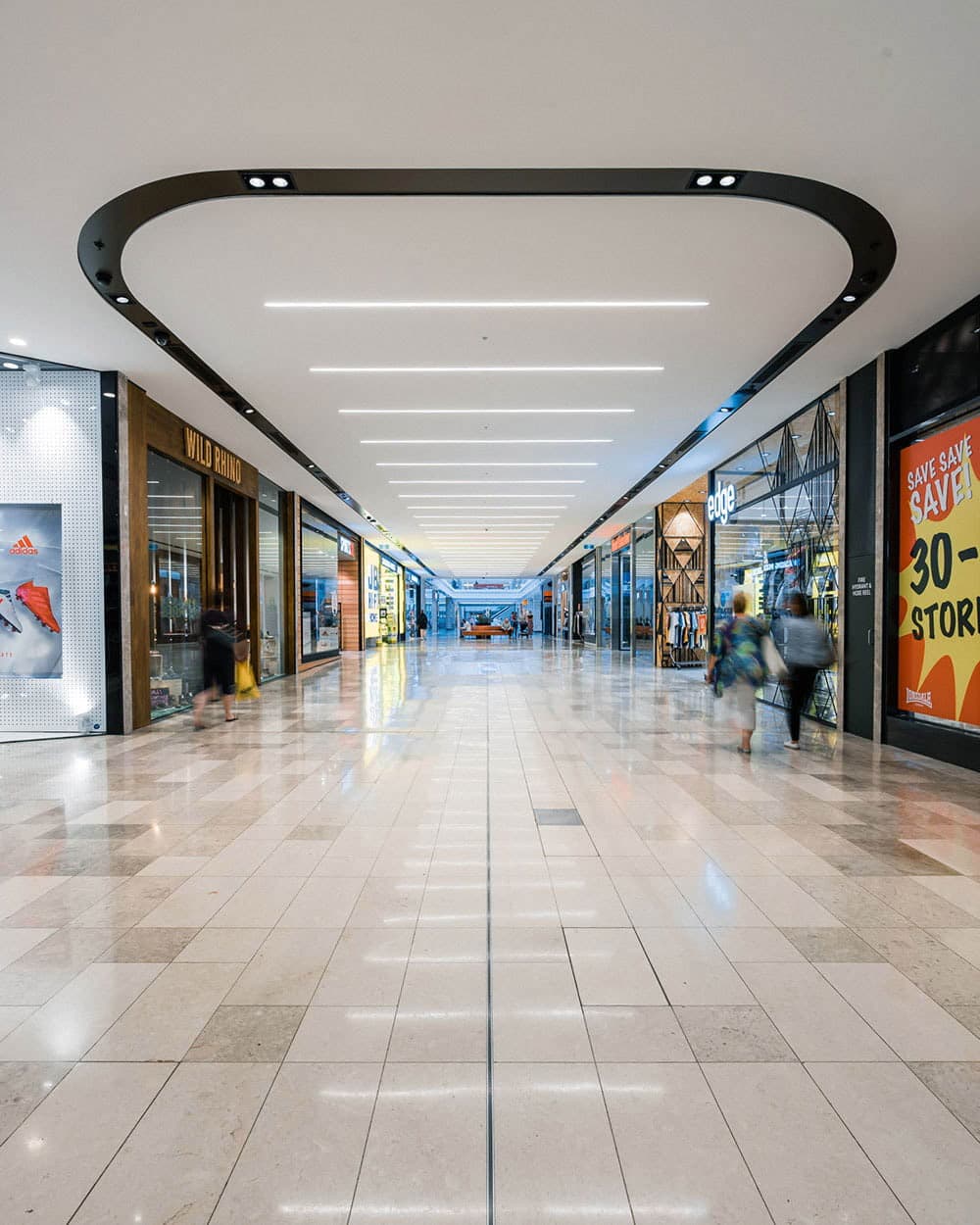

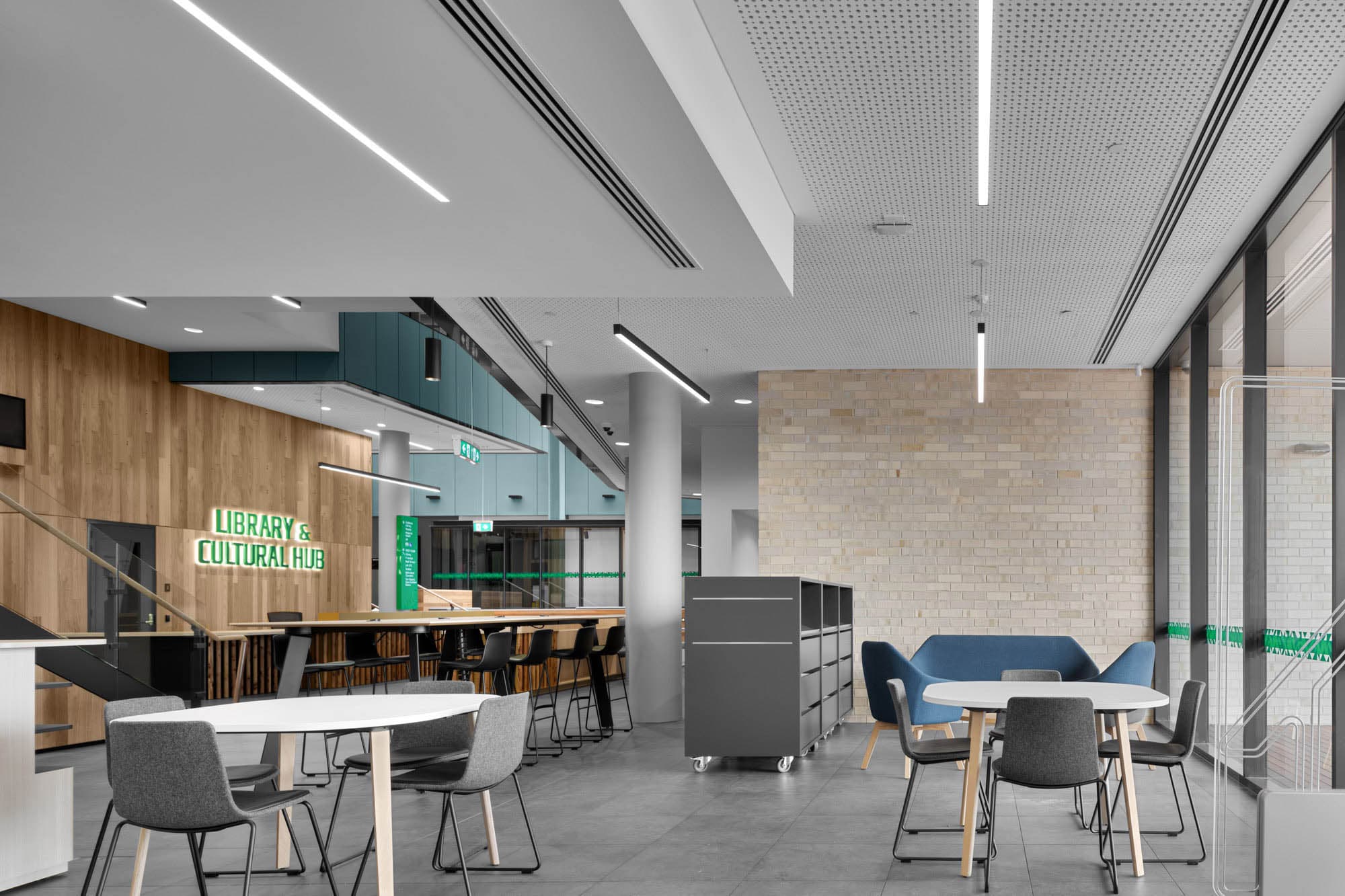

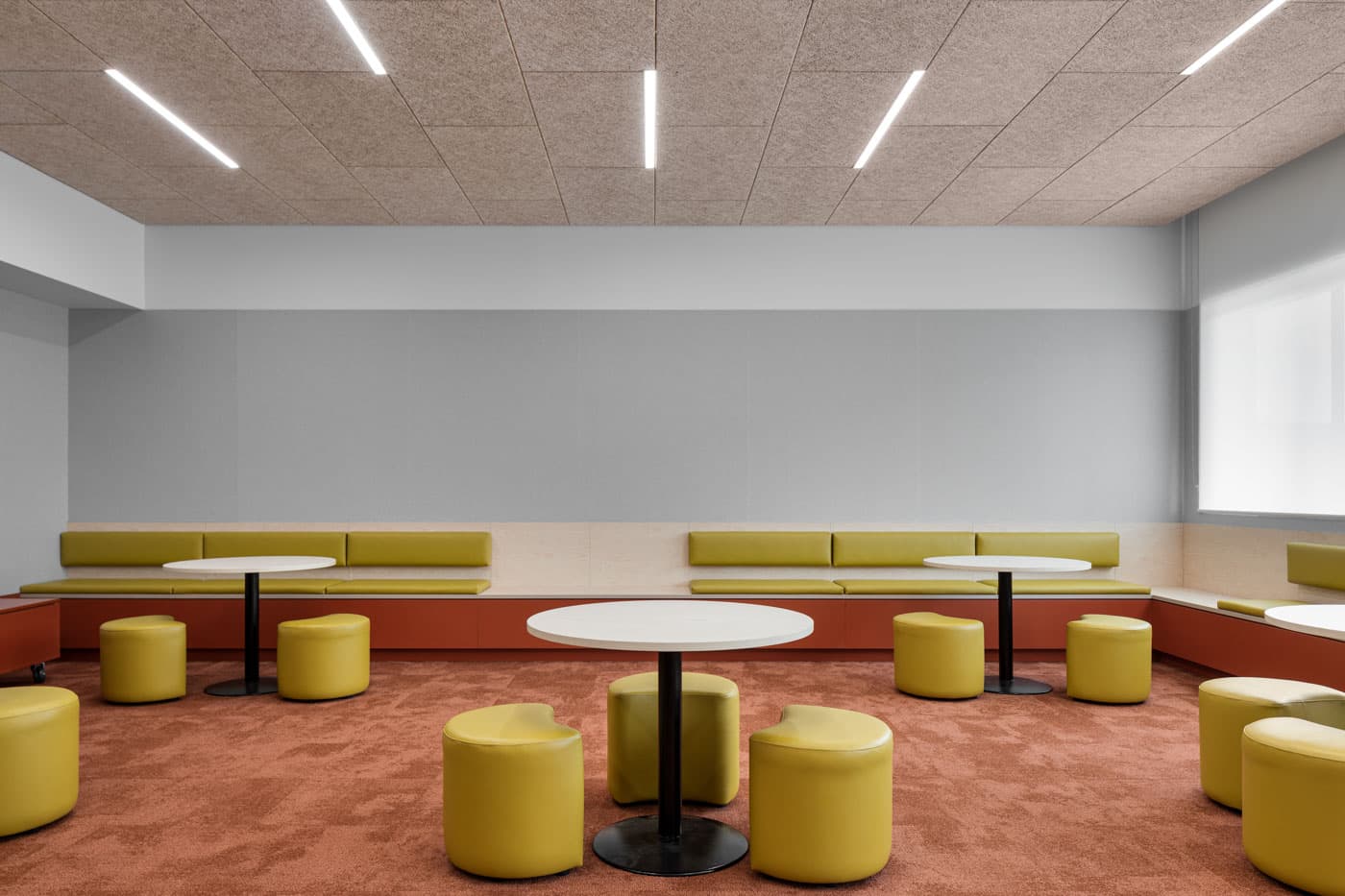

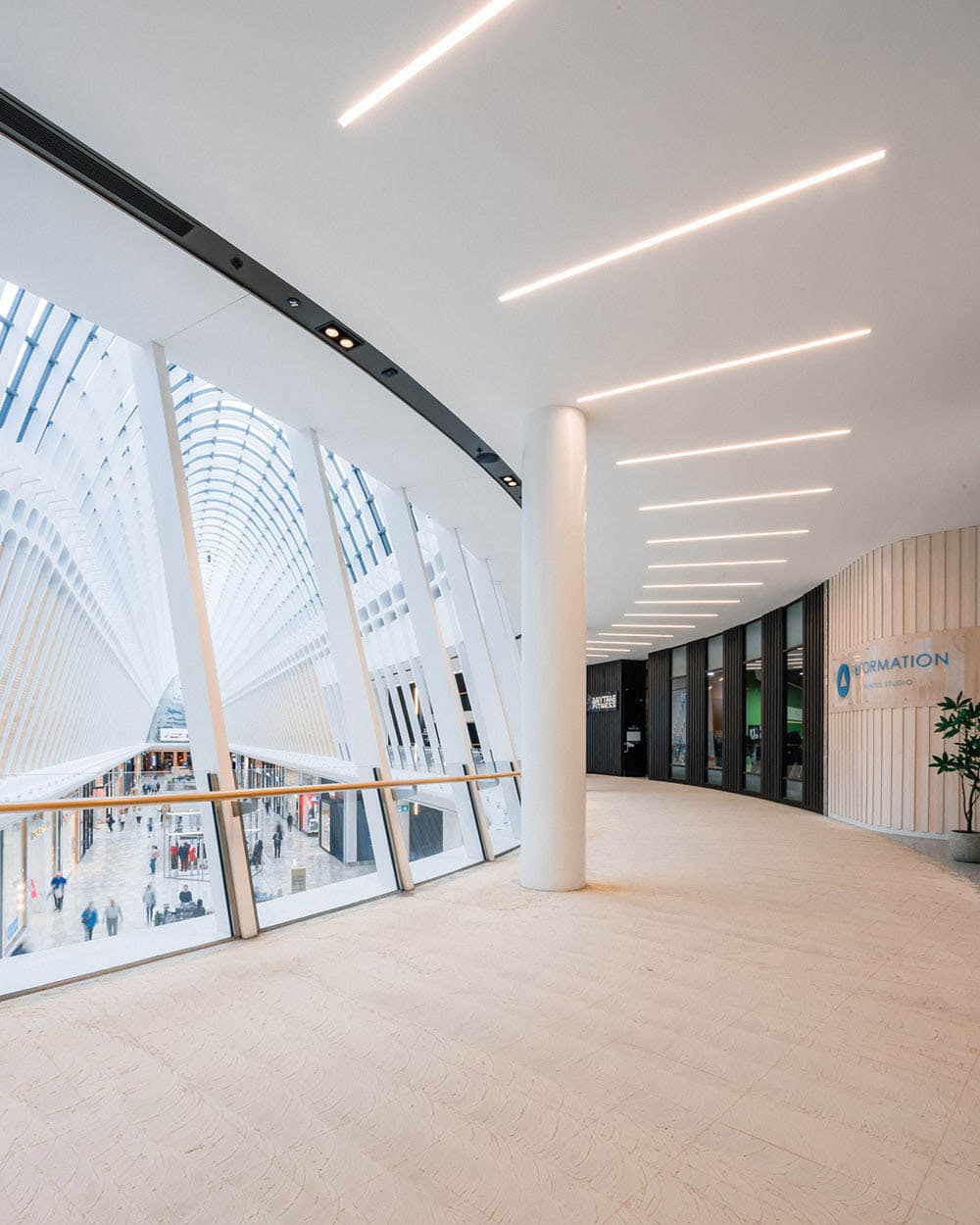

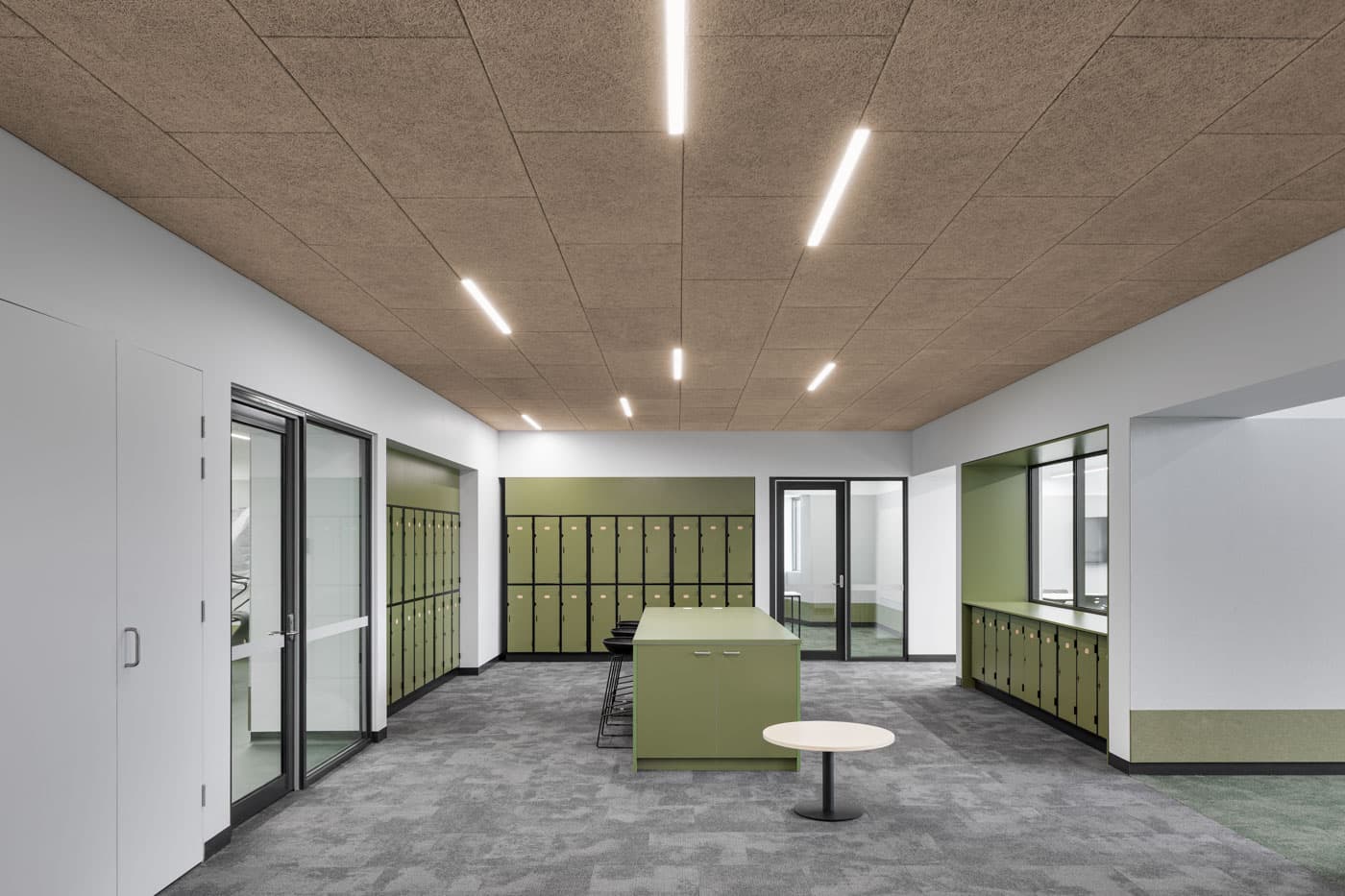

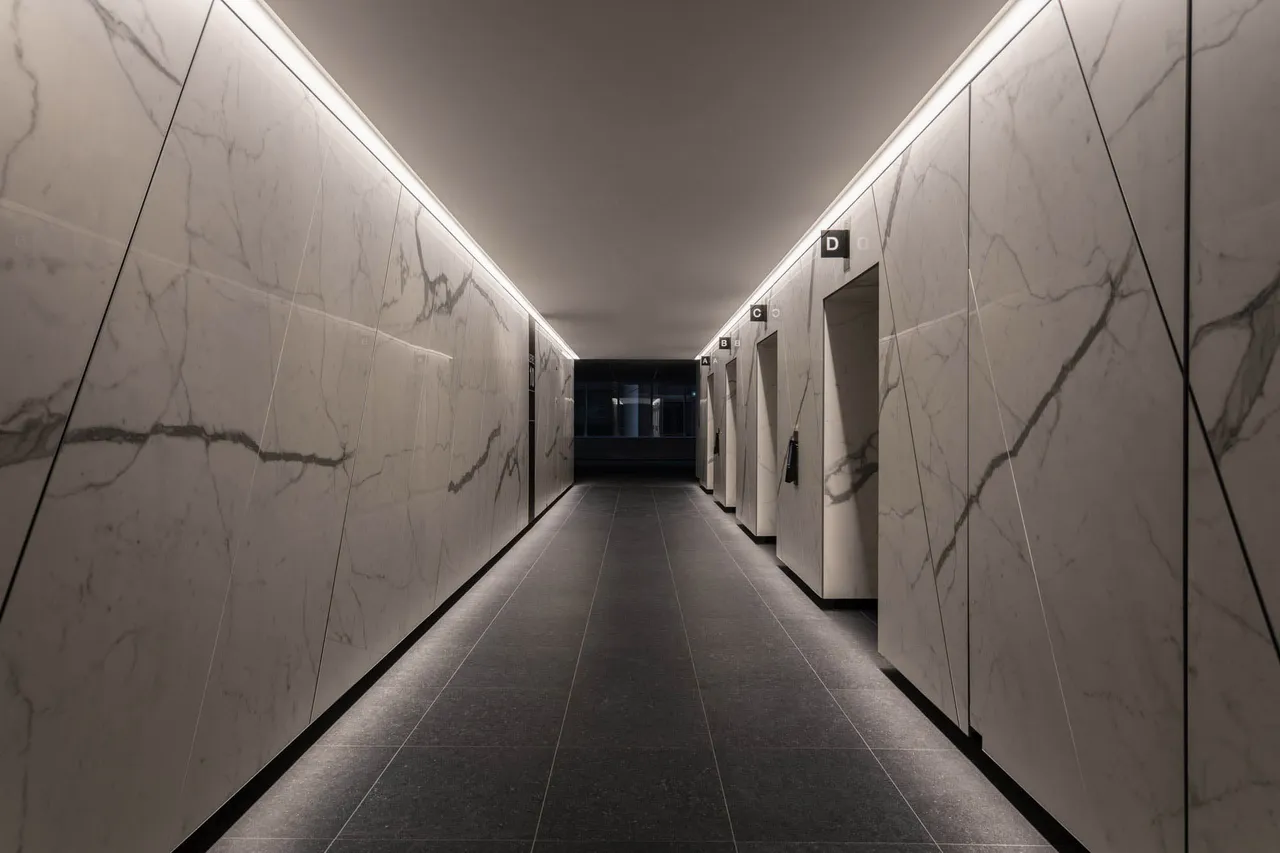

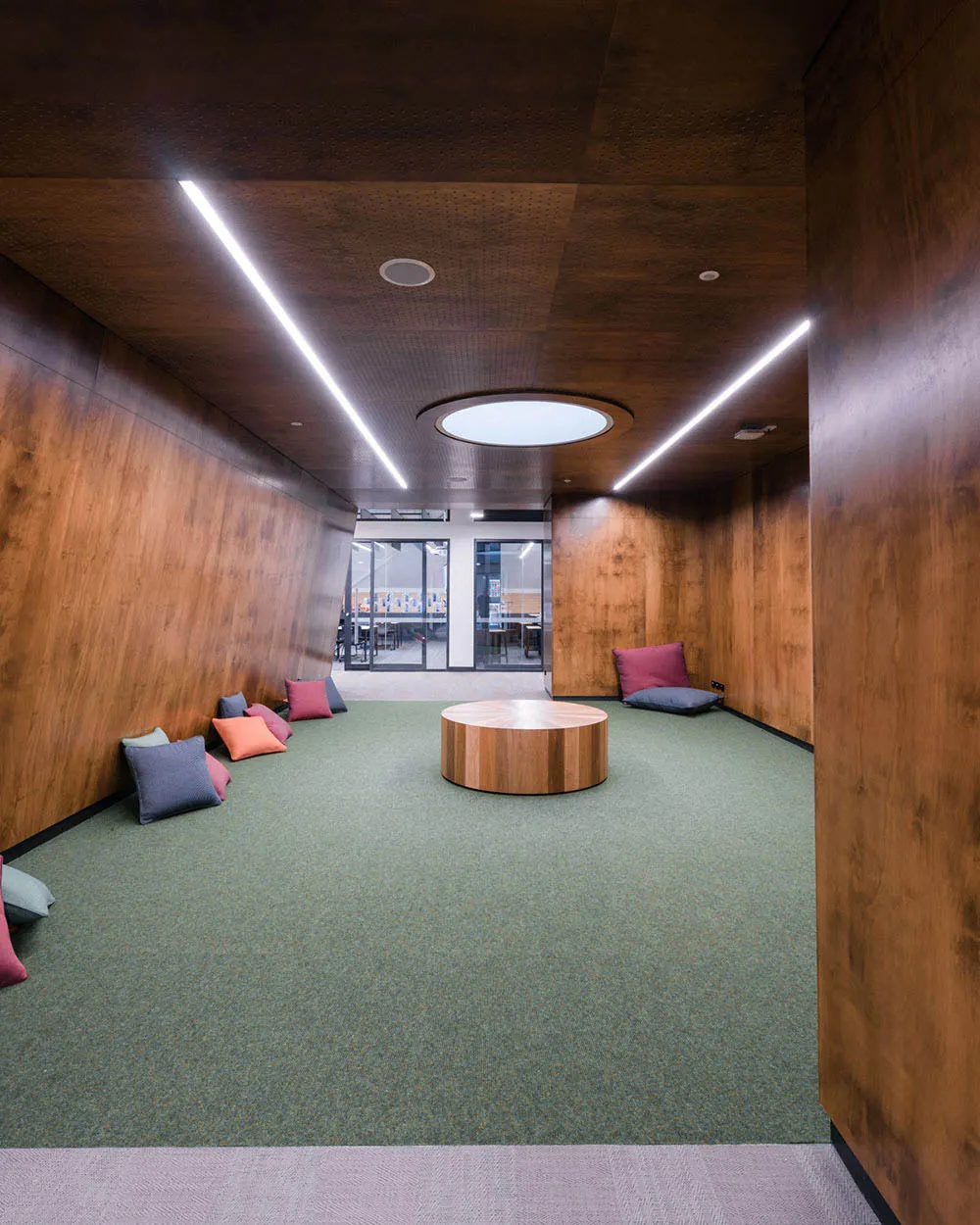

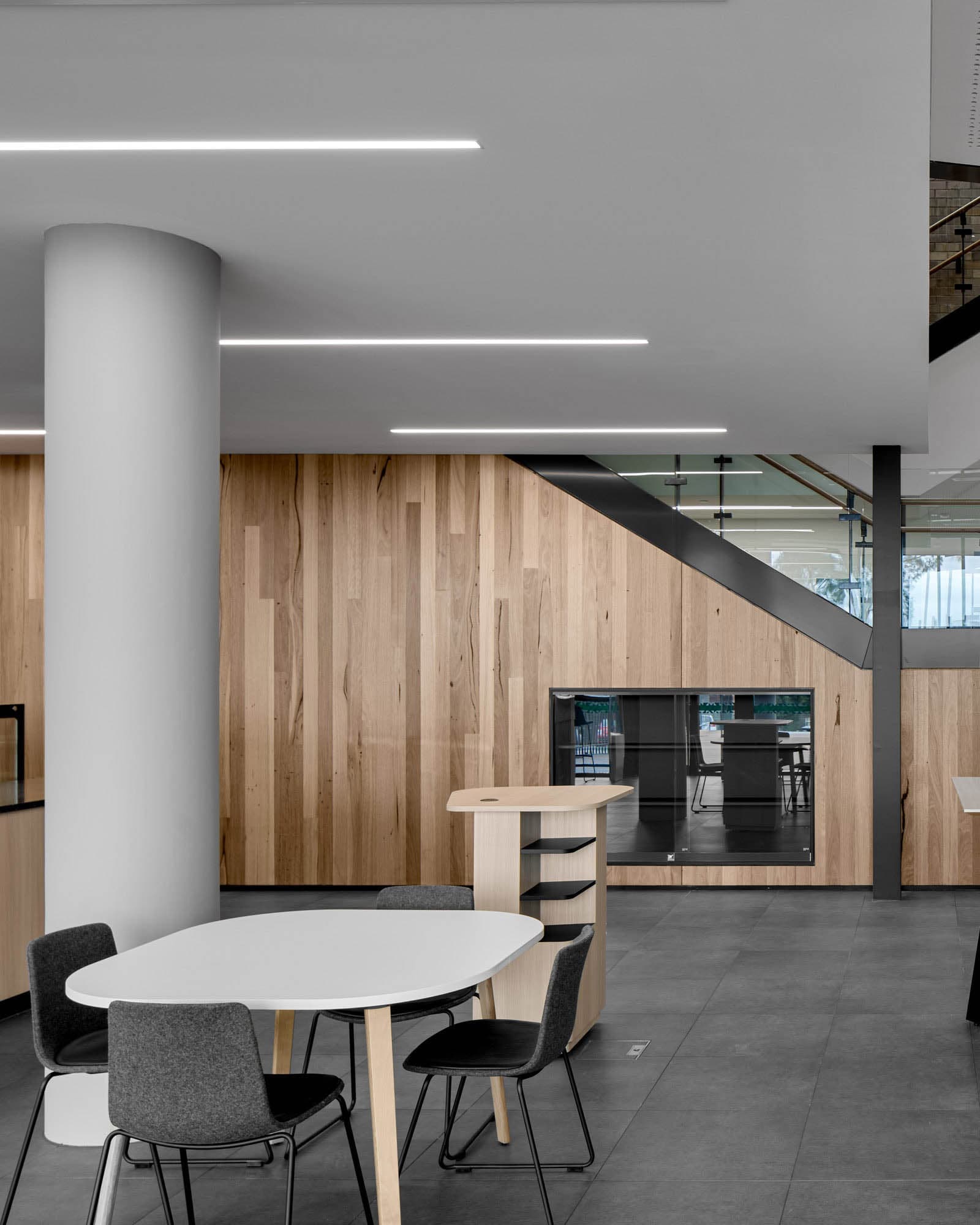

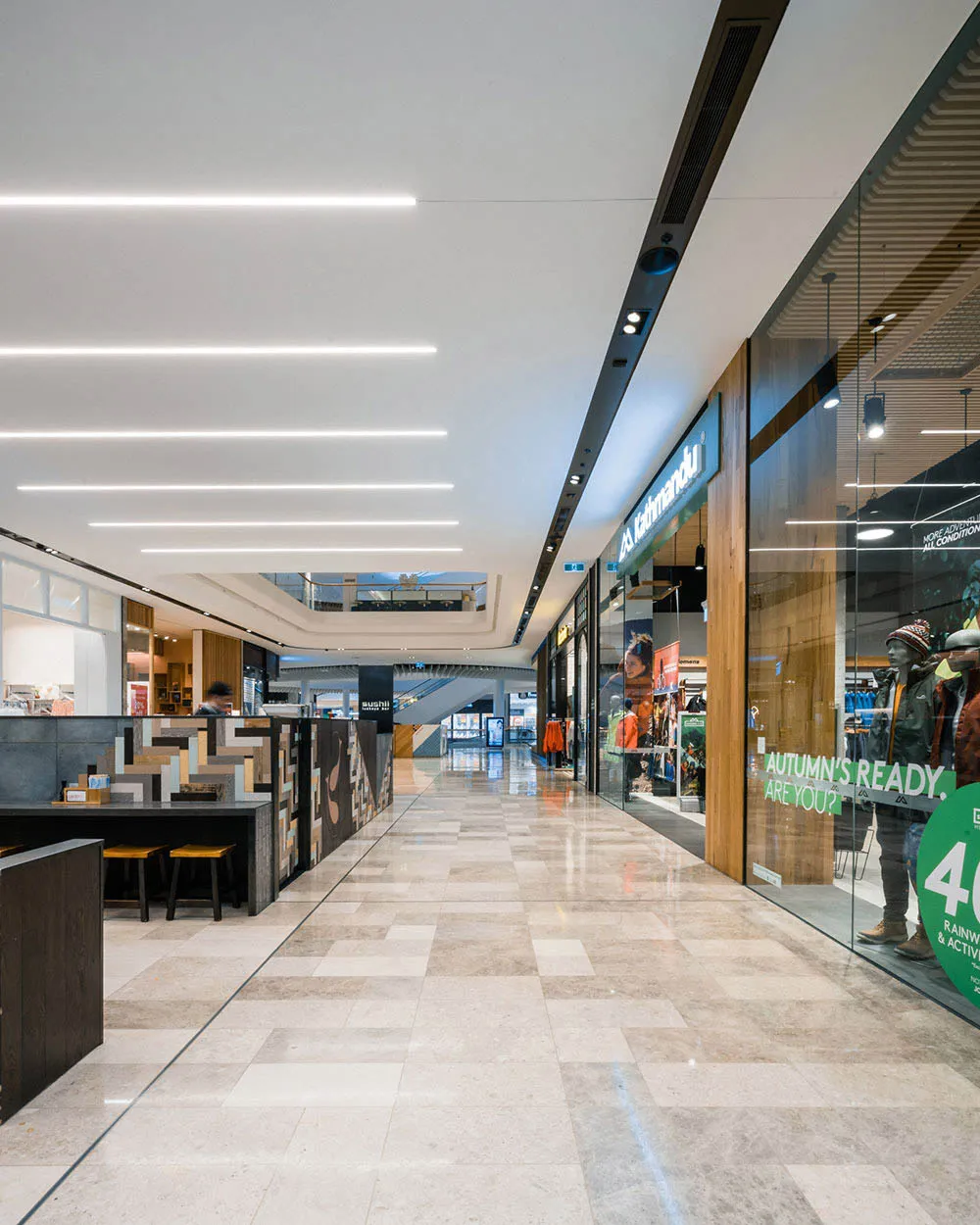

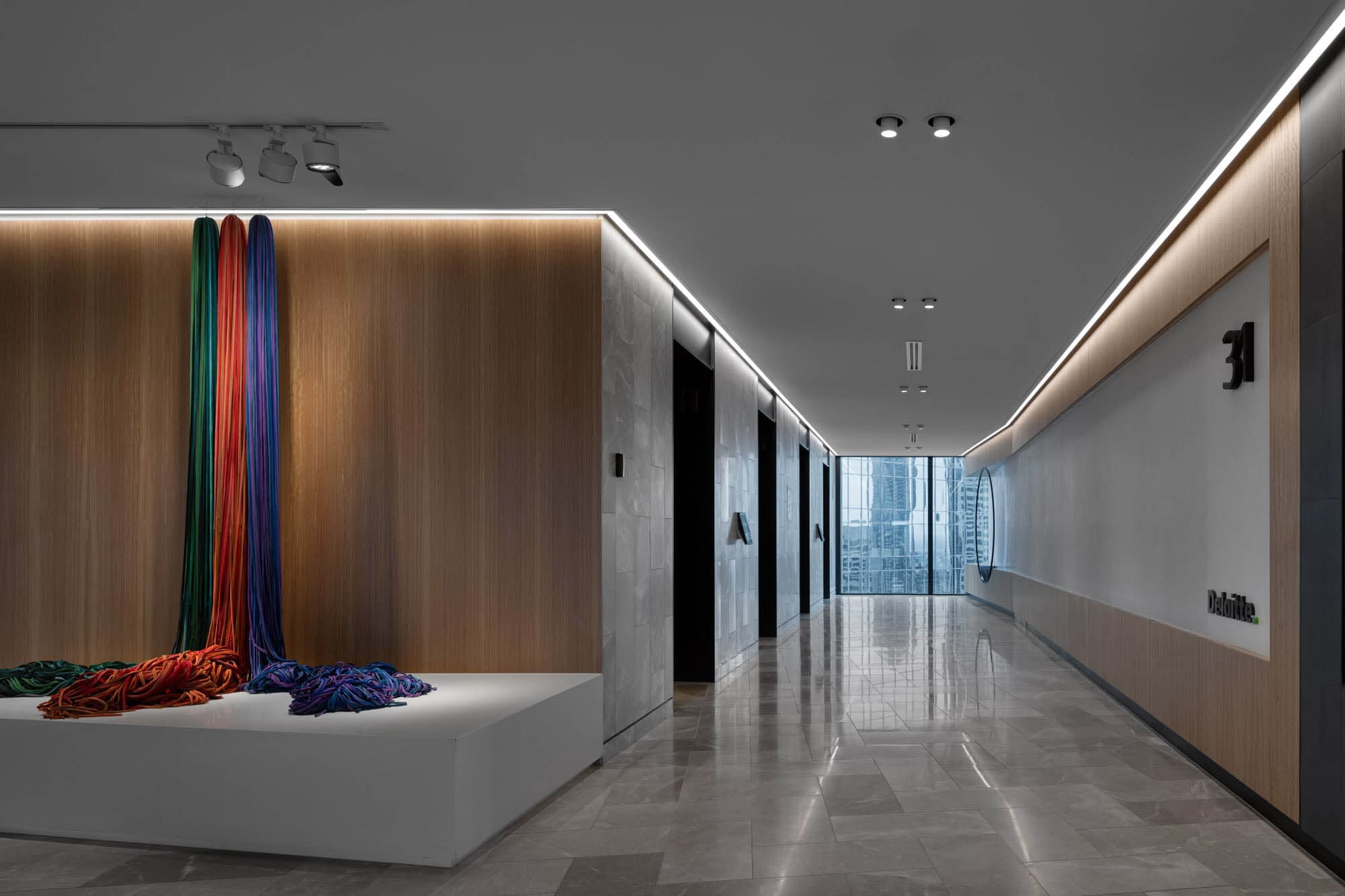

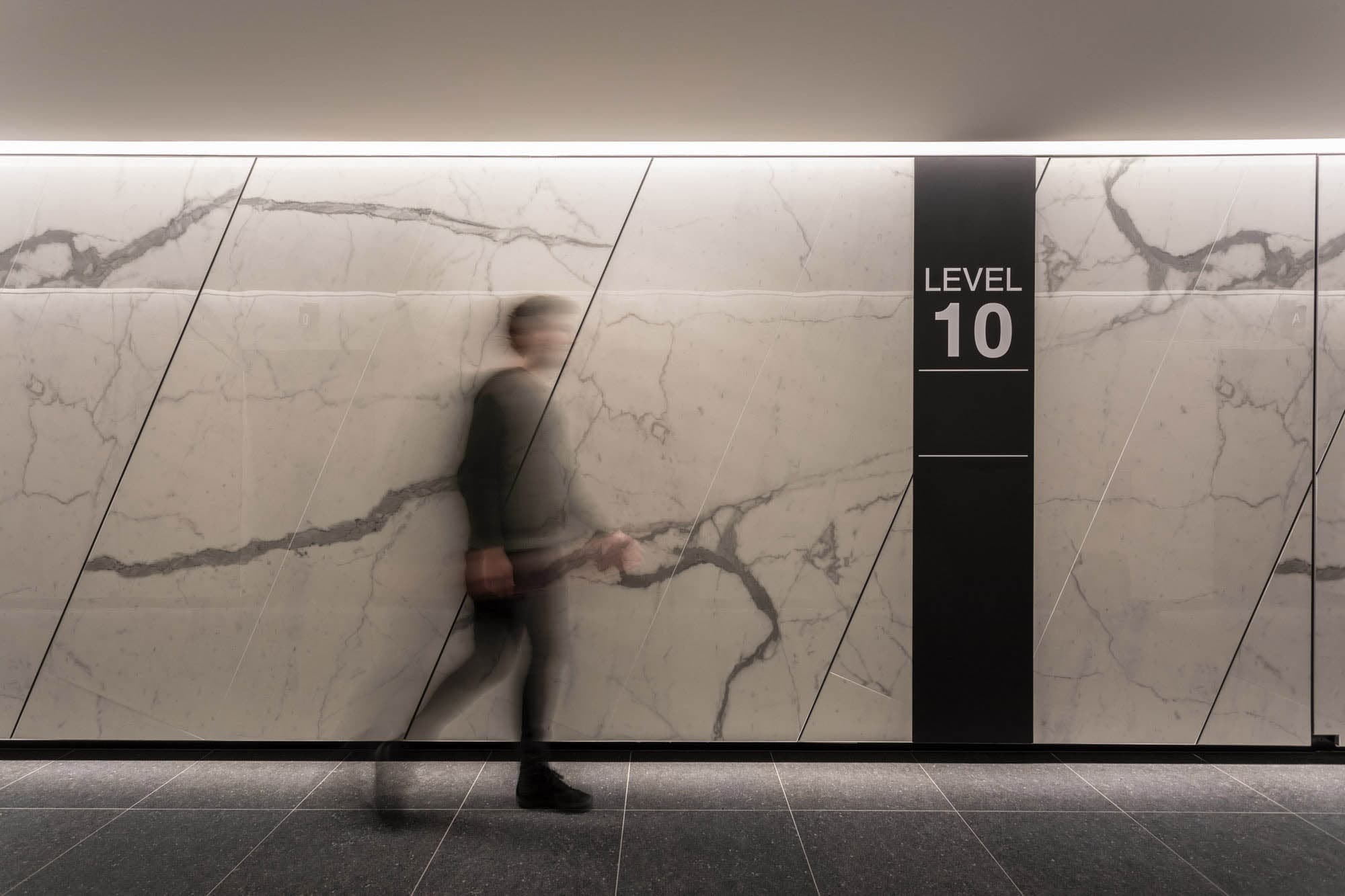

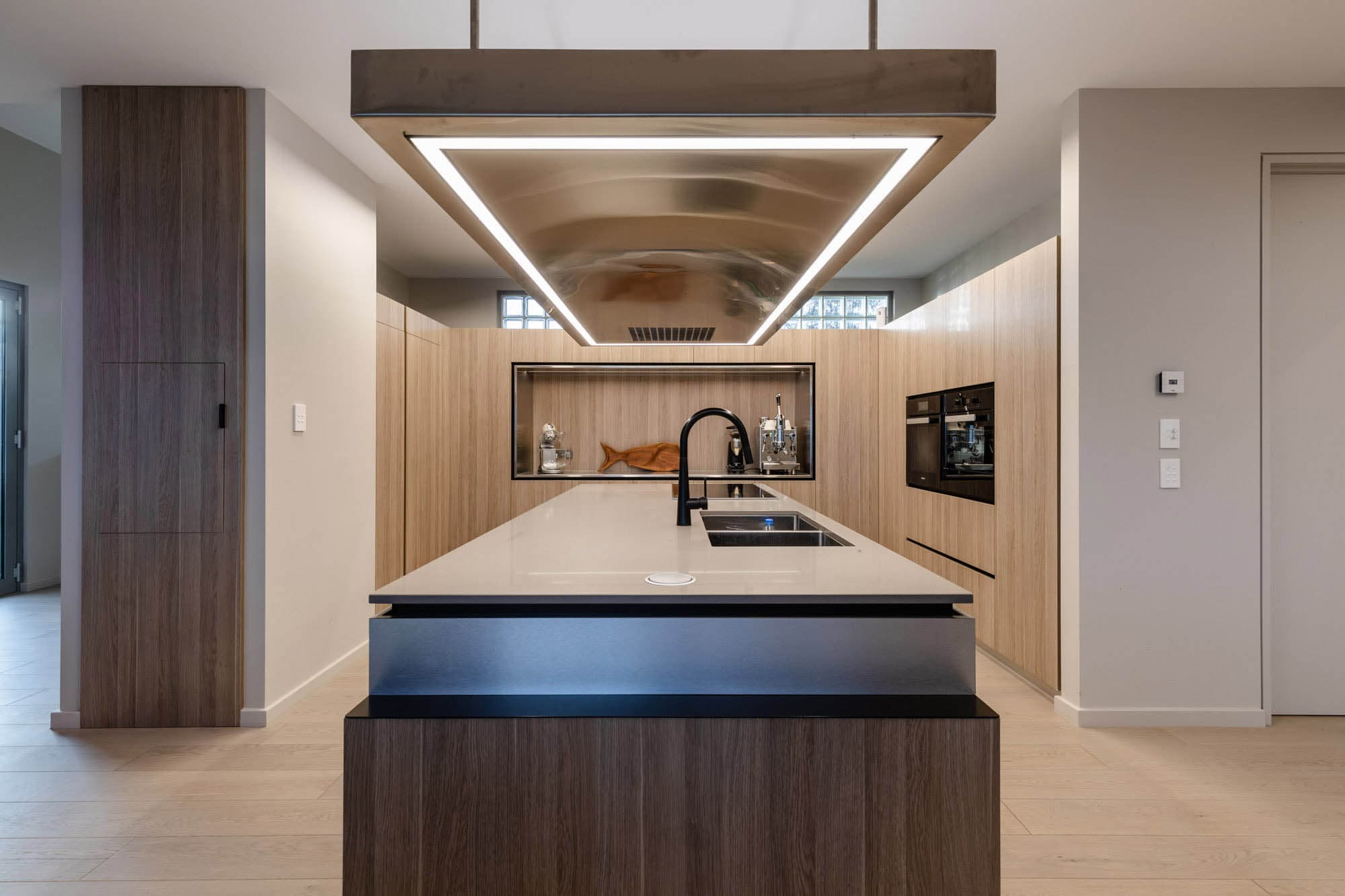

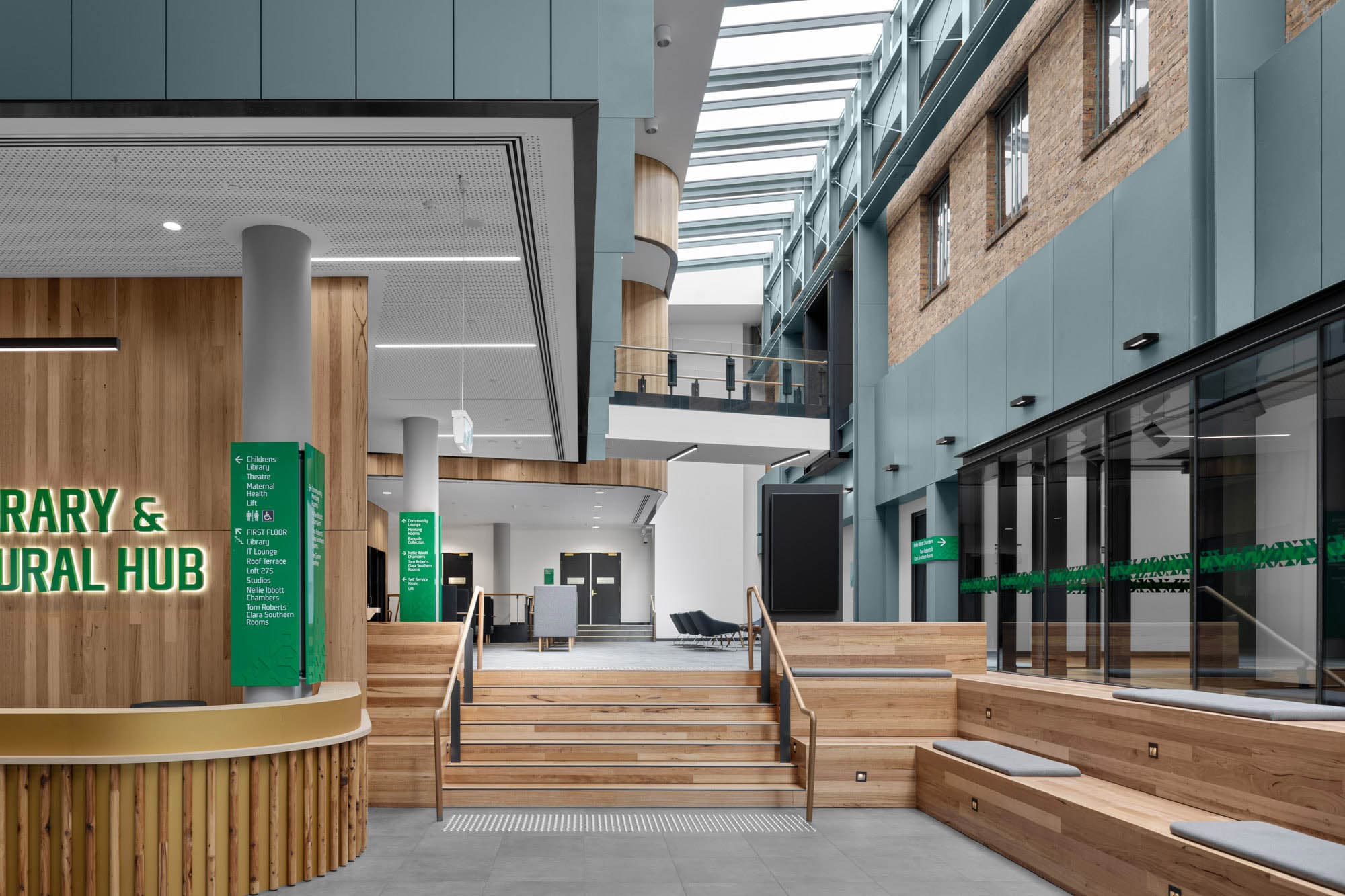

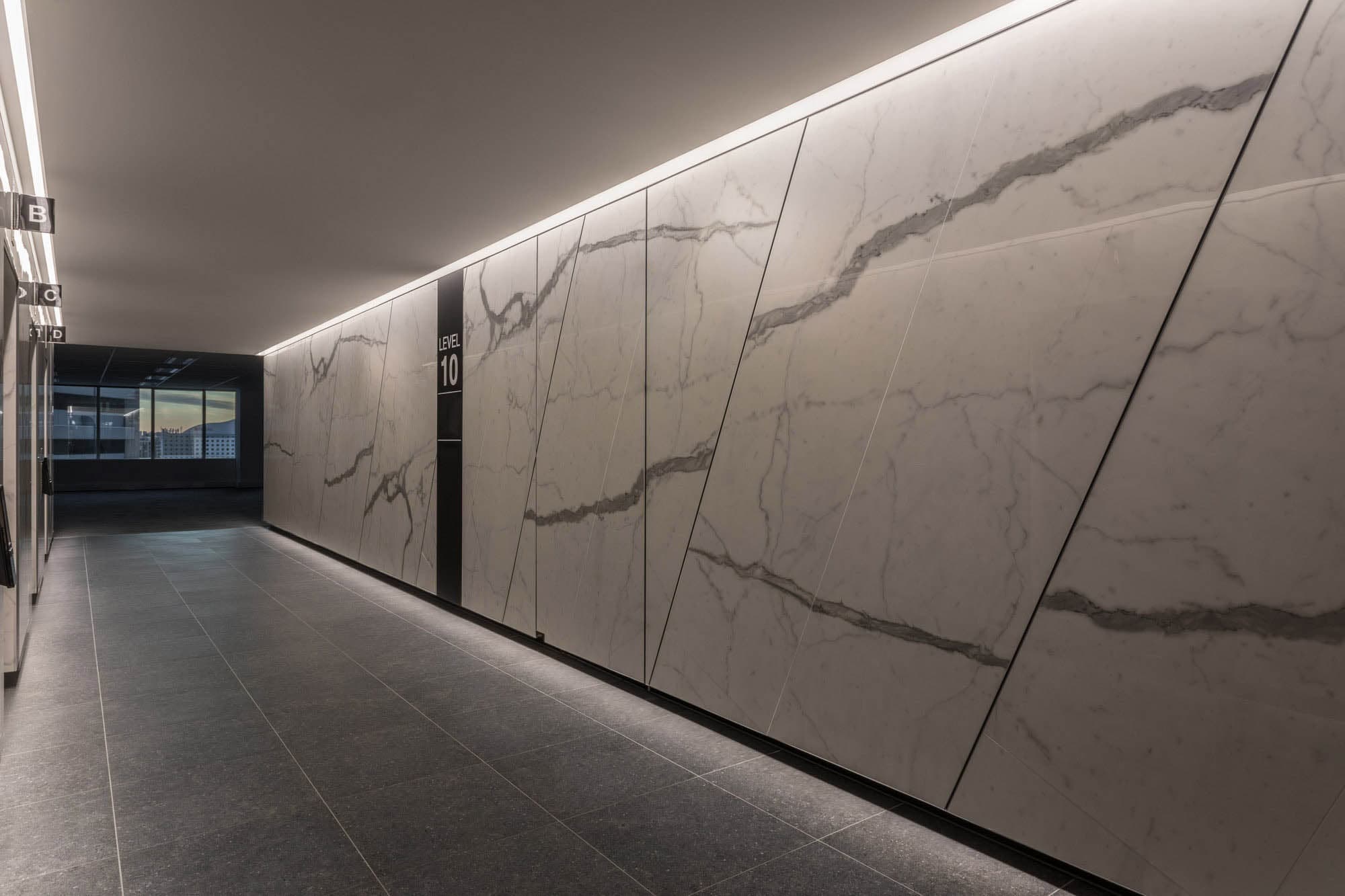

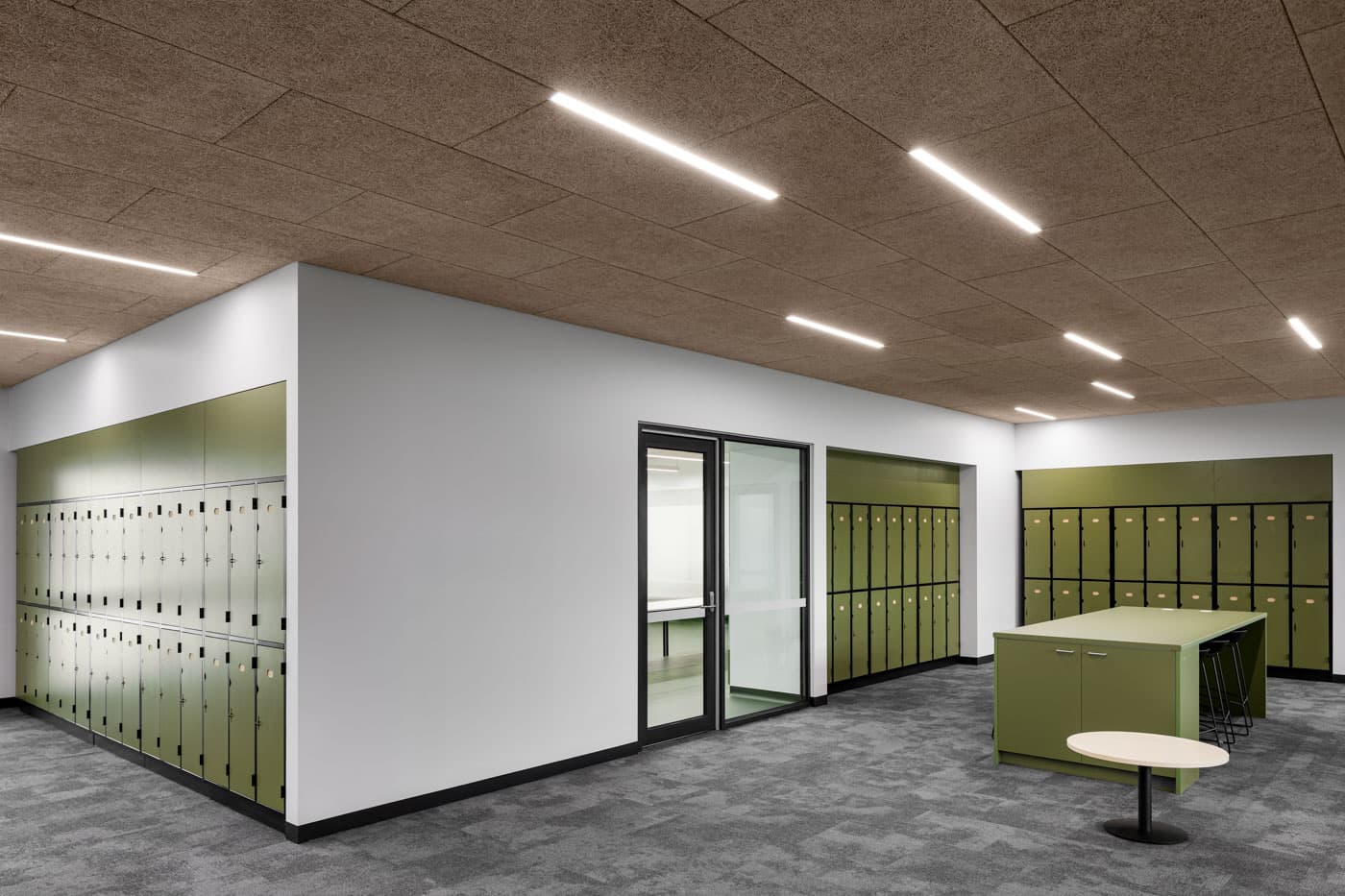

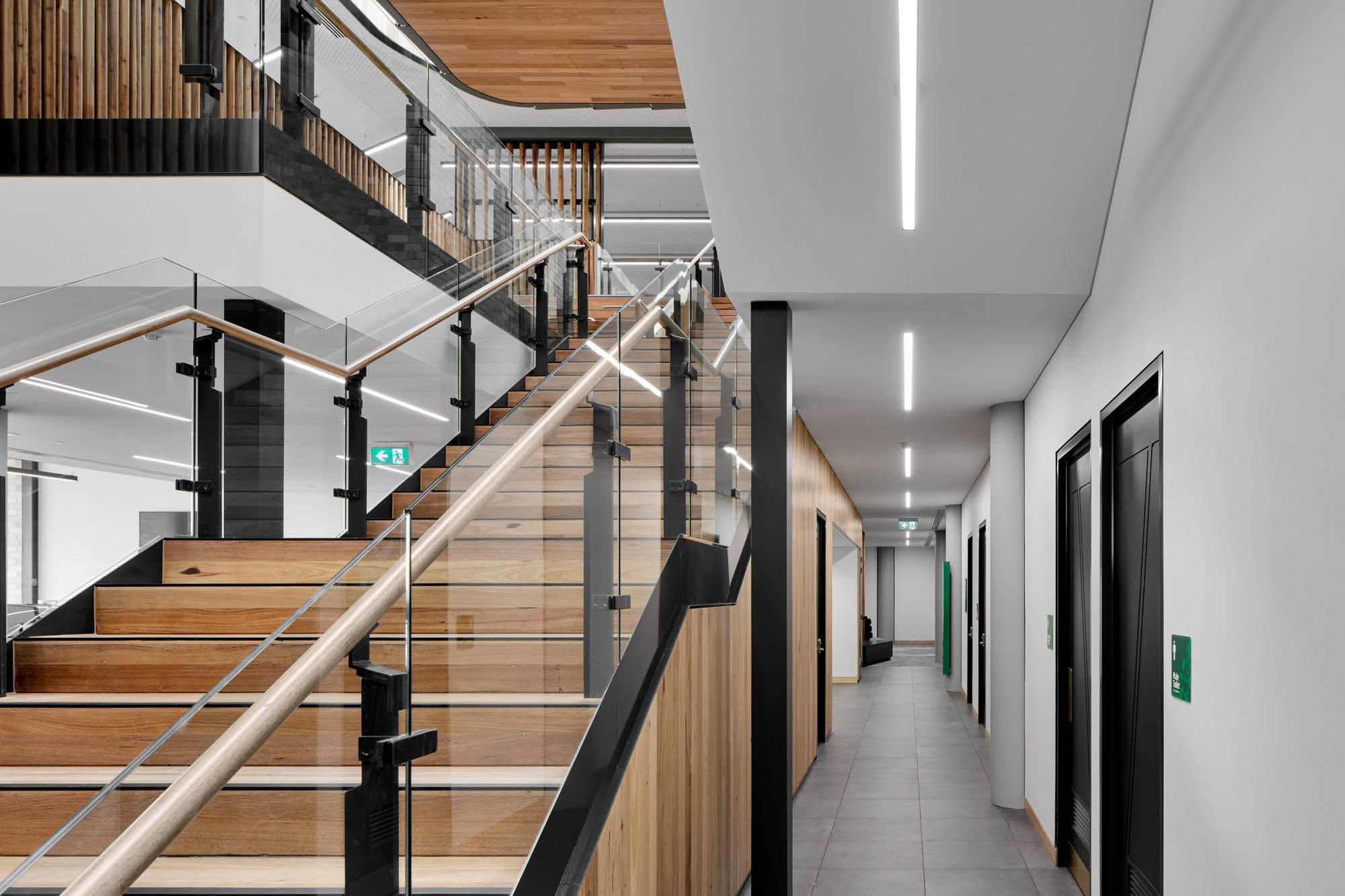

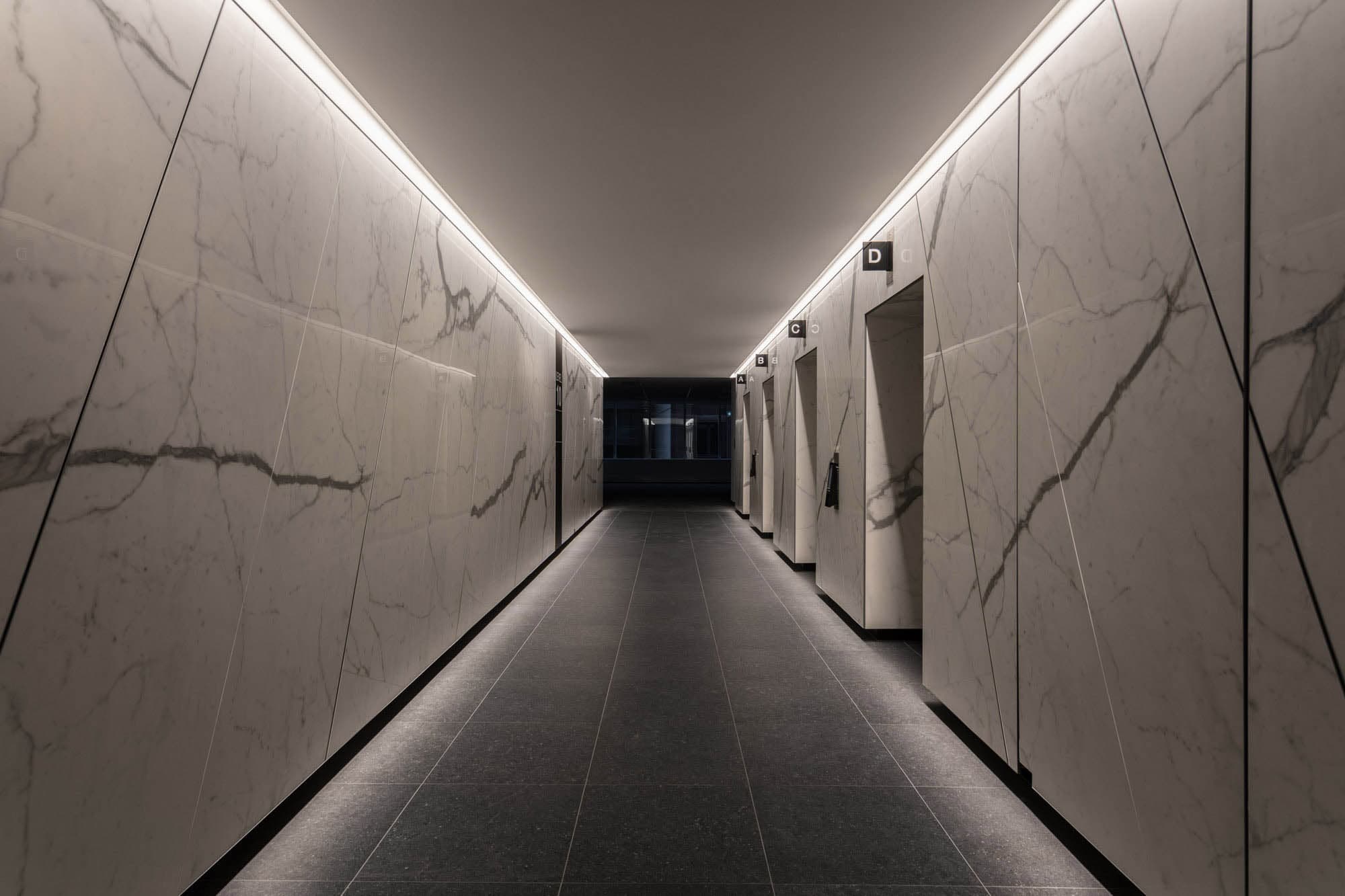

Gallery
Related Products
Related Projects
Recommended Applications
Technical Details
Construction & Mounting
- Shape
- Linear
- Mounting
- Recessed
- Build Options
- Angular Linear Shapes
- Accessories
- Illuminated Joins
Optics
- Light Distribution
- Deglaring, Narrow, Asymmetric, Opal
LED
- CCT
- 2700K, 4000K, 3000K, 3500K, Tunable White
- CRI
- 90
- LED Output
- 397.2–3528.6lm
- LED Power
- 6–33.3W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
- Output Type
- High Efficiency, High Output
- LED Type
- SMD
- LED Model
- LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
SLIM TRIM REC is a low-profile recessed luminaire developed for architects and lighting designers who require a discreet, fully integrated lighting solution. Built around the light tray 40 LED platform, it is compatible with Tridonic's Linear Light Engine in either HE or HO configuration, giving specifiers the flexibility to match output performance to project requirements. A flush lens, available in four options, ensures the profile sits seamlessly within the ceiling or wall surface while allowing designers to fine-tune light distribution and visual effect. This adaptability makes SLIM TRIM REC an ideal choice for commercial, hospitality and residential projects where a minimal, high-quality lighting outcome is essential.
