SLIM-H-LED-WALL
1 / 2

SLIM H WALL

AUSTRALIAN MADE
RCM
10 YEARS
IP22
ASYMMETRIC
NARROW
DEGLARING
OPAL

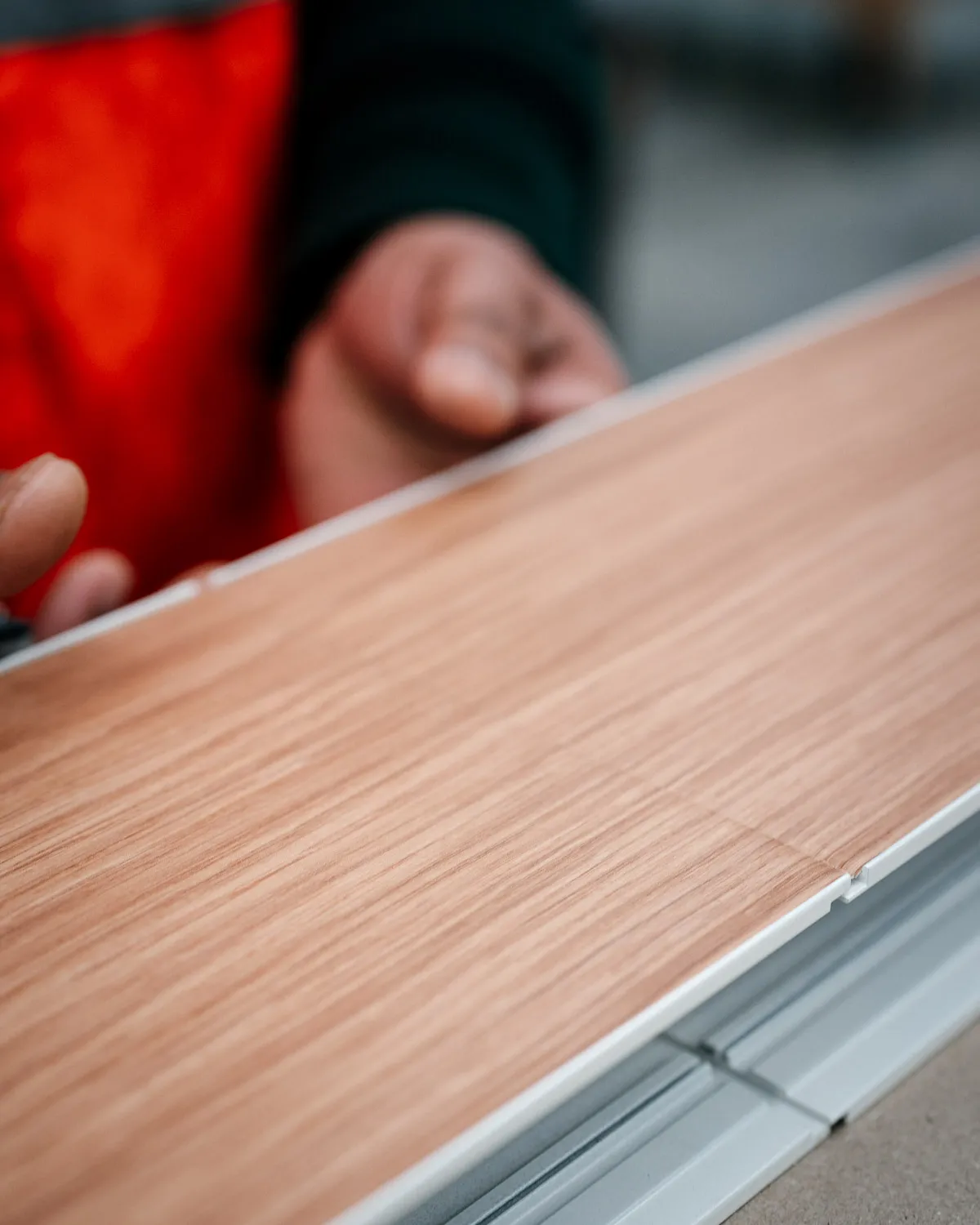

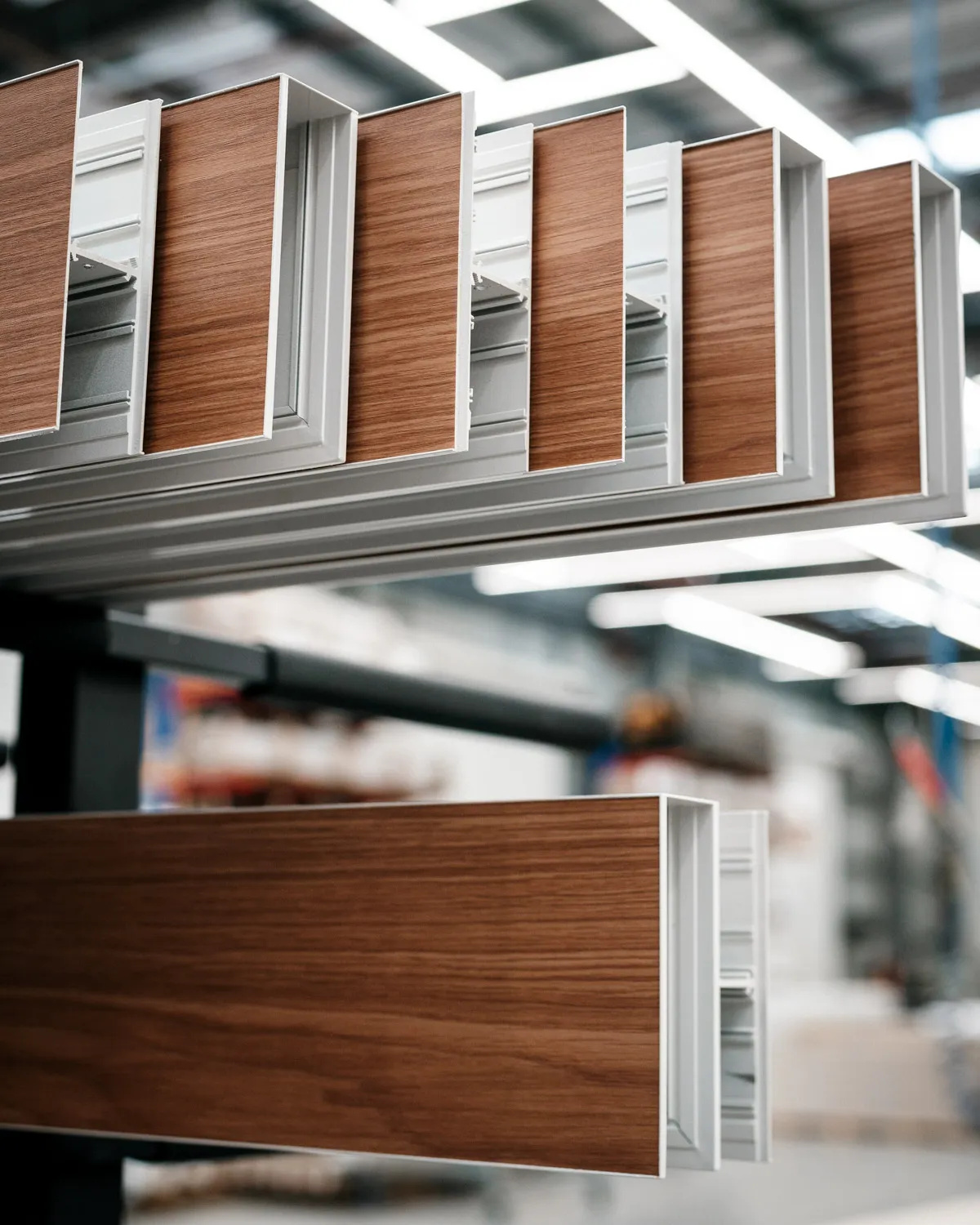

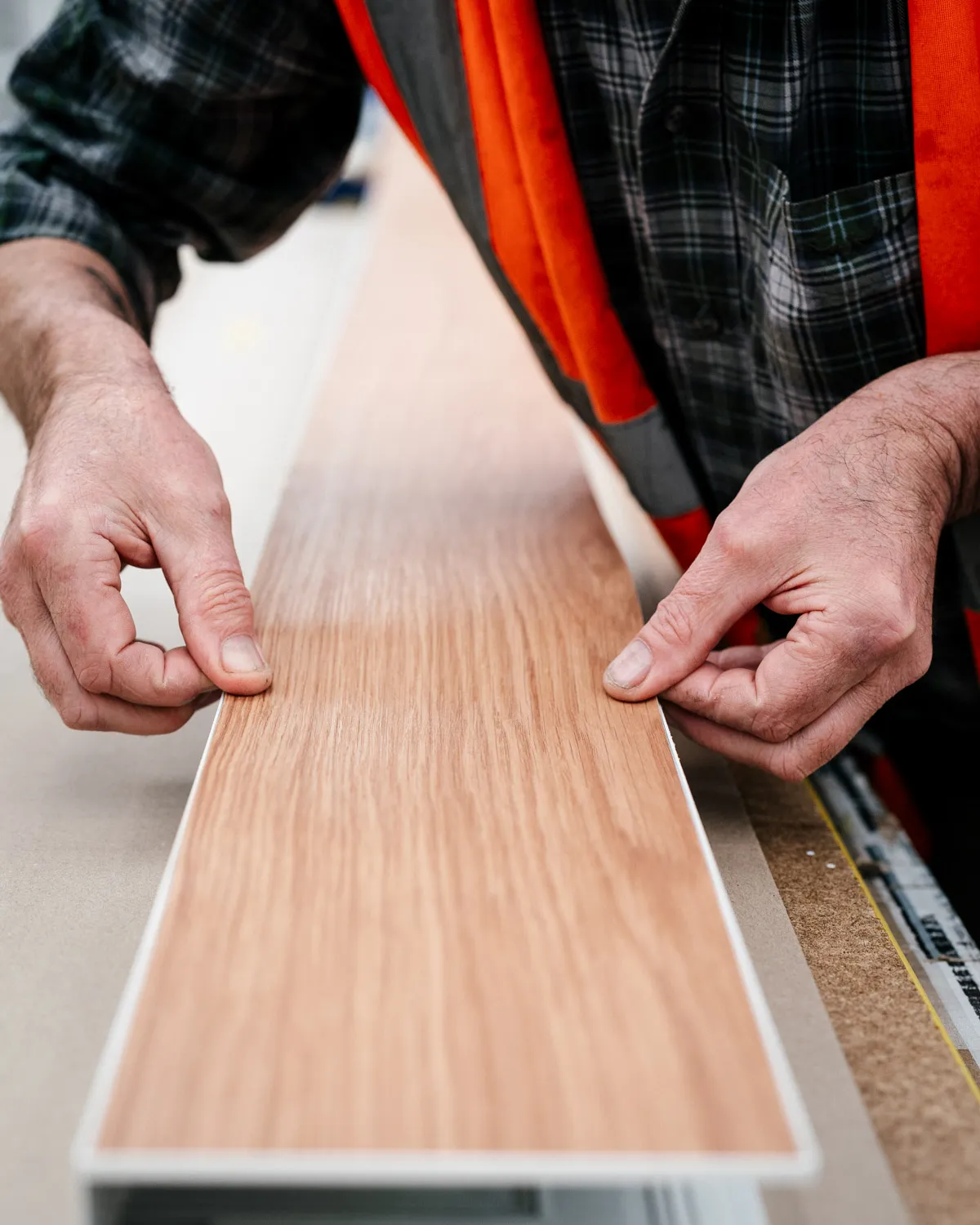

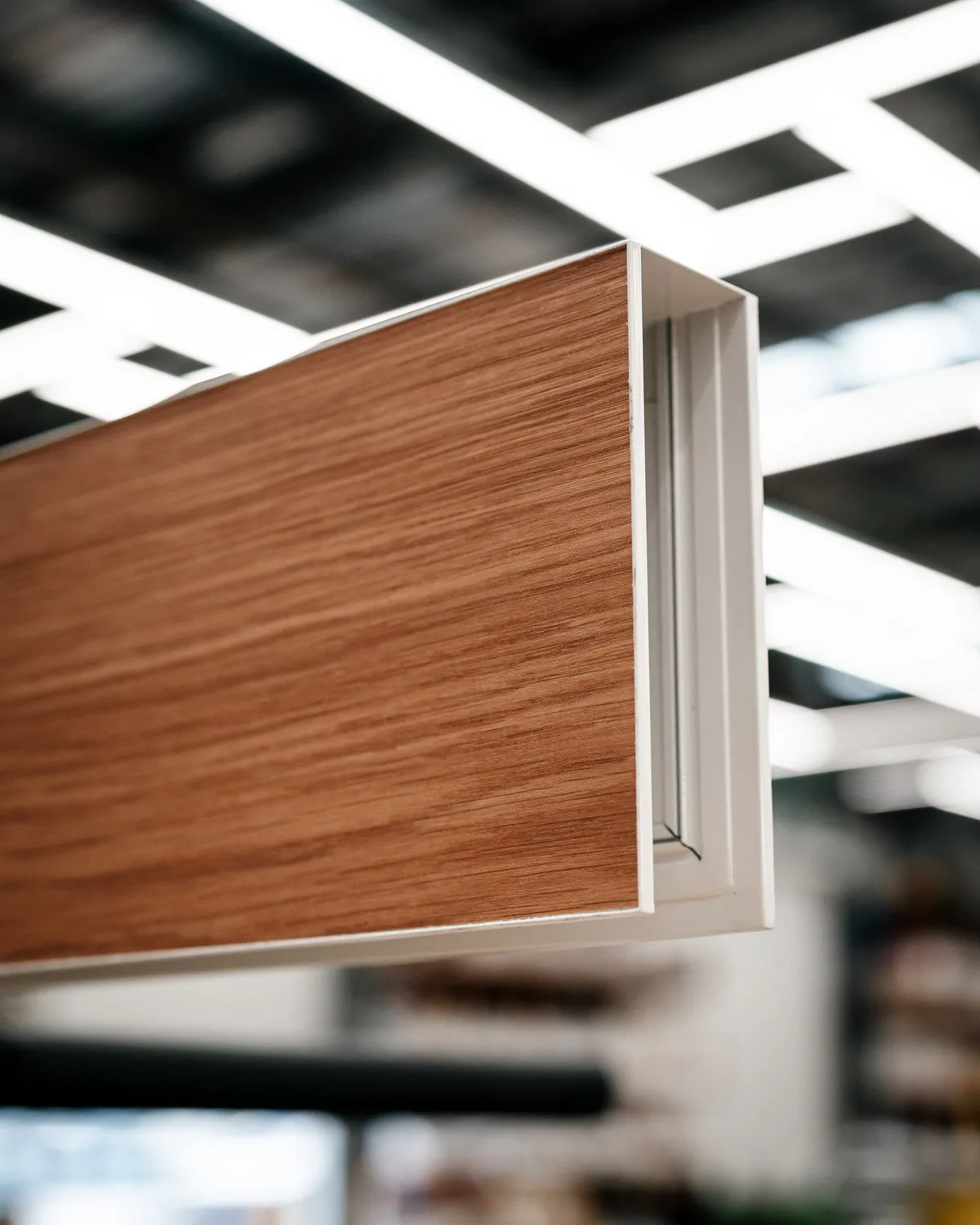

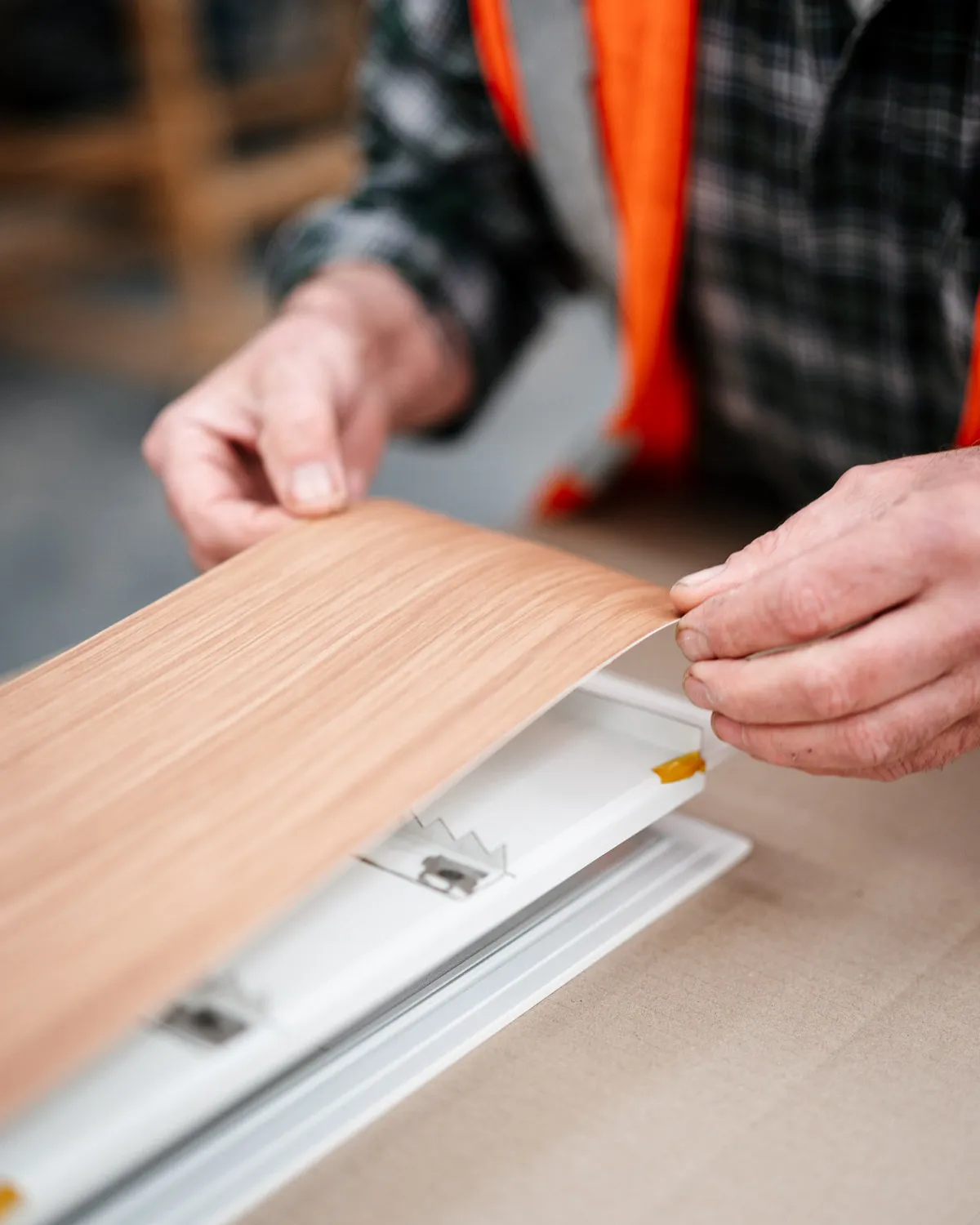

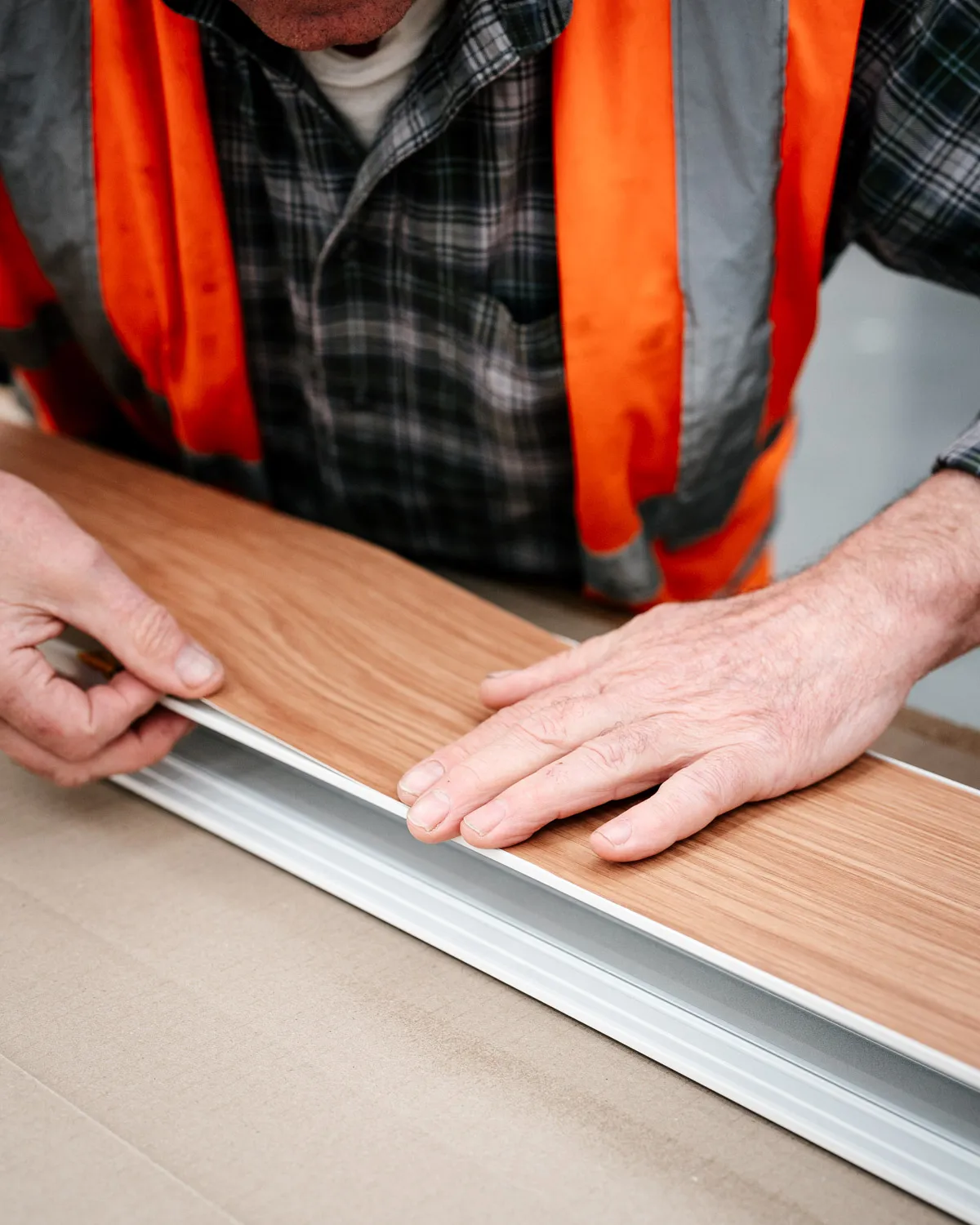

SLIM H WALL is a sleek architectural wall luminaire delivering powerful direct and indirect illumination from DARKON's Slim 40mm optical platform. Configurable with all four optical distributions on both the upper and lower light engines, it provides exceptional flexibility for corridor, wall washing and general lighting applications. Popular in healthcare environments, SLIM H WALL can incorporate tunable white LEDs for circadian lighting strategies and asymmetric optics for bedhead and examination lighting. Decorative laminate finishes including timber grain, mirror and stainless-steel effects can also be applied to one face of the profile, transforming the luminaire into a striking architectural feature.

Read more about SLIM H WALL

Design Features


  • Up to 100 exit lumens per system watt

  • Screwless Endcaps

  • Dot free homogeneous illumination

  • L90 / B10 @ 42,000 hours @ 250mA /25°C TA

  • L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA

  • Zhaga compliant

  • 90+ colour rendering, 80+ available upon request

  • Small colour tolerance Macadam 3

  • Multiple fixed output options

  • Multiple Snap Fit Lens Options

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

Related Projects


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion

Designer Recommendations

HallwayLiving RoomBedroomDiningStudyStairwellCorridorOfficeMeeting RoomReceptionLobbyBreakout SpaceRestaurantCafeBarHotel RoomFeature Wall

Technical Details


Physical Dimensions

Width
49mm
Height
149mm
Weight
8.7kg/m

Construction & Mounting

Shape
Linear
Mounting
Wall
Build Options
Angular Linear Shapes
Accessories
Mitre Join - Welded

Optics

Light Distribution
Asymmetric, Narrow, Deglaring, Opal

Ratings & Compliance

IP Rating
IP22
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


SLIM H WALL is a sleek architectural wall-mounted luminaire that combines direct and indirect illumination within DARKON's refined Slim platform. Minimal in appearance yet powerful in performance, the profile delivers enough output to comfortably illuminate corridors and circulation spaces from one side while maintaining a clean, unobtrusive architectural presence. Built around DARKON's Slim 40mm optical platform, SLIM H WALL can be configured with any of DARKON's four optical distributions on both the upper and lower light engines. This flexibility allows architects and lighting designers to tailor uplight and downlight performance to suit the application, whether the goal is broad ambient illumination, wall washing, corridor lighting or precise asymmetric distributions. One of the reasons for the product's growing popularity is its versatility within healthcare environments. SLIM H WALL is frequently specified as a hospital bedhead luminaire, where it can incorporate tunable white LED technology to support circadian lighting strategies. By adjusting colour temperature throughout the day, the luminaire can help create more comfortable patient environments while supporting modern healthcare lighting design principles. The profile can also be configured with asymmetric optics to project light towards the centre of the room or directly onto a patient's bed, providing effective task illumination for medical examinations while maintaining a comfortable ambient lighting environment. Combined direct and indirect illumination allows a single luminaire to perform multiple lighting functions without introducing visual clutter or complex ceiling-mounted lighting systems. In addition to its optical flexibility, SLIM H WALL can be customised with decorative laminate finishes applied to one face of the profile. Options include timber grain laminates, mirror finishes and stainless-steel effects, allowing the luminaire to become an architectural feature rather than simply a lighting element. This enables designers to coordinate the fitting with surrounding materials, joinery and interior finishes while maintaining the clean minimalist appearance of the Slim family. The result is a highly adaptable architectural wall light that combines minimalist aesthetics, exceptional optical flexibility and powerful illumination performance within a slim, elegant profile suitable for healthcare, education, commercial and residential applications.

Enquire About SLIM H WALL

Interested in this product? Send us your details and our team will get back to you with pricing, lead times, and specifications.
