SLIM-H-LED-SUS
1 / 2

SLIM H SUS

AUSTRALIAN MADE
RCM
10 YEARS
IP22
ASYMMETRIC
NARROW
DEGLARING
OPAL

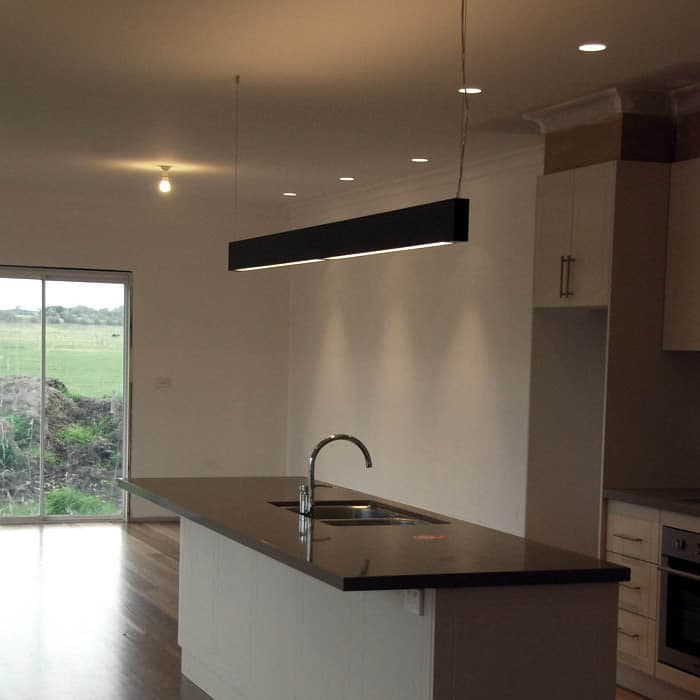

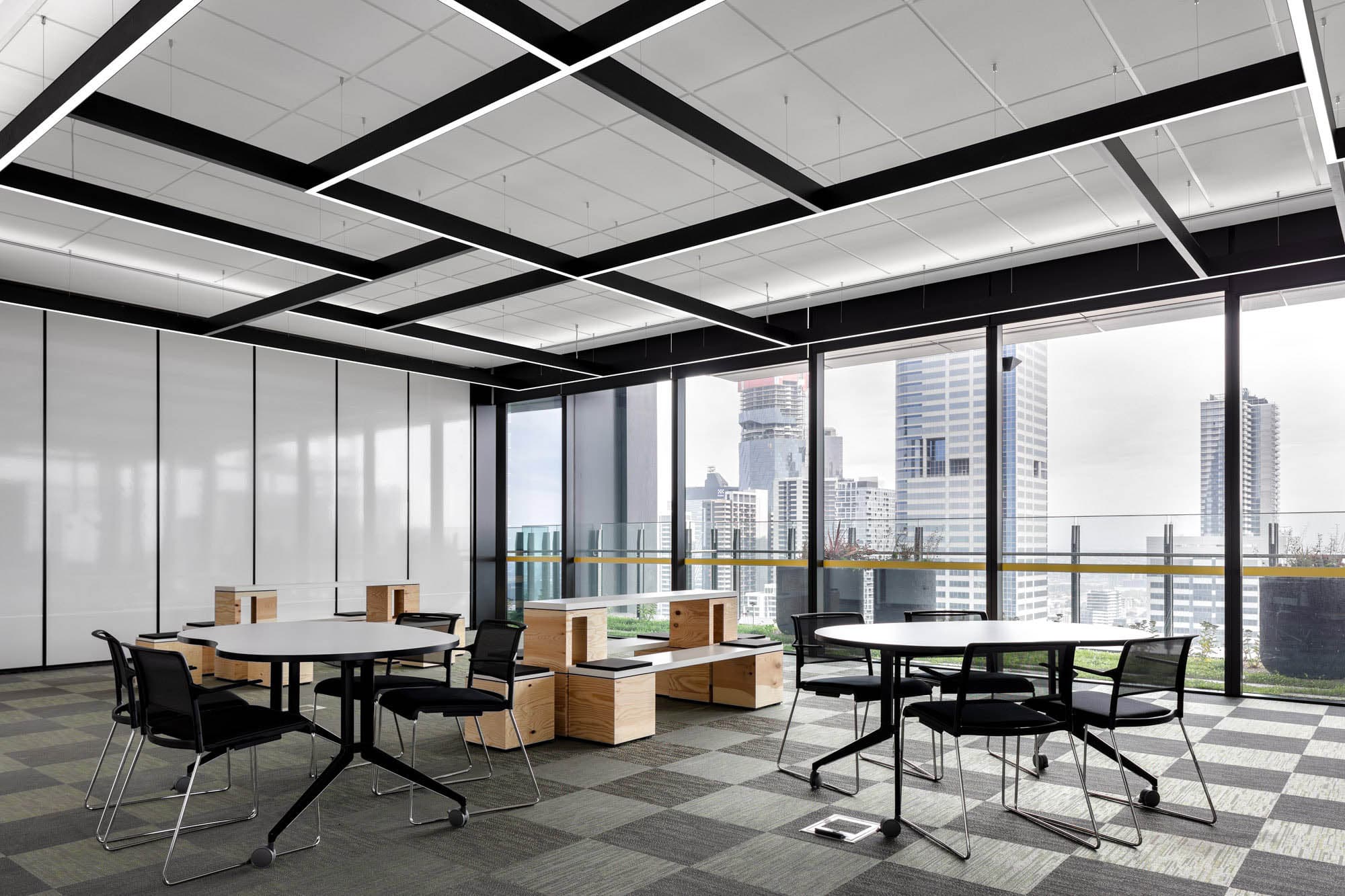

SLIM H SUS is a suspended architectural profile featuring direct and indirect illumination through DARKON's Slim 40mm lens, creating comfortable and efficient up and down lighting. Incorporating our signature shadow-line detail, it supports both laminated timber veneers and the new sublimation timber finish, offering the warmth of timber with the durability of a fully powder-coated surface.

Read more about SLIM H SUS

Design Features


  • Up to 100 exit lumens per system watt

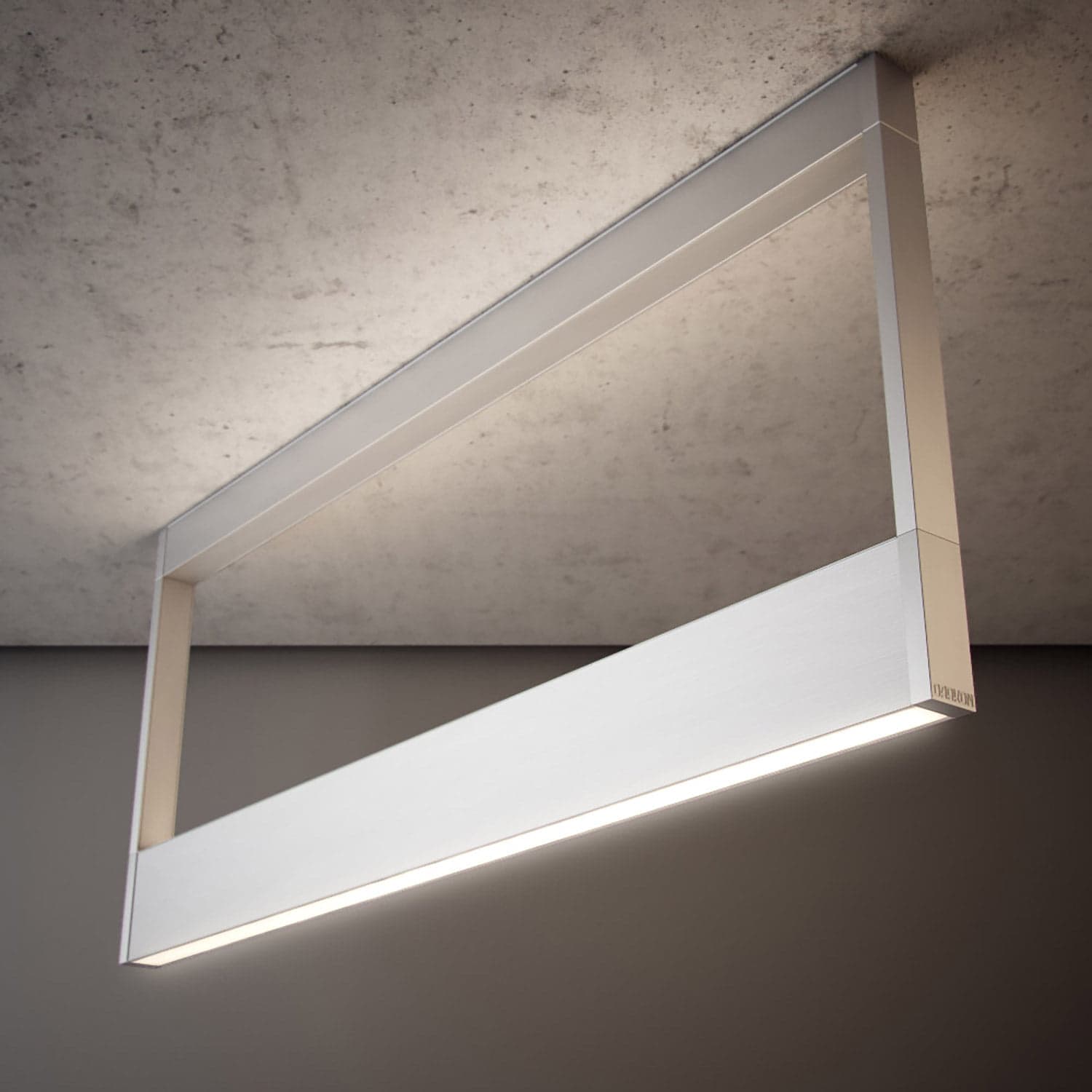

  • Screwless Endcaps

  • Dot free homogeneous illumination

  • Small colour tolerance Macadam 3

  • L90 / B10 @ 42,000 hours @ 250mA /25°C TA

  • L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA

  • Zhaga compliant

  • 90+ colour rendering, 80+ available upon request

  • Multiple fixed output options

  • Multiple Snap Fit Lens Options

  • Lap join milling - No Light Bleed

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

  • Factory fitted "push to join" installation

Related Projects


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre
Education
School, University, Childcare, TAFE
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion

Designer Recommendations

Living RoomKitchenDiningOfficeMeeting RoomBreakout SpaceRestaurantCafeBarTask Lighting

Technical Details


Physical Dimensions

Width
49mm
Height
149mm
Weight
8.7kg/m

Construction & Mounting

Shape
Linear
Mounting
Suspended
Suspension
Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
Accessories
  • Mitre Join - Welded
  • T Intersection - Bolted
  • Illuminated Joins

Optics

Light Distribution
Asymmetric, Narrow, Deglaring, Opal

Ratings & Compliance

IP Rating
IP22
Warranty
  • Product - 5 Years
  • Product - 10 Years (Extended)

Overview


SLIM H SUS is a suspended architectural profile engineered to deliver both direct and indirect illumination in a refined, minimalist form. Utilising the Slim 40mm lens, it provides balanced up and down lighting that enhances visual comfort while creating a sense of spatial openness in commercial, workplace and education environments. Forming part of the broader Slim range, Slim H SUS is built around the Light Tray 40 LED and powered by Tridonic Linear Light Engine HE or HO boards. This flexible platform allows specifiers to select either high-efficiency or high-output performance to suit project requirements while maintaining consistent detailing across the Slim family. The profile also incorporates DARKON's signature shadow-line detail, enabling the use of laminated timber veneers for a warm architectural finish, while our new sublimation timber option delivers the appearance of natural timber in a durable, fully powder-coated solution.
