MRS-T-SOFT-FLUSH-LENS-SUS
1 / 2

MRS.T SOFT SUS

LED FLEXIBLE
LED COB
AUSTRALIAN MADE
RCM
10 YEARS
SELF LOCK
ZHAGA
FLICKER FREE
SMD
LED LINEAR
IP22
DEGLARING
NARROW
ASYMMETRIC
OPAL

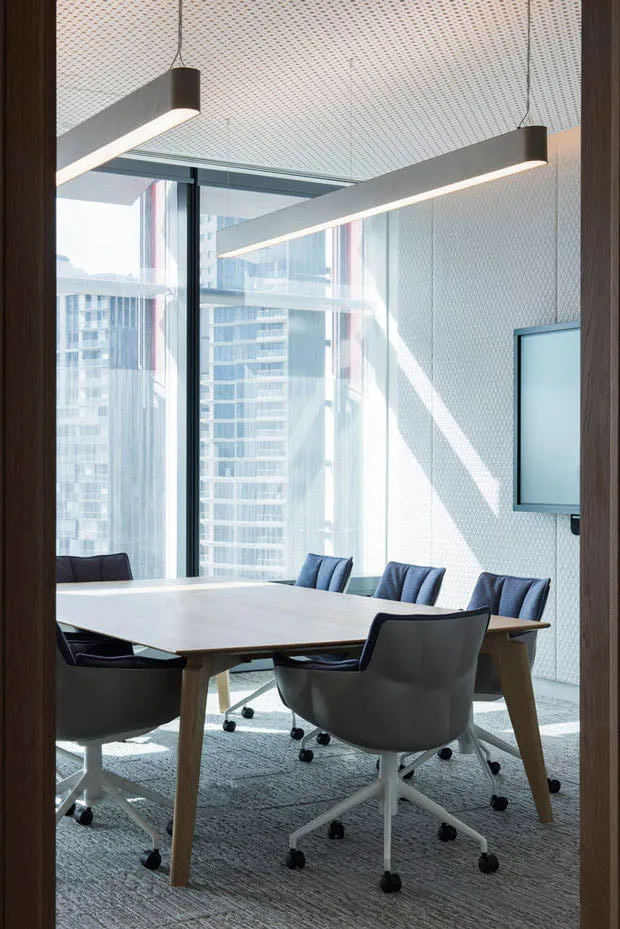

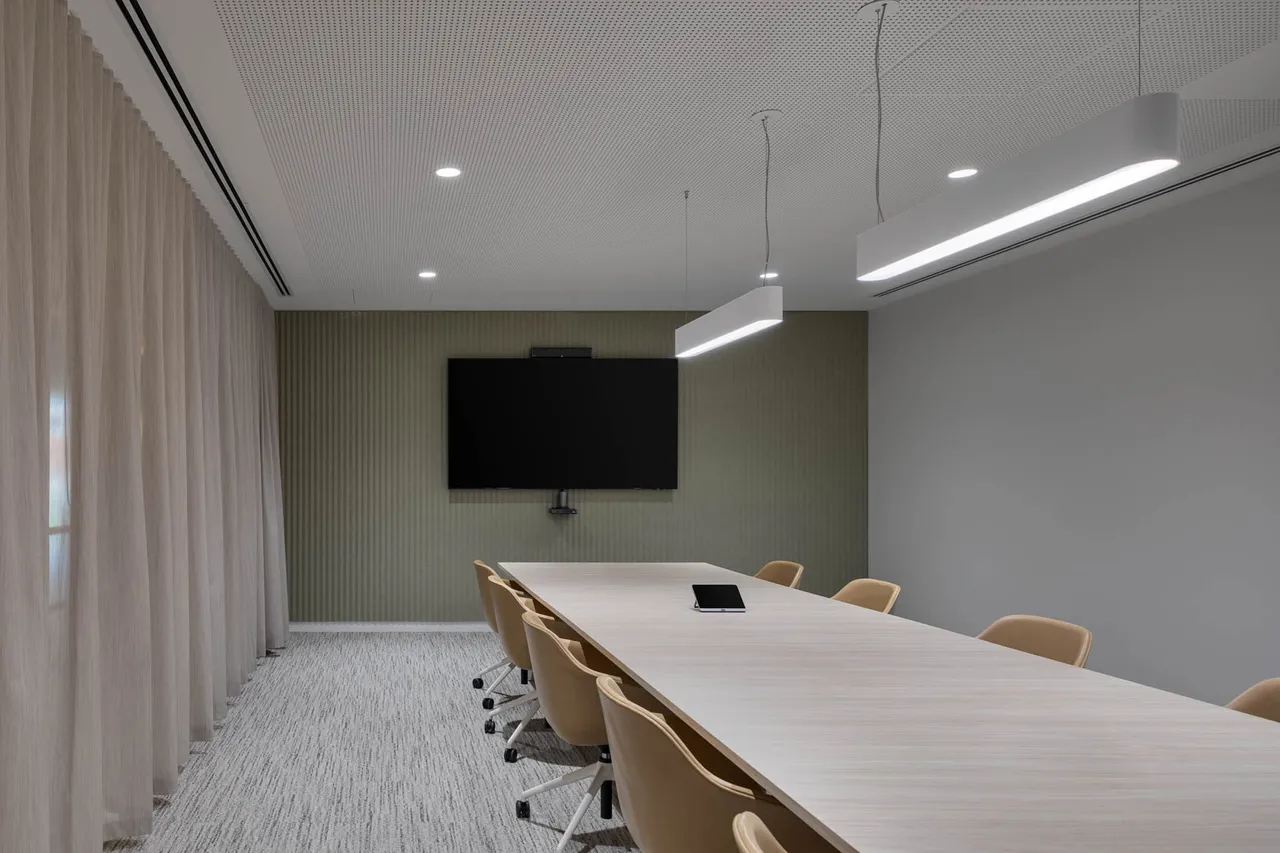

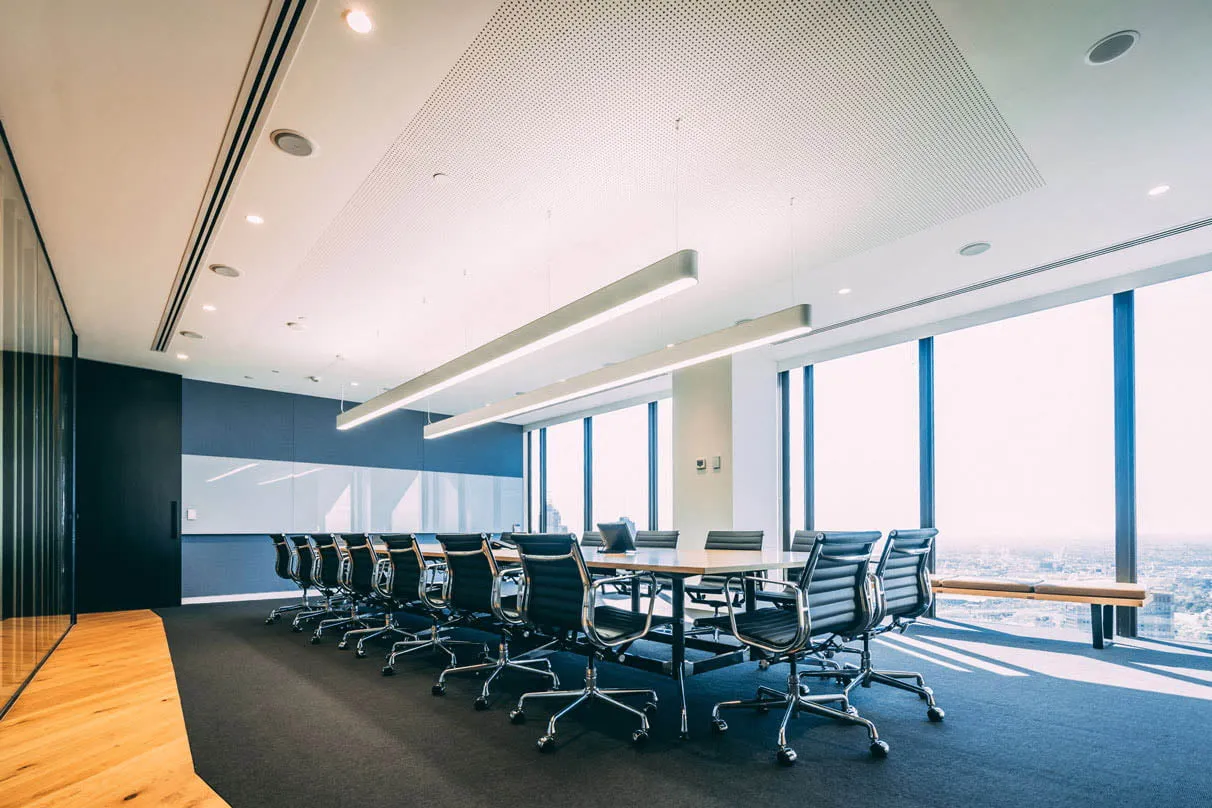

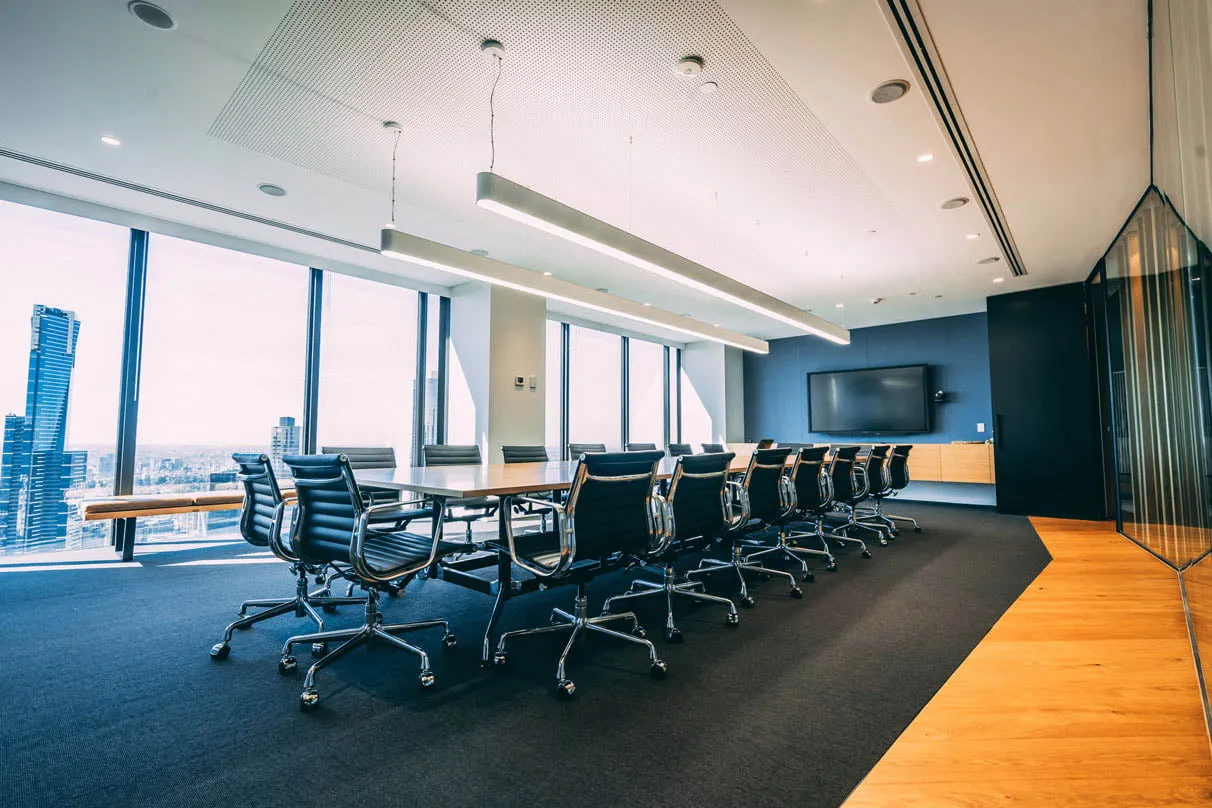

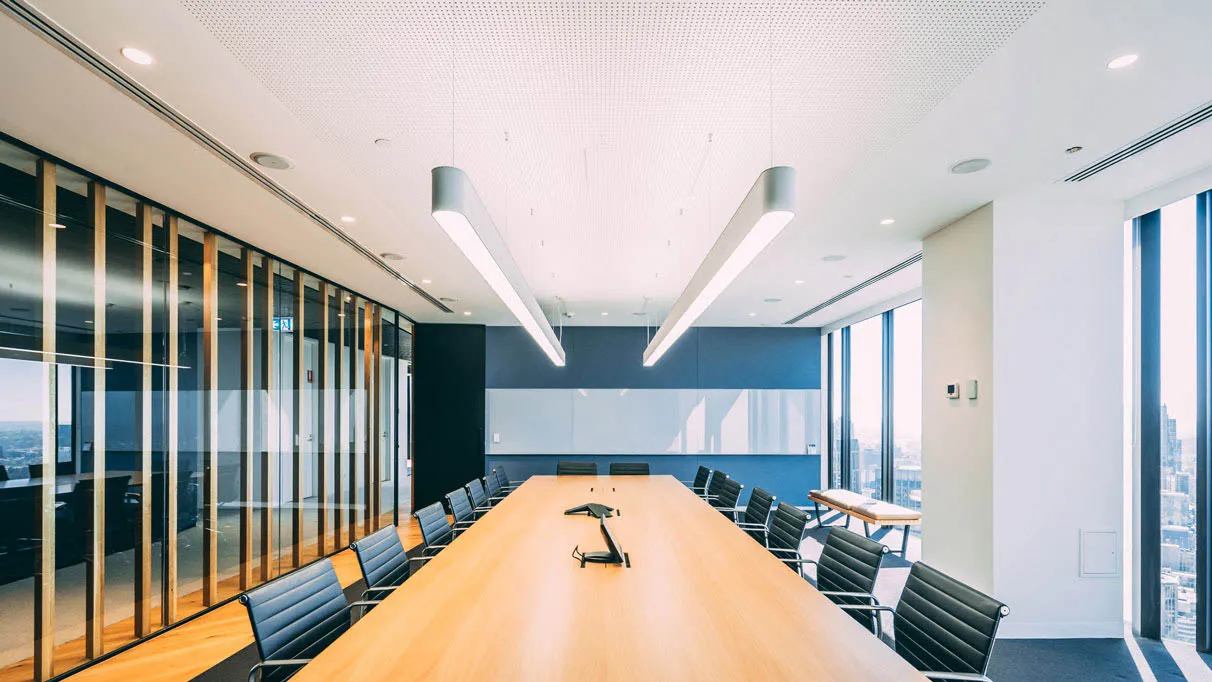

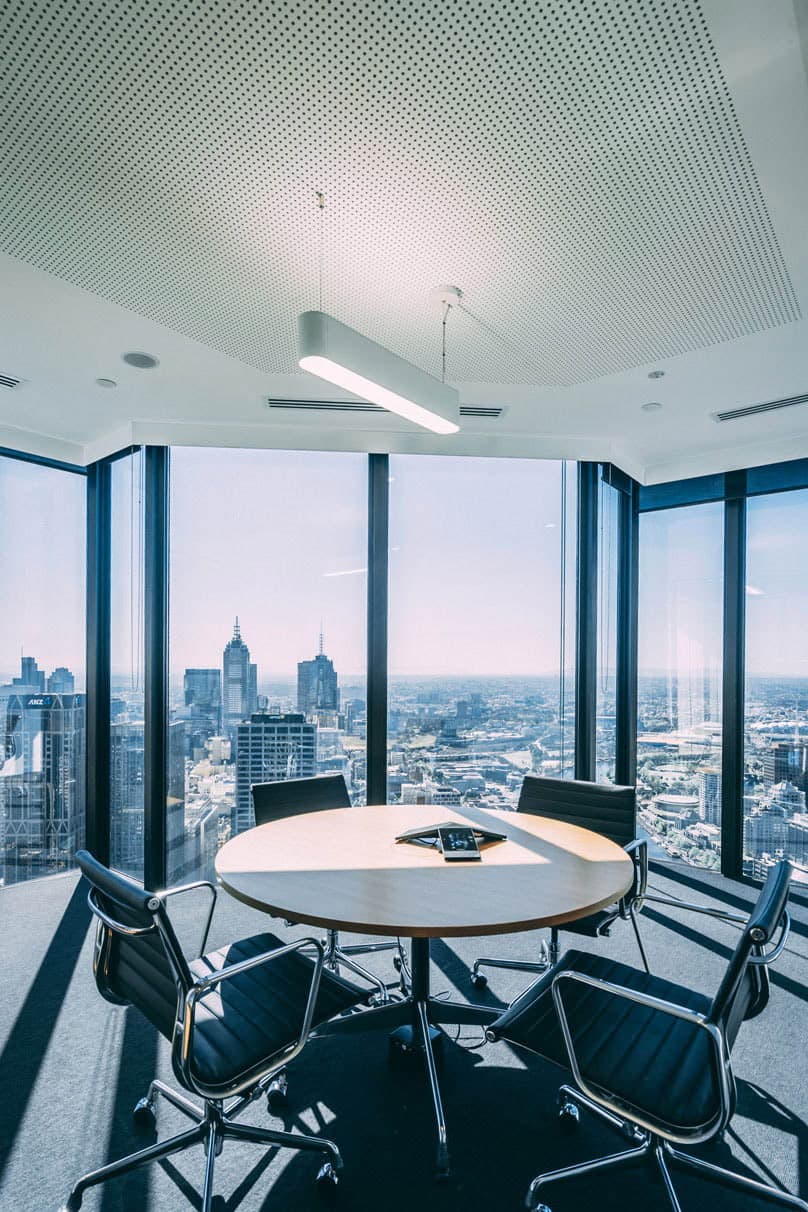

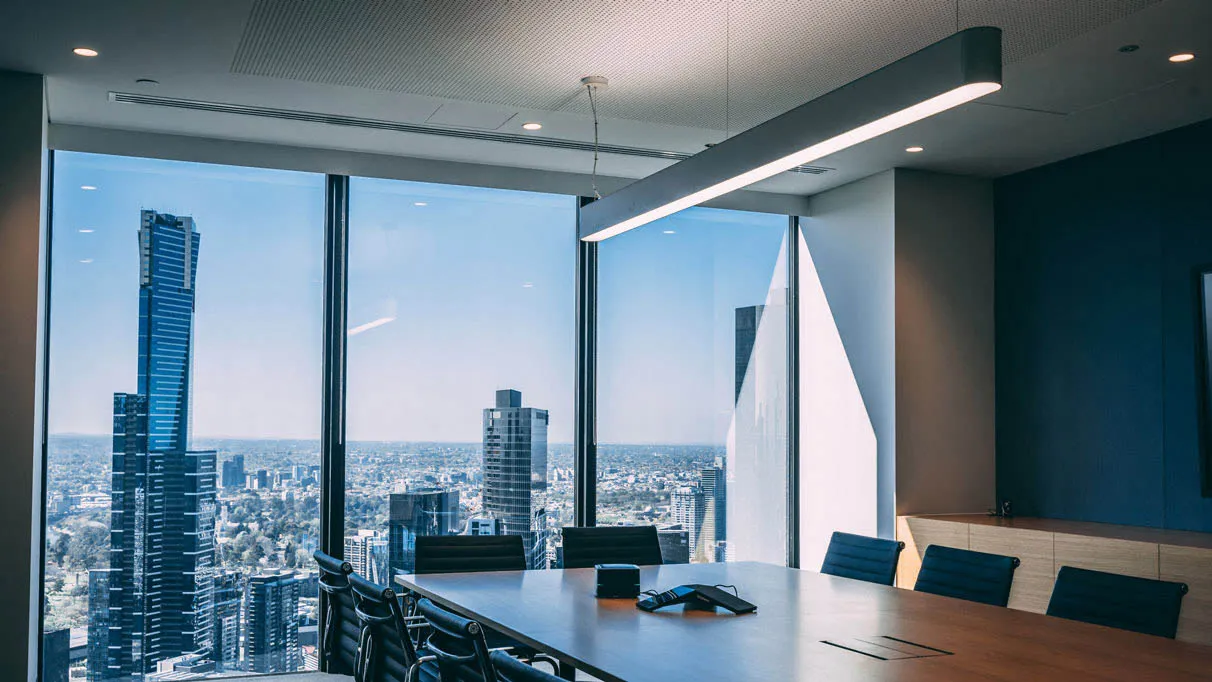

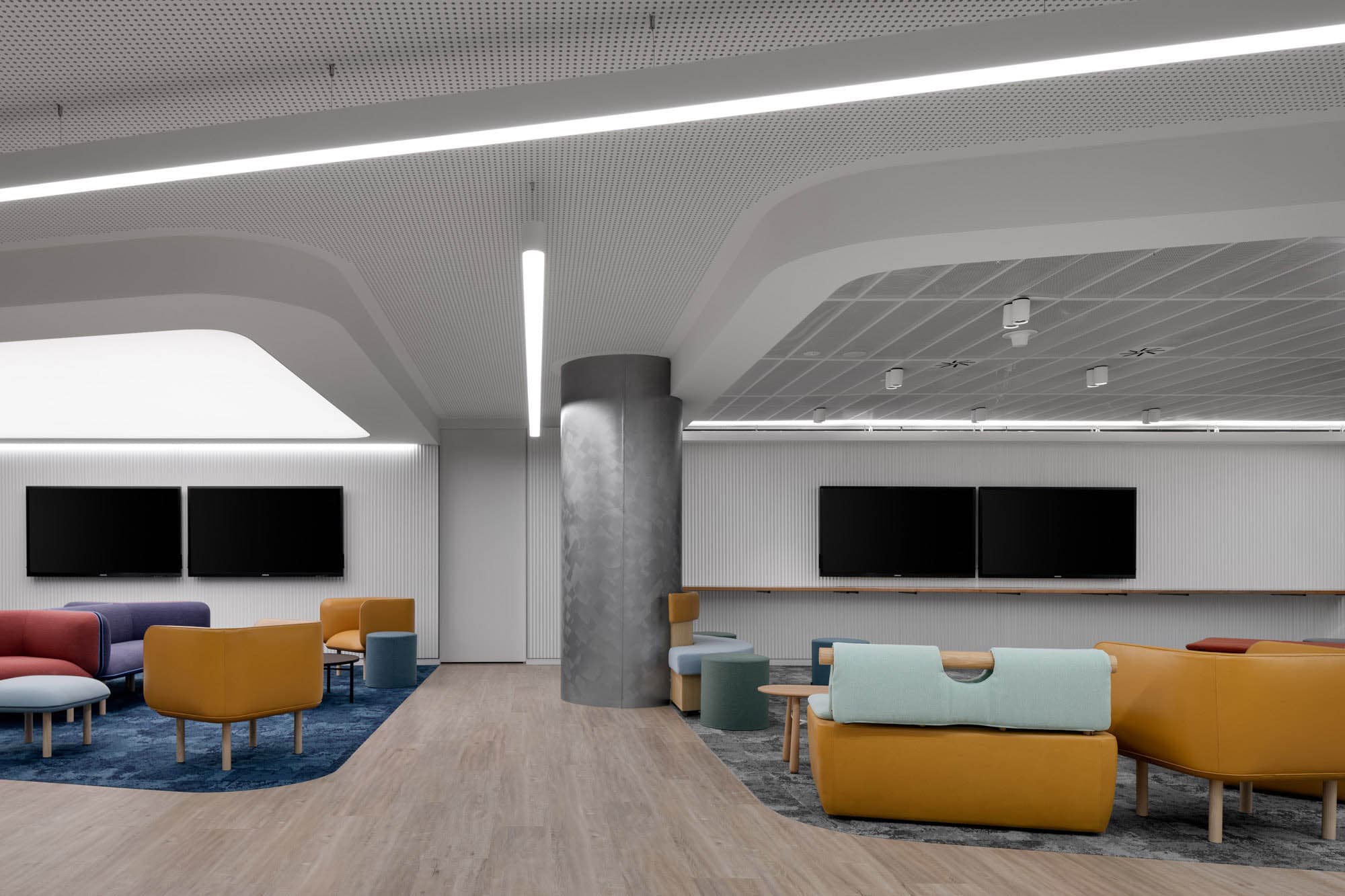

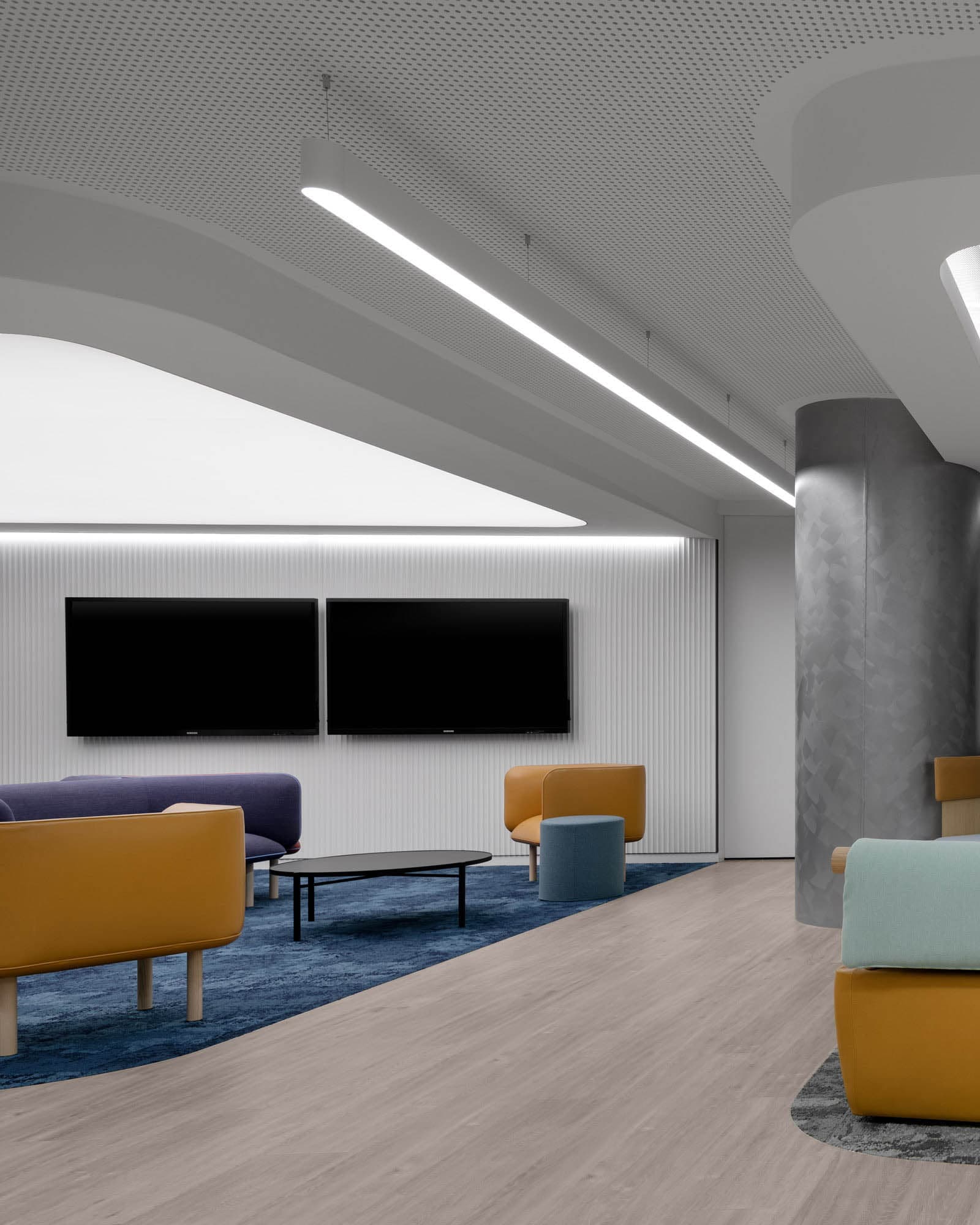

MRS. T SOFT SUS combines timeless architectural elegance with beautifully refined suspended detailing. Featuring soft curved end caps, a seamless glowing lens, and DARKON's signature shadow-line design, it delivers a sophisticated lighting solution with factory-positioned suspension points and a clean track-free upper surface for a perfectly balanced appearance.

Read more about MRS.T SOFT SUS

Models


Configure model342 of 342 variants
342 matching variants — select one
Polar light distribution curve for MRS T_600_x_WHT_WHT_OPAL_HO_200mA_4000K_CRI90_x_x
MRS T_600_x_WHT_WHT_OPAL_HO_200mA_4000K_CRI90_x_x
Lens
OPAL
Direction
Direct
Output Type
High Output
Milliamp
200 mA
Watts
9.7 W
Delivered Lumens
1042 lm
Efficacy
107.4 lm/W
Colour Temperature (CCT)
4000K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Design Features


  • Screwless Endcaps

  • Dot free homogeneous illumination

  • Multiple Snap Fit Lens Options

  • Multiple fixed output options

Install Features


  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Plug and Play wire looms

  • Welded mitre joins eliminate light bleed

  • Snap fit gear tray with integrated driver

  • Sprung loaded control joints

Related Projects


Available Finishes


Recommended Applications


Primary Industry
Spaces
Health
Hospitals, Aged Care, Medical Centre, Laboratory
Education
School, University, Childcare, TAFE, Auditorium, Theatre
Hospitality
Hotel, Bar, Restaurant, Cafe
Office / Work Space
Fit Out, End of Trip, Lobby, Amenities
Residential
Multi Residential, Private Residential, Student Accommodation
Retail
Shopping Centre, Supermarket, Fashion

Designer Recommendations

KitchenHallwayFoyerLiving RoomBedroomDiningStudyWardrobeCorridorOfficeMeeting RoomReceptionLobbyBreakout SpaceRetail DisplayGalleryRestaurantCafeBarTask Lighting

Technical Details


Physical Dimensions

Width
100mm
Height
127mm
Weight
5.4kg/m

Construction & Mounting

Materials
Acrylic, Aluminium
Shape
Linear
Mounting
Suspended
Suspension
Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
Build Options
  • Angular Linear Shapes
  • Curved Fixed Radii Shapes
Accessories
  • Mitre Join - Welded
  • T Intersection - Bolted
  • Illuminated Joins

Optics

Optics
Diffuser, Combination Lens
Light Distribution
Deglaring, Narrow, Asymmetric, Opal

LED

CCT
4000K, Tunable White, 2700K, 3000K, 3500K
CRI
90
LED Output
422.5–3506.7lm
LED Power
6–34.5W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
Output Type
High Output, High Efficiency
LED Type
SMD
LED Model
LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Insulation Class
Class I (Earthing)
Cable Type
5 Core Flex 24/.2 (0.75mm², 7.5A) Copper, 3 Core Flex 24/.2 (0.75mm², 7.5A) Copper, 1 Core Coaxial Aircraft
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Standards
  • AS/NZS 60598.2.1
  • AS/NZS 60598.1
  • AS/NZS 3000
Compliance Reports
LM-79
Warranty
Product - 10 Years (Extended)

Overview


MRS. T SOFT SUS is a suspended architectural luminaire that celebrates the elegance and versatility that have made the MRS. T family a DARKON icon. Defined by its beautifully sculptured soft end caps and seamless illuminated lens, the luminaire delivers a calming aesthetic that reduces hard visual edges while creating a refined architectural presence. The profile incorporates DARKON's signature shadow-line detailing, adding depth and sophistication without compromising its clean minimalist appearance. A defining feature of MRS. T SOFT SUS is its thoughtfully engineered suspension system. Unlike traditional suspended luminaires that utilise visible accessory channels or allow suspension cables to be located wherever installation conditions permit, suspension points are factory positioned to suit the exact luminaire length. This ensures every luminaire maintains perfect visual balance and alignment, resulting in a cleaner, more consistent installation. The profile's flat upper surface further enhances its architectural appeal by concealing suspension integration and eliminating unnecessary visual clutter. The result is a luminaire that looks purposeful and refined from every viewing angle. Manufactured using precision aluminium extrusion, CNC machining, and laser-welded construction, MRS. T SOFT SUS is engineered to the highest standards. Spring-loaded end caps accommodate lens expansion while maintaining tight tolerances, and DARKON's overlapping join technology eliminates light bleed for a seamless illuminated appearance across continuous runs. Elegant, versatile, and beautifully engineered, MRS. T SOFT SUS remains one of the most sophisticated suspended luminaires within the DARKON family.

MRS. T SOFT SUS continues the legacy of one of DARKON's founding profile families. While MRS. T brought elegance and refinement to the original MR. T platform, the suspended version elevates those qualities even further through meticulous attention to detail and installation aesthetics. Unlike conventional suspended luminaires that rely on slotted accessory tracks or allow suspension points to be positioned arbitrarily during installation, MRS. T SOFT SUS was designed to appear resolved and balanced from every angle. The profile features a clean flat upper surface free from exposed accessory channels, preserving the purity of the design. DARKON's engineered suspension system ensures every suspension point is factory positioned relative to the luminaire length, creating a consistent and visually balanced appearance throughout a project. It is this commitment to detail, combined with the elegant soft end caps and seamless illuminated lens, that makes MRS. T SOFT SUS one of the most refined suspended profiles in the DARKON collection.
