DARKON Architectural Lighting
DEEP-DOWN-SLA
1 / 2

DEEP DOWN REC SLA

LED COB
AUSTRALIAN MADE
RCM
IP22

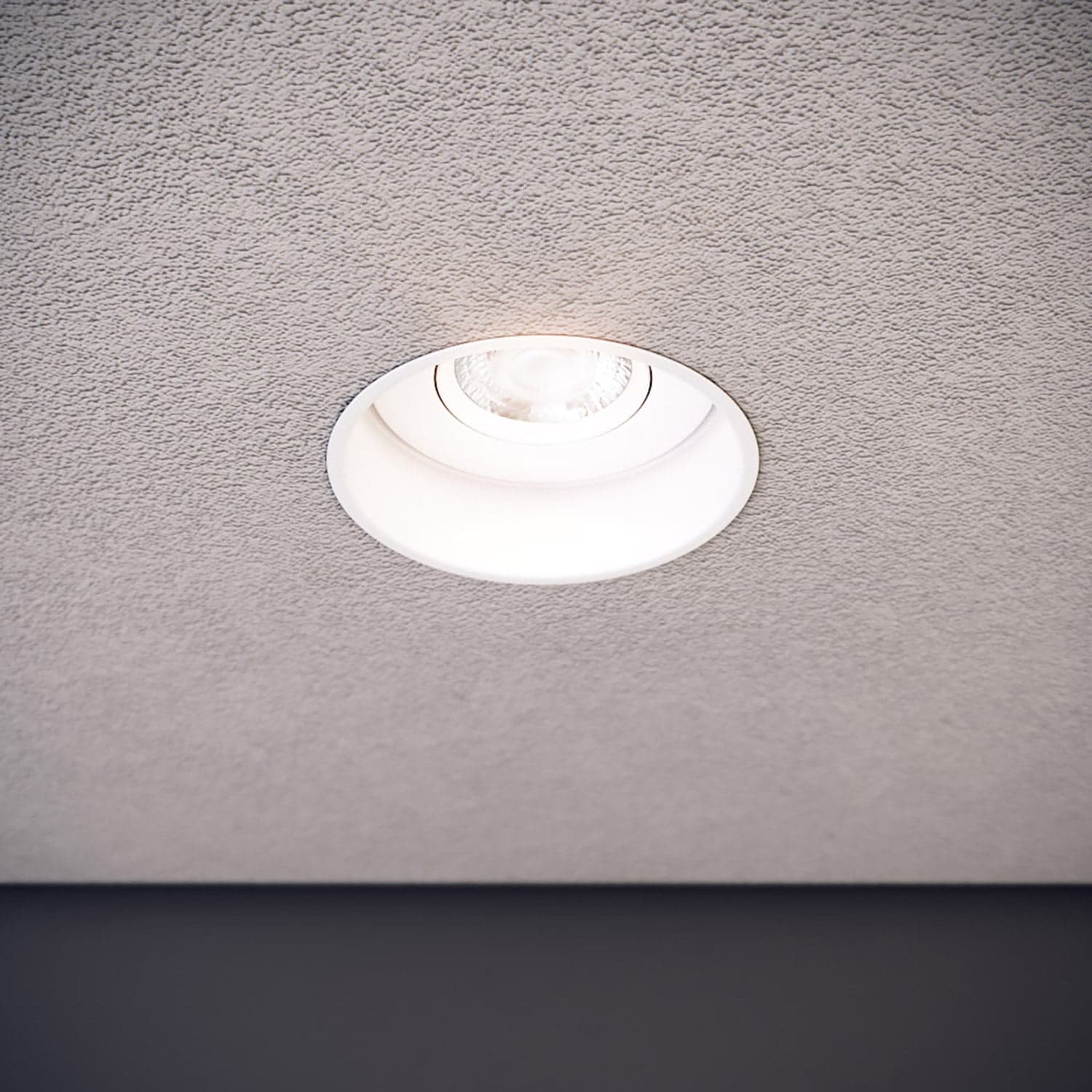

Deep Down has a recessed lamp for low glare applications and minimal trim for a trim-less appearance. The deep housing remains in the plaster board ceiling whilst the internal assembly clips out for easy maintenance.

Enquire Now

Downloads

Design Features

  • High colour tolerance - MacAdam 3

  • Complies with AS/NZS 60598.2.1

  • 90+ colour rendering

  • Recessed lamp for low glare applications

  • Minimal trim for a ‘trim-less’ appearance

  • L80 / B10 = 25,000 hours @ 250mA / 75°C TP (8.8W)

  • L80 / B10 = 50,000 hours @ 350mA / 75°C TP (12.2W)

  • 20° gimbal inclination

  • 360° gimbal rotation

  • Universal MR16 lamp mounting

  • 104 lumens per watt (lamp flux)

Install Features

  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Easy to follow install guide

  • Removable internal assembly for easy maintenance

  • Standard hole saw cut out

  • Spring clip mounting

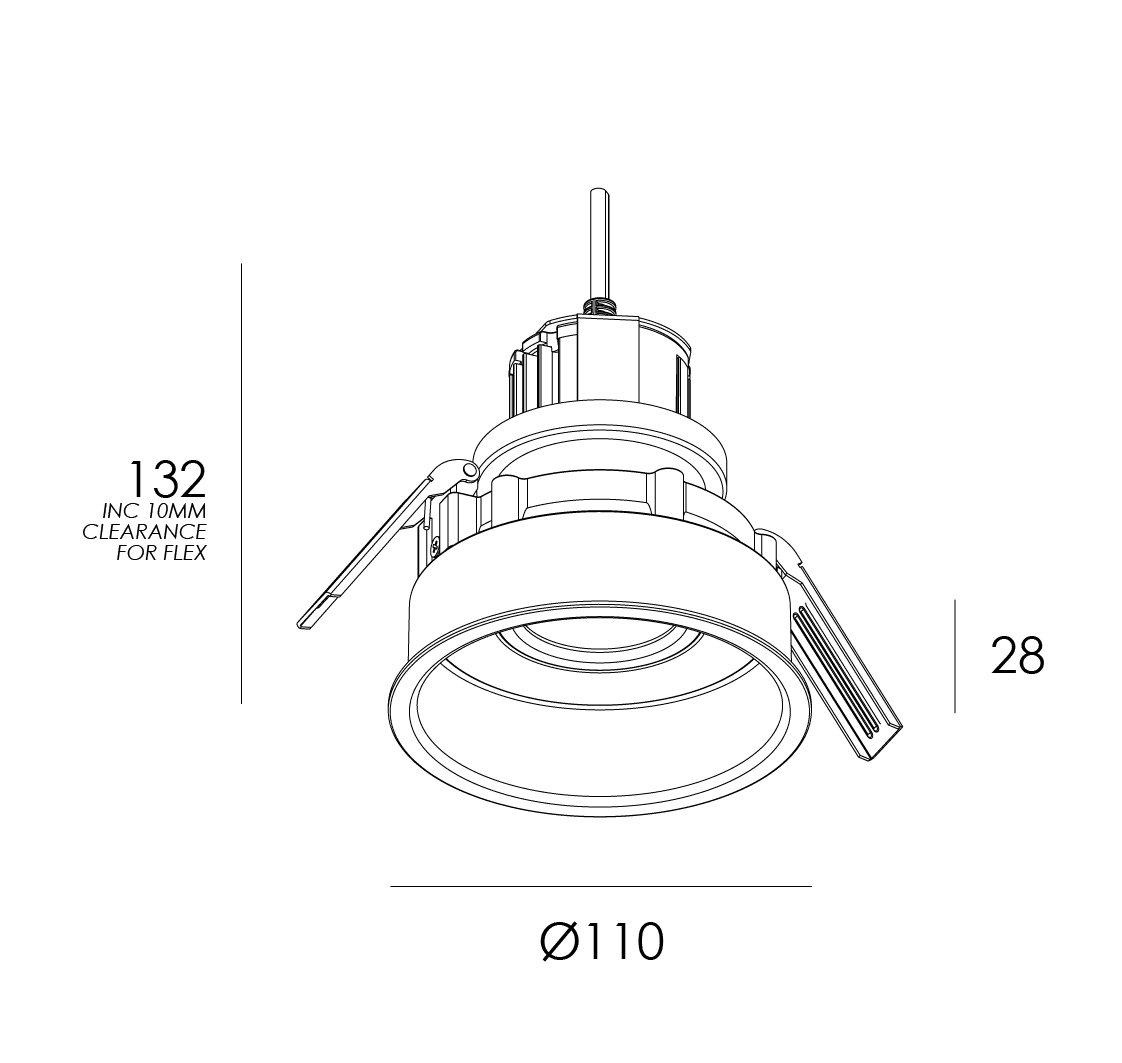

Technical Details

Construction & Mounting

Mounting
Recessed

Ratings & Compliance

IP Rating
IP22

Enquire About DEEP DOWN REC SLA

Interested in this product? Send us your details and our team will get back to you with pricing, lead times, and specifications.

DEEP DOWN REC SLA By DARKON Architectural Lighting
