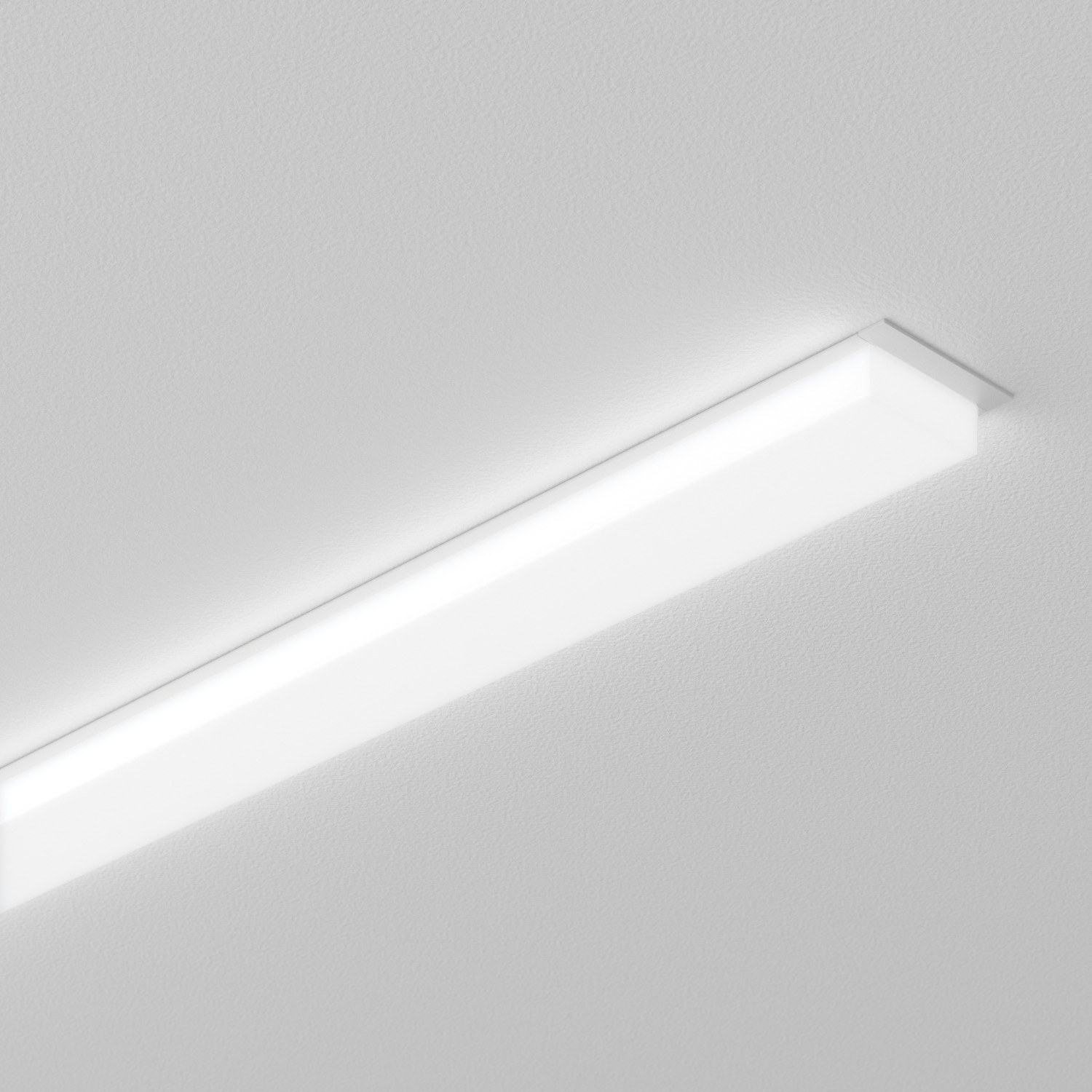

SLIM TRIM CUBED REC

SLIM TRIM CUBED REC is a slim recessed linear profile featuring a bright-sided lens that softly illuminates the ceiling while reducing glare. Designed around the Light Tray 40 LED platform, it is compatible with Tridonic LLE24mm LED boards, making it an ideal solution for architectural lighting applications.

Materials

Extruded aluminium body, machined aluminium end caps, extruded acrylic lens

Finish

White powdercoat / Black powdercoat / Custom finish

Light Source

Tridonic STARK LED

Downloads

Design Features

Dot free homogeneous illumination
Multiple fixed output options
Zhaga compliant
Up to 90 exit lumens per system watt
90+ colour rendering, 80+ available upon request
High colour tolerance – MacAdam 3
L80 / F10 = 72,000 hours @ 450mA / 75°C TA
Complies with AS/NZS 60598.2.1

Installation Features

Detailed shop drawings
Australian made
Supplied 100% pre-built
Snap fit gear tray with integrated driver
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
Approximate fitting weight of 2.2 Kg per/m
Only single body lengths available
Miter joins are not available
