1 / 2
SLIM TRADIE UP SUS
AUSTRALIAN MADE
RCM
10 YEARS
SELF LOCK
REMOTE
ZHAGA
FLICKER FREE
SMD
UGR < 19
LED LINEAR
IP22
DEGLARING
NARROW
ASYMMETRIC
DIRECT & INDIRECT
OPAL

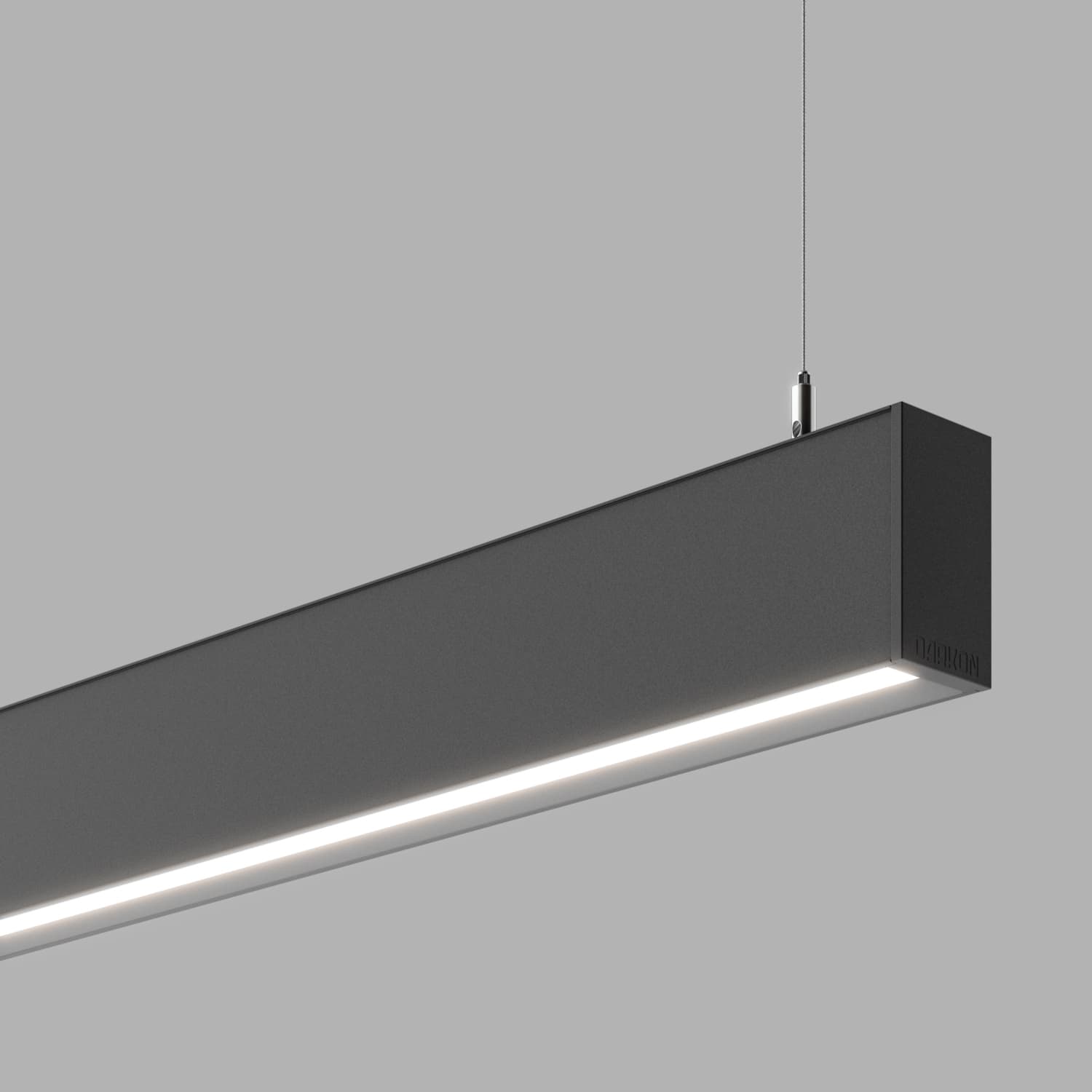

Slim Tradie UP SUS is a suspended profile with both up & downward illumination. It is part of the slim range utilising the slim 40mm lens and uses the light tray 40 LED with Tridonic Linear Light Engine HE or HO LED boards. It features a sliding 'Y' suspension detail for adjustable suspension spacing, making install simpler and more versatile. Features a setback diffuser to reduce glare
Models
Configure model425 of 425 variants
425 matching variants — select one
- Lens
- OPAL
- Direction
- Indirect
- Output Type
- High Output
- Milliamp
- 350 mA
- Watts
- 44.7 W
- Delivered Lumens
- 4475.2 lm
- Efficacy
- 100.1 lm/W
- Colour Temperature (CCT)
- 4000K
- CRI
- 90
- Lifetime
- 50,000h @ L80B10
Photometric Files
Design Features
Plug and Play Wire Looms
Dot free homogeneous illumination
RCM
Multiple fixed output options
Multiple Snap Fit Lens Options
Detailed Shop Drawings
Tool-less Installation
Modular Design
Custom Length Available
Available in a wide range of finishes
Supplied 100% pre-built
Recessed lens to help reduce glare
Lap join milling for Light Bleed free joins
Welded sub sections for seamless finish
Sliding ‘Y’ sus detail for adjustable suspension spacing
Integrated uplight
Low glare UGR≤19
Install Features
Project specific labelling referencing type numbers
Self Lock
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints
Factory fitted "push to join" installation
Miter joints available
Factory fitted “push to join” installation

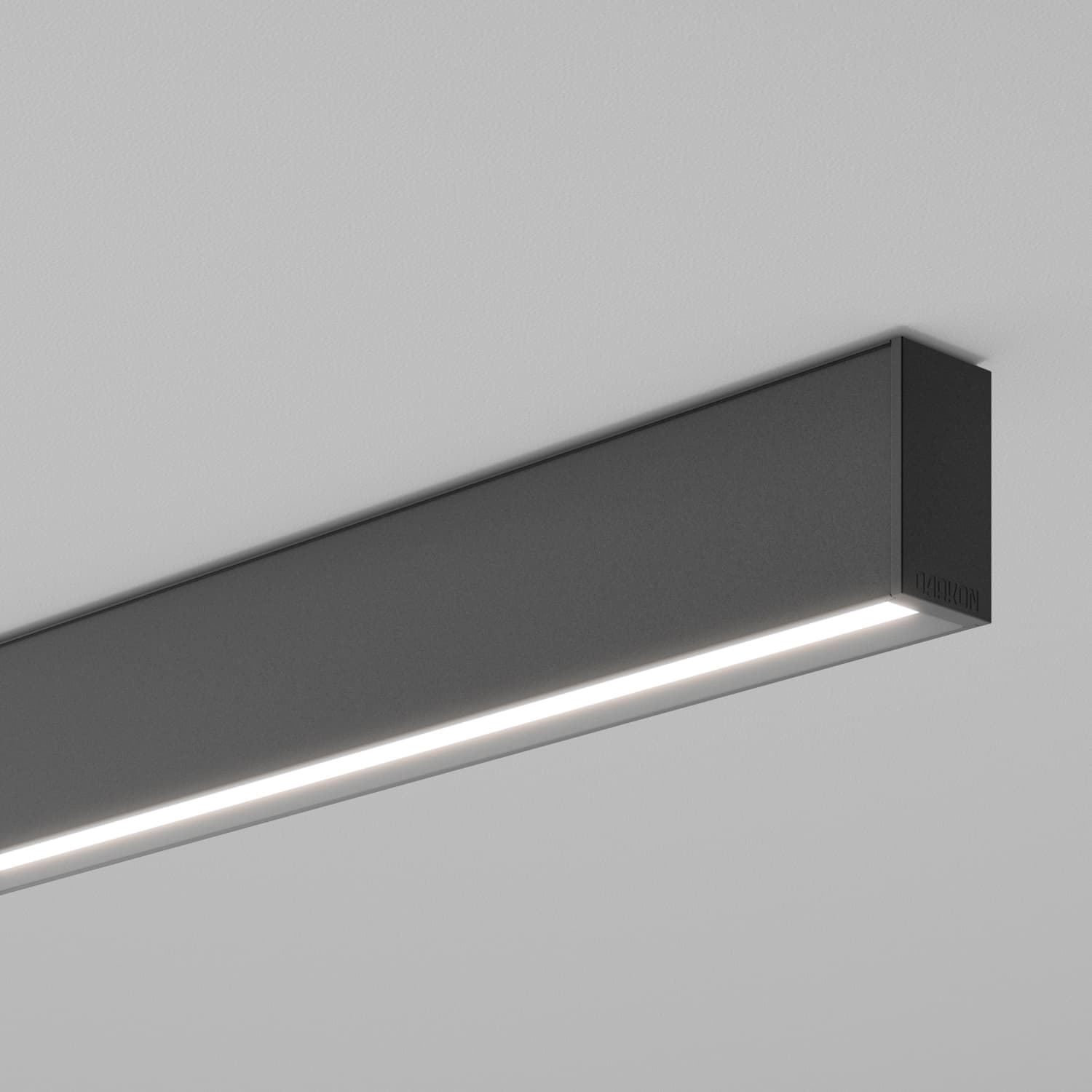

Related Products
Recommended Applications
Primary Industry
Spaces
Health
—
Education
—
Hospitality
—
Office / Work Space
—
Infrastructure
—
Sport
—
Residential
—
Retail
—
Technical Details
Physical Dimensions
- Width
- 49mm
- Height
- 89mm
- Weight
- 3.9kg/m
Construction & Mounting
- Materials
- Acrylic, Aluminium
- Shape
- Linear
- Mounting
- Suspended
- Suspension
- Wire Custom Length, Rod Custom Length, Wire 2m, Wire 4m
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- T Intersection - Welded
- T Intersection - Bolted
- Illuminated Joins
Optics
- UGR
- < 19
- Optics
- Diffuser, Combination Lens
- Light Distribution
- Deglaring, Narrow, Asymmetric, Direct & Indirect, Opal
LED
- CCT
- 4000K, 3000K, 2700K, 3500K, Tunable White
- CRI
- 90
- LED Output
- 941.1–4475.2lm
- LED Power
- 11.7–44.7W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
- Output Type
- High Output, High Efficiency
- LED Type
- SMD
- LED Chip
- Tridonic
- LED Model
- NEON FLEX_T1607_TOP VIEW_10WM_4000K, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, NEON FLEX_T1607_TOP VIEW_10WM_3000K, LLE 24x560mm 1300lm 927 HV ADV6, NEON FLEX_T1607_TOP VIEW_10WM_2700K, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, NEON FLEX_T1607_TOP VIEW_10WM_3500K, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2200lm 927-965 LV PRE4, NEON FLEX_T1607_TOP VIEW_10WM_TUNABLE WHITE, LLE 24x560mm 2400lm 927 HV ADV6
- Lifetime
- 50,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Control Gear
- Remote
- Driver
- Tridonic, Osram
- Driver Model
- LC 90/200-800/230 o4a NF h16 EXC4, LCA 35W 24V one4all SC PRE, LC 35/150-700/54 o4a NF lp PRE3, LC 35/150-700/54 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE, OTI DALI 80/220-240/24 4CH DT6/8 G3
- Insulation Class
- Class I (Earthing)
- Power Factor
- > 0.9
- Cable Type
- 5 Core Flex 24/.2 (0.75mm², 7.5A) Copper, 3 Core Flex 24/.2 (0.75mm², 7.5A) Copper
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Standards
- AS/NZS 60598.2.1
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
