SLIM-C-CUBED-LED-SUS1
1 / 2

SLIM C CUBED SUS

AUSTRALIAN MADE
RCM
ZHAGA
FLICKER FREE
SMD
LED LINEAR
IP22
OPAL

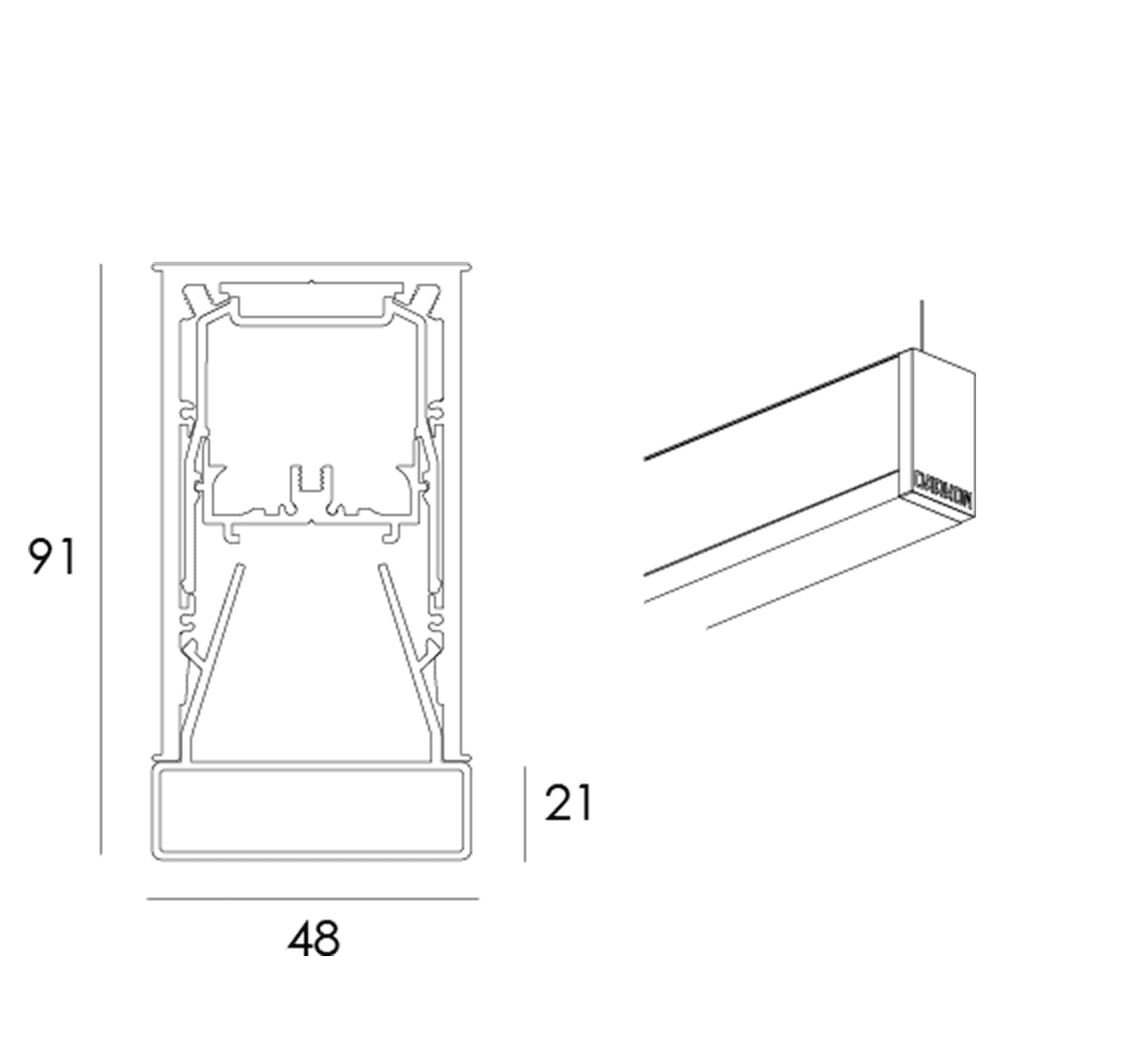

Slim C cubed LED SUS is a surface mounted profile with a low profile bright sided lens that can illuminate the celling in addition to providing functional downward illumination using Tridonic Linear Light Engine HE or HO LED boards.

Enquire Now

Models

Configure model106 of 106 variants
106 matching variants — select one
Polar light distribution curve for SLIM C CUBED_600_x_WHT_WHT_OPAL_HE_450mA_2700K_CRI90_x_x
SLIM C CUBED_600_x_WHT_WHT_OPAL_HE_450mA_2700K_CRI90_x_x
Lens
OPAL
Direction
Indirect
Output Type
High Efficiency
Milliamp
450 mA
Watts
12.1 W
Delivered Lumens
878.5 lm
Efficacy
72.6 lm/W
Colour Temperature (CCT)
2700K
CRI
90
Lifetime
72,000h @ L80B10

Photometric Files

This model (IES)Entire family — ZIP

Downloads

Design Features

  • Dot free homogeneous illumination

  • Complies with AS/NZS 60598.2.1

  • Multiple fixed output options

  • Lap join milling - No Light Bleed

  • Spring loaded control joints

  • Approximate fitting weight of 3.2 Kg per/m

Install Features

  • Project specific labelling referencing type numbers

  • Supplied 100% pre-built

  • Detailed shop drawings

  • Snap fit gear tray with integrated driver

  • Miter joins are not available

  • Factory fitted "push to join" installation

Technical Details

Construction & Mounting

Mounting
Suspended

Optics

Light Distribution
Opal

LED

CCT
2700K, 3000K, 3500K, 4000K, Tunable White
CRI
90
LED Output
407.8–2932.6lm
LED Power
6–33.3W
LED Current
150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA
Output Type
High Efficiency, High Output
LED Type
SMD
LED Model
LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE3, LLE 24x560mm 2400lm 927 HV ADV6
Lifetime
72,000h @ L80B10
Colour Consistency
SDCM 3
Zhaga
Yes

Electrical & Driver

Dimming
DALI
Driver
Tridonic
Driver Model
LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
Flicker Free Driver
Yes

Ratings & Compliance

IP Rating
IP22
Compliance Reports
LM-79
