MRS.T SM
Mrs.T SUS is a surface-mounted architectural profile featuring a 90mm combination lens and DARKON's signature shadow-line detail for a refined, integrated aesthetic. Built around a configurable LED light tray, it accommodates multiple LED options, emergency and downlight options, delivering exceptional flexibility for architectural lighting applications.
Models
- Lens
- OPAL
- Direction
- Direct
- Output Type
- High Output
- Milliamp
- 200 mA
- Watts
- 9.7 W
- Delivered Lumens
- 1042 lm
- Efficacy
- 107.4 lm/W
- Colour Temperature (CCT)
- 4000K
- CRI
- 90
- Lifetime
- 72,000h @ L80B10

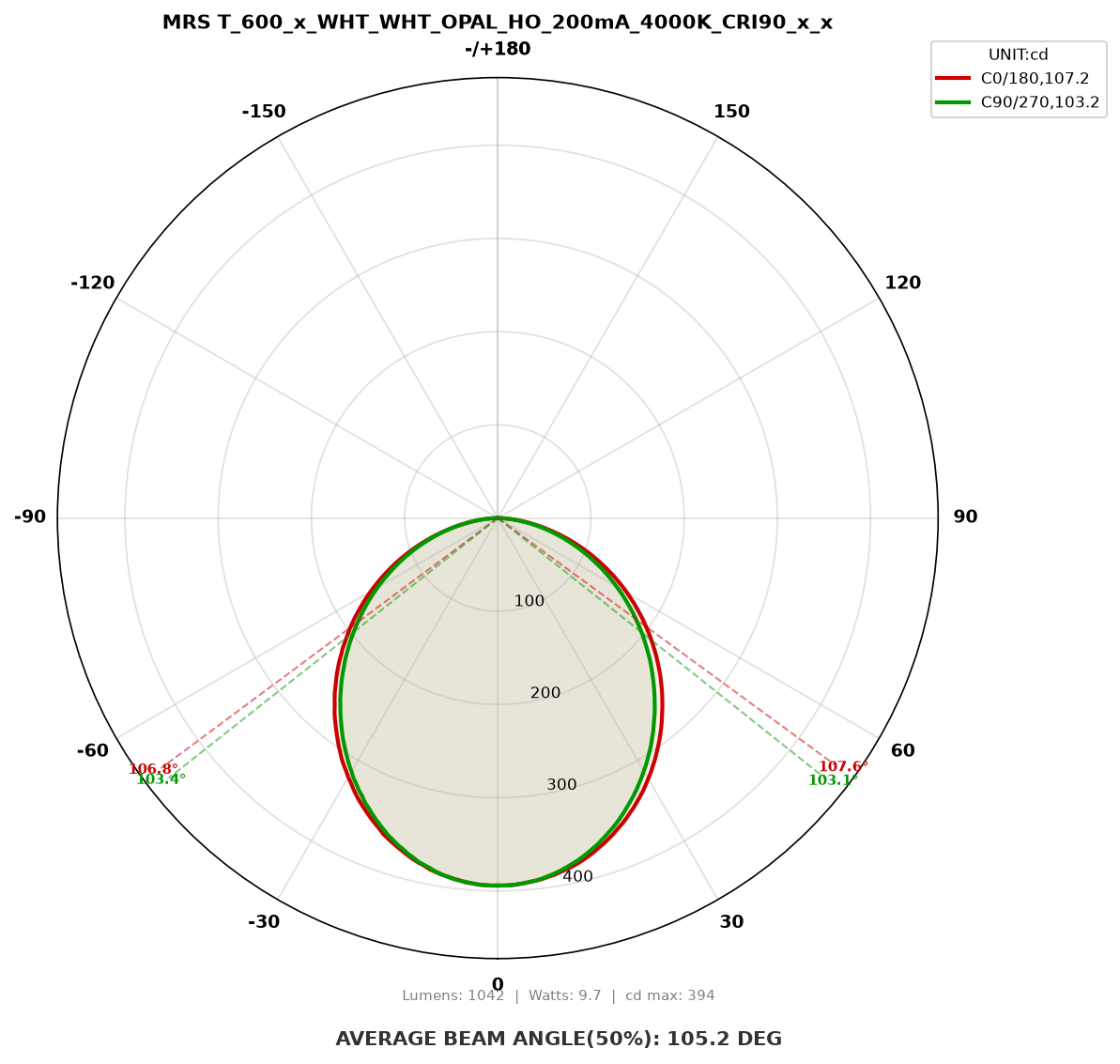

Photometric Files
Design Features
Screwless Endcaps
Dot free homogeneous illumination
Multiple Snap Fit Lens Options
Multiple fixed output options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints

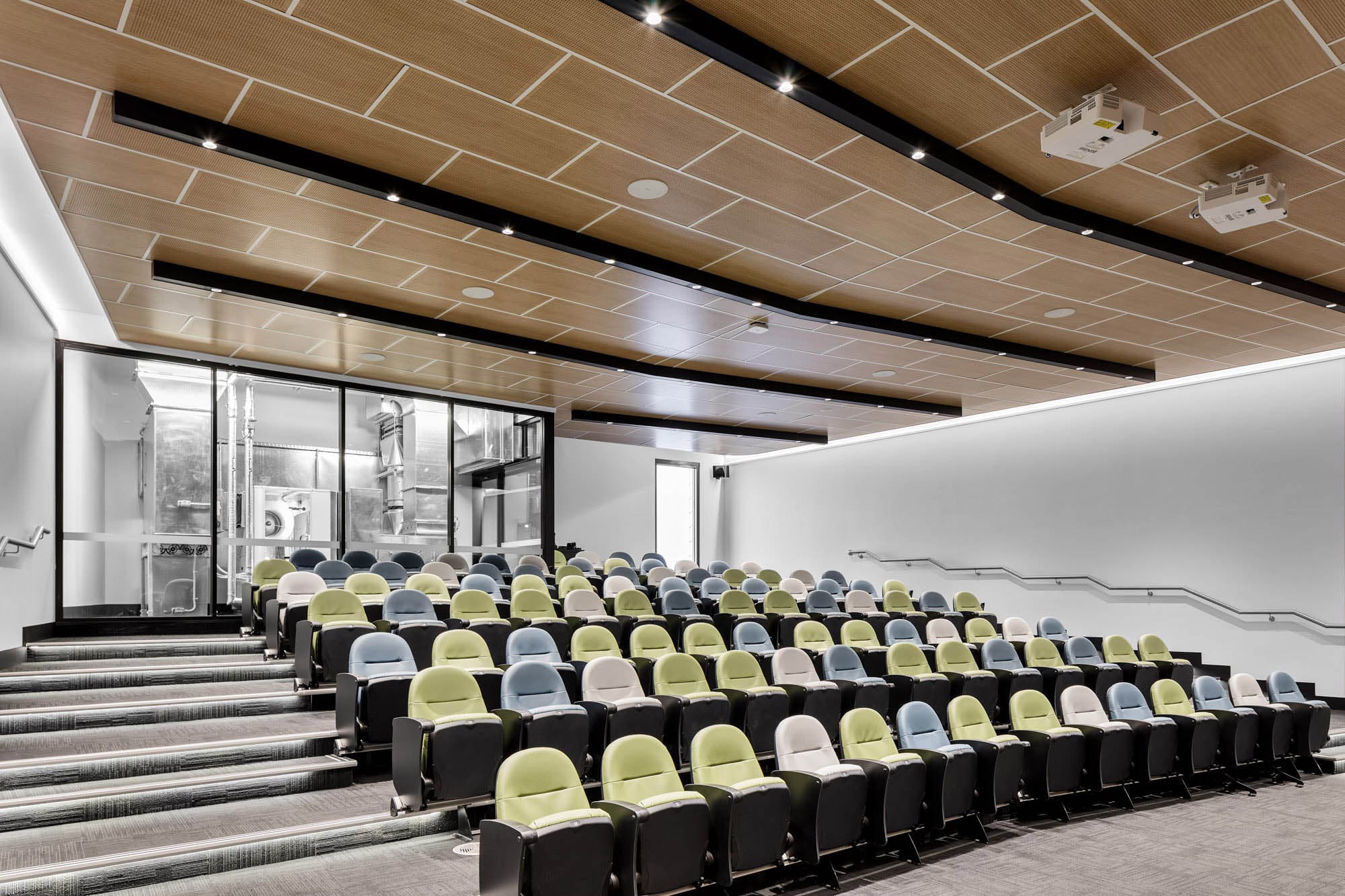

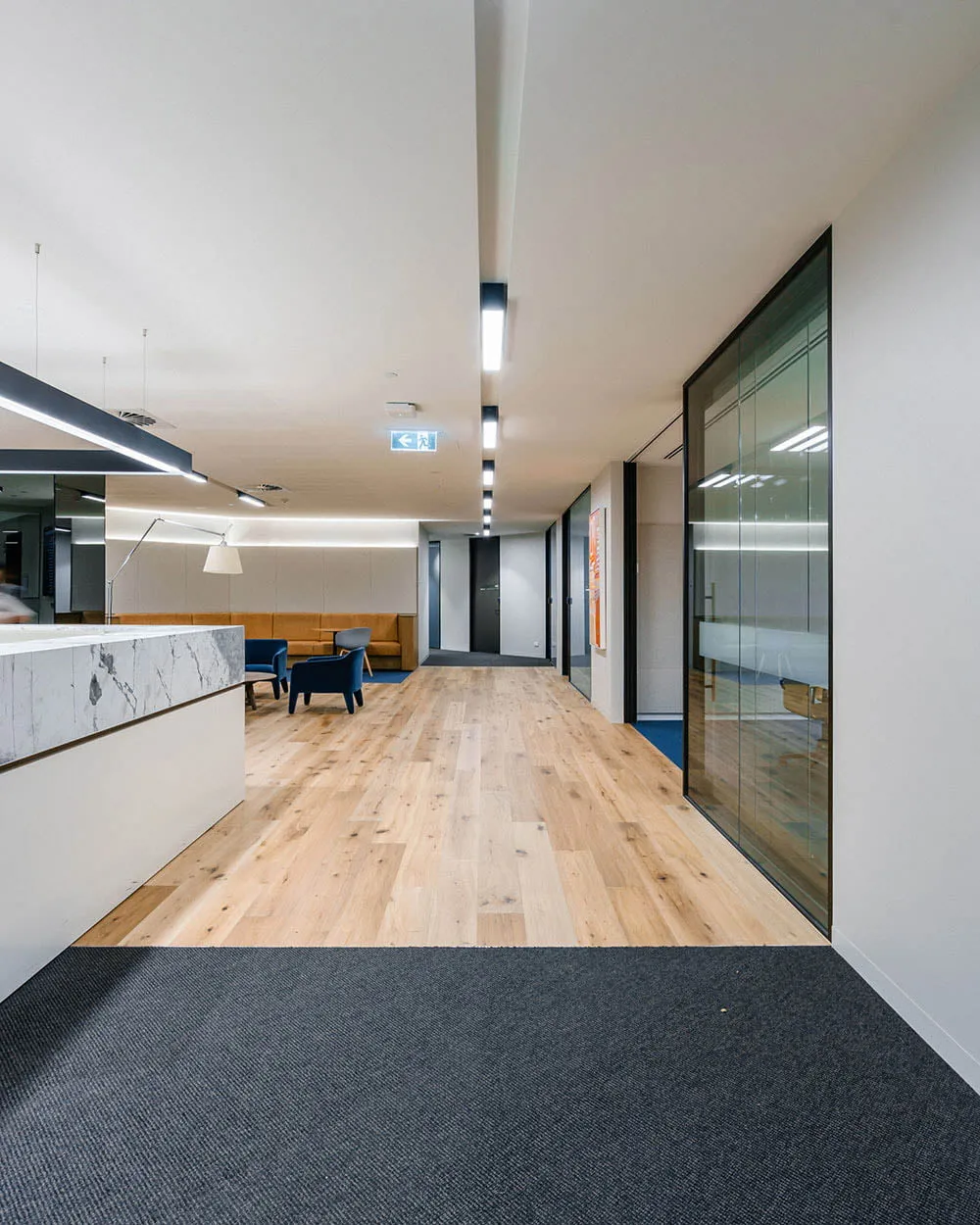

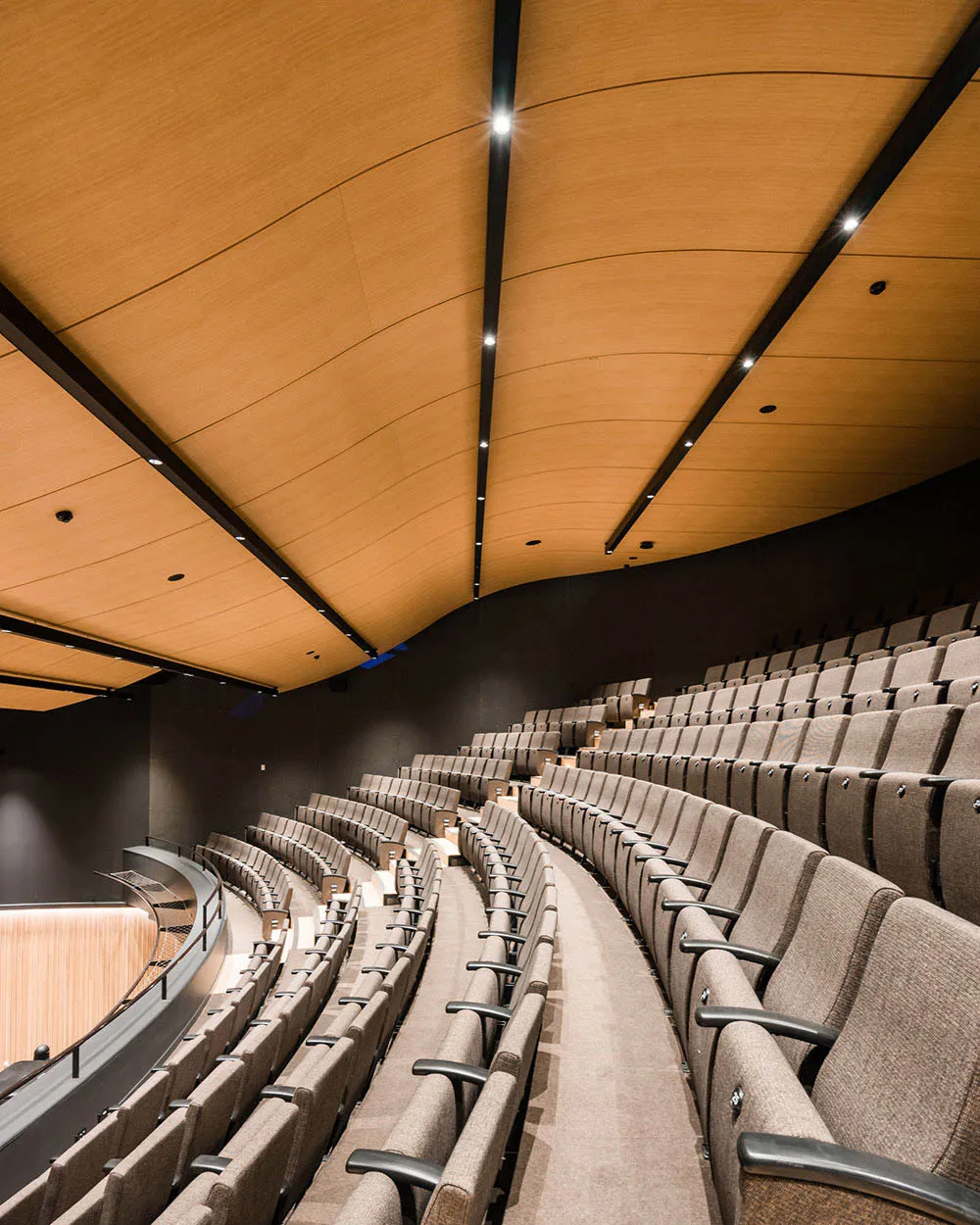

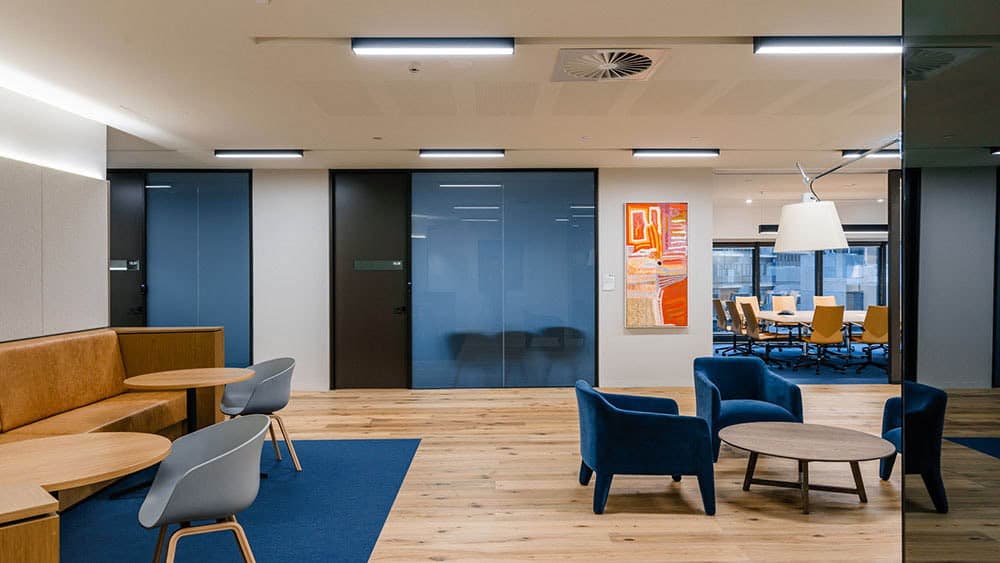

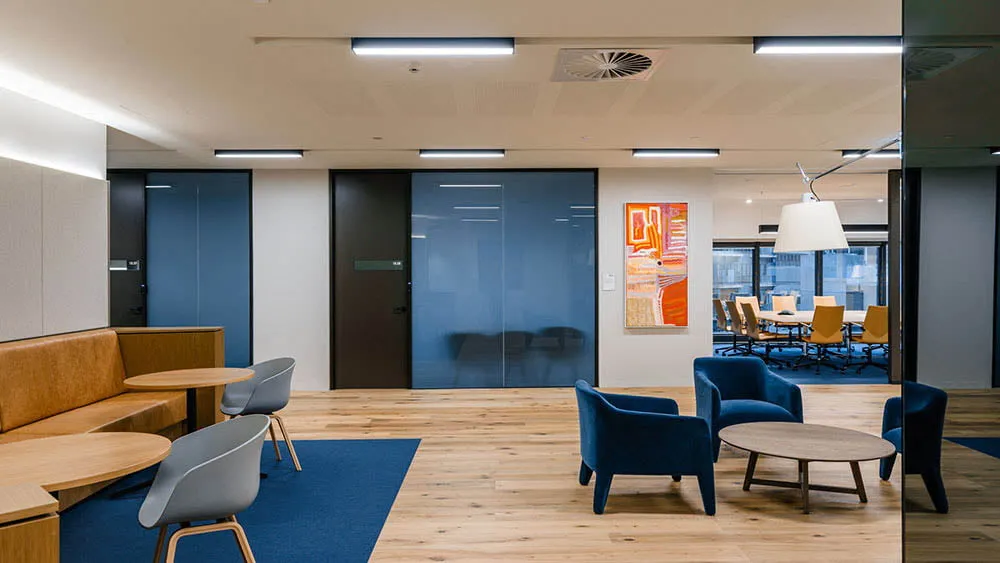

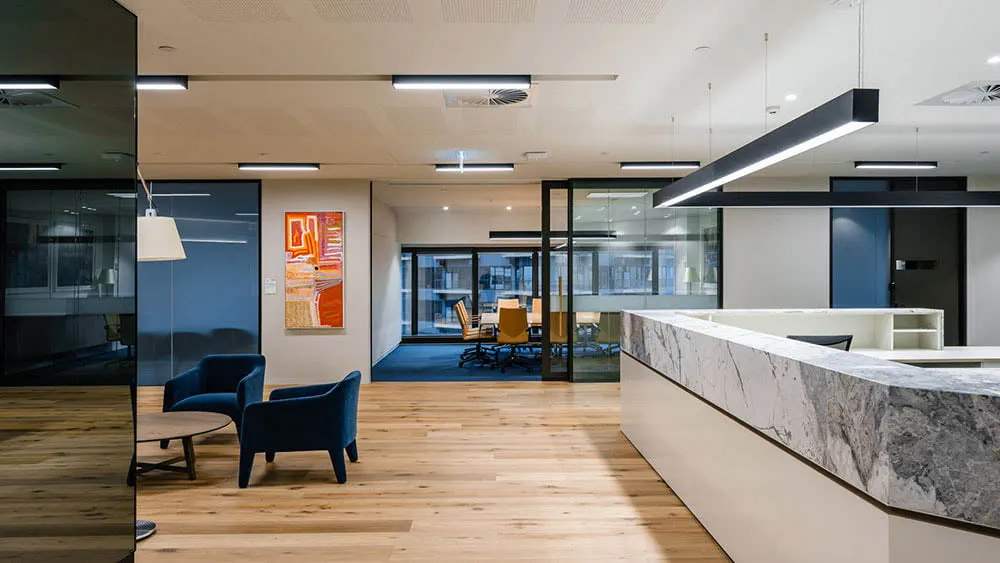

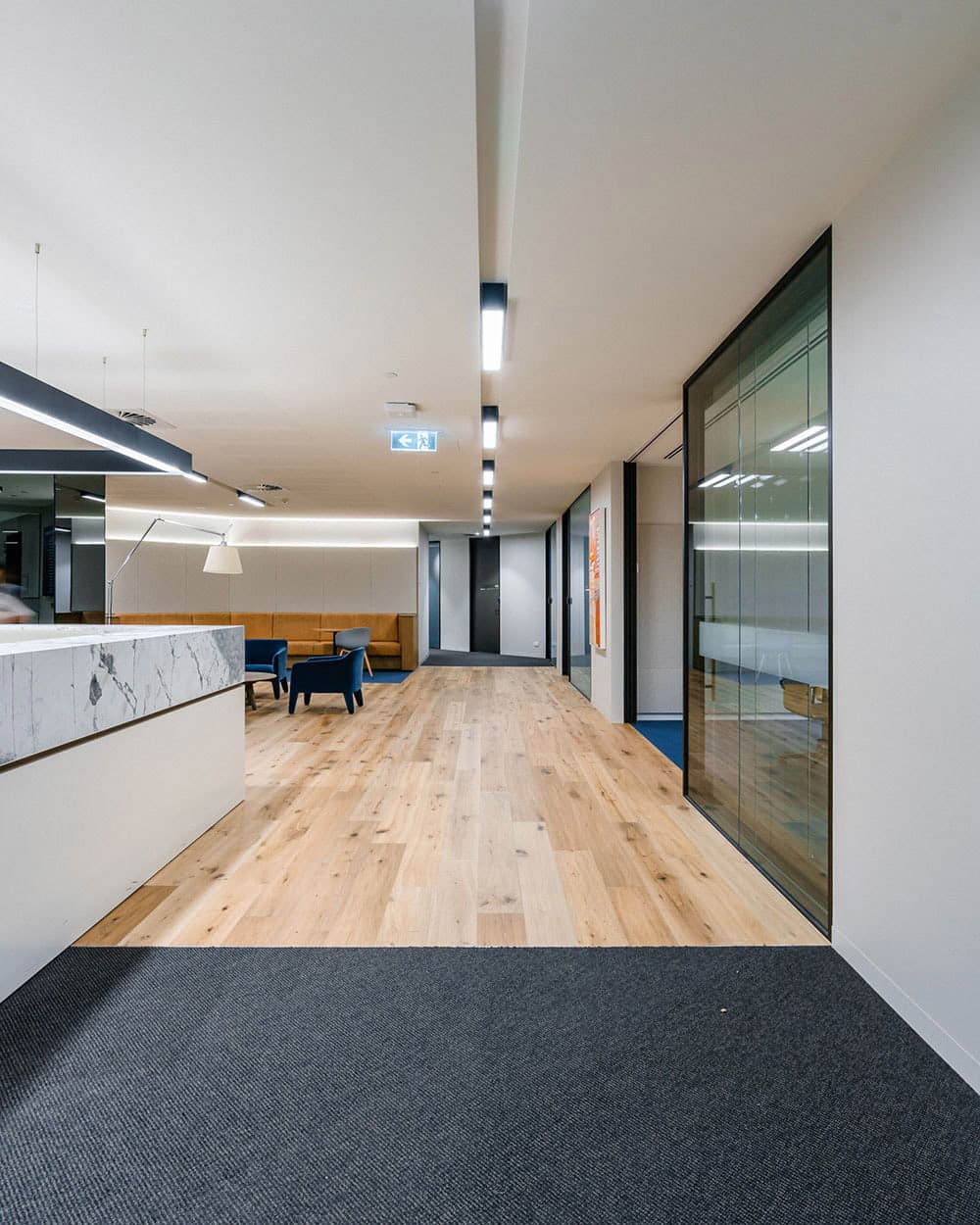

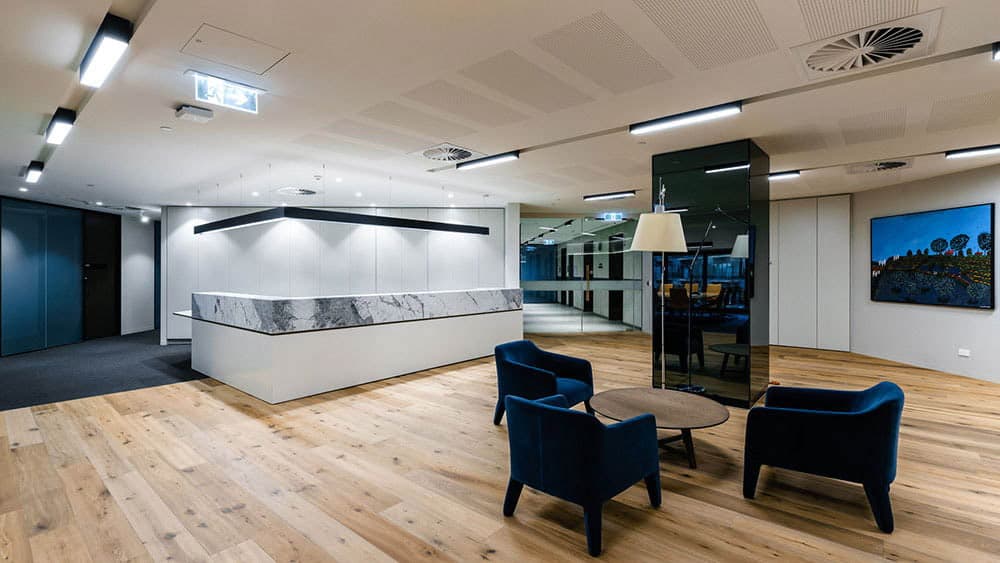

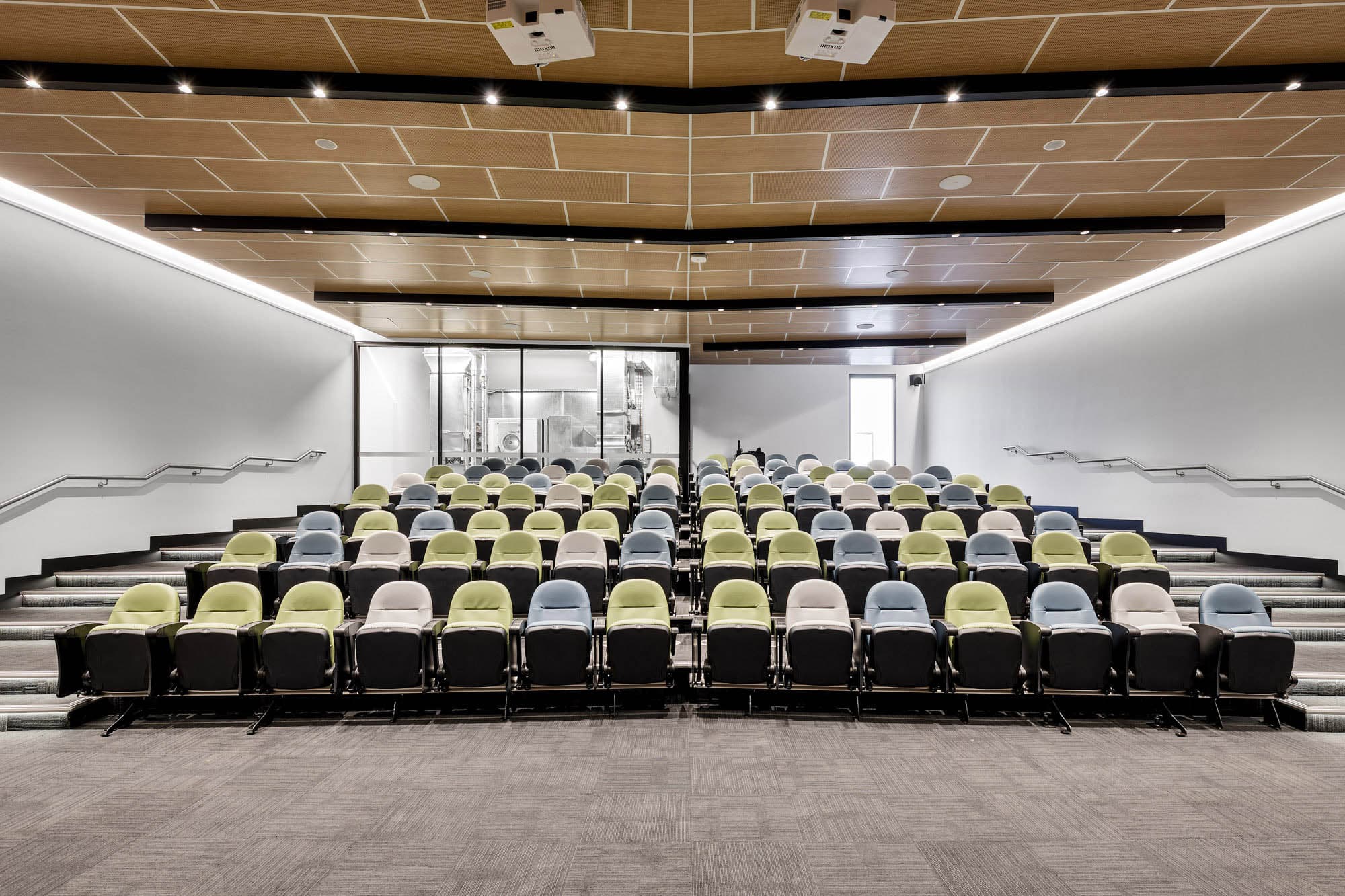

Gallery

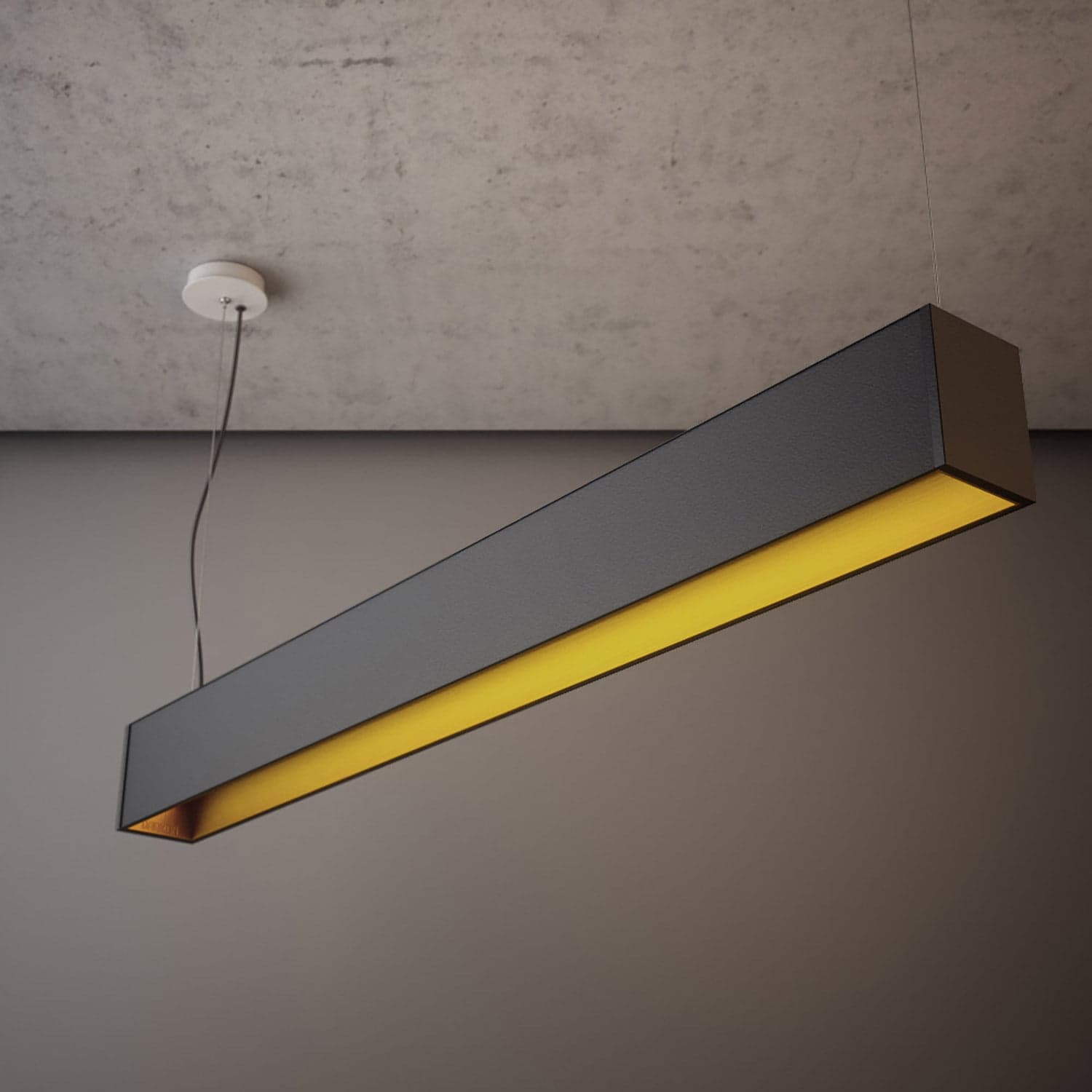

Related Products
Related Projects
Recommended Applications
Designer Recommendations
Technical Details
Physical Dimensions
- Width
- 100mm
- Height
- 127mm
- Weight
- 5.4kg/m
Construction & Mounting
- Shape
- Linear
- Mounting
- Surface Mounted
- Build Options
- Angular Linear Shapes
- Accessories
- Mitre Join - Welded
- T Intersection - Bolted
- Illuminated Joins
Optics
- Light Distribution
- Asymmetric, Opal, Deglaring
LED
- CCT
- 4000K, Tunable White, 2700K, 3000K, 3500K
- CRI
- 90
- LED Output
- 422.5–3506.7lm
- LED Power
- 6–34.5W
- LED Current
- 150mA, 200mA, 250mA, 300mA, 350mA, 400mA, 450mA, 500mA, 550mA, 600mA, 650mA
- Output Type
- High Output, High Efficiency
- LED Type
- SMD
- LED Model
- LLE 24x560mm 2400lm 940 HV ADV6, LLE 24x560mm 1300lm 940 HV ADV6, LLE 24x280mm 1100lm 927-965 LV PRE4, LLE 24x560mm 1300lm 927 HV ADV6, LLE 24x560mm 1300lm 930 HV ADV6, LLE 24x560mm 1300lm 935 HV ADV6, LLE 24x560mm 2400lm 935 HV ADV6, LLE 24x560mm 2400lm 927 HV ADV6, LLE 24x560mm 2400lm 930 HV ADV6
- Lifetime
- 72,000h @ L80B10
- Colour Consistency
- SDCM 3
- Zhaga
- Yes
Electrical & Driver
- Dimming
- DALI
- Driver
- Tridonic
- Driver Model
- LC 35/150-700/54 o4a NF h16 EXC4, LC 90/200-800/230 o4a NF h16 EXC4, LCA 50W 350-1050mA DT8 lp PRE
- Flicker Free Driver
- Yes
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
Overview
Mrs.T SUS is a surface-mounted architectural profile designed to deliver both visual presence and functional versatility. At its core is a 90mm combination lens, engineered to work seamlessly with DARKON's signature shadow-line detail, creating a refined and integrated appearance that complements a wide range of interior architectural styles. Measuring 100mm wide by 127mm high, Mrs.T SUS is built around a single configurable LED light tray, allowing specifiers to tailor the luminaire to project-specific requirements. The tray accommodates multiple LED options, emergency lighting modules and downlights, offering a flexible platform for architects and lighting designers seeking a surface-mounted solution that balances performance, adaptability and refined aesthetics.
