MINI SKIRT SUS
AUSTRALIAN MADE
RCM
10 YEARS
IP22
DEGLARING
NARROW
ASYMMETRIC
OPAL

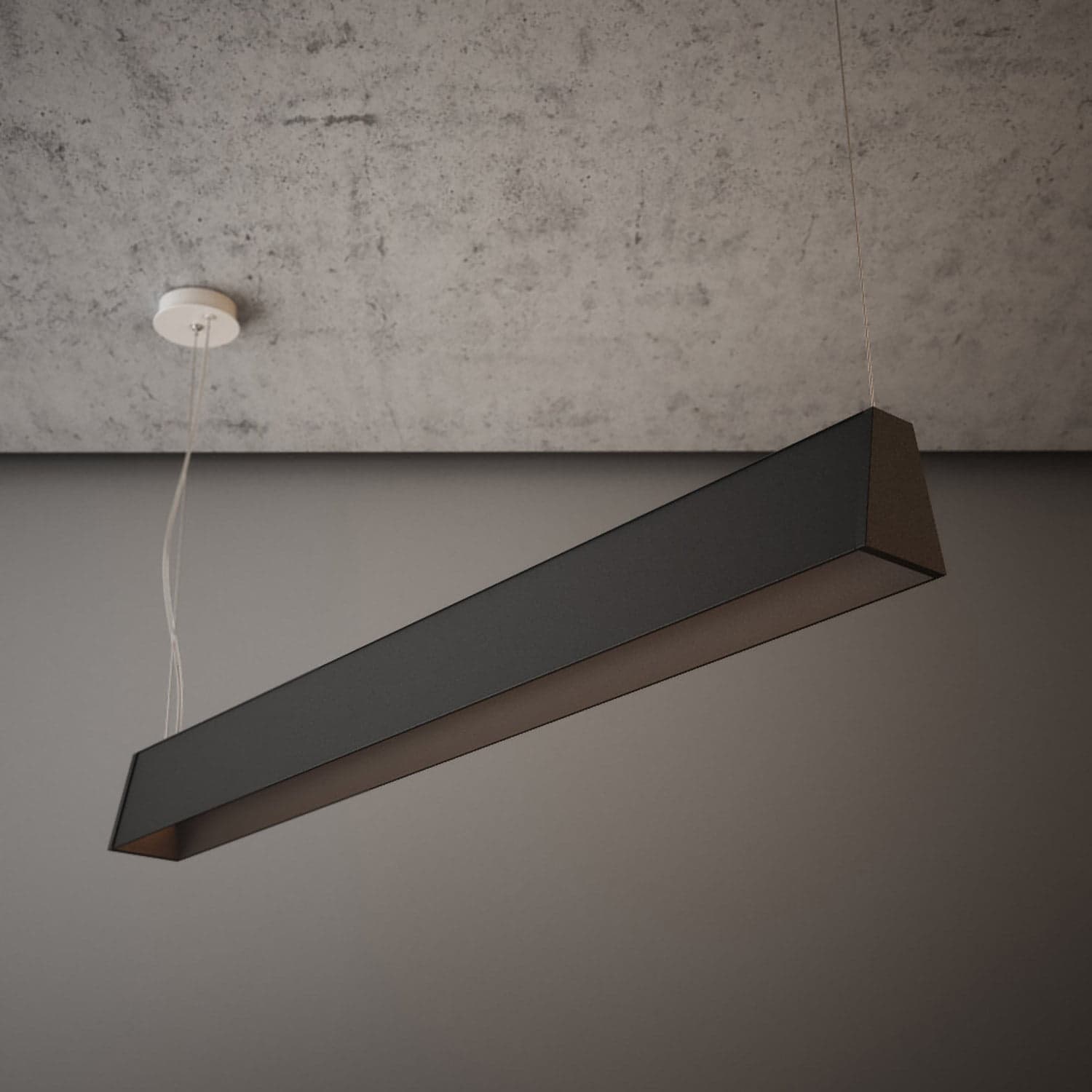

Mini Skirt LED SUS is a suspended profile with downward illumination. Its tapered profile makes it ideal for use as an architectural feature. It is part of the slim range utilising the slim 40mm lens and uses the light tray 40 LED.
Design Features
78 exit lumens per watt
Screwless Endcaps
Dot free homogeneous illumination
L90 / B10 @ 42,000 hours @ 250mA /25°C TA
L70 / B10 @ 123,000 hours @ 250mA/ 25°C TA
Zhaga compliant
80+ or 90+ colour rendering
Small colour tolerance Macadam 3
Multiple fixed output options
Multiple Snap Fit Lens Options
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Plug and Play wire looms
Welded mitre joins eliminate light bleed
Snap fit gear tray with integrated driver
Sprung loaded control joints
Gallery
Related Projects
Technical Details
Physical Dimensions
- Width
- 91mm
- Height
- 118mm
Construction & Mounting
- Mounting
- Suspended
Optics
- Light Distribution
- Deglaring, Narrow, Asymmetric, Opal
Ratings & Compliance
- IP Rating
- IP22
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
