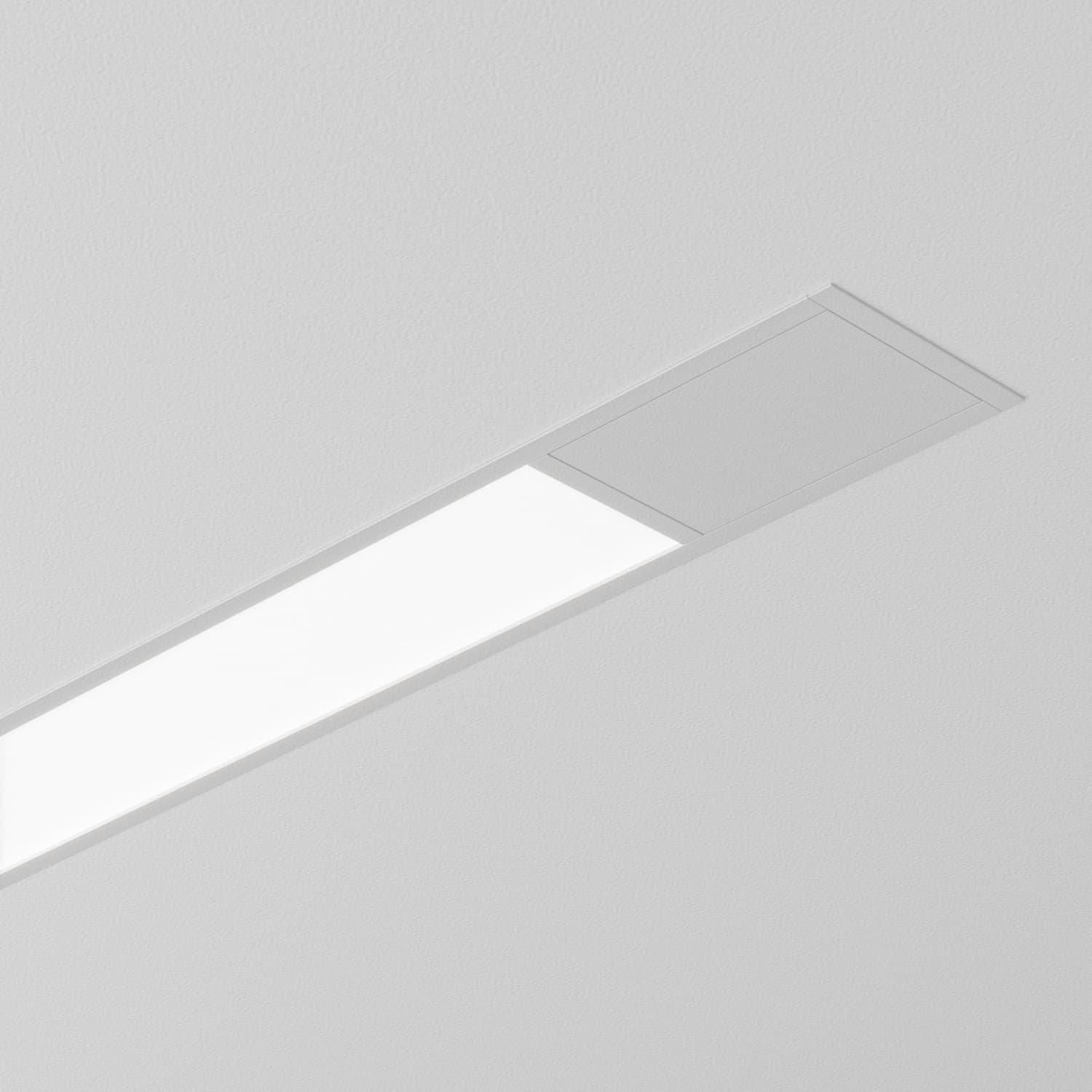

LAB DR. REC
AUSTRALIAN MADE
RCM
10 YEARS
LED LINEAR
IP55
The LAB DR has been specifically designed to meet the requirements of PC2 Laboratories and its modular design accommodates both emergency lighting and EWIS speaker systems. Its wide aperture lens minimises glare while providing soft even lighting and with up to 103 exit lumens per system watt, the LAB DR is the ideal choice for shedding light on science!
Design Features
Dot free homogeneous illumination
High colour tolerance - MacAdam 3
L80 / F10 = 72,000 hours @ 450mA / 75°C TA
80+ or 90+ colour rendering
Up to 103 lumens per system watt
Multiple fixed output options
Multiple lens options
Blind cover required between light modules
Can accomodate emergency lighting
Can accomodate EWIS speakers
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Detailed shop drawings
Fitting weight to be supported via rear sus or sm fixing
Recess spring clips hold trim to plaster (not weight bearing)

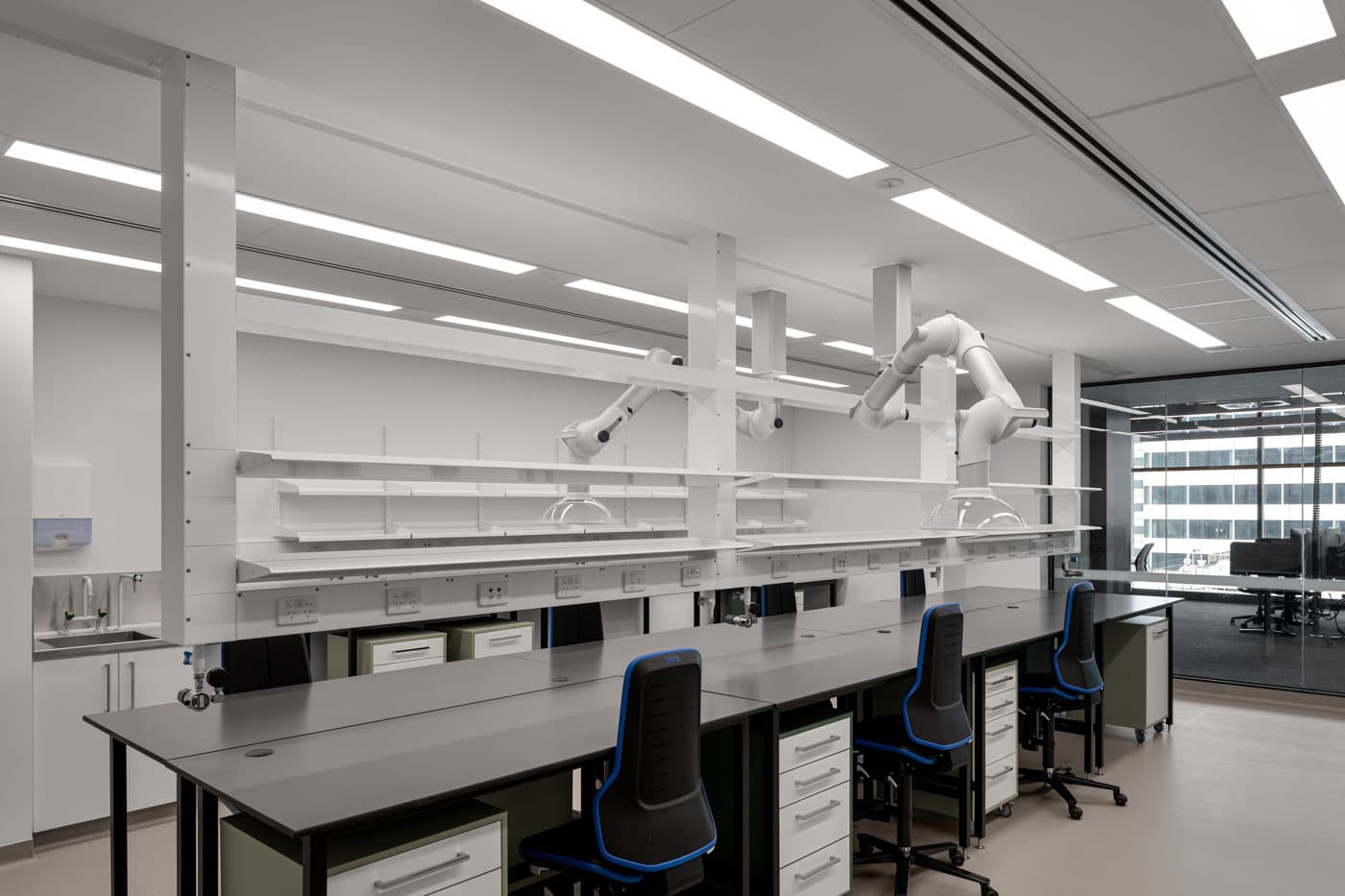

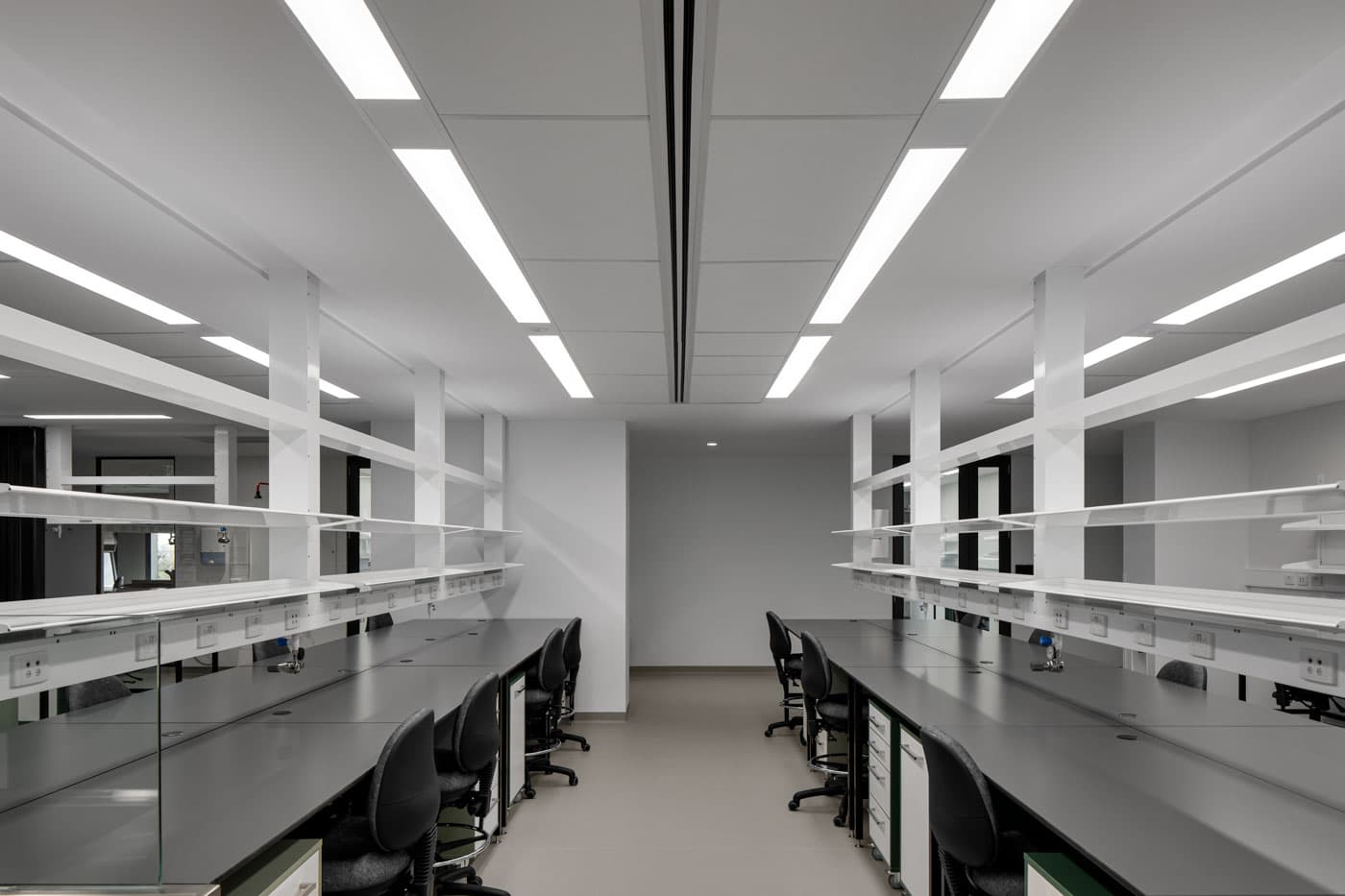

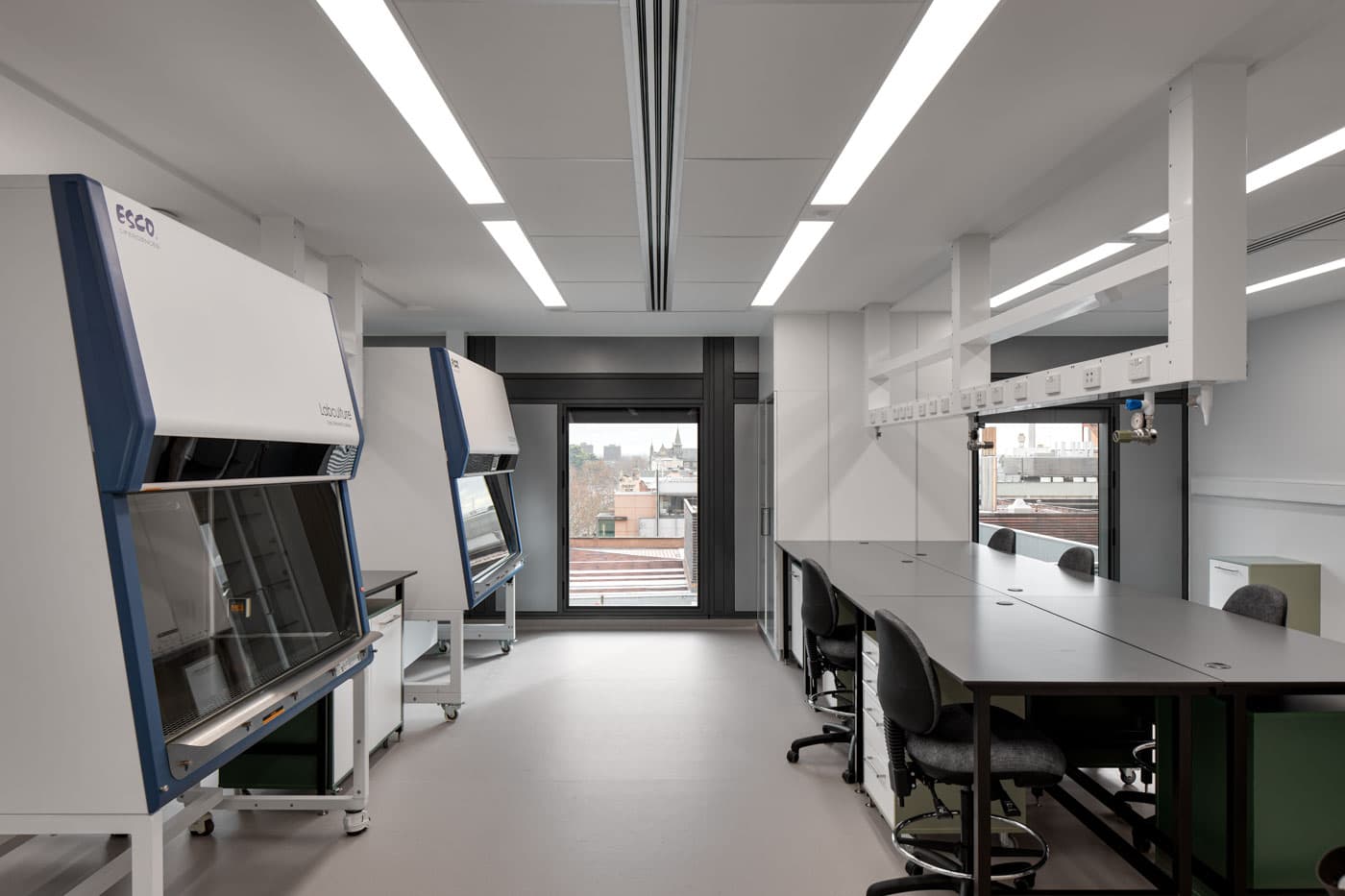

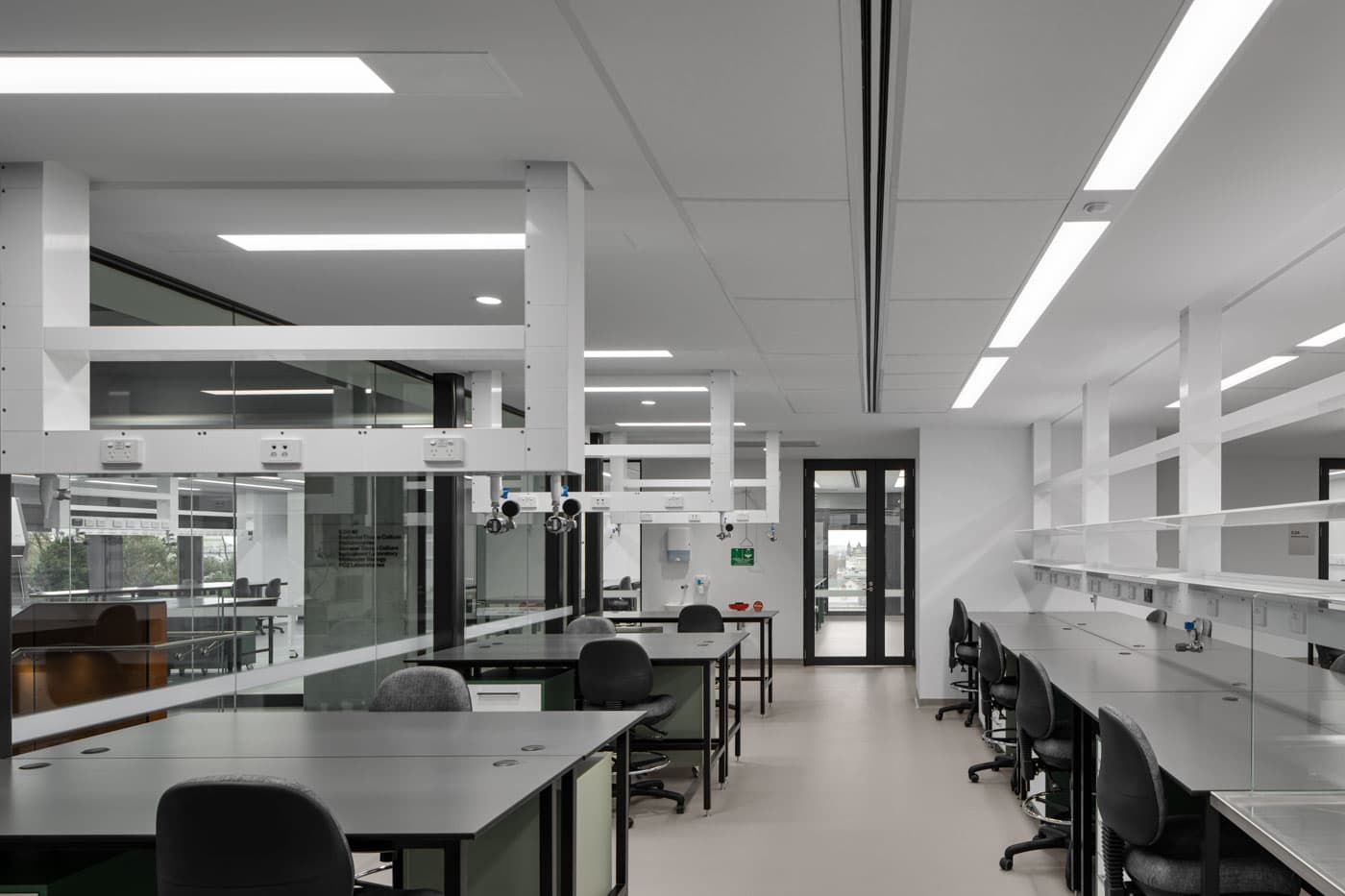

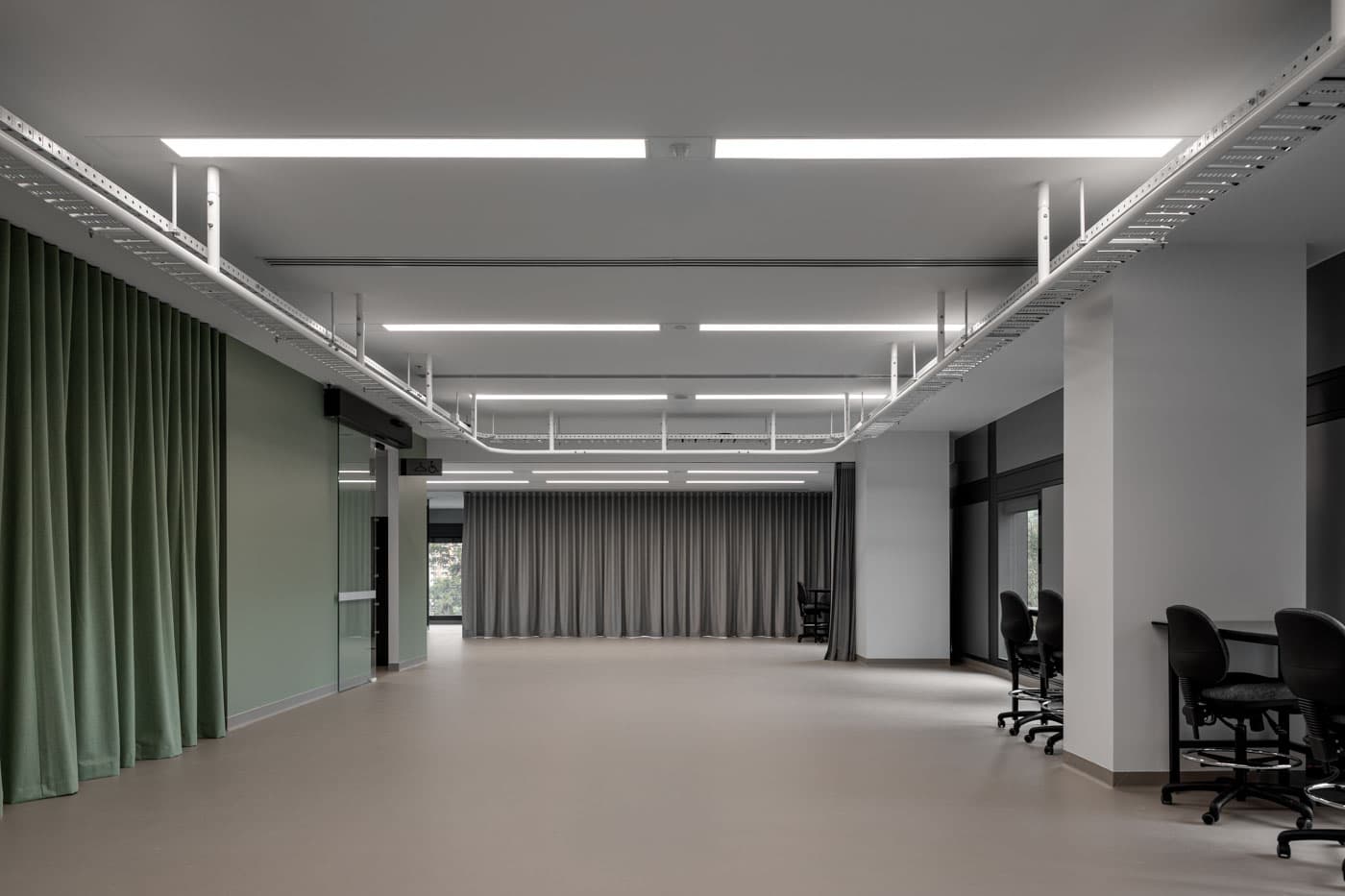

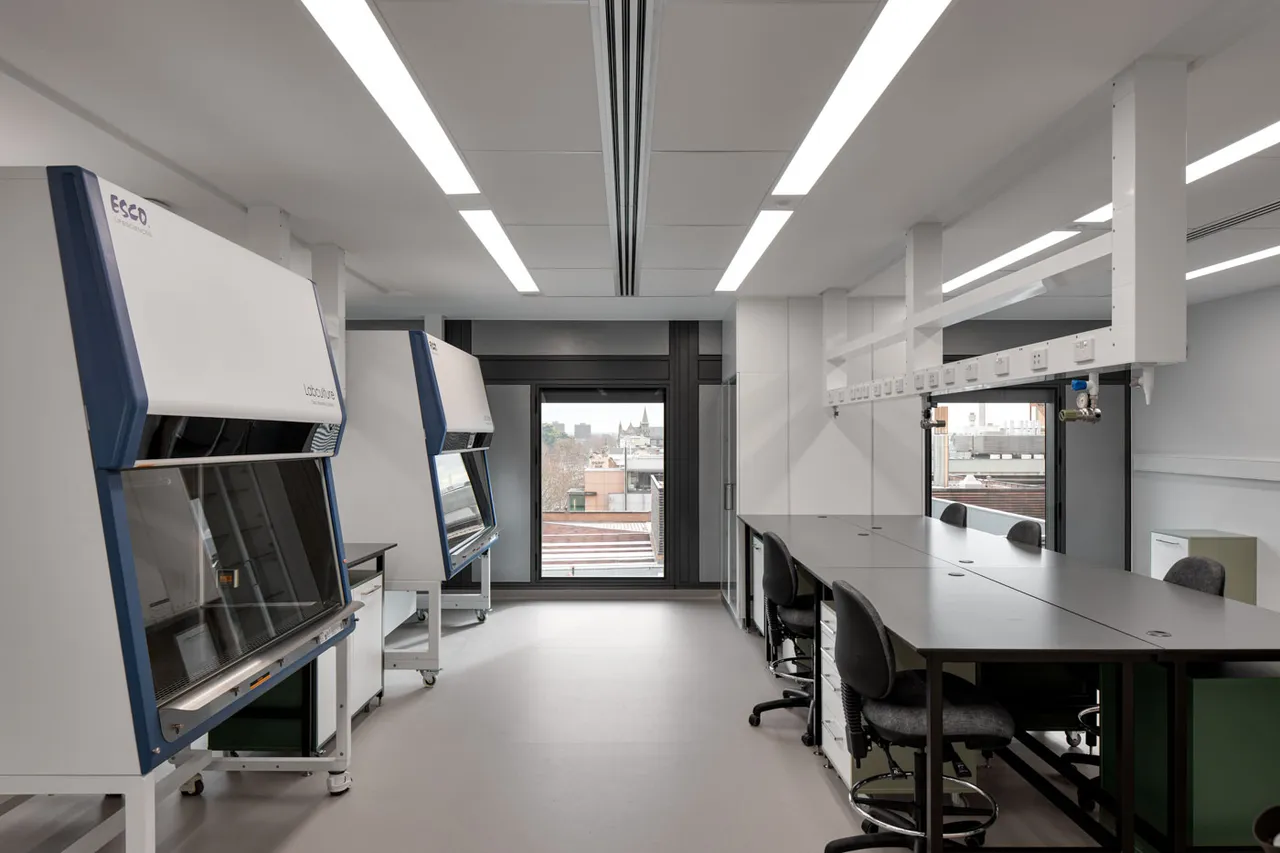

Gallery
Technical Details
Construction & Mounting
- Mounting
- Recessed
Ratings & Compliance
- IP Rating
- IP55
- Standards
- AS/NZS 60598.2.1
- Compliance Reports
- LM-79
- Warranty
- Product - 5 Years
- Product - 10 Years (Extended)
