DEEP DOWN SM IT
LED COB
AUSTRALIAN MADE
RCM
IP22

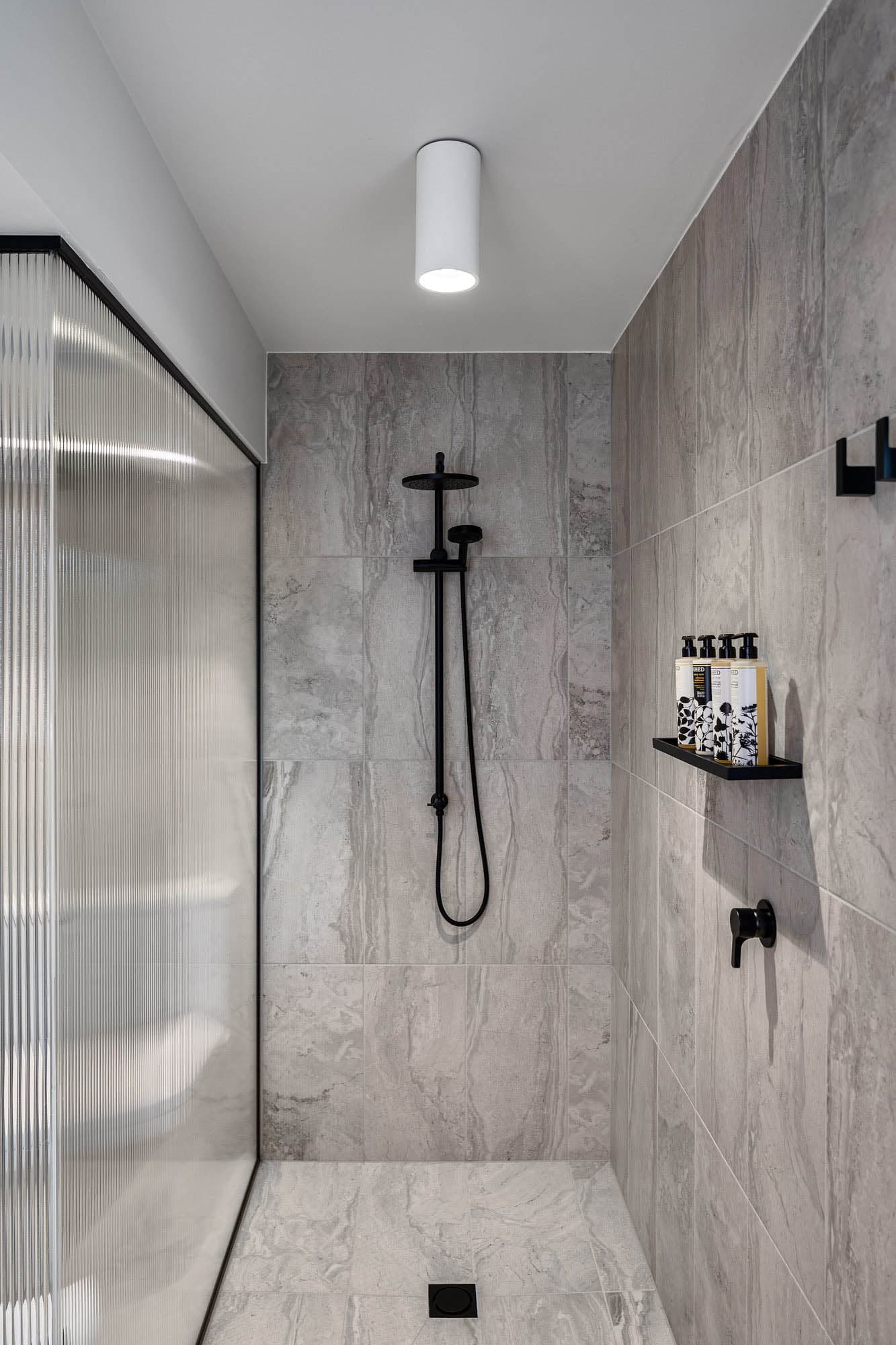

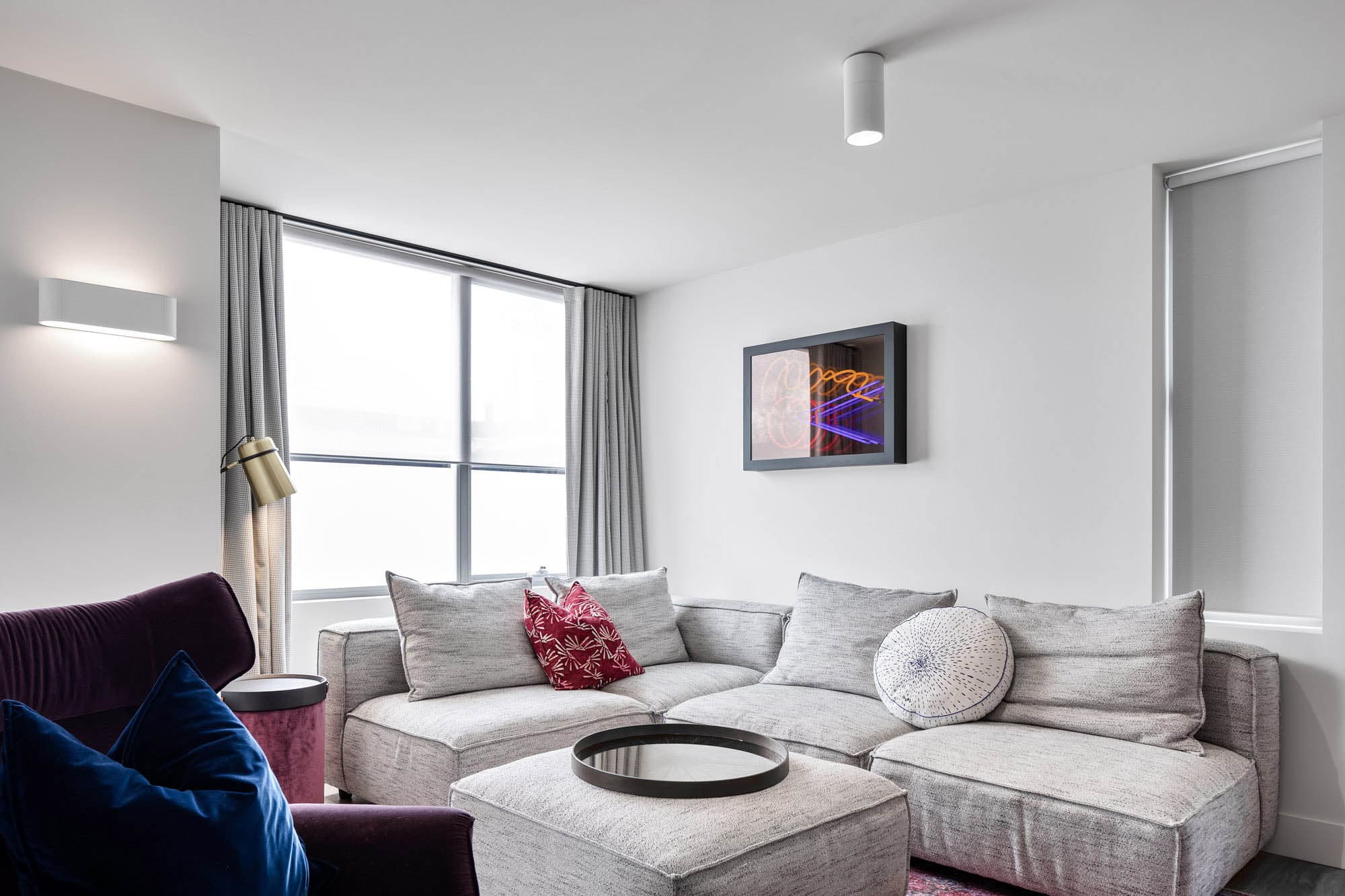

Deep Down SM IT LED is a completely surface mounted luminaire with integrated transformer housed in the upper tube. The tubular accessory also allows for dual colour combinations with the outer tubes and inner downlight.
Design Features
L80 / B10 = 55,000 hours @ 350mA / 65°C TP
90+ colour rendering, 80+ available upon request
Complies with AS/NZS 60598.2.1
Small colour tolerance Macadam 3
L80 / B10 = 55,000 hours @ 250mA / 65°C TP
Recessed lamp for low glare applications
COB LED achieves a single light source appearance
Up to 89 exit lumens per system watt
Surface mounted tube allows two tone finish
Completely surface mounted ideal for ceilings with no cavity
Install Features
Project specific labelling referencing type numbers
Supplied 100% pre-built
Easy to follow install guide
Gallery
Related Products
Related Projects
Technical Details
Construction & Mounting
- Mounting
- Surface Mounted
Ratings & Compliance
- IP Rating
- IP22
