DEEP DOWN MINI

DEEP DOWN MINI

LED COB
AUSTRALIAN MADE
RCM
IP22

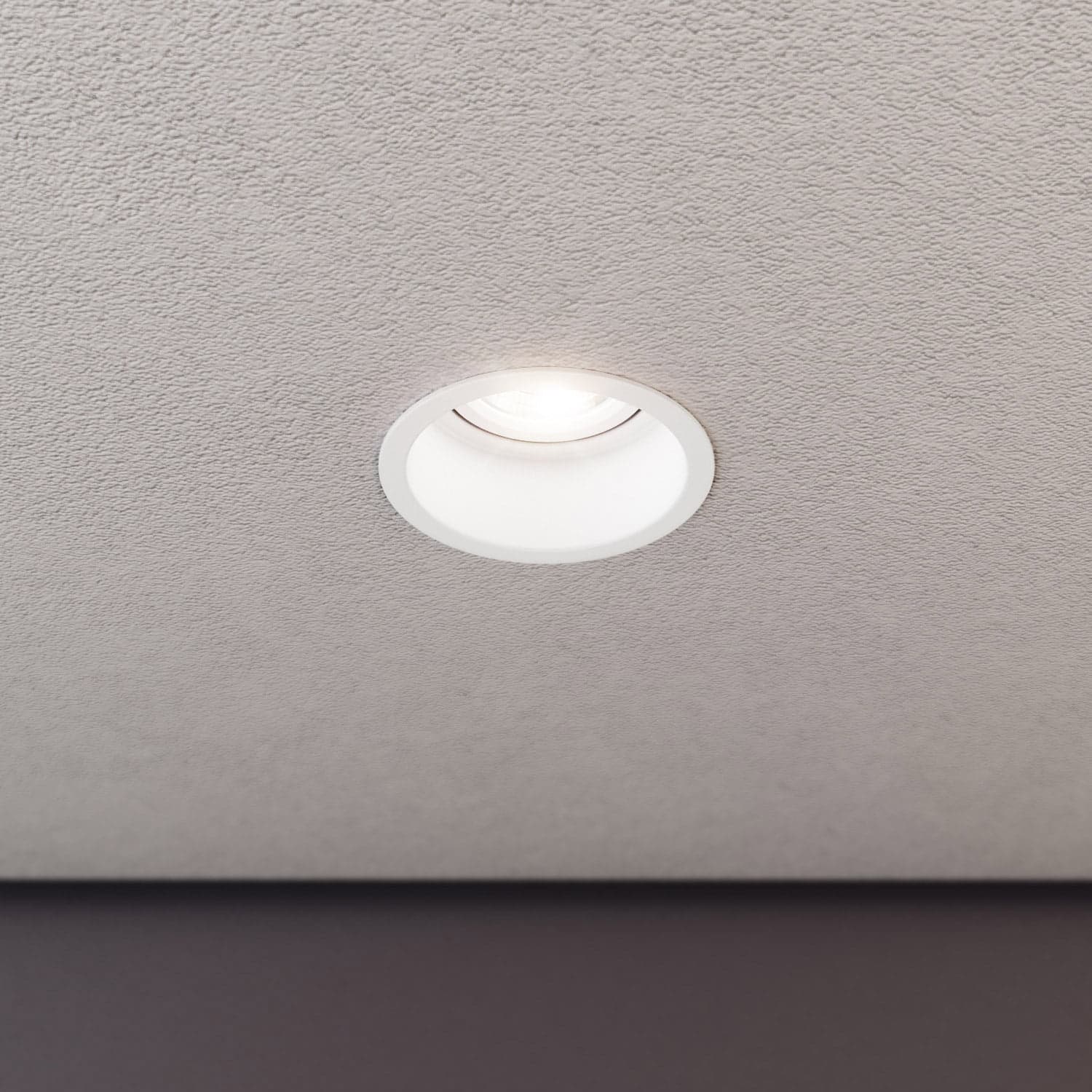

Deep Down Mini features a recessed LED light source and can be accesorised with 'mirror' or 'dark-light' reflector inserts to further minimise glare. Tridonic LED technology delivers high energy efficiency and 90+ CRI.

Enquire Now

Downloads

Design Features

  • 90+ colour rendering, 80+ available upon request

  • High colour tolerance - MacAdam 3

  • Complies with AS/NZS 60598.2.1

  • Recessed lamp for low glare applications

  • Minimal trim for a ‘trim-less’ appearance

  • L80 / F10 = 55,000 hours @ 250mA / 65°C TP

  • L80 / F10 = 55,000 hours @ 350mA / 65°C TP

  • 20° gimbal inclination

  • 360° gimbal rotation

  • Up to 90 exit lumens per system watt

  • Changeable reflector insert available

Install Features

  • Supplied 100% pre-built

  • Easy to follow install guide

  • Standard hole saw cut out

  • Spring clip mounting

Technical Details

Construction & Mounting

Mounting
Recessed

Ratings & Compliance

IP Rating
IP22
