Darkon Architectural Lighting

3D1010 NEON

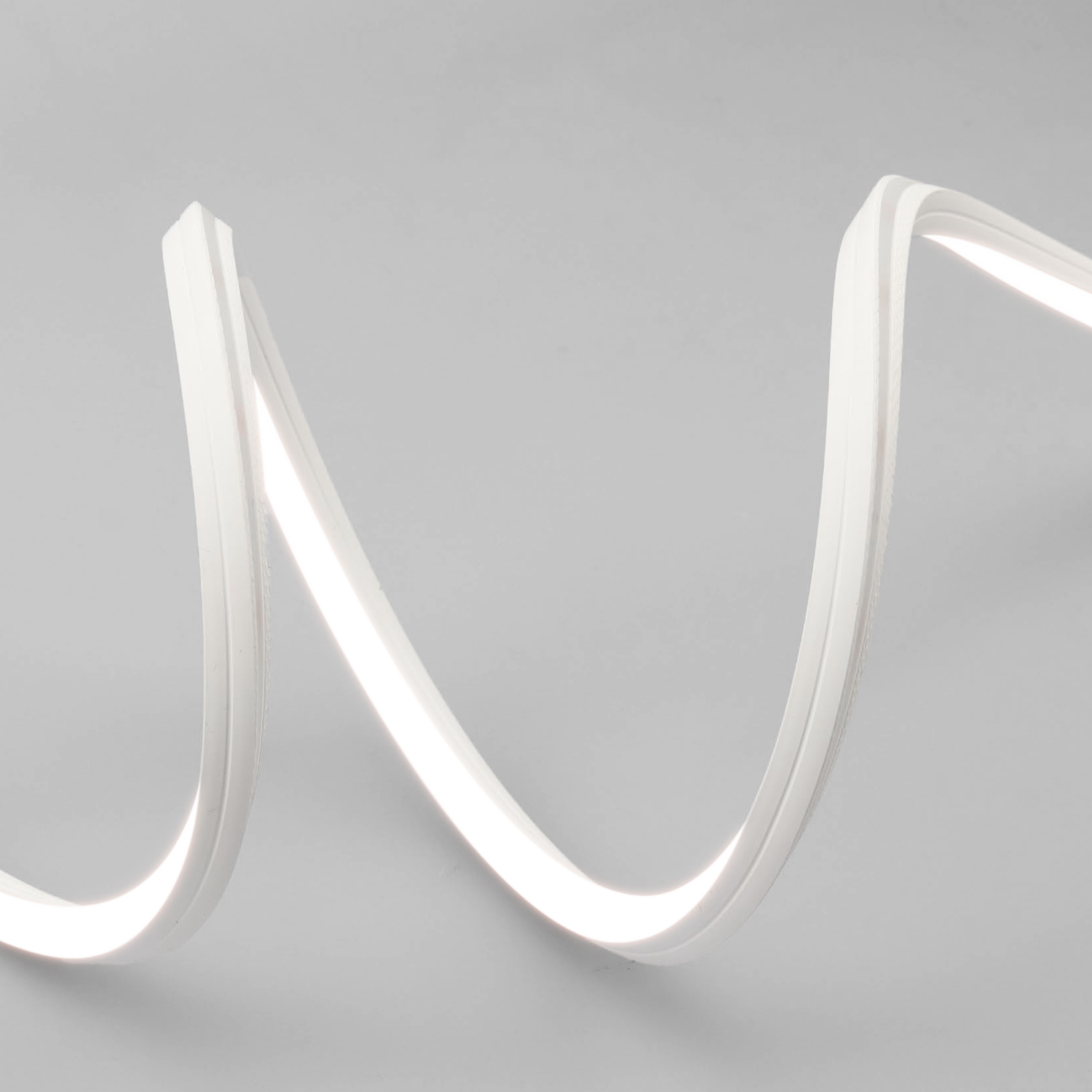

3D1010 Neon is a top and side free bending flexible silicone encapsulate LED tape allowing great versatility in its application, and with IP67 ingress protection it is suitable for both indoor and outdoor use.

Materials
Silicone
Finish
White / Black / Silver / Custom Powder Coat finish to Mounting Profile
Light Source
Flexible LED Tape
Downloads
Design Features

In-house length customisation
In-house moulded end caps
IP67 ingress protection
Minimum bend radius of 150mm [300mm diameter] Top Bend
Minimum bend radius of 200mm [400mm diameter] Side Bend
Vertical & Horizontal bending in relation to illuminated face
Dot free homogeneous illumination
Single sided diffused illumination
Dust free matt finish
Multiple fixed output options
Up to 50.6 exit lumens per system watt
90+ colour rendering

Installation Features

Max length of 5m with single power feed
Max length of 10m with dual power feed
Clipping profile produced in 1 & 2m lengths
UV protected
Saltwater and solvent resistant
Complies with AS/NZS 60598.2.1
3 year warranty
Project specific labelling referencing type numbers
50,000 hrs lifetime
L70B50 > 50,000 hrs
