Darkon Architectural Lighting

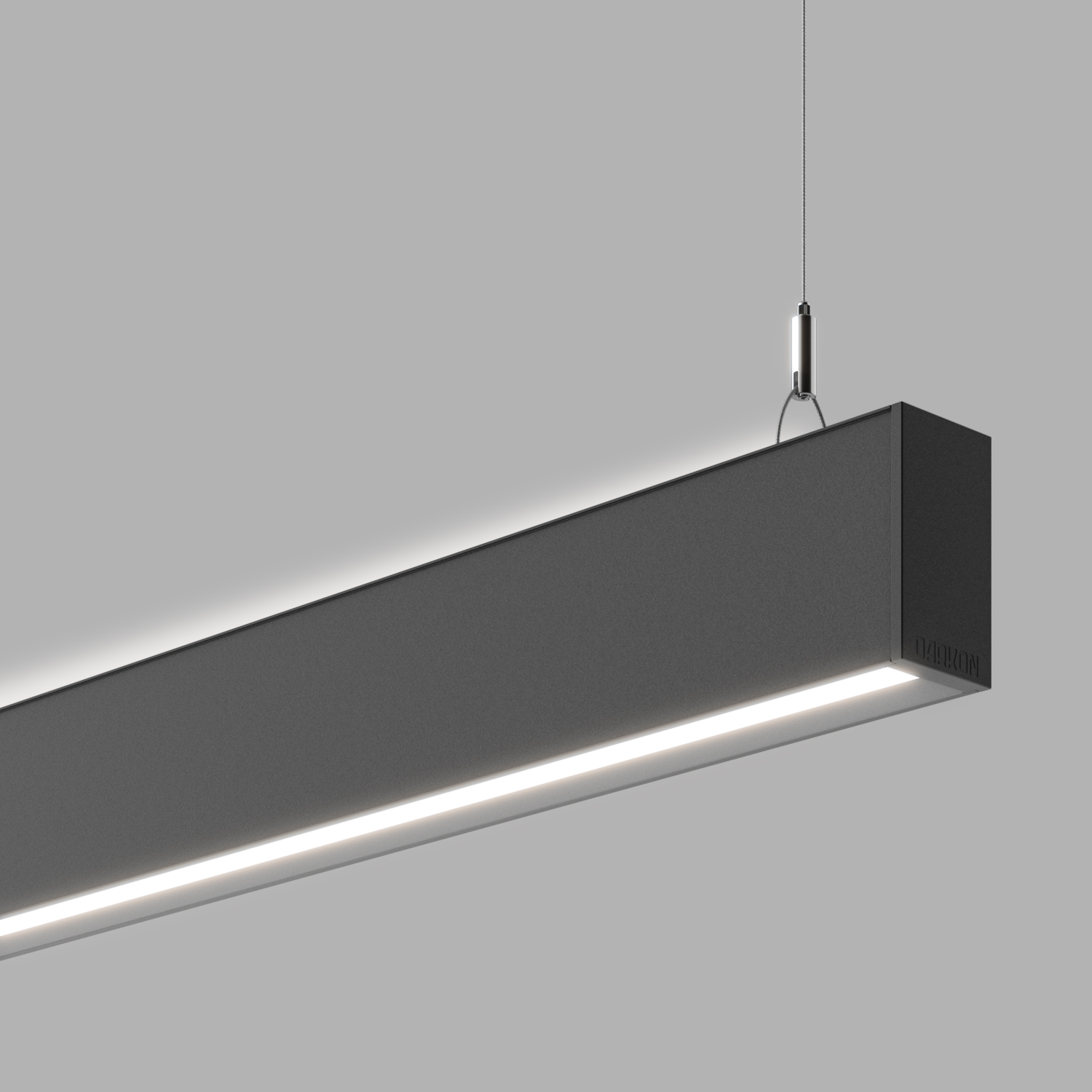

Slim Tradie UP SUS is a suspended profile with both up & downward illumination. It is part of the slim range utilising the slim 40mm lens and uses the light tray 40 LED with Tridonic Linear Light Engine HE or HO LED boards. It features a sliding ‘Y’ suspension detail for adjustable suspension spacing, making install simpler and more versatile.
Sliding ‘Y’ sus detail for adjustable suspension spacing
Recessed lens to help reduce glare
Lap join milling for Light Bleed free joins
Integrated uplight
Low glare UGR≤19
Dot free homogeneous illumination
Multiple fixed output options
Multiple snap fit lens options
Zhaga compliant
Up to 95 exit lumens per system watt
90+ colour rendering, 80+ available upon request
High colour tolerance – MacAdam 3
L80 / F10 = 72,000 hours @ 450mA / 75°C TA
Complies with AS/NZS 60598.2.1
Detailed shop drawings
Australian made
Supplied 100% pre-built
Snap fit gear tray with integrated driver
Plug and play wire looms
Sprung loaded control joints
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
Miter joints available
Welded mitre joins eliminate light bleed
Factory fitted “push to join” installation
