Darkon Architectural Lighting

HIP TRIM RADII REC

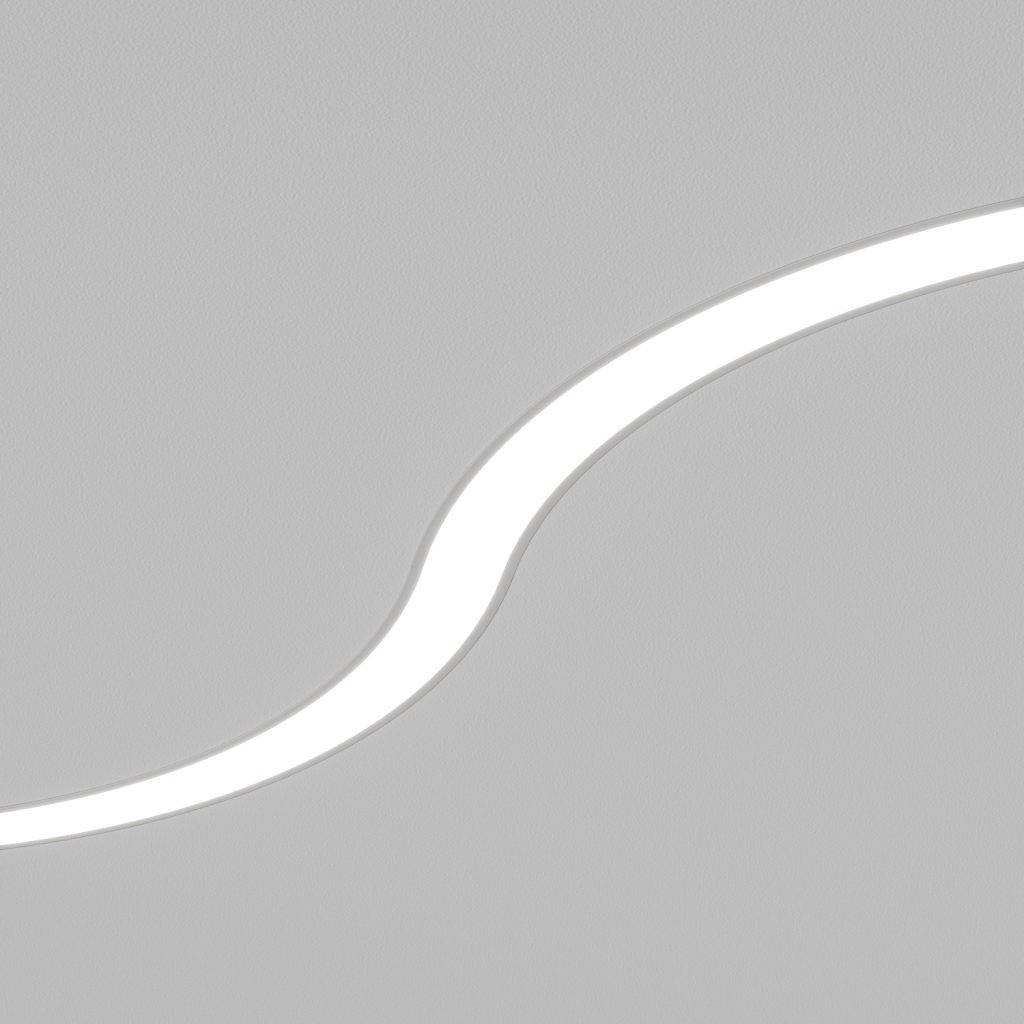

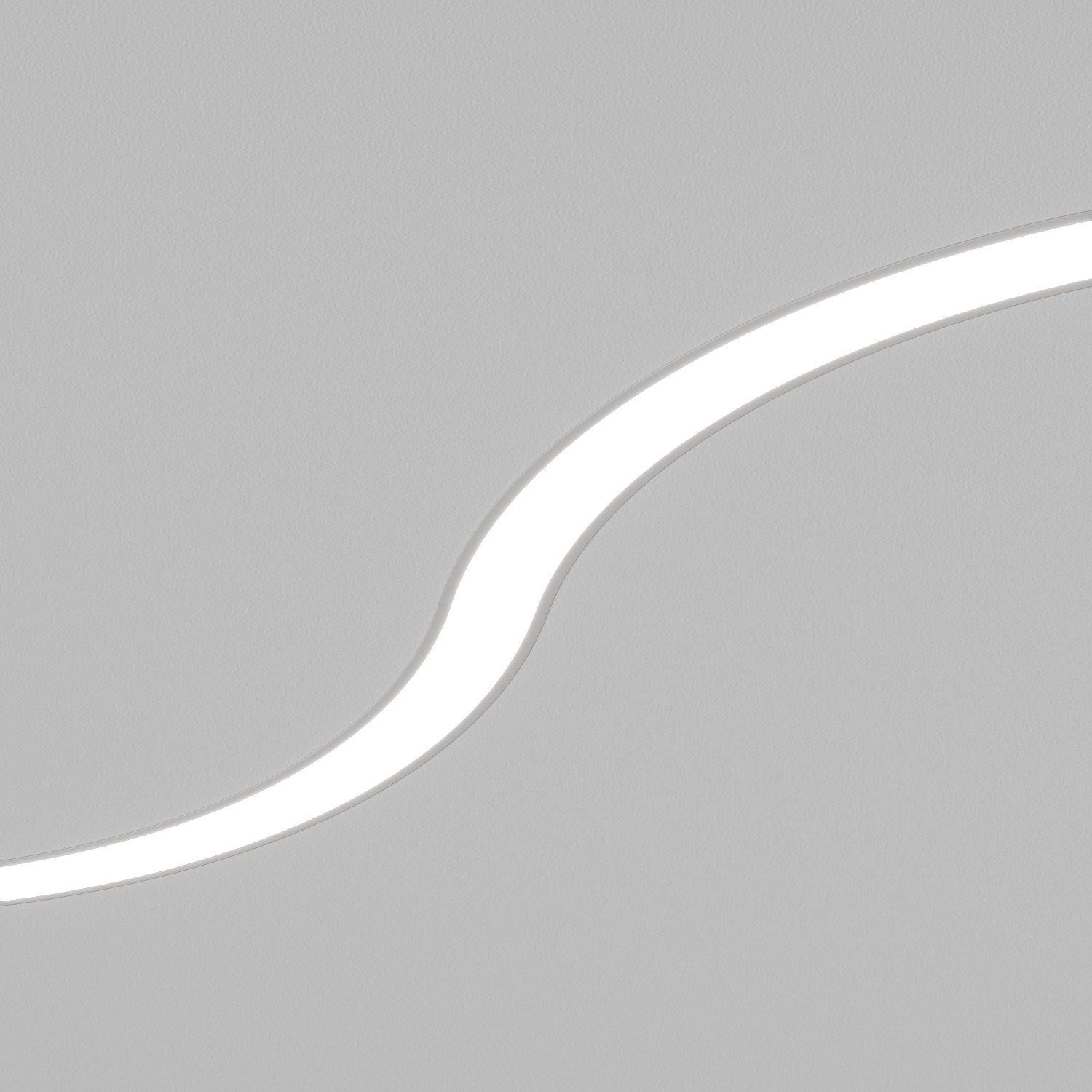

HIP TRIM RADII REC is a curved profile able to combine with linear lengths to achieve a variety of shapes and architectural effects. Available in a range of radii and angles, the combinations are virtually limitless.

Materials
Extruded aluminium body, machined aluminium end caps, extruded acrylic lens
Finish
White powdercoat / Black powdercoat (powdercoat finishes only)
Light Source
Tridonic STARK LED
Downloads
Design Features

Custom sizes available with tooling fee
Dot free homogeneous illumination
Lap join milling – No light bleed
Screwless end caps
Multiple fixed output options
Zhaga compliant LED
Up to 105 exit lumens per system watt
90+ colour rendering, 80+ available upon request
High colour tolerance Macadam 3
Complies with AS/NZS 60598.2.1
L80 / F10 = 72,000 hours @ 450mA / 75°C TA

Installation Features

Detailed shop drawings
Australian made
Supplied 100% pre-built
Plug and Play wire looms
5 year warranty
10 year extended warranty optional
Project specific labelling referencing type numbers
